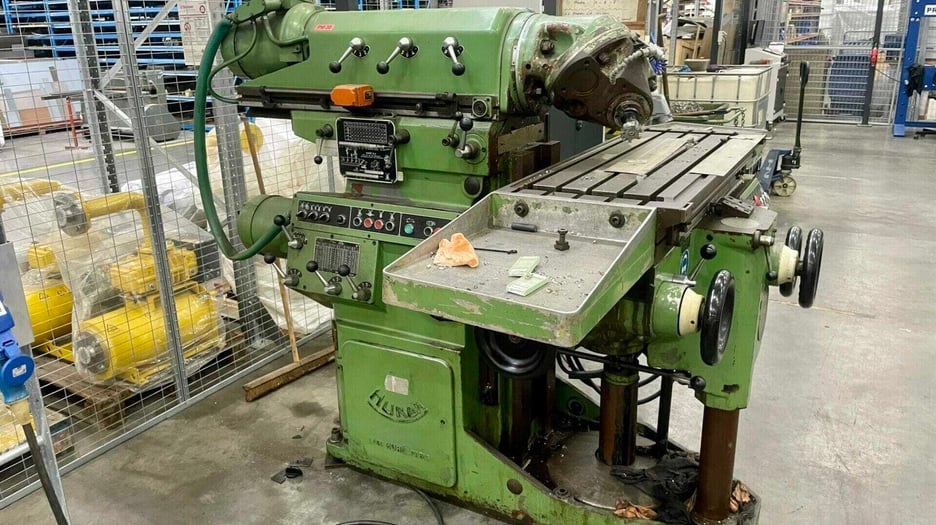

Used Huron NU4 Milling Machine | A.K. Machine Traders, Navi Mumbai, India

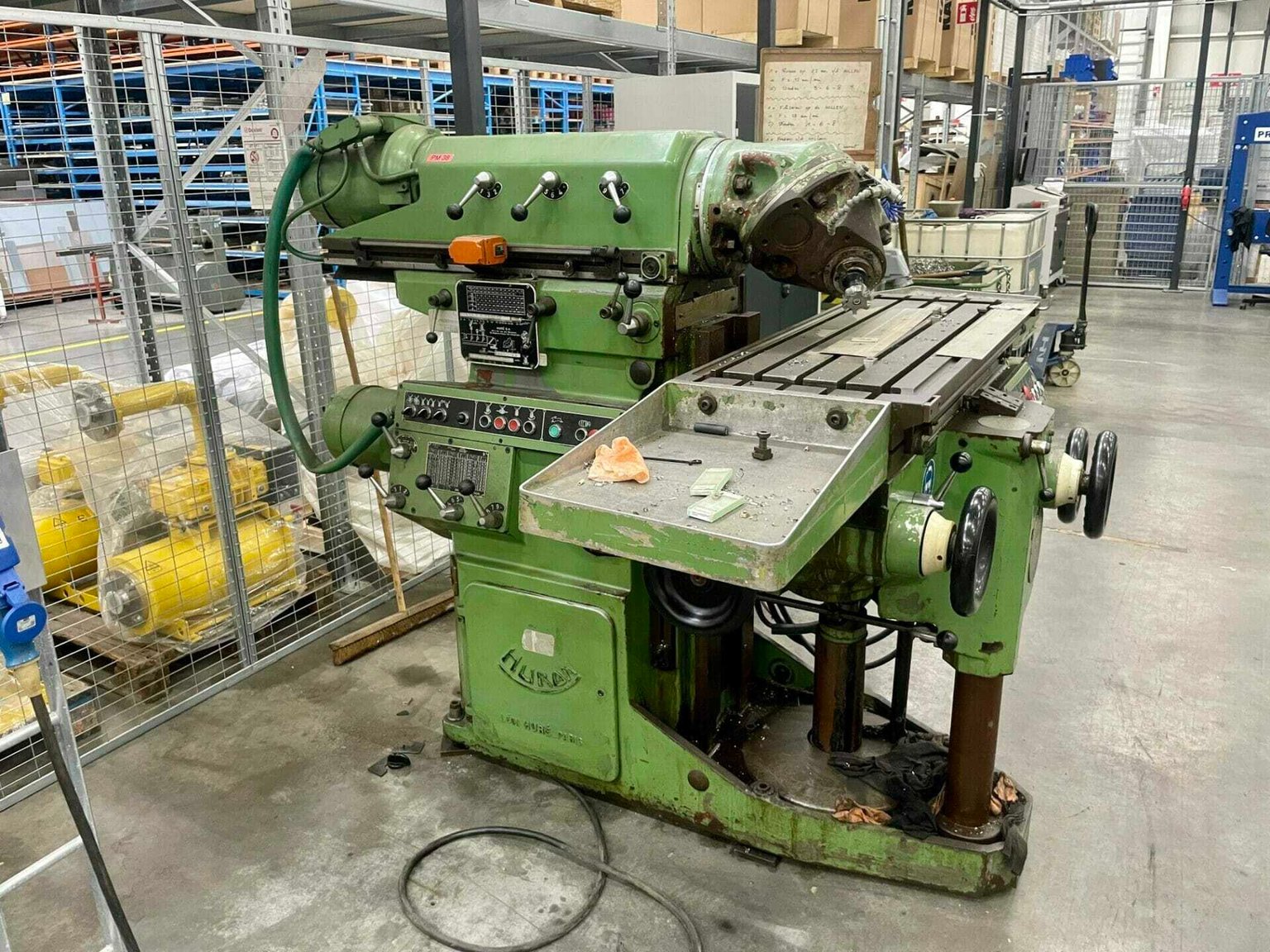

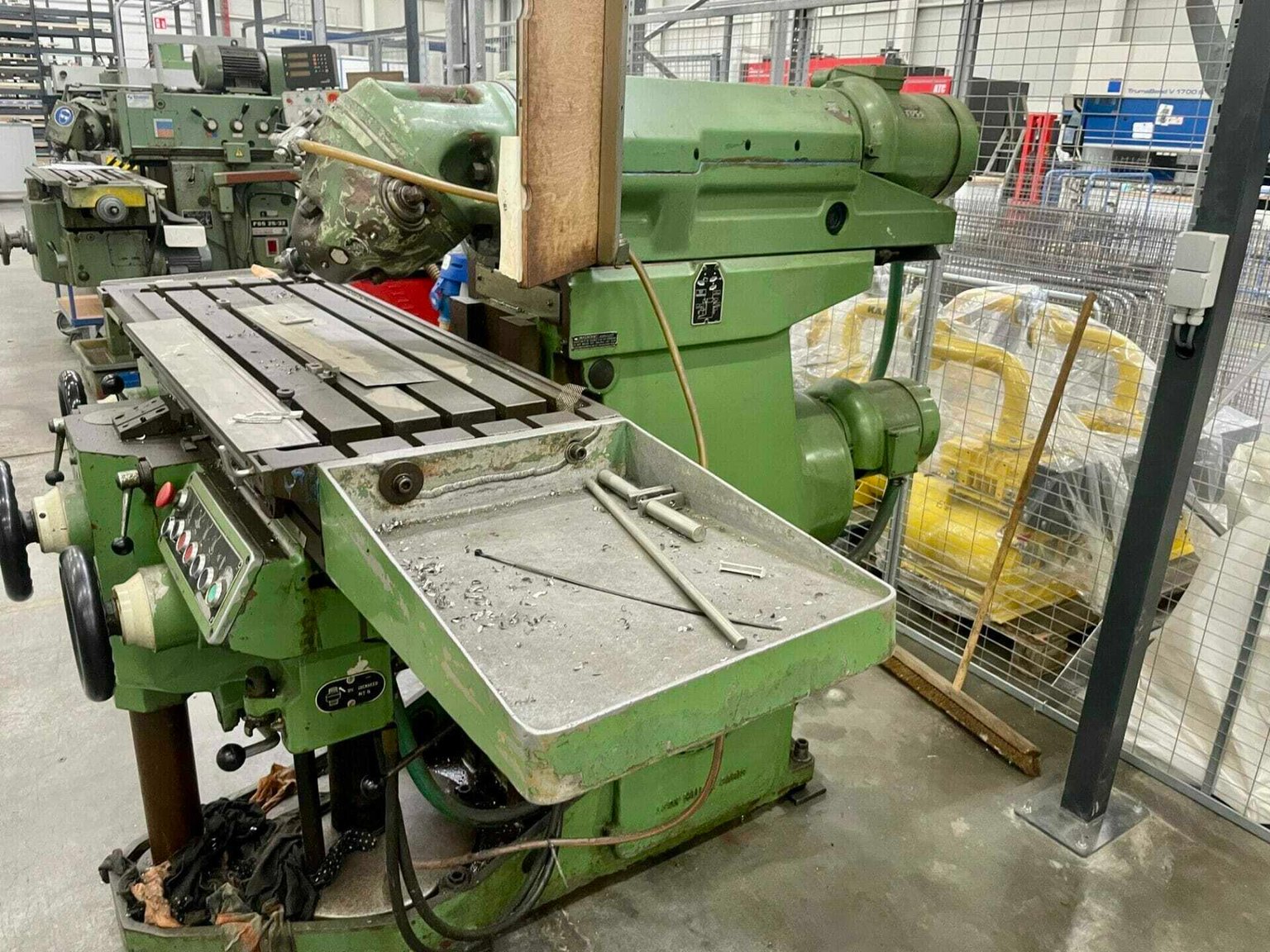

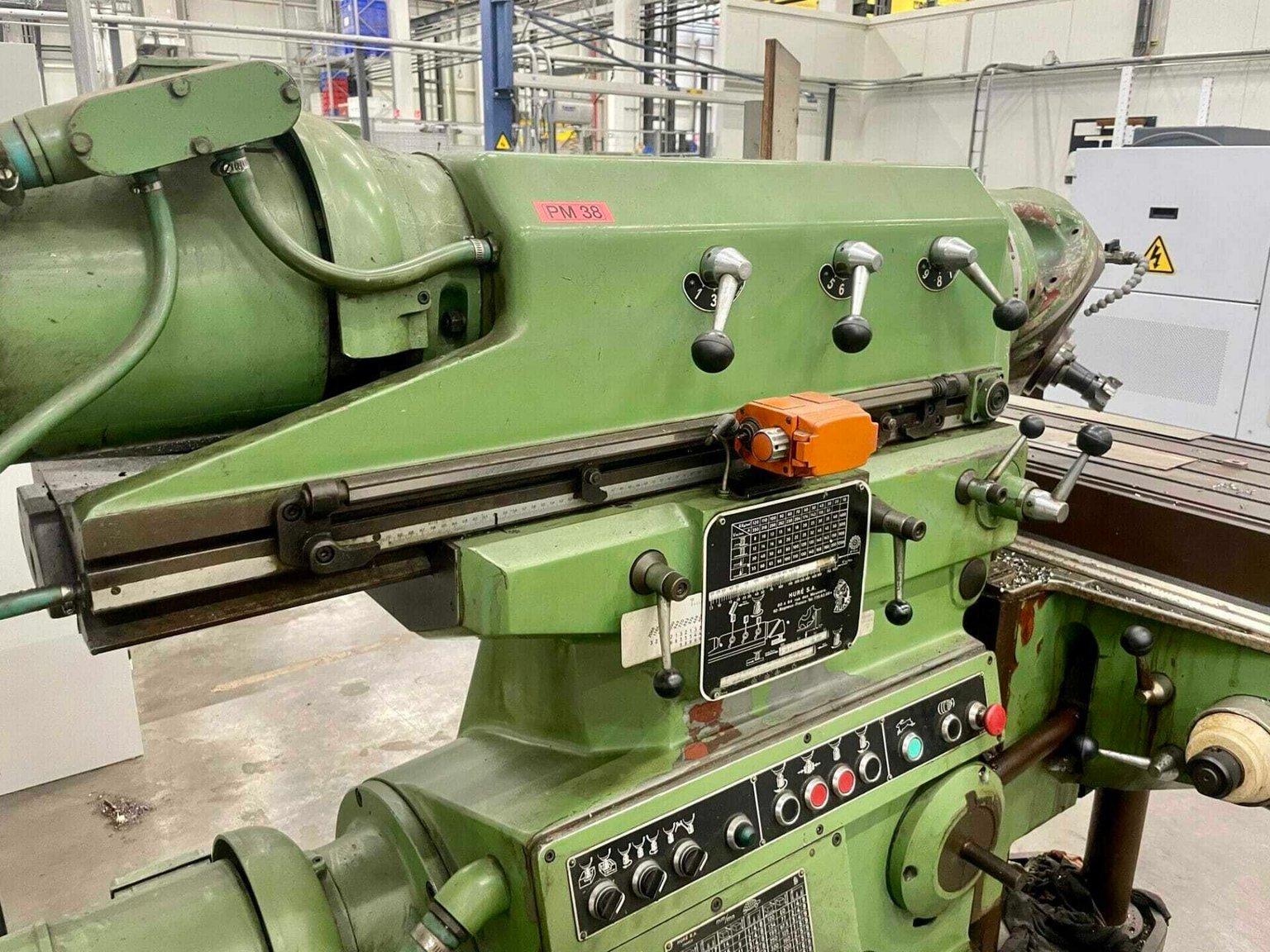

This used Huron NU4 milling machine is available from A.K. Machine Traders in Navi Mumbai, India. A milling machine cuts metal parts to shape with a rotating cutter.

It has travels of 1,100 mm in X, 700 mm in Y and 500 mm in Z, with an SK 40 spindle taper. The spindle head swivels 360° and the table surface measures 1,435 x 460 mm.

Key Features

• Spindle head swivels through 360°
• 27 spindle speed steps
• 27 feed steps

Technical Specifications

• Model: Huron NU4
• X-travel: 1,100 mm
• Y-travel: 700 mm
• Z-travel: 500 mm
• Distance spindle to table: 9–509 mm

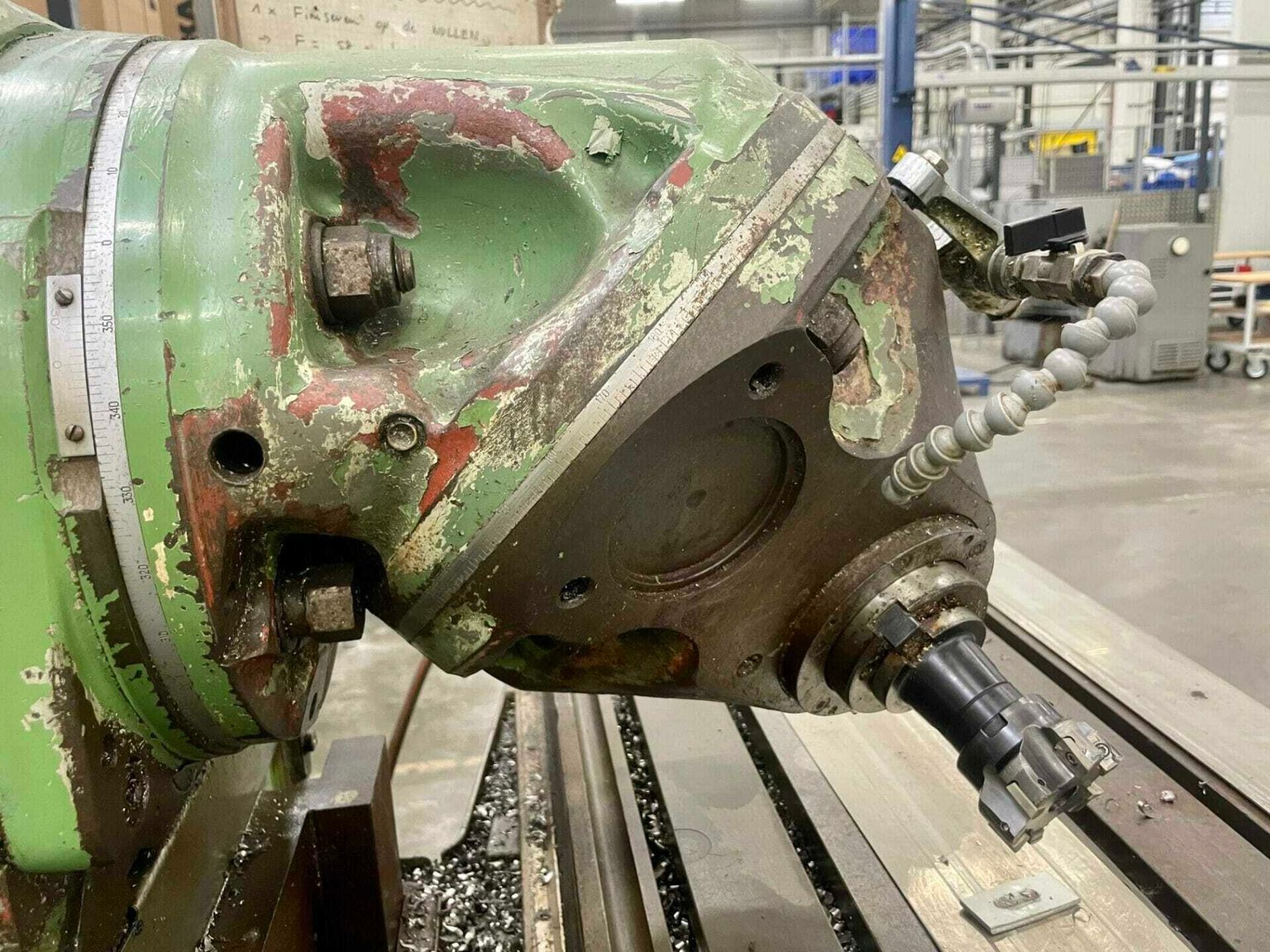

• Spindle head swivel: 360°
• Spindle taper: SK 40
• Spindle speed range: 30–2,066 rpm
• Spindle speed steps: 27

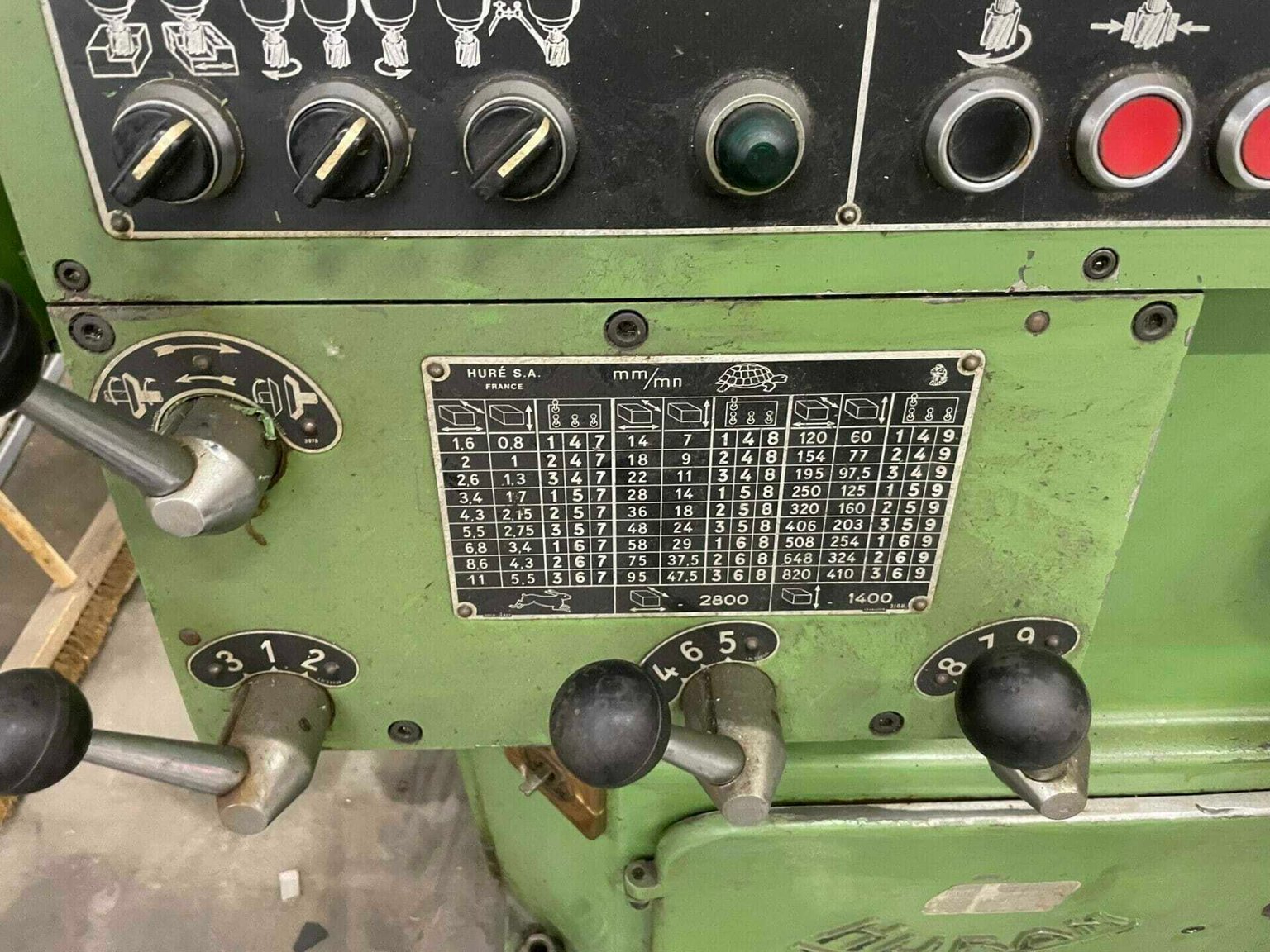

• Feed speeds: 1.6–820 mm/min
• Feed steps: 27

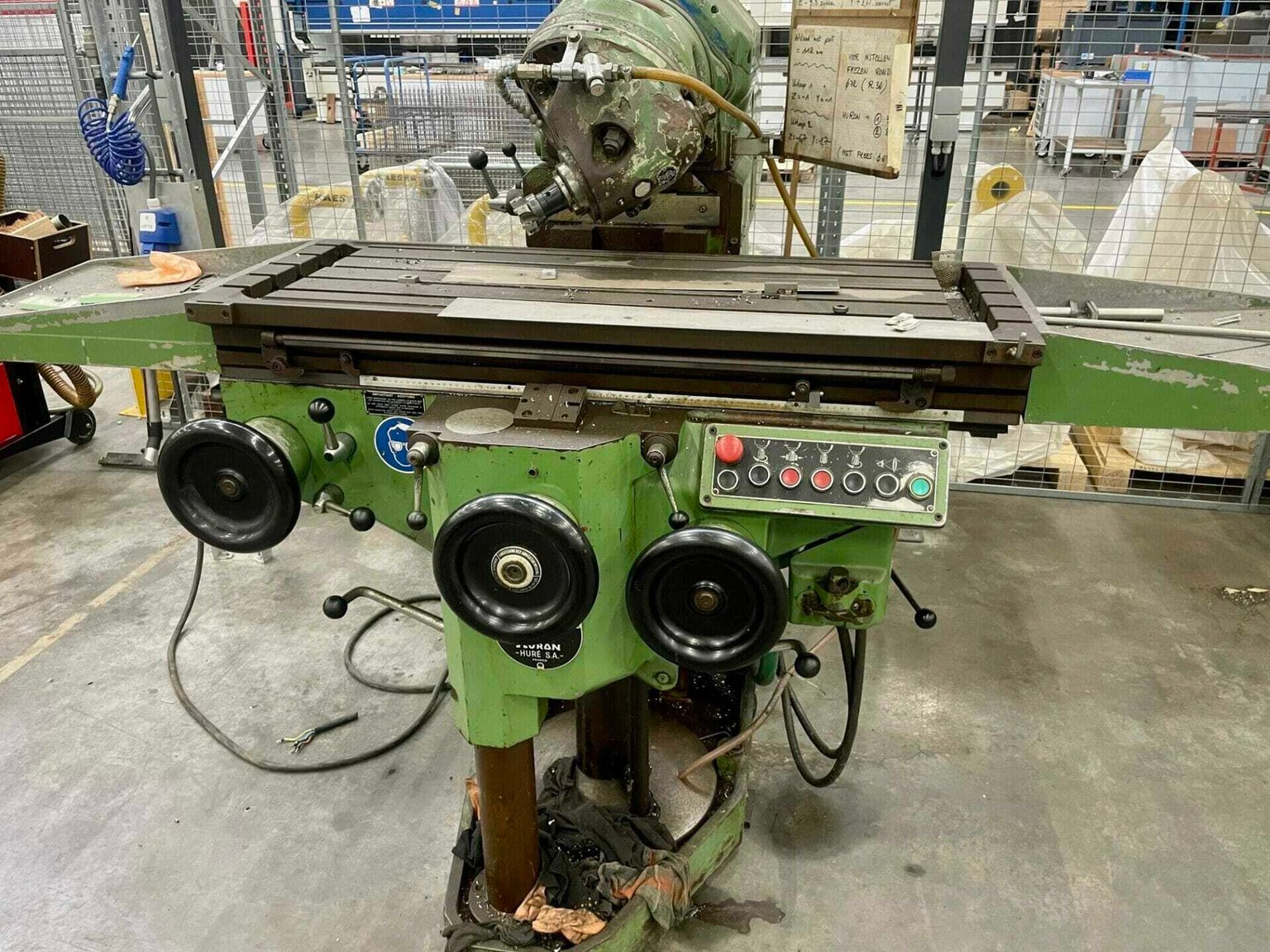

• Table surface: 1,435 x 460 mm
• Rapid traverse X and Y axes: 2.8 m/min
• Rapid traverse Z axis: 1.4 m/min
• Total power requirement: 10 HP
• Weight: approx. 3.1 t
• Dimensions: approx. 2.36 x 1.65 x 1.45 m (W x H x D)

Applications

• Machining flat and contoured surfaces on metal parts
• Toolroom and workshop milling
• Production of machine components and fixtures
• Drilling and boring operations in general engineering

Commercial Details

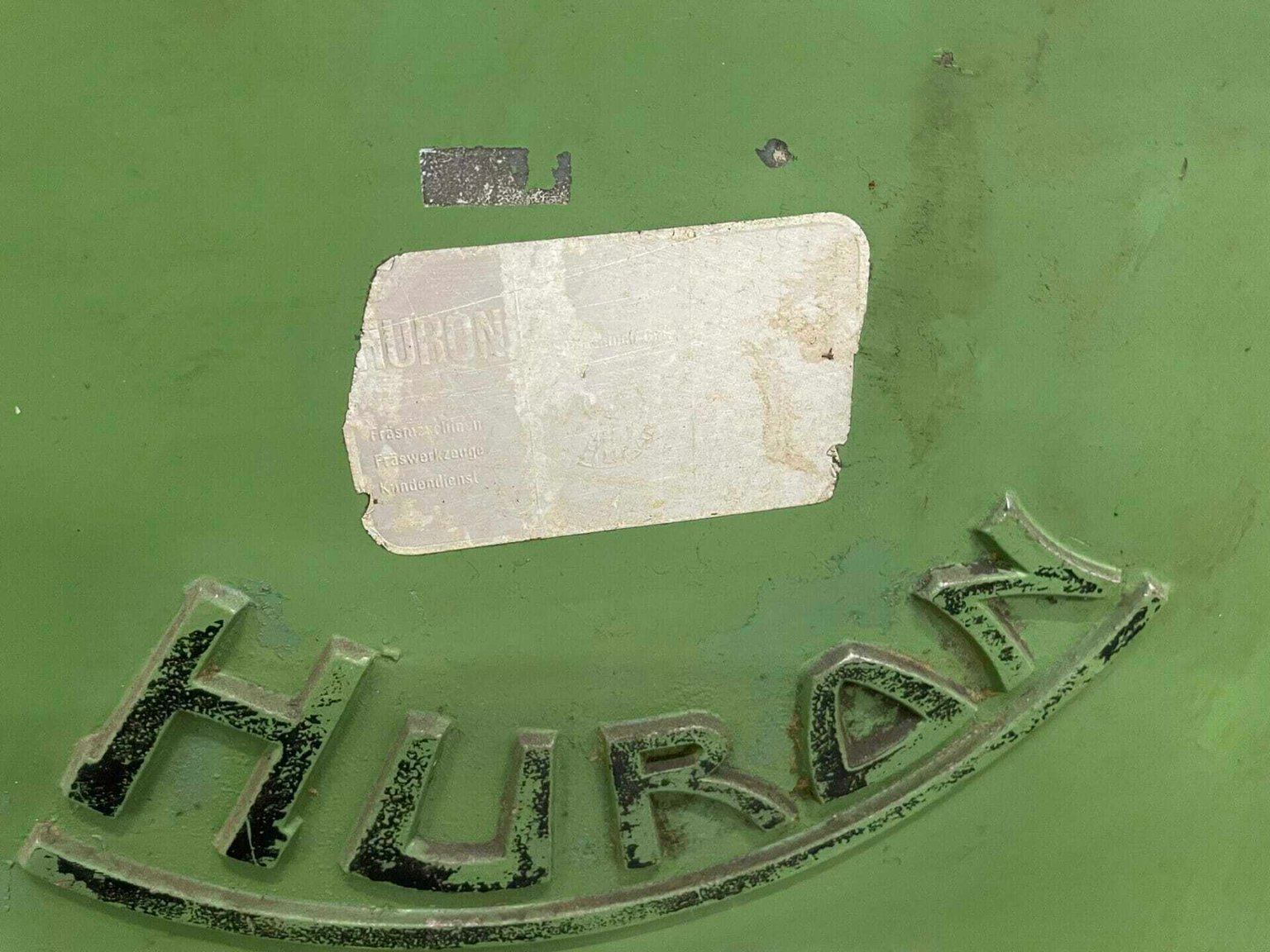

• Make: Huron
• Model: NU4
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What are the axis travels of the Huron NU4? The travels are 1,100 mm in X, 700 mm in Y and 500 mm in Z.
• What spindle speeds does it offer? The spindle runs from 30 to 2,066 rpm in 27 steps, with an SK 40 taper.
• How big is the table? The table surface measures 1,435 x 460 mm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection can be arranged. Confirm which accessories, tooling and attachments are included, the condition of the electrics and controls, and the loading and shipping arrangements.
