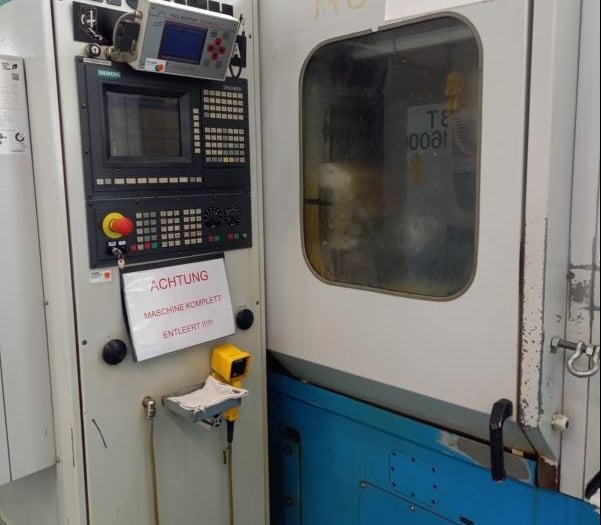

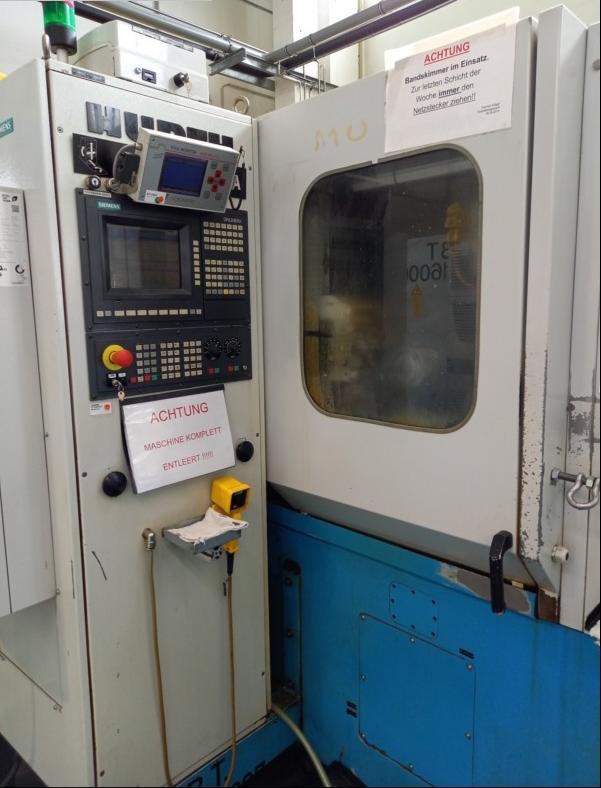

Used Hurth WF 80/130 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

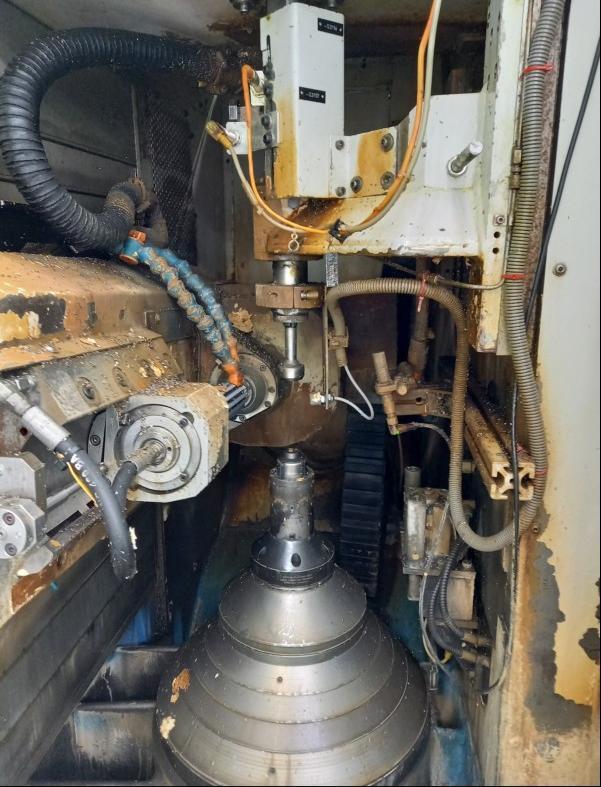

This used Hurth WF 80/130 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts teeth into gear blanks with a rotating hob.

It handles modules up to 3 mm and workpieces up to Ø130 mm, with a machining length of 200 mm. The cutter spindle runs at up to 3,500 rpm and the machine weighs 6.5 t.

Technical Specifications

• Model: Hurth WF 80/130

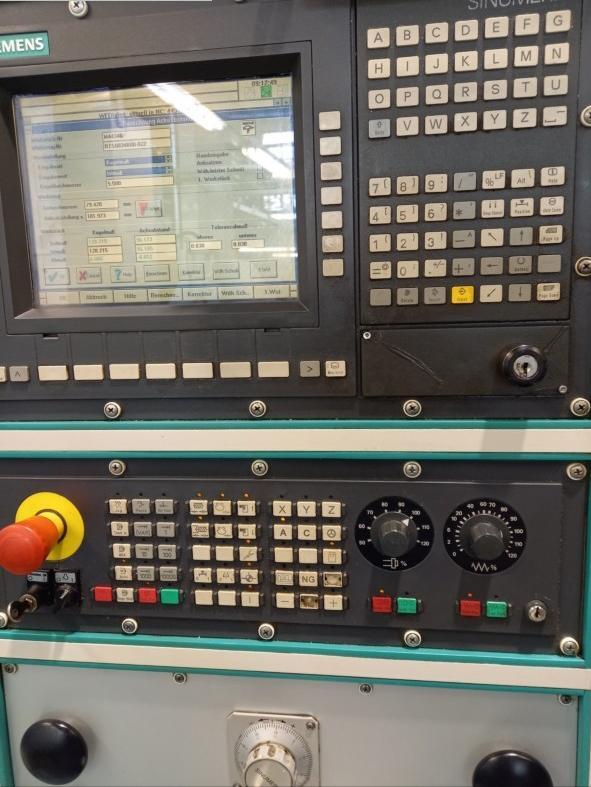

• Control: CNC
• Module: 3 mm
• Machining diameter: Ø130 mm
• Machining length: 200 mm
• Max. workpiece diameter: Ø130 mm
• Table diameter: 130 mm
• Cutter axis to table axis distance: 10–100 mm
• Cutter axis to table surface distance: 100–300 mm
• Max. cutter diameter: Ø80 mm
• Max. cutter length: 240 mm
• Milling speed: 3,500 rpm
• Tangential path: 200 mm
• Dimensions (L x W x H): 3.2 x 2.5 x 2.2 m
• Weight: 6.5 t

Applications

• Small spur and helical gears
• Gear shafts and pinions
• Transmission and gearbox components
• Automotive and general engineering gear parts

Commercial Details

• Make: Hurth
• Model: WF 80/130
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It takes workpieces up to Ø130 mm with a machining length of 200 mm, at modules up to 3 mm.
• What is the largest hob it accepts? The maximum cutter is Ø80 mm in diameter and 240 mm long.
• How fast does the cutter spindle run? The milling speed is 3,500 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling, fixtures and accessories are included, the CNC control and electrical details, and loading and shipping arrangements for its 6.5 t weight.
