Used Hurth WF10 Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

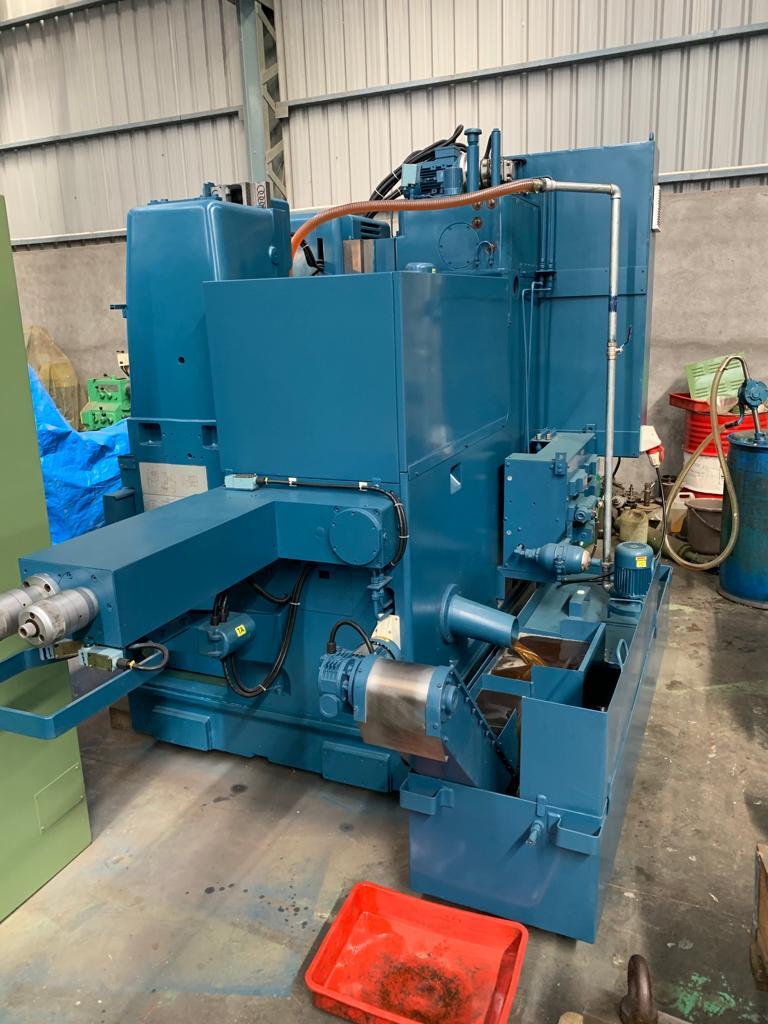

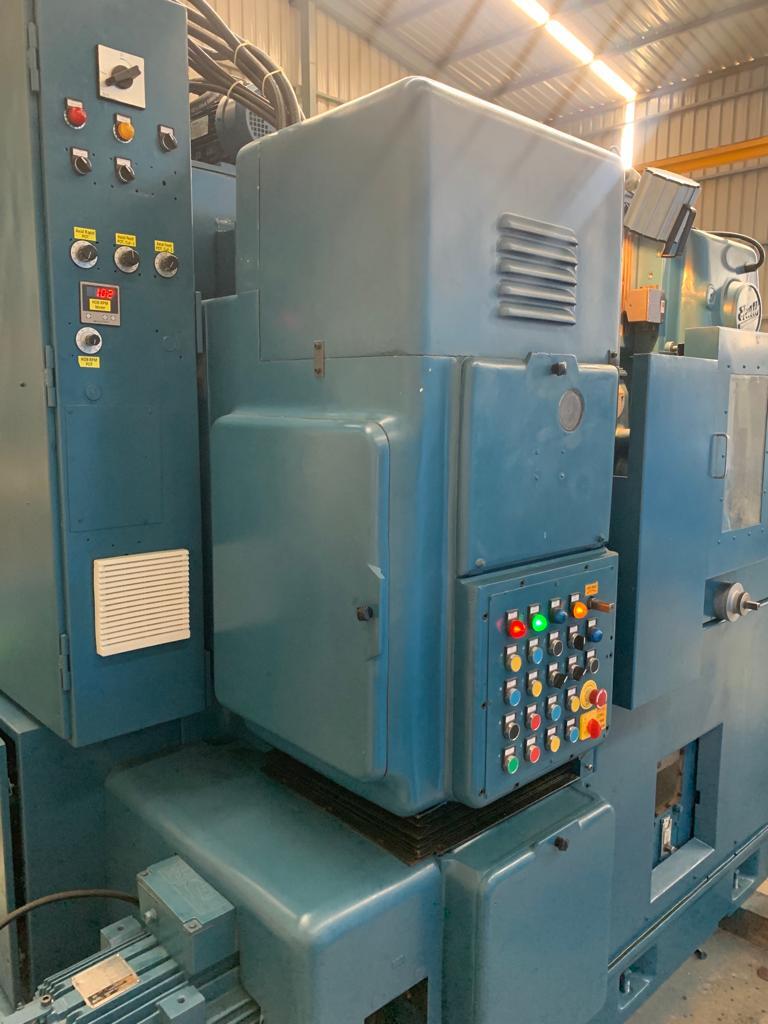

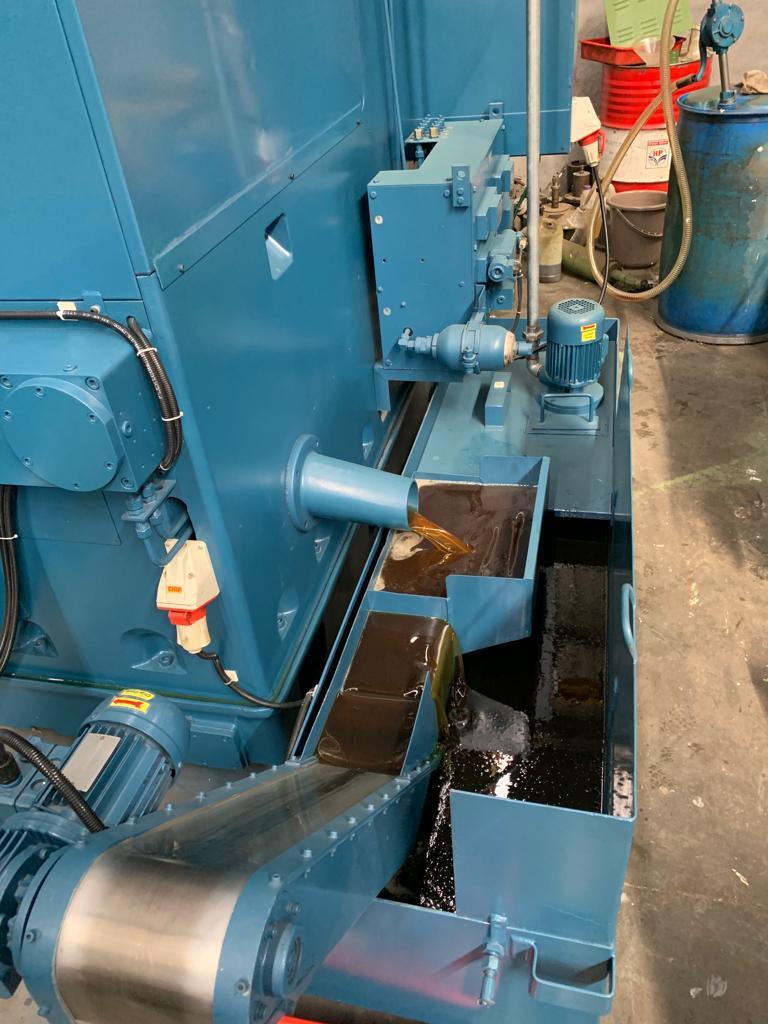

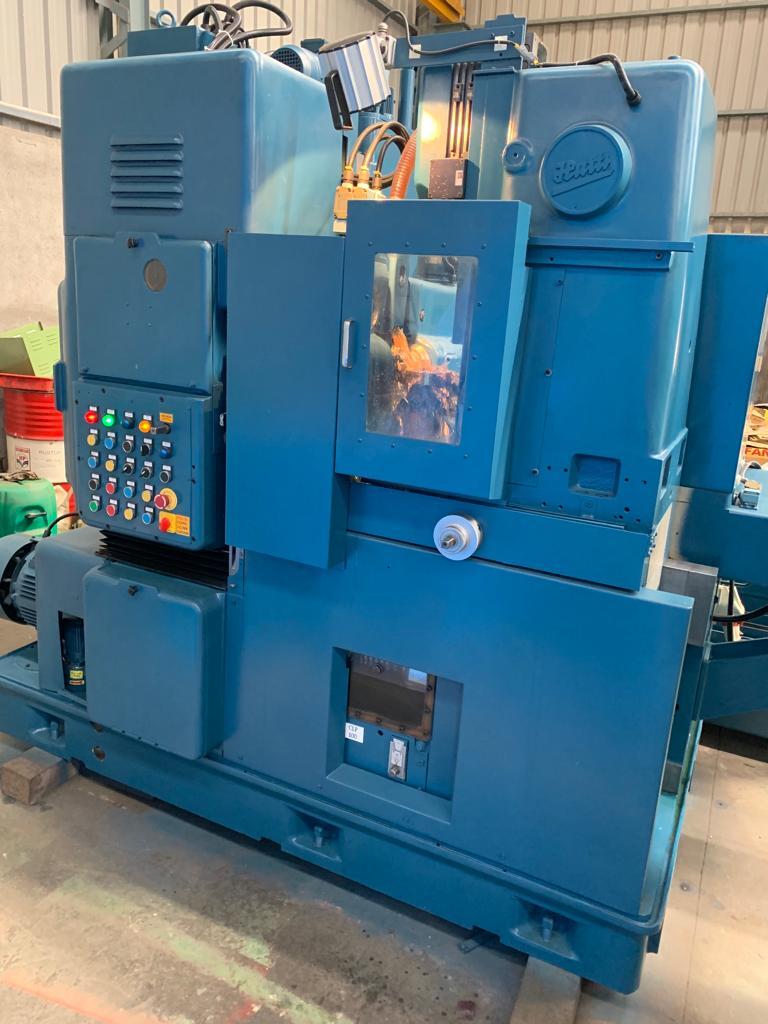

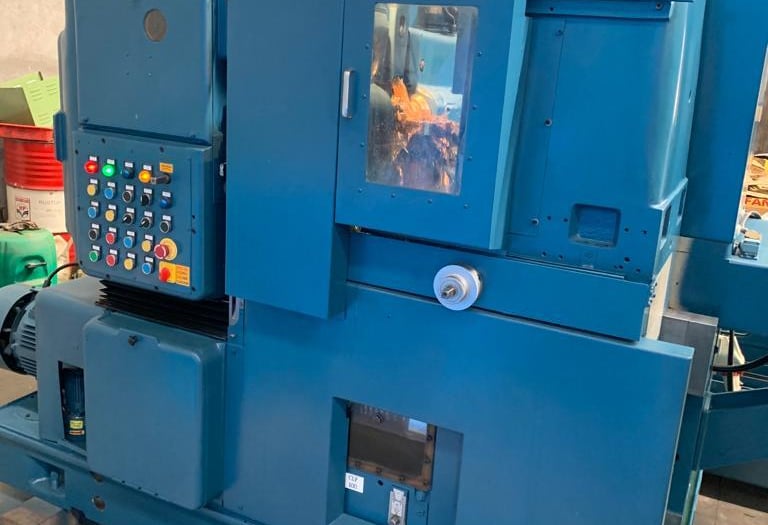

This used Hurth WF10 gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts teeth into gears and pinions.

It takes pinions up to 320 mm in diameter and 180 mm in length, with a maximum cutting module of 6. The tilting head swings ±45°, and rotation speed is 80–500 RPM.

Key Features

• Tilting head adjustable ±45°

Technical Specifications

• Model: WF10
• Max pinion diameter: 320 mm
• Max pinion length: 180 mm
• Max cutting module: 6
• Head tilt: ±45°
• Rotation speed: 80–500 RPM

Applications

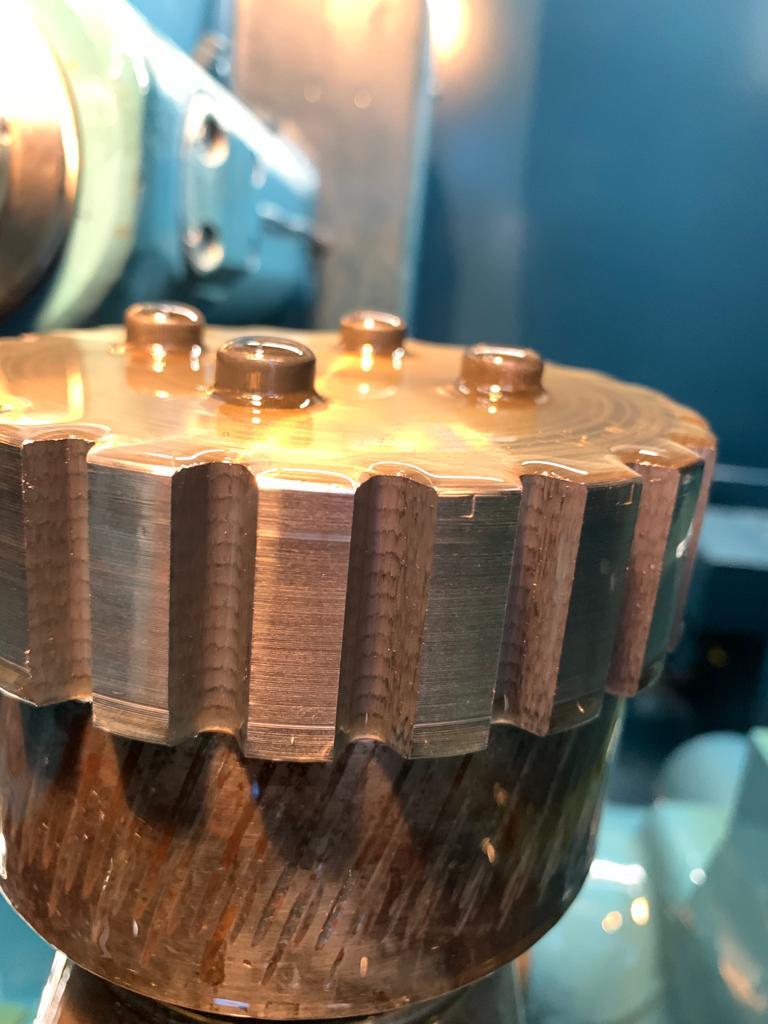

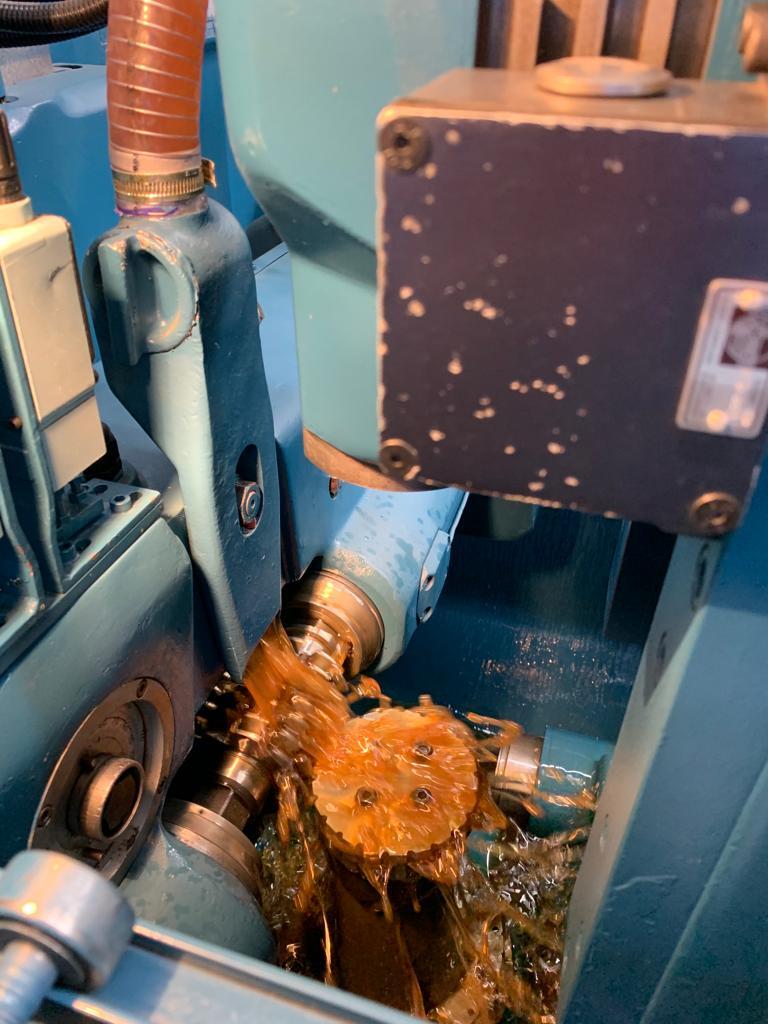

• Cutting spur gears and pinions
• Helical gear production
• Gearbox and transmission components
• General engineering and toolroom gear work

Commercial Details

• Make: Hurth
• Model: WF10
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of pinion can it cut? It handles pinions up to 320 mm in diameter and 180 mm in length.
• What is the maximum module? The maximum cutting module is 6.
• What is the head tilt range and speed range? The head tilts ±45° and rotation speed is 80–500 RPM.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which hobs, change gears and fixtures are included, the condition of the control and electrics, and loading and shipping arrangements.
