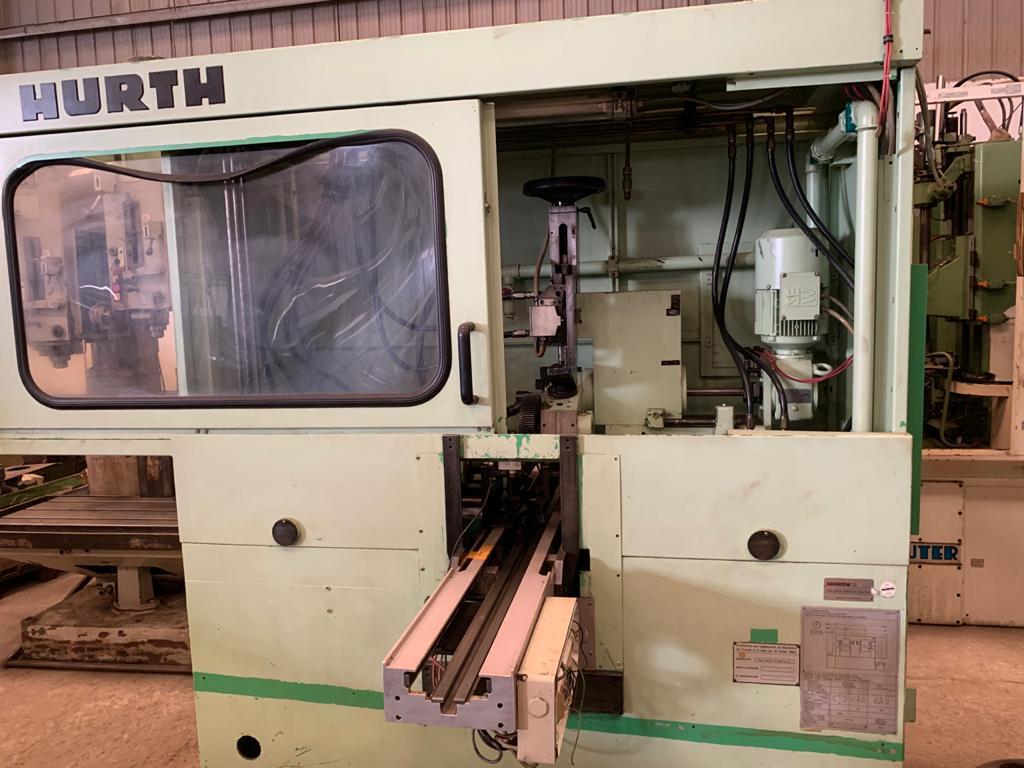

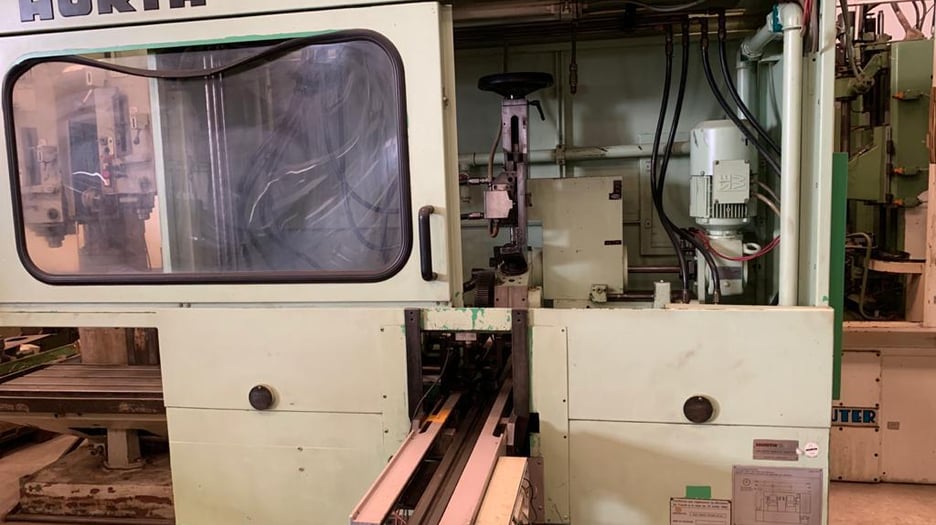

Used Hurth ZEA 1 Gear Deburring Machine | A.K. Machine Traders, Navi Mumbai, India

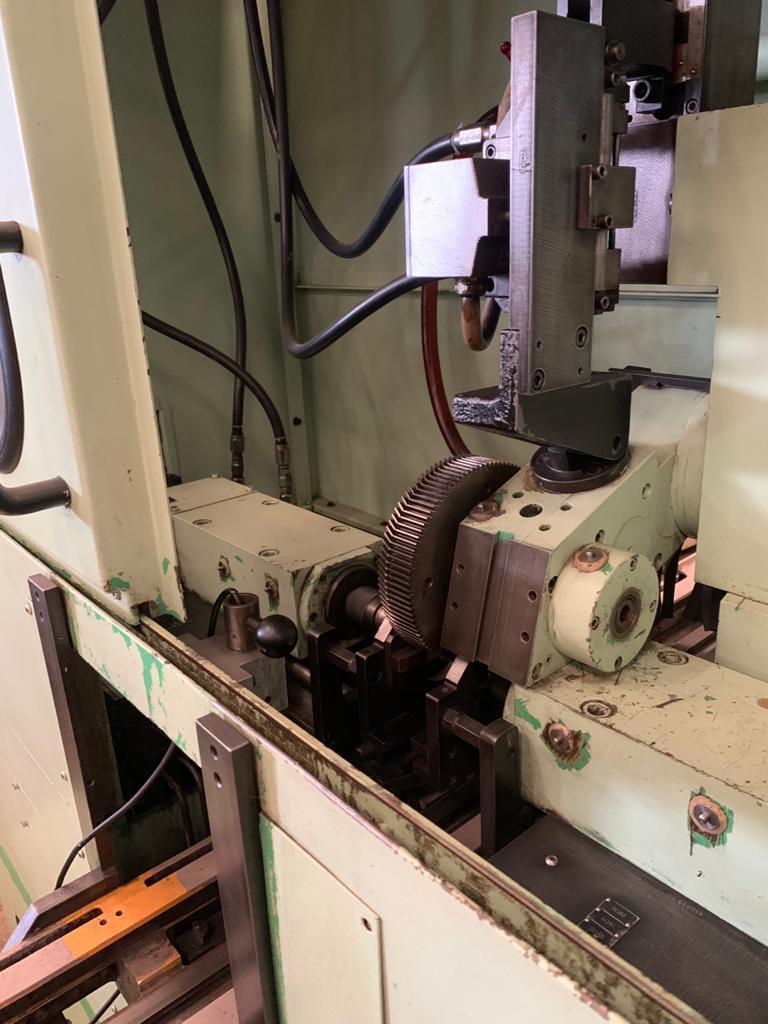

This used Hurth ZEA 1 gear deburring machine is available from A.K. Machine Traders in Navi Mumbai, India. It removes burrs from the edges of gear teeth after the teeth have been cut.

It handles gear wheels of 25–175 mm diameter and 80 mm wheel width, in modules from 0.8 to 5. Workpieces can be up to 150 mm long, and the spindle speed is stepless from 50 to 250 rpm.

Key Features

• Stepless speed adjustment
• Tailstock with 25 / 70 mm travel

Technical Specifications

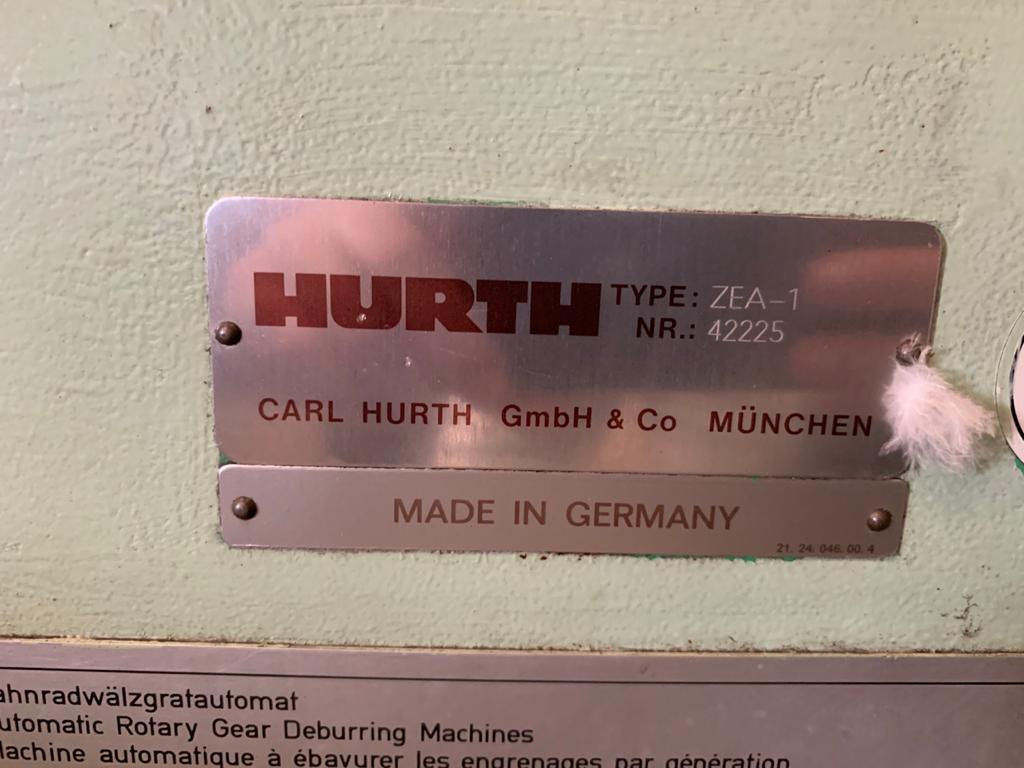

• Model: Hurth ZEA 1
• Machine type: Gear deburring machine
• Gear wheel diameter: 25–175 mm
• Wheel width: 80 mm
• Module range: 0.8–5
• Max. workpiece length: 150 mm
• Speed range (stepless): 50–250 rpm
• Tailstock travel: 25 / 70 mm
• Total power requirement: 8 kW
• Overall dimensions: 3.2 x 2.2 x 2.9 m
• Weight: 2.5 t

Applications

• Deburring cut gear wheels after tooth cutting
• Finishing gears for gearboxes and transmissions
• Edge preparation of gears before heat treatment or further finishing

Commercial Details

• Make: Hurth
• Model: ZEA 1
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What gear sizes can it deburr? It takes gear wheels of 25–175 mm diameter, up to 80 mm wide and 150 mm long, in modules 0.8 to 5.
• What is the speed range? The speed is stepless from 50 to 250 rpm.
• What power and space does it need? Total power requirement is 8 kW, and the machine measures 3.2 x 2.2 x 2.9 m and weighs 2.5 t.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling and workholding are included, the condition of the control and electrics, and loading and shipping arrangements.
