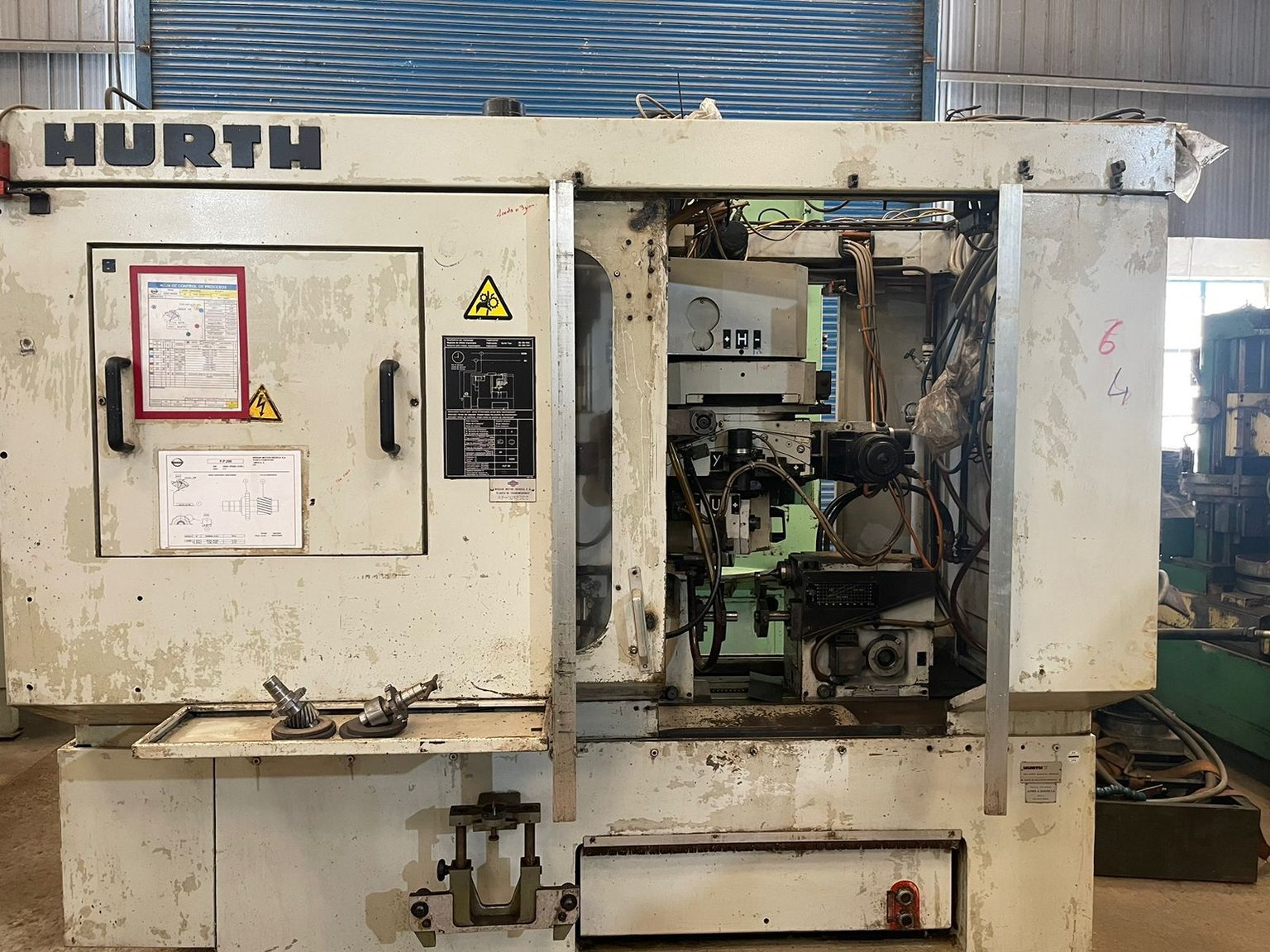

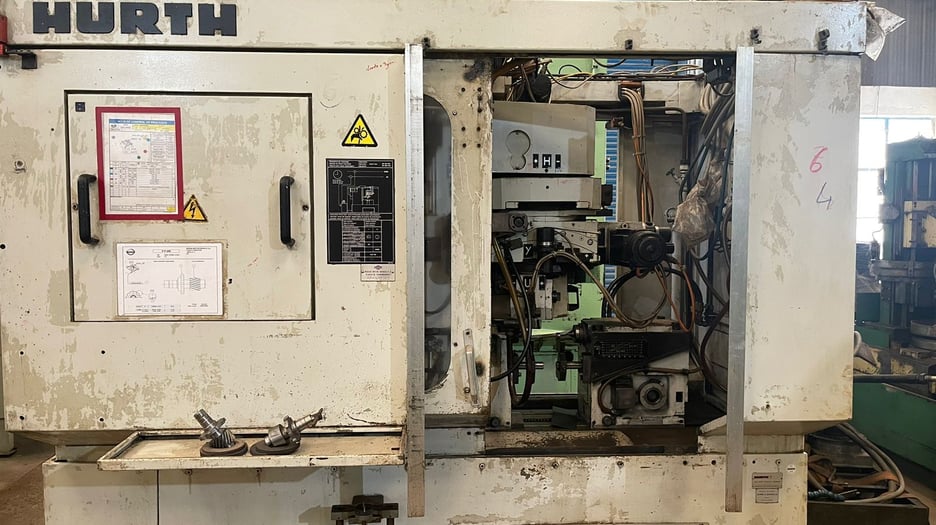

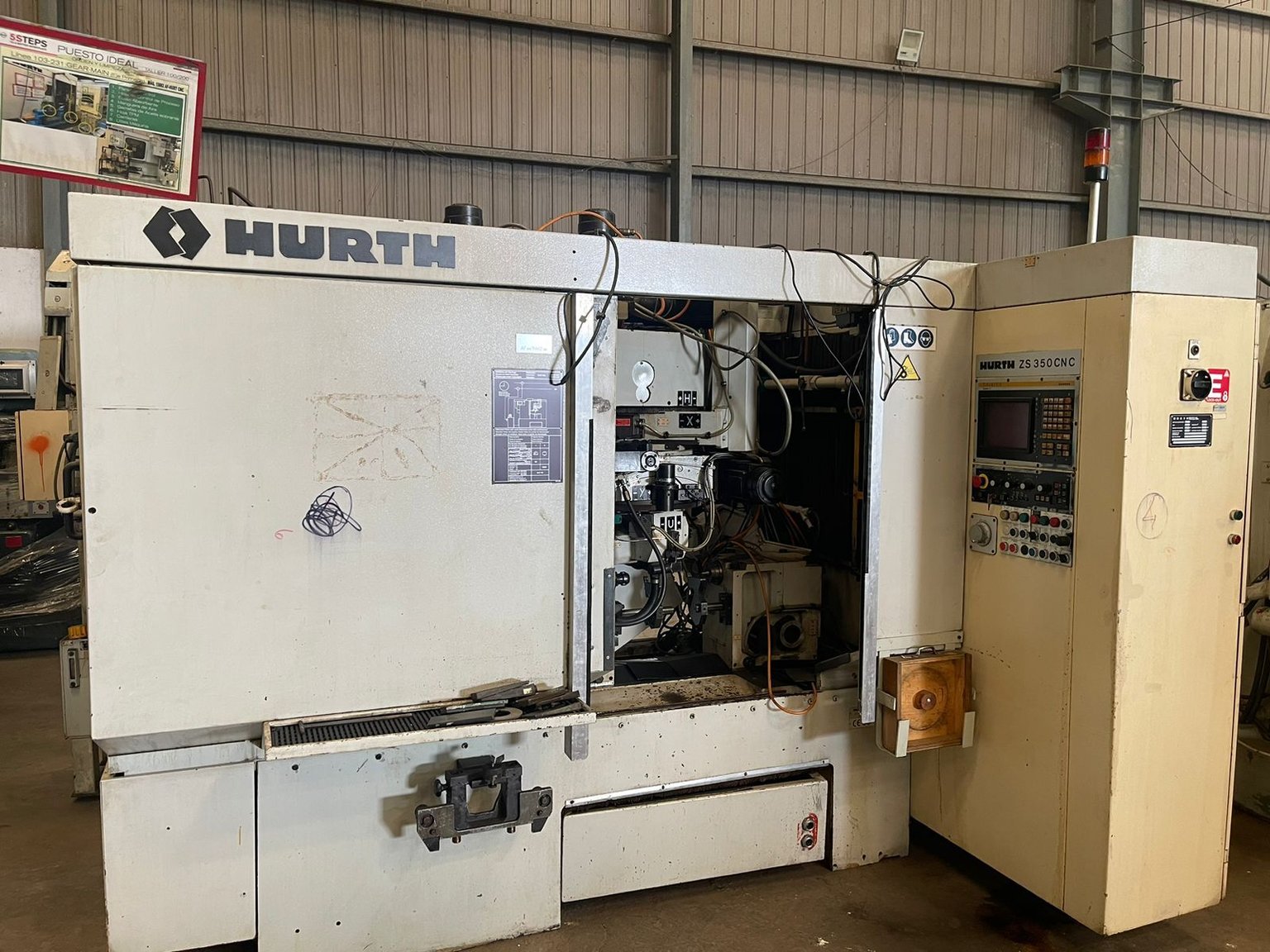

Used Hurth ZS 350 CNC Gear Shaving Machine | A.K. Machine Traders, Navi Mumbai, India

This used Hurth ZS 350 CNC gear shaving machine is available from A.K. Machine Traders in Navi Mumbai, India. Gear shaving is a finishing process for cut gear teeth.

It takes workpieces up to 390 mm in diameter and 50 mm wide, with a maximum spindle speed of 400 rpm and 35 kW of power. The machine is CNC controlled and weighs 5,700 kg.

Key Features

• CNC controlled

Technical Specifications

• Model: Hurth ZS 350
• Control: CNC
• Maximum wheel diameter: 390 mm
• Maximum wheel width: 50 mm
• Module range: 1 to 8
• Maximum spindle speed: 400 rpm
• Power: 35 kW
• Dimensions (L × W × H): 4,200 × 3,000 × 2,600 mm
• Weight: 5,700 kg

Applications

• Finishing cut gears for transmissions and gearboxes
• Automotive gear production
• General engineering gear manufacture

Commercial Details

• Make: Hurth
• Model: ZS 350
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size gears can it shave? It handles a maximum wheel diameter of 390 mm and a maximum wheel width of 50 mm.
• What module range does it cover? The module range is 1 to 8.
• Is it CNC controlled? Yes, it is a CNC machine with a maximum spindle speed of 400 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection can be arranged, which tooling, workholding and accessories are included, the condition of the CNC control and electrics, and how loading and shipping of the 5,700 kg machine will be handled.
