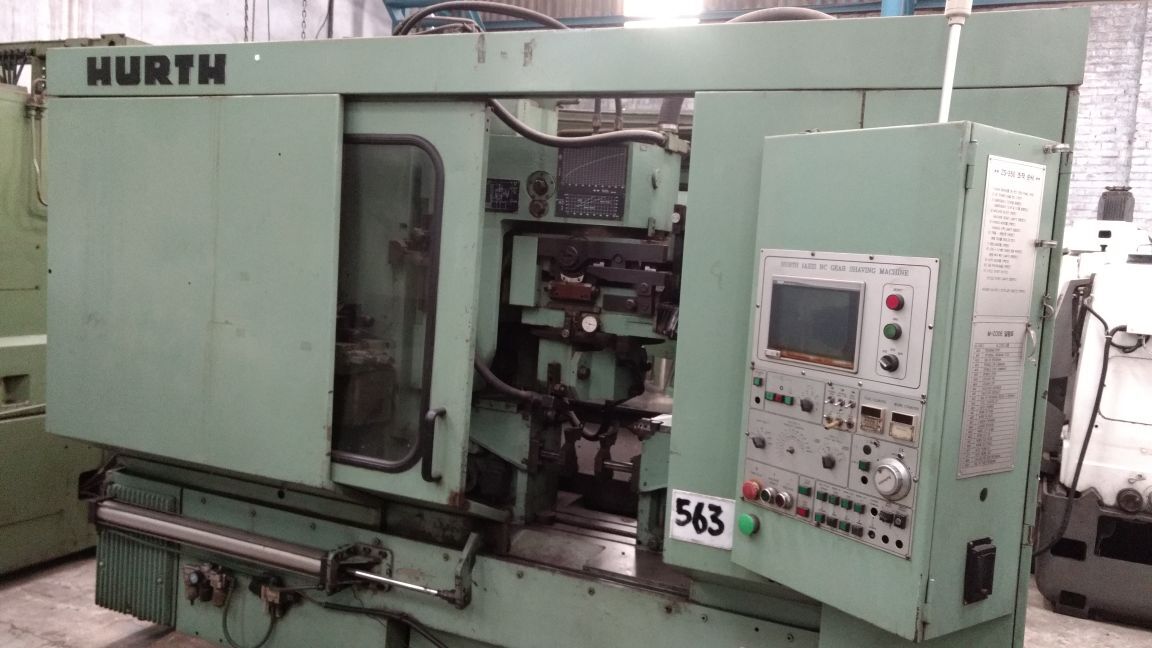

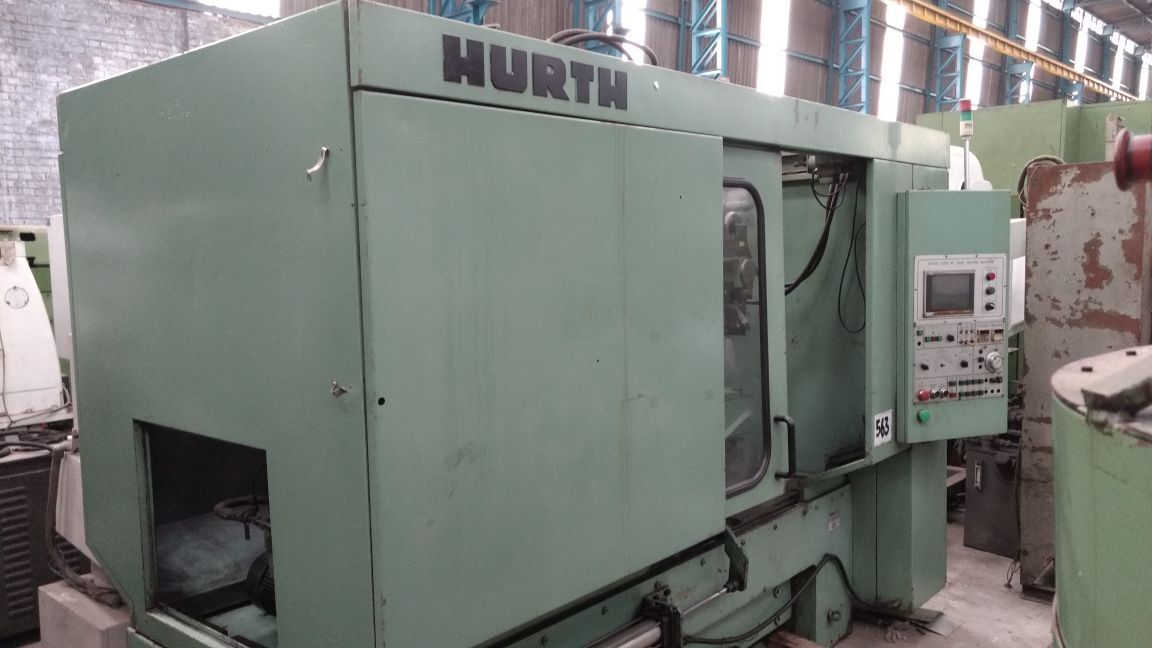

Used Hurth ZS 350 U Gear Shaving Machine | A.K. Machine Traders, Navi Mumbai, India

This used Hurth ZS 350 U gear shaving machine is available from A.K. Machine Traders in Navi Mumbai, India. Gear shaving is a finishing process that refines the tooth surfaces of cut gears.

It handles workpieces up to 350 mm in diameter and 150 mm gear width, in modules 1–8. The shaving cutter speed is hydraulically stepless at 45–300 rpm, with a feed of 20–900 mm/min.

Key Features

• Hydraulically stepless shaving cutter speed
• Swivelling range of 135°
• Shaving wheel head slewing range of ±25°

Technical Specifications

• Model: Hurth ZS 350 U
• Max. workpiece diameter: 350 mm
• Gear width: 150 mm
• Module range: 1–8
• Max. wheel diameter: 390 mm
• Shaving wheel diameter: 300 mm
• Shaving wheel width: 20–50.8 mm
• Shaving cutter speed (hydraulic, stepless): 45–300 rpm
• Feed: 20–900 mm/min
• Centre height: 350 mm
• Table surface area: 2,050 x 700 mm
• Swivelling range: 135°
• Shaving wheel head slewing range: ±25°
• Shaving wheel drive motor: 8.1 kW
• Electrics: 380 V, 50 Hz
• Total power requirement: 14 kVA
• Machine weight: approx. 5.7 t

Applications

• Finishing of transmission and gearbox gears
• Automotive gear production
• Finishing of cut gears in modules 1–8
• General engineering gear manufacture

Commercial Details

• Make: Hurth
• Model: ZS 350 U
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size gears can it shave? It takes workpieces up to 350 mm in diameter with gear widths up to 150 mm, in modules 1–8.
• What is the shaving cutter speed range? The cutter speed is hydraulically stepless from 45–300 rpm.
• What power supply does it need? It runs on 380 V, 50 Hz with a total power requirement of 14 kVA.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which tooling, shaving cutters and accessories are included, the condition of the control and electrics, and loading and shipping arrangements for its approx. 5.7 t weight.
