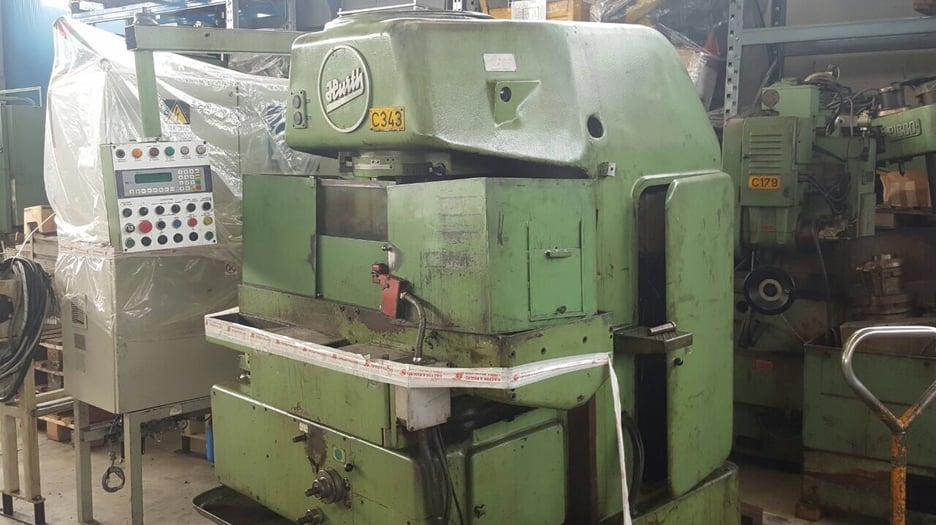

Used Hurth ZSA 220 Gear Shaving Machine | A.K. Machine Traders, Navi Mumbai, India

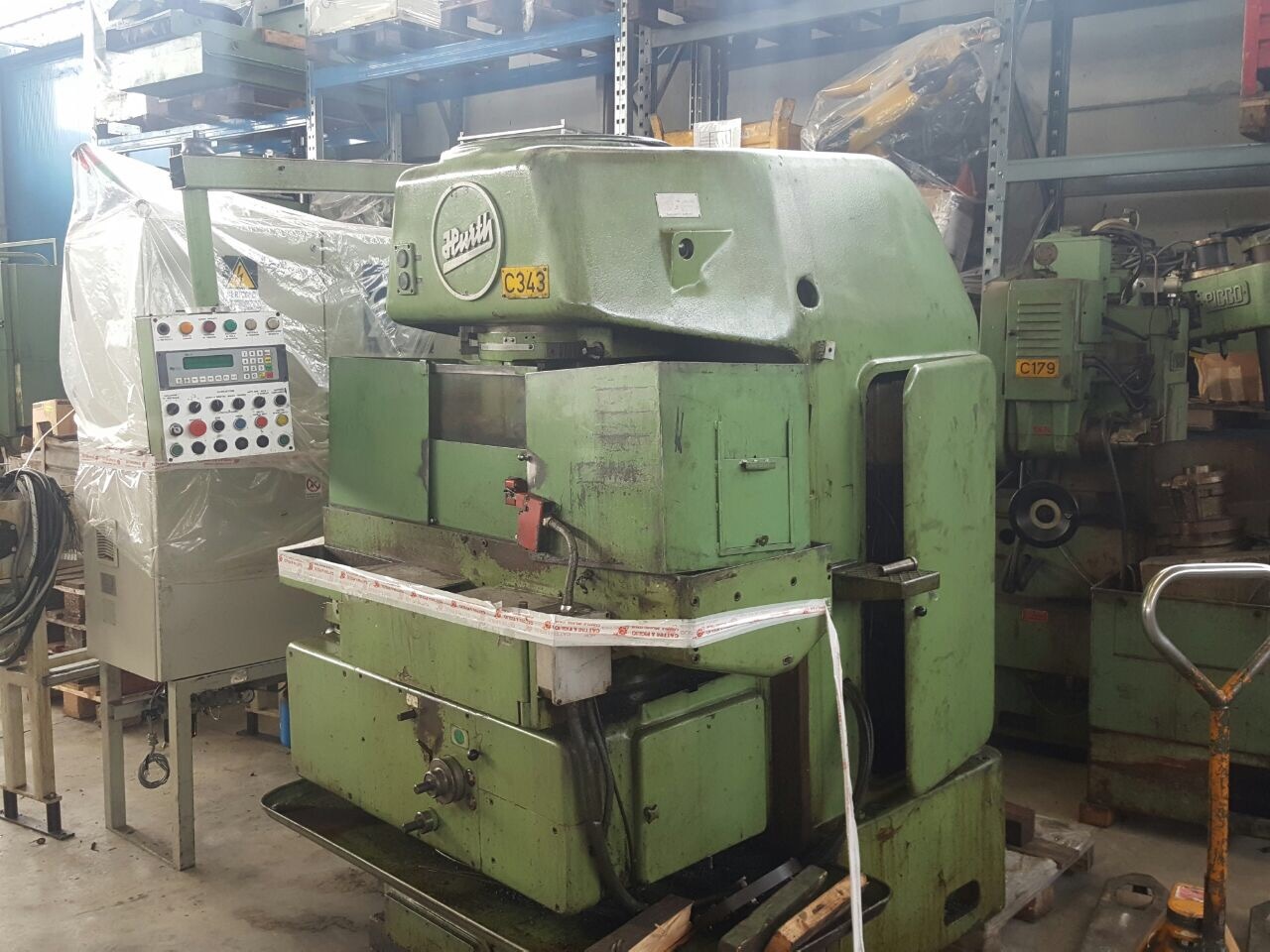

This used Hurth ZSA 220 gear shaving machine is available from A.K. Machine Traders in Navi Mumbai, India. Gear shaving is a finishing process for gear teeth.

It takes workpieces up to 220 mm in diameter and 150 mm long, at module 6. Total power is 3.5 kW, and the machine weighs 4,800 kg.

Key Features

• Magnetic chip conveyor
• Variable speed drive for the shaver
• Variable speed drive for the table
• Speed variator for plunge feed
• Hydraulic centre
• CE norms listed

Technical Specifications

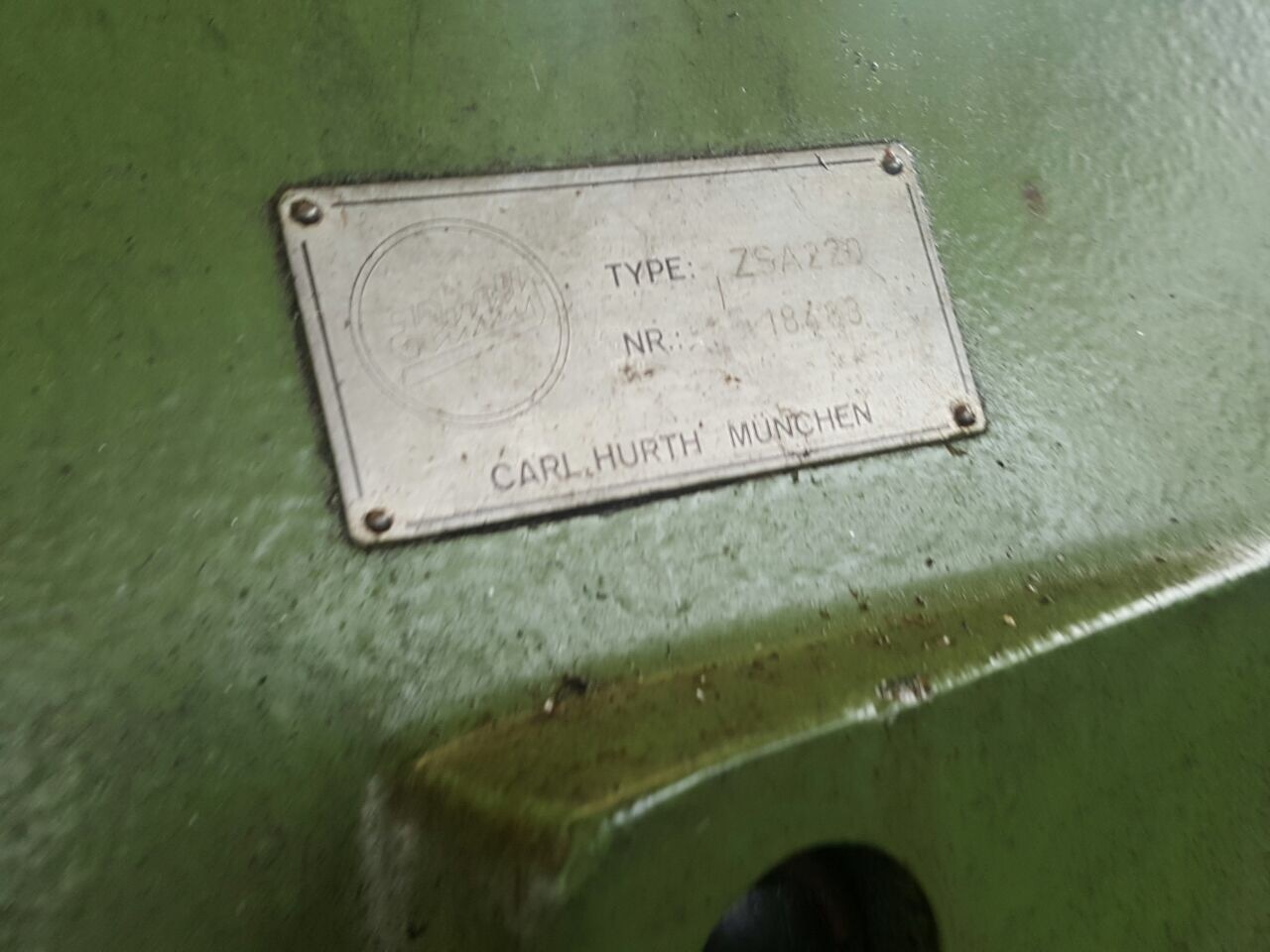

• Model: Hurth ZSA 220
• Cutter diameter: 260 / 175 mm
• Cutter length: 30 / 20 mm
• Workpiece diameter: 220 / 20 mm
• Maximum workpiece length: 150 mm
• Module: 6
• Total power: 3.5 kW
• Voltage: 220 / 380
• Machine dimensions: 1,600 x 1,600 x 2,000 mm
• Weight: 4,800 kg

Applications

• Finishing of gear teeth after cutting
• Production of transmission gears
• Shaving of gear shafts and gear blanks up to Ø220 mm

Commercial Details

• Make: Hurth
• Model: ZSA 220
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of workpiece can it handle? It handles workpieces up to 220 mm in diameter and up to 150 mm long, at module 6.
• What accessories are included? It comes with a magnetic chip conveyor, variable speed drives for the shaver and the table, a speed variator for plunge feed, and a hydraulic centre.
• What power does it need? Total power is 3.5 kW, with voltage listed as 220 / 380.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, which cutters and tooling are included, the condition of the control and electrics, and loading and shipping arrangements for its 4,800 kg weight.
