Used Hwacheon Hi ECO 45 CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

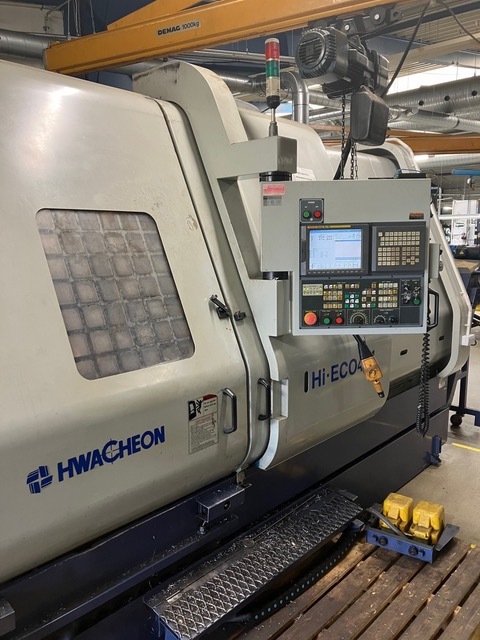

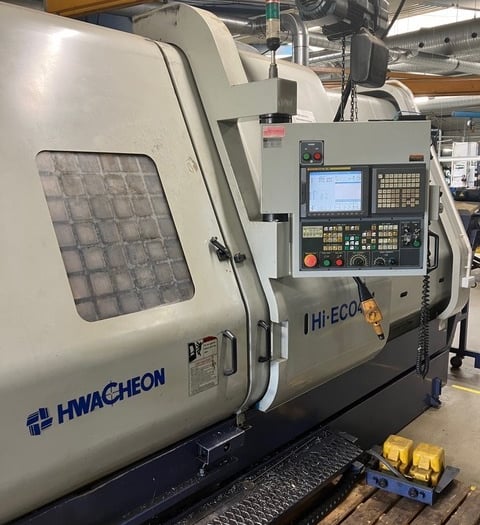

This used Hwacheon Hi ECO 45 CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. A CNC lathe turns round parts by rotating the workpiece against cutting tools.

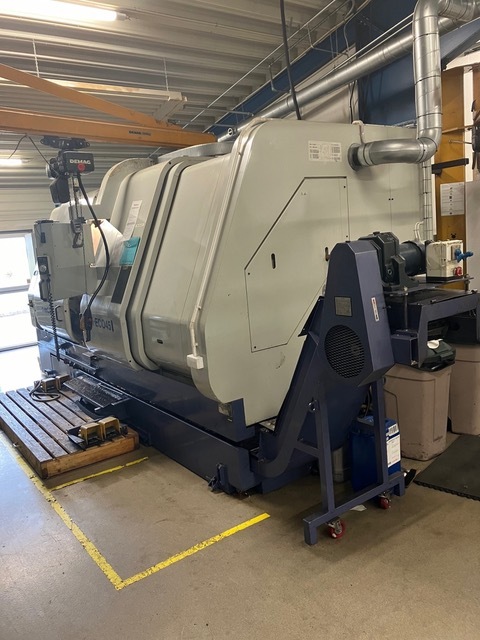

It is a long-bed machine with a maximum turning length of 2,000 mm and a maximum turning diameter of 630 mm. It has a 12-position turret, a 50 HP spindle motor and a Fanuc 18iT control, and a tailstock is fitted.

Key Features

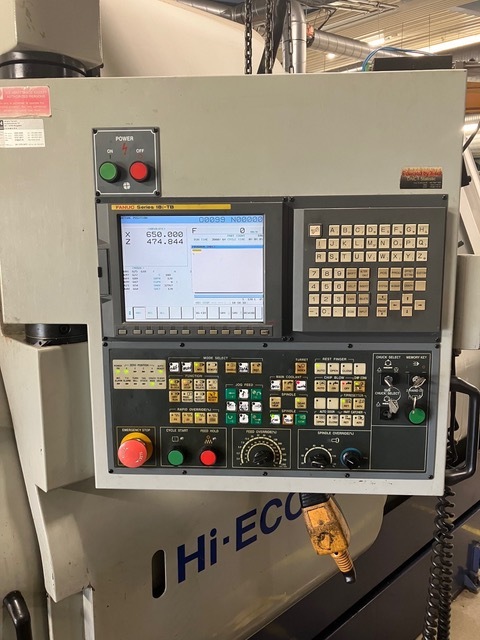

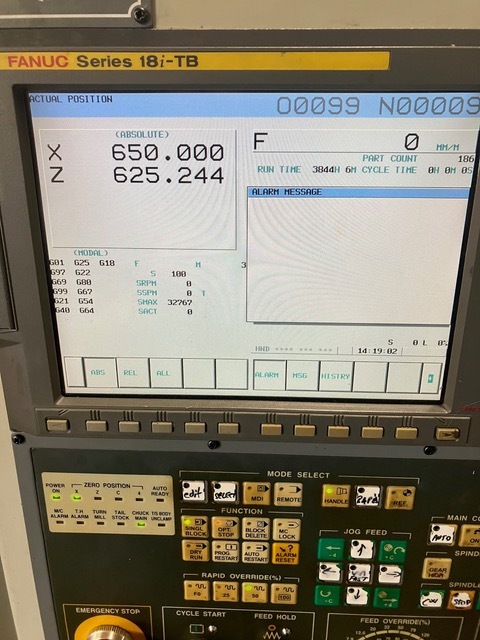

• Fanuc 18iT CNC control

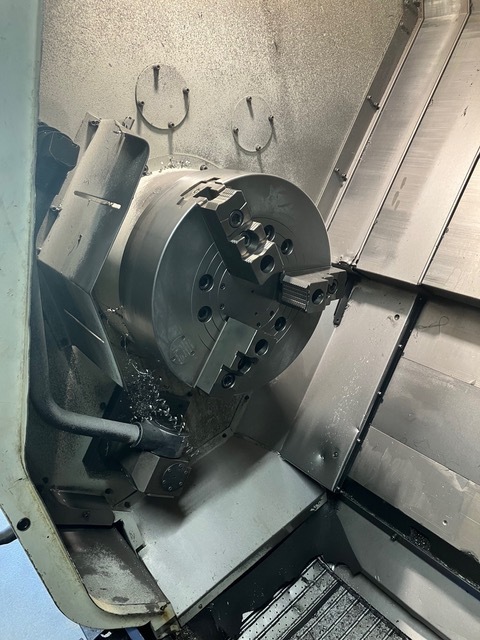

• 380 mm hydraulic chuck

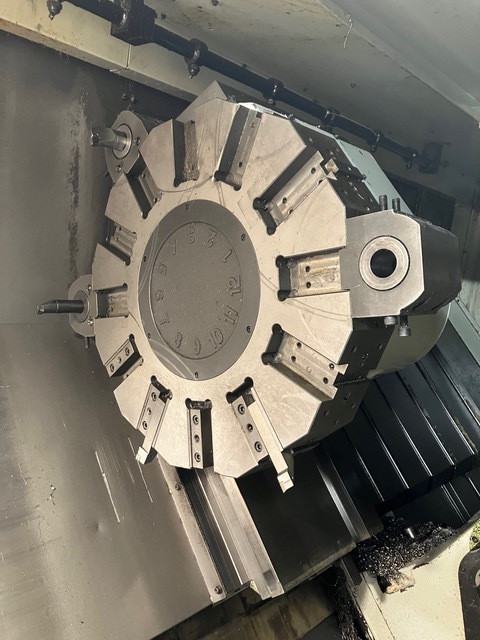

• 12-position turret

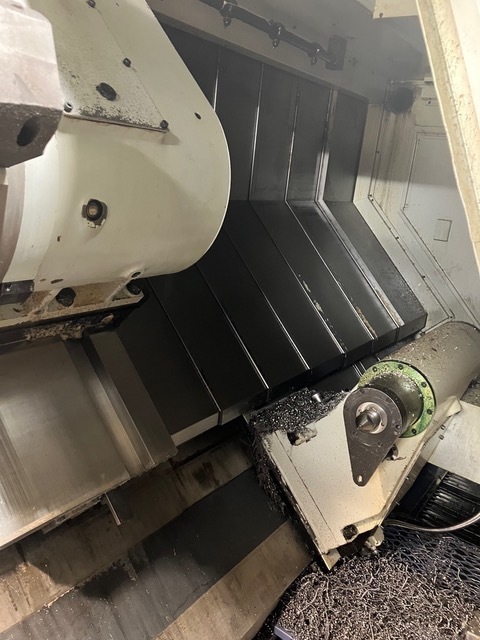

• Tailstock with MT #5 taper

Technical Specifications

• Model: Hwacheon Hi ECO 45
• Control: Fanuc 18iT
• Chuck: 380 mm hydraulic
• Maximum swing: 800 mm
• Maximum turning diameter: 630 mm
• Maximum turning length: 2,000 mm
• Maximum bar capacity: 117
• Spindle nose / bore: A2-11″ / 5.2″
• Spindle speed: 20–1,800 RPM
• Spindle motor: 50 HP
• Turret positions: 12
• Rapid traverse: 945 IPM
• Tailstock quill diameter / travel / taper: 5.9″ / 5.9″ / MT #5
• Machine dimensions: 241″ x 89″ x 100″
• Machine weight: 33,000 lbs

Applications

• Long shafts and spindles
• Large-diameter round components
• Bar-fed turned parts
• General turning and machining work

Commercial Details

• Make: Hwacheon
• Model: Hi ECO 45
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum turning length? The maximum turning length is 2,000 mm, with a maximum turning diameter of 630 mm.
• What control does it have? It has a Fanuc 18iT control.
• What spindle speed and power does it offer? The spindle runs at 20–1,800 RPM and is driven by a 50 HP motor.
• What should I ask when enquiring? Ask for photos or video of the lathe running under power, whether an inspection is possible, which chuck, jaws, tooling and tool holders are included, the condition of the control and electrics, and the loading and shipping arrangements.
