Used Hwacheon Hi-TECH 300 CNC Turning Center | A.K. Machine Traders, Navi Mumbai, India

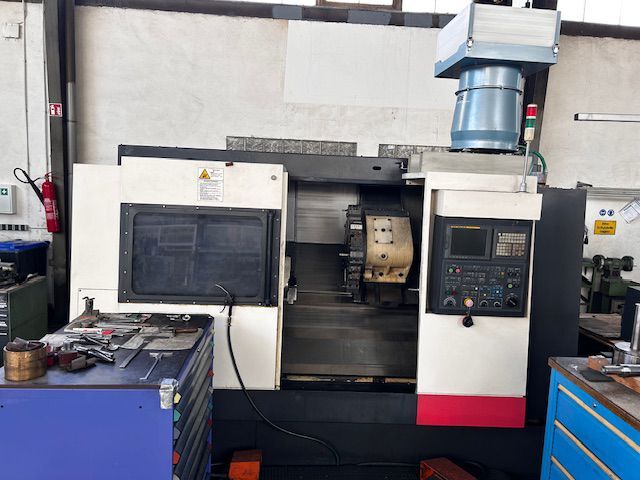

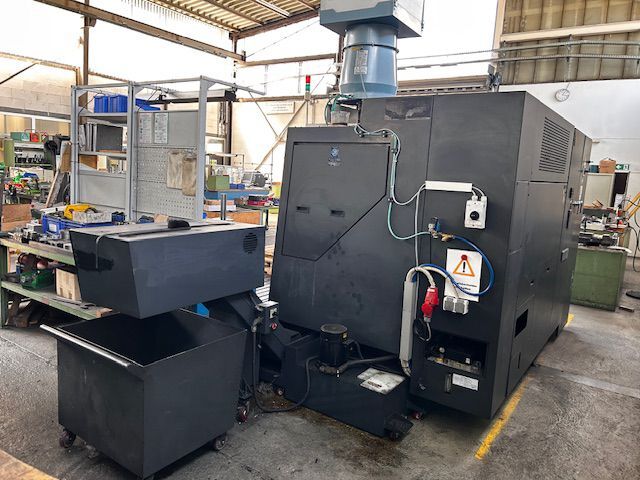

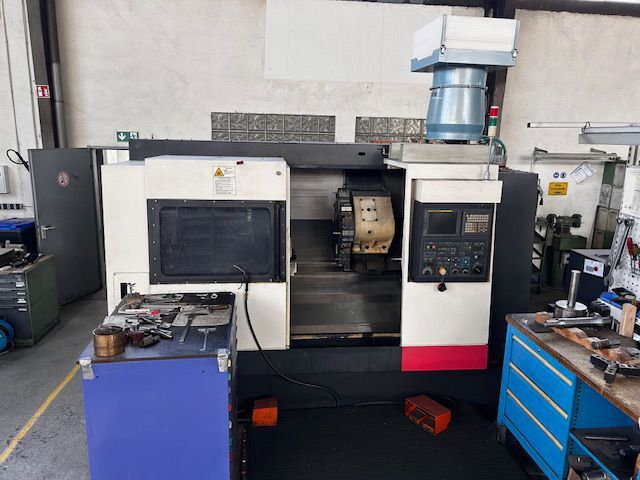

This used Hwacheon Hi-TECH 300 CNC turning center is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC lathe that turns round parts, with a 600 mm swing and a 254 mm chuck.

It is offered in a standard version with 800 mm maximum turning length and an L version with 1,200 mm. The spindle runs at 3,200 per minute with an 18.5/22 kW main drive and 670 Nm maximum torque, and the machine is controlled by a Fanuc 18i-TB.

Key Features

• 12-position tool turret
• Fanuc 18i-TB CNC control
• Quill for tailstock-style support, 100 mm diameter with 120 mm stroke
• A2-8 spindle connection with 90 mm bore

Technical Specifications

• Model: Hwacheon Hi-TECH 300
• Swing diameter: 600 mm
• Max. swivel diameter: 380 mm
• Standard turning diameter: 260 mm
• Max. turning length: 800 mm
• Max. turning length, L machines: 1,200 mm
• Chuck size: 254 mm
• Spindle speed: 3,200 per minute
• Spindle connection: A2-8 ASA
• Spindle bore diameter: 90 mm
• Drawtube diameter: 76 mm
• Spindle bearing diameter: 140 mm
• Main drive power (100/50% ED): 18.5/22 kW
• Maximum torque: 670 Nm
• Turret tools: 12
• Tool size: 25 x 25 / Ø 32 mm
• Rapid traverse: 20/20 m/min
• Travel (X/Z): 280/845 mm
• Travel (X/Z), L machines: 280/1,270 mm
• Quill diameter: 100 mm
• Quill stroke: 120 mm
• CNC control: Fanuc 18i-TB
• Dimensions L x W x H: 3,300 x 1,960 x 2,150 mm
• Dimensions L x W x H, L machines: 4,000 x 1,960 x 2,150 mm
• Basic weight: 8,500 kg
• Basic weight, L machines: 10,500 kg

Applications

• Turning shafts and round components
• Machining of discs, flanges and housings
• General engineering and job-shop turning
• Batch production of turned parts

Commercial Details

• Make: Hwacheon
• Model: Hi-TECH 300
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum turning length? The standard machine turns up to 800 mm, and the L version up to 1,200 mm.
• What control does it use? It has a Fanuc 18i-TB CNC control.
• How many tools does the turret hold? The turret holds 12 tools, with a tool size of 25 x 25 / Ø 32 mm.

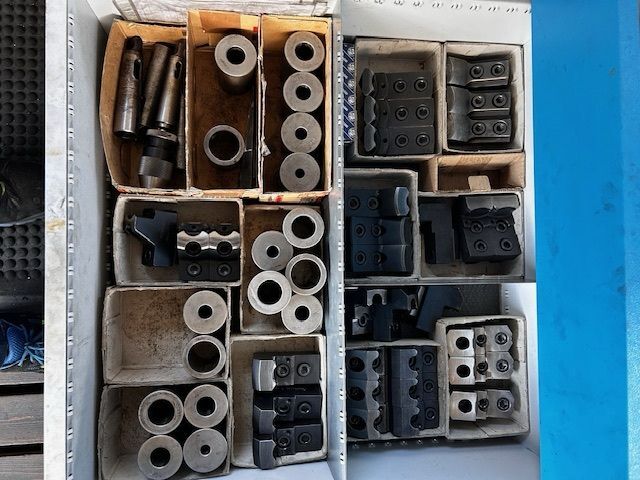

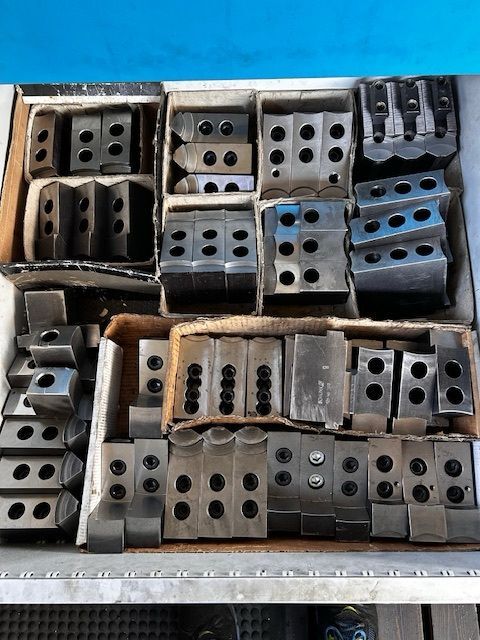

• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether it is the standard or L version, which chuck, tooling and accessories are included, the condition of the Fanuc control and electrics, and the loading and shipping arrangements.
