Used Hwacheon Hi-TECH 700 CNC Turning Center | A.K. Machine Traders, Navi Mumbai, India

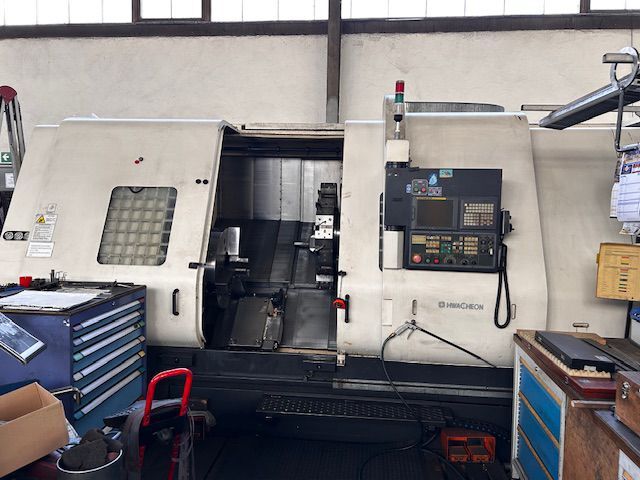

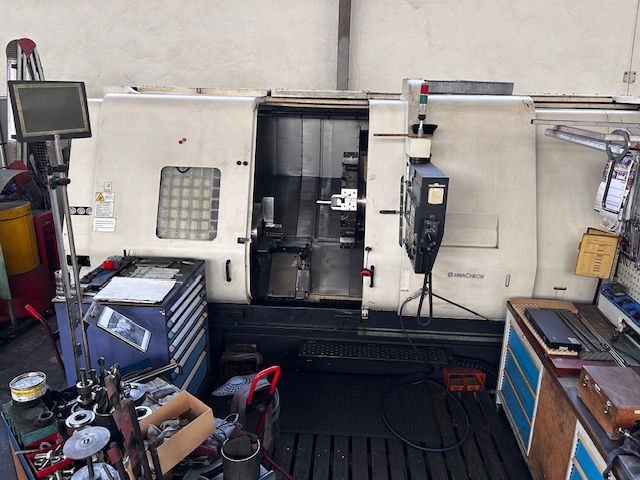

This used Hwacheon Hi-TECH 700 CNC turning center is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC lathe for turning long and large-diameter workpieces.

It swings 900 mm, turns up to 700 mm in diameter and up to 2,000 mm in length. A 30/37 kW main drive delivers up to 3,070 Nm of torque, and a 12-position turret and Fanuc 18i-TB control complete the package.

Key Features

• 12-position tool turret
• Tailstock quill with 150 mm stroke
• Fanuc 18i-TB CNC control
• Large spindle bore of 132 mm for bar and tube work

Technical Specifications

• Model: Hi-TECH 700
• Swing: 900 mm
• Max. turning diameter: 700 mm
• Standard turning diameter: 381 mm
• Max. turning length: 2,000 mm
• Chuck size: 380 mm
• Spindle speed: 1,800 per minute
• Spindle connection: A2-11 ASA
• Spindle bore diameter: 132 mm
• Pull tube diameter: 117 mm
• Spindle bearing diameter: 180 mm
• Main drive power (100/50% ED): 30/37 kW
• Maximum torque: 3,070 Nm
• Turret tool positions: 12
• Tool size: 32 x 32 / Ø63 mm
• Rapid traverse (X/Z): 24/24 m/min
• Travel X: 385 mm
• Travel Z: 2,070 mm
• Quill diameter: Ø150 mm
• Quill stroke: 150 mm
• Dimensions (L x W x H): 4.895 x 2.310 x 2.500 m
• Basic weight: 15,000 kg
• CNC control: Fanuc 18i-TB

Applications

• Long shafts and rollers
• Large-diameter turned components
• Heavy cylindrical parts for general engineering
• Bar and tube work through the spindle bore

Commercial Details

• Make: Hwacheon
• Model: Hi-TECH 700
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum turning size? It turns up to 700 mm in diameter and 2,000 mm in length, with a swing of 900 mm.
• What CNC control does it have? It is fitted with a Fanuc 18i-TB control.
• How many tools does the turret hold? The turret has 12 tool positions.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, an inspection, what tooling, chuck and accessories are included, the condition of the control and electrics, and loading and shipping arrangements for its 15,000 kg weight.
