Used Hwacheon HMV-1100 High Rigidity Milling Machine | A.K. Machine Traders, Navi Mumbai, India

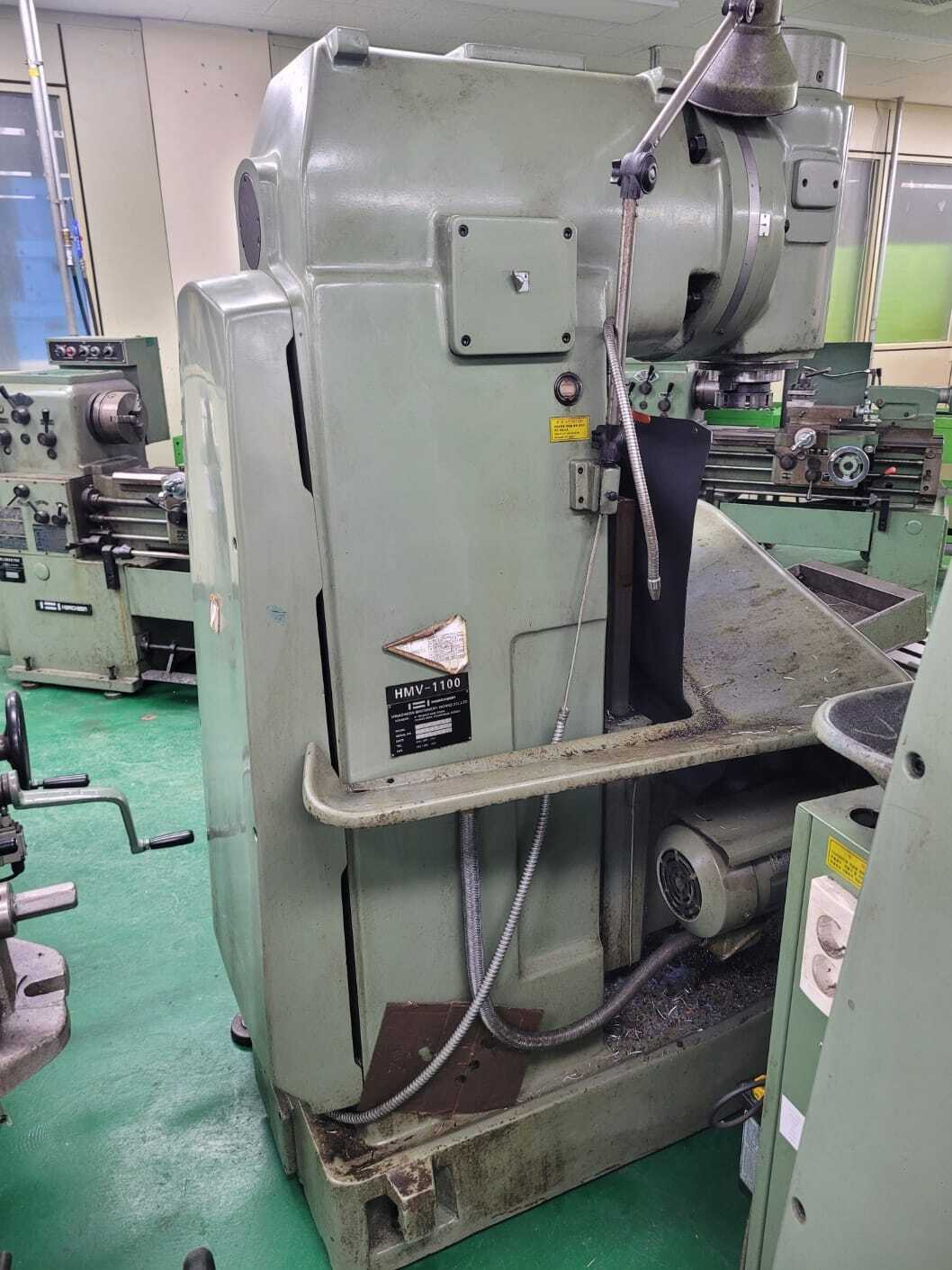

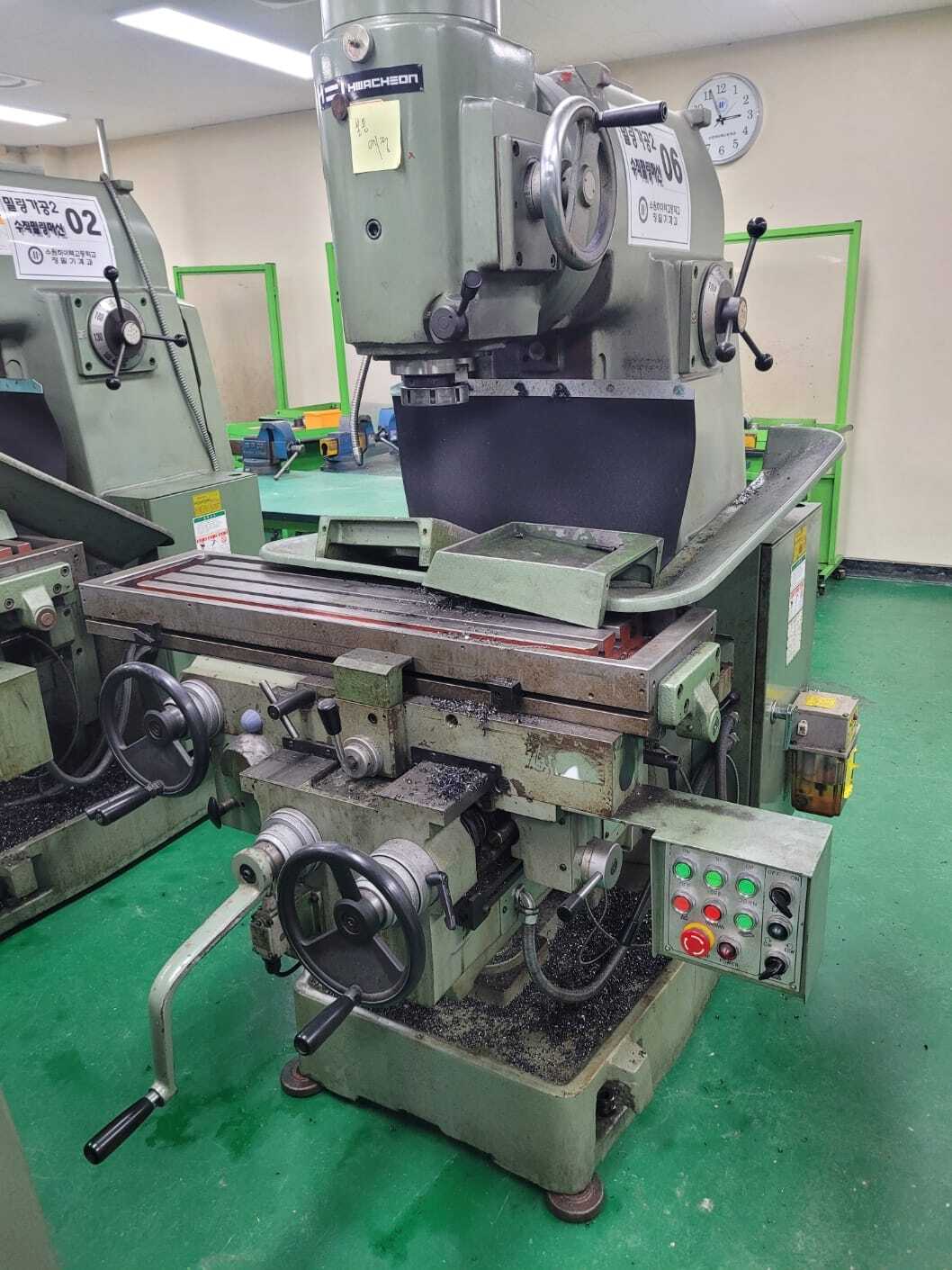

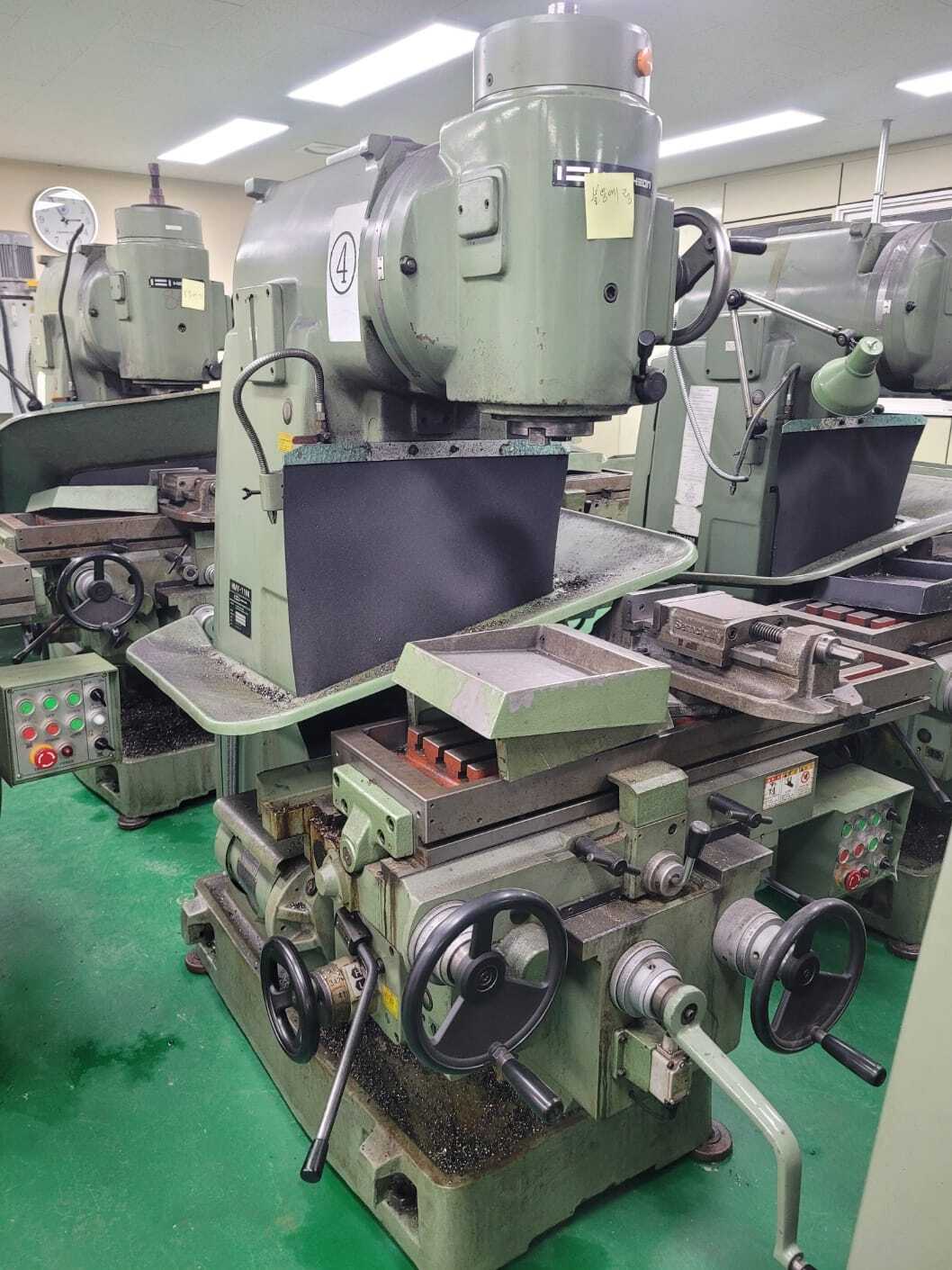

This used Hwacheon HMV-1100 high rigidity milling machine is available from A.K. Machine Traders in Navi Mumbai, India. It is a knee-type style of milling machine for cutting metal parts, with a 1,100 x 280 mm table and an NT50 spindle taper.

Travels are 750 mm in X, 300 mm in Y and 425 mm in Z. The spindle is driven by a 3.7 kW motor and offers nine speed steps from 95–1,400 rpm.

Key Features

• Nine-step spindle speed range
• Twelve-step automatic feed on the X and Y axes
• Spindle head rotates to 45°
• Slide lubrication motor and coolant motor fitted
• Runs on 220 V or 380 V, 60 Hz supply

Technical Specifications

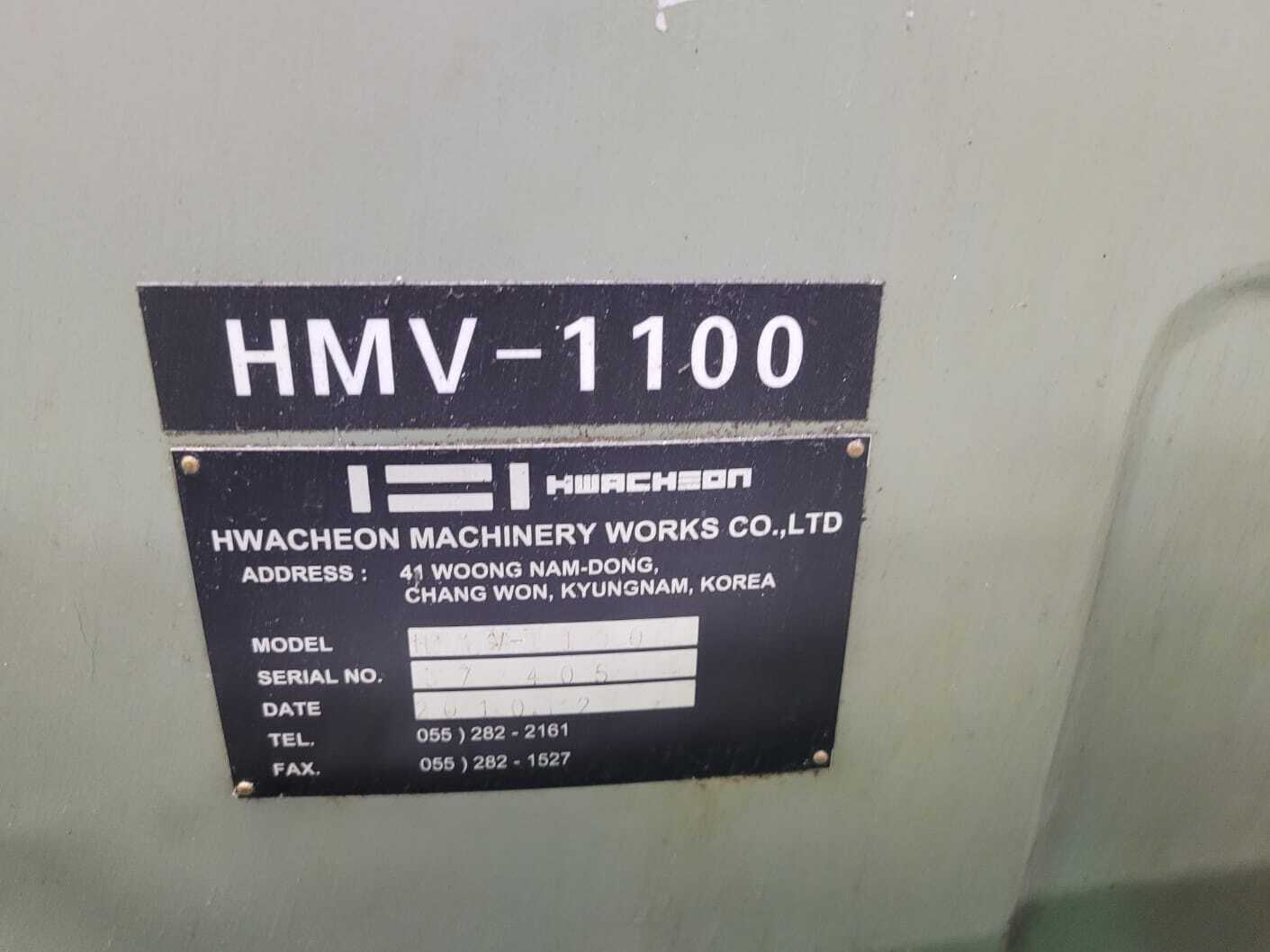

• Model: Hwacheon HMV-1100
• Year: 2010–2011
• X-axis stroke: 750 mm
• Y-axis stroke: 300 mm
• Z-axis stroke: 425 mm
• Table surface to spindle nose: 10–435 mm

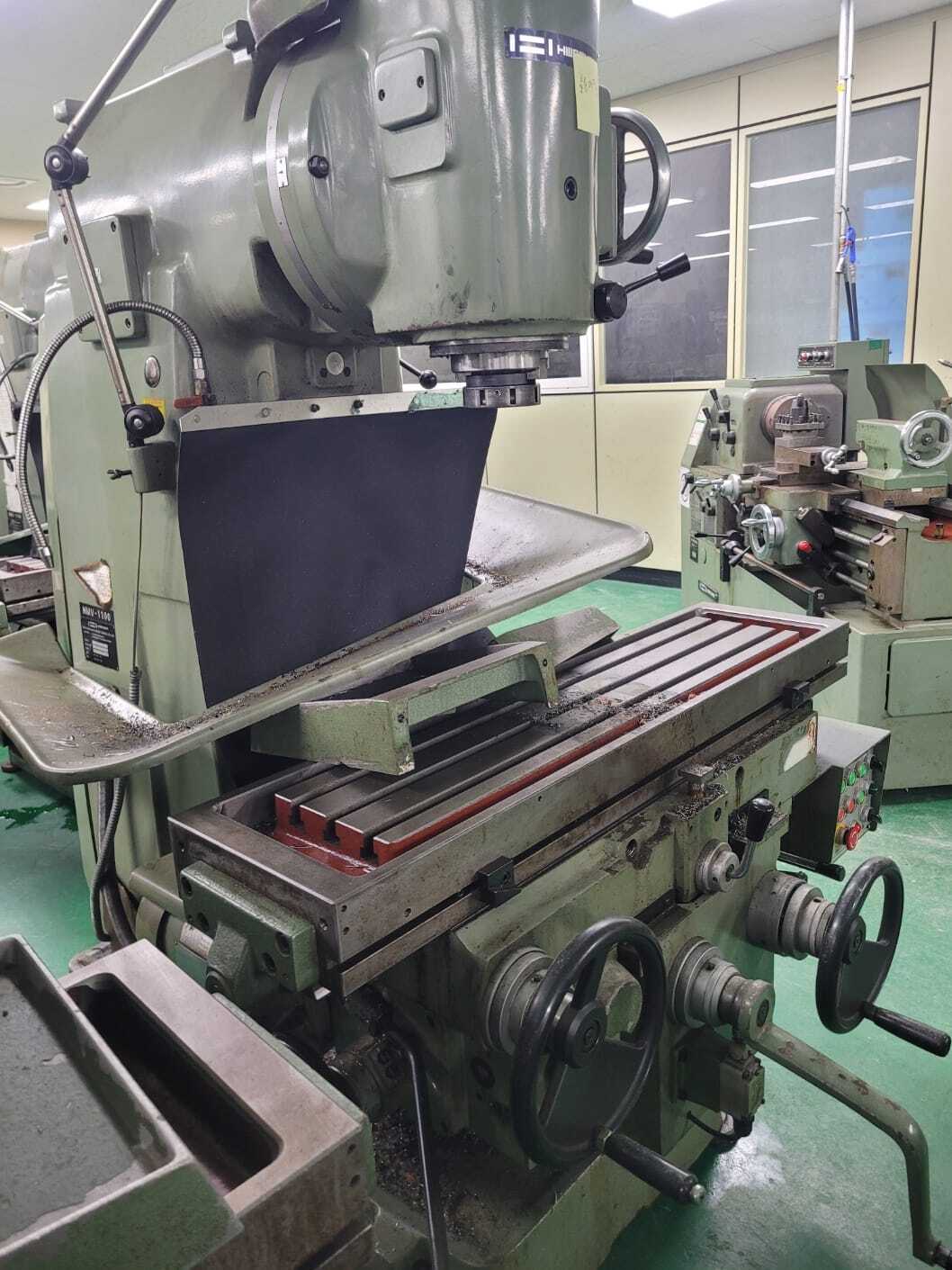

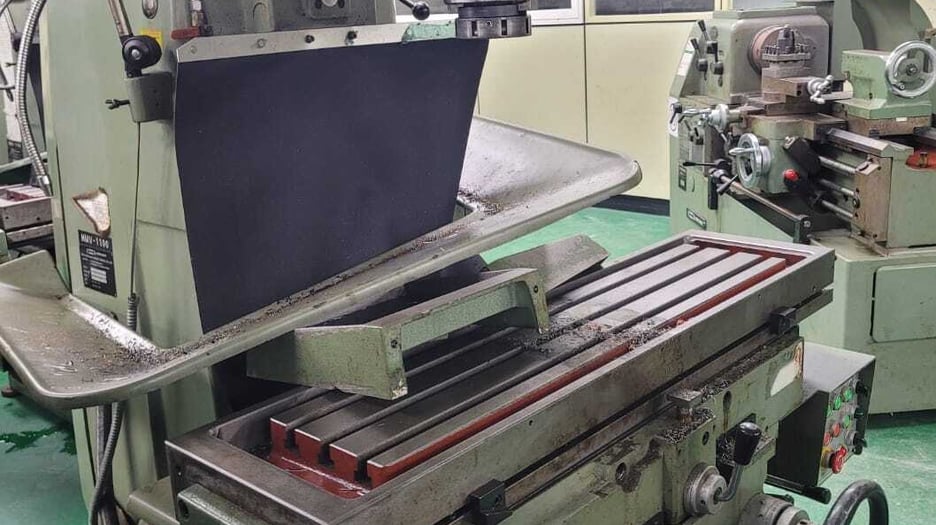

• Table size: 1,100 x 280 mm
• Maximum table load: 250 kg
• T-slots: 5 slots, 16 mm wide, 60 mm pitch
• Spindle speed: 95–1,400 rpm, 9 steps
• Spindle motor: 3.7 kW
• Spindle taper: NT50
• Spindle travel: 90 mm
• Spindle head rotation: 45°
• X, Y rapid feed: 3,000 mm/min (2,500 mm/min at 50 Hz)
• X, Y auto feed: 15–720 mm/min, 12 steps (13–600 mm/min at 50 Hz)
• Feed-axis motors (X / Y / Z): 0.75 / 0.75 / 0.75 kW
• Slide lubrication motor: 36 W
• Coolant motor: 100 W
• Coolant tank: 35 L
• Power supply: 10 kVA
• Voltage: 220 V, 60 Hz / 380 V, 60 Hz
• Height: 1,950 mm
• Floor space (L x W): 2,450 x 1,800 mm
• Weight: 2,130 kg

Applications

• Milling of flat and profiled faces on metal parts
• Tool room and workshop component machining
• Small-batch and repair machining
• Fixtures, plates and machine parts

Commercial Details

• Make: Hwacheon
• Model: HMV-1100
• Year: 2010–2011
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size and load capacity? The table measures 1,100 x 280 mm and carries up to 250 kg.
• What spindle does it have? It has a 3.7 kW spindle motor with an NT50 taper and nine speeds from 95–1,400 rpm.
• What power supply does it need? It is specified for 220 V or 380 V at 60 Hz, with a 10 kVA supply.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection is possible. Confirm which accessories and tooling are included, the condition of the electrics for your voltage and frequency, and loading and shipping arrangements for a 2,130 kg machine.
