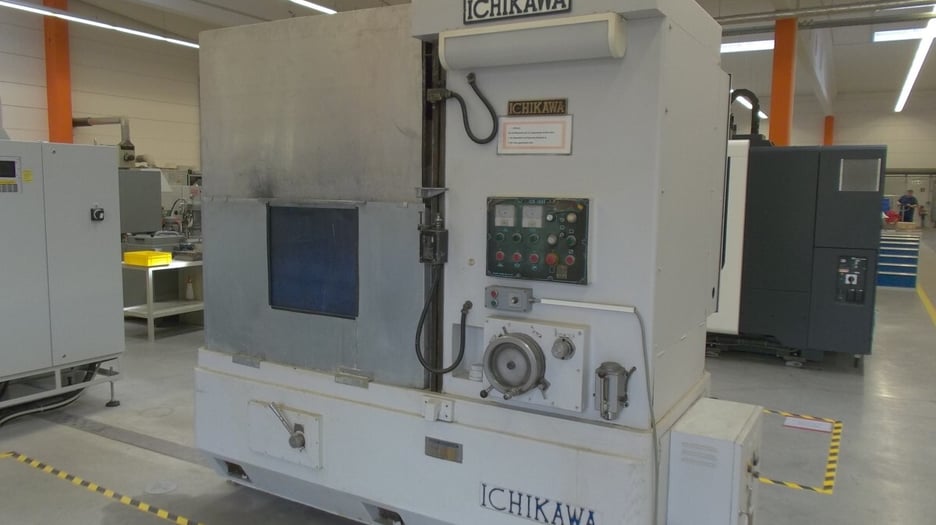

Used Ichikawa ICB-1000 Rotary Surface Grinder | A.K. Machine Traders, Navi Mumbai, India

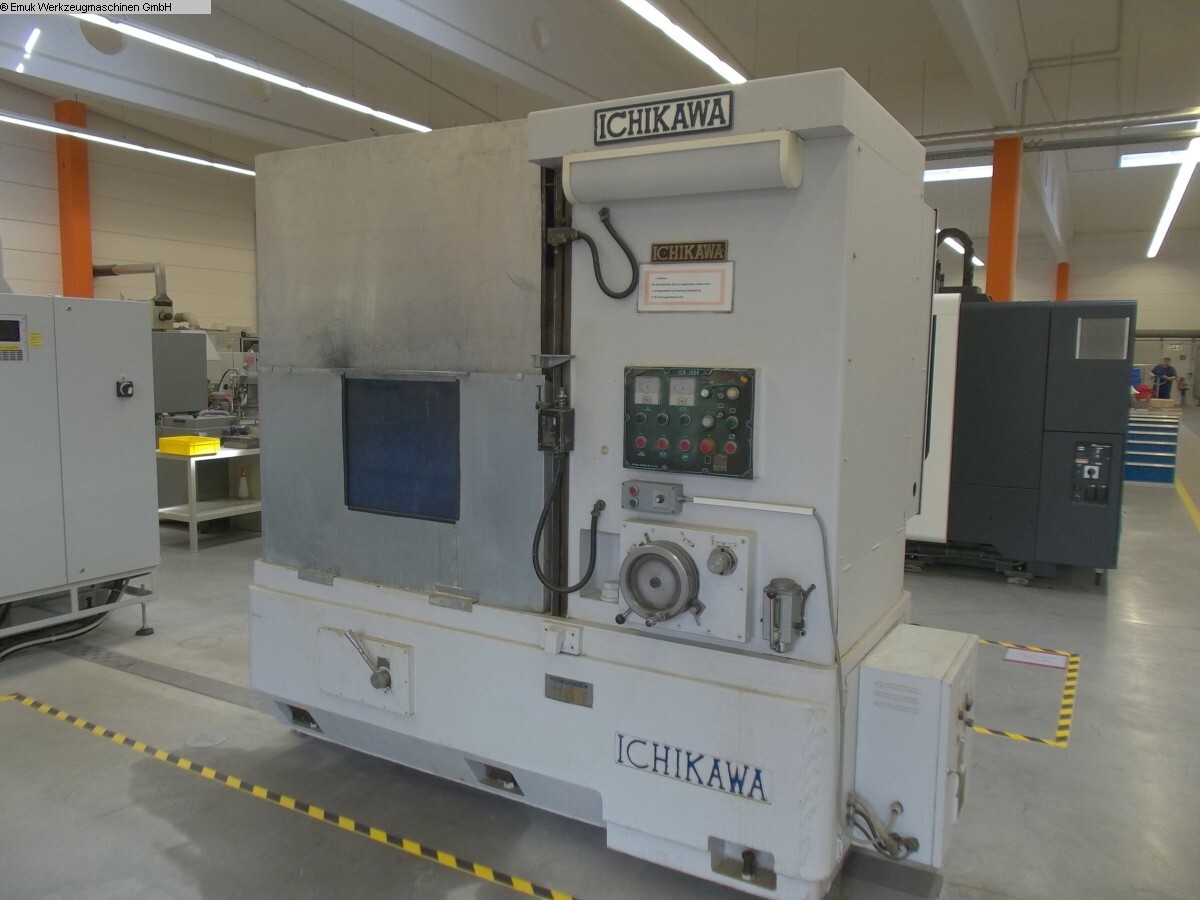

This used Ichikawa ICB-1000 rotary surface grinder is available from A.K. Machine Traders in Navi Mumbai, India. It grinds flat surfaces on workpieces held on a round rotating table.

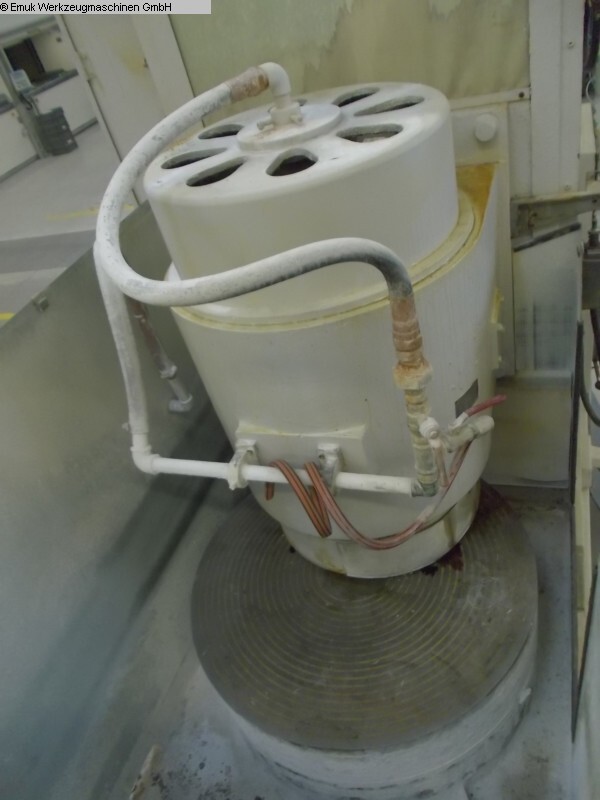

The table is 1000 mm in diameter and the machine grinds to a height of 310 mm. The grinding head is rated at 22 kW and carries a 450 mm diameter wheel fitted with 50 x 25 x 125 mm segments.

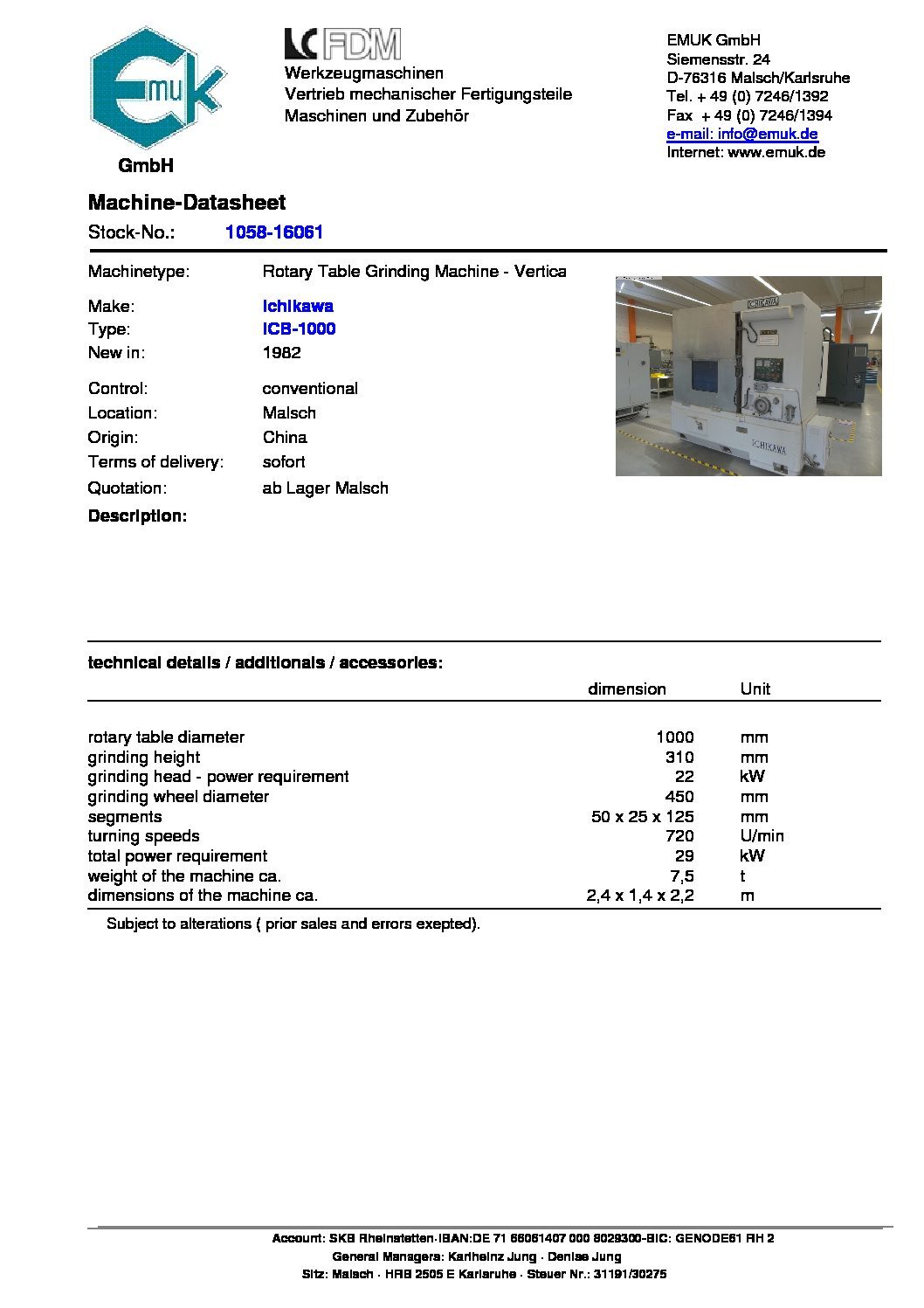

Technical Specifications

• Model: ICB-1000
• Rotary table diameter: 1,000 mm
• Grinding height: 310 mm
• Grinding head power: 22 kW
• Grinding wheel diameter: 450 mm
• Segment size: 50 x 25 x 125 mm
• Speed: 720 rpm
• Total power requirement: 29 kW
• Machine weight: approx. 7.5 t
• Machine dimensions: approx. 2.4 x 1.4 x 2.2 m

Applications

• Flat grinding of plates, rings and discs
• Surface finishing of machine components
• Grinding batches of parts on a rotary table
• Toolroom and general engineering work

Commercial Details

• Make: Ichikawa
• Model: ICB-1000
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size is the rotary table? The rotary table is 1,000 mm in diameter, with a grinding height of 310 mm.
• How much power does it need? The grinding head is rated at 22 kW and the total power requirement is 29 kW.
• What are the weight and dimensions? The machine weighs approximately 7.5 t and measures approximately 2.4 x 1.4 x 2.2 m.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which wheels, segments and accessories are included, the condition of the control and electrics, and how loading and shipping will be handled.
