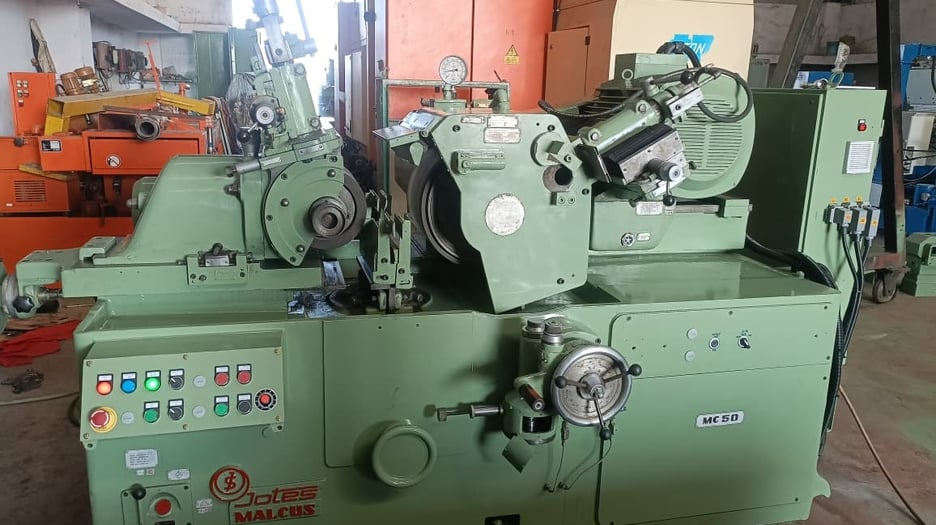

Used Jotes MC 50 Centerless Grinder | A.K. Machine Traders, Navi Mumbai, India

This used Jotes MC 50 centerless grinder is available from A.K. Machine Traders in Navi Mumbai, India. A centerless grinder grinds round workpieces supported between a grinding wheel and a feed wheel, without holding them between centres.

It grinds diameters from 1 mm up to 200 mm. The working wheel measures 508 x 305 x 254/280 mm and turns at 1,240 rpm, while the feed wheel speed is adjustable from 15 to 250 rpm.

Key Features

• Feed wheel spindle can be tilted 0–8° in the vertical plane
• Feed wheel spindle can be swivelled ±4° in the horizontal plane
• Variable feed wheel speed of 15–250 rpm

Technical Specifications

• Model: Jotes MC 50
• Minimum grinding diameter: 1 mm
• Maximum grinding diameter: 200 mm
• Working wheel size: 508 x 305 x 254/280 mm
• Working wheel speed: 1,240 rpm
• Feed wheel size: 270 x 150 x 254/280 mm
• Feed wheel speed: 15–250 rpm
• Feed wheel spindle angle, vertical: 0–8°
• Feed wheel spindle angle, horizontal: ±4°
• Dimensions (L x W x H): 2,565 x 1,620 x 1,600 mm
• Net weight: 4,600 kg
• Gross weight: 5,200 kg

Applications

• Grinding round shafts and pins
• Finishing bushes and sleeves
• Precision grinding of small-diameter bars and rods
• Batch grinding of cylindrical components

Commercial Details

• Make: Jotes
• Model: MC 50
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What diameter range can it grind? It grinds round work from 1 mm to 200 mm in diameter.
• What is the feed wheel speed range? The feed wheel runs at 15–250 rpm, while the working wheel turns at 1,240 rpm.
• How big and heavy is the machine? The basic machine measures 2,565 x 1,620 x 1,600 mm and weighs 4,600 kg net, 5,200 kg gross.
• What should I ask when enquiring? Ask for photos or video of the machine running, and whether an inspection can be arranged. Confirm which wheels, work rests and accessories are included, the condition of the control and electrics, and the loading and shipping arrangements.
