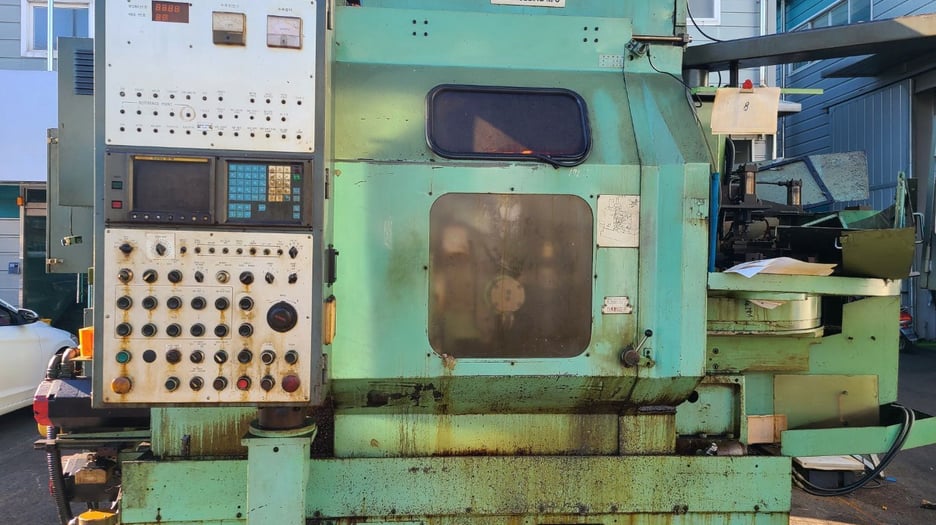

Used Kashifuji KB 400 CNC Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

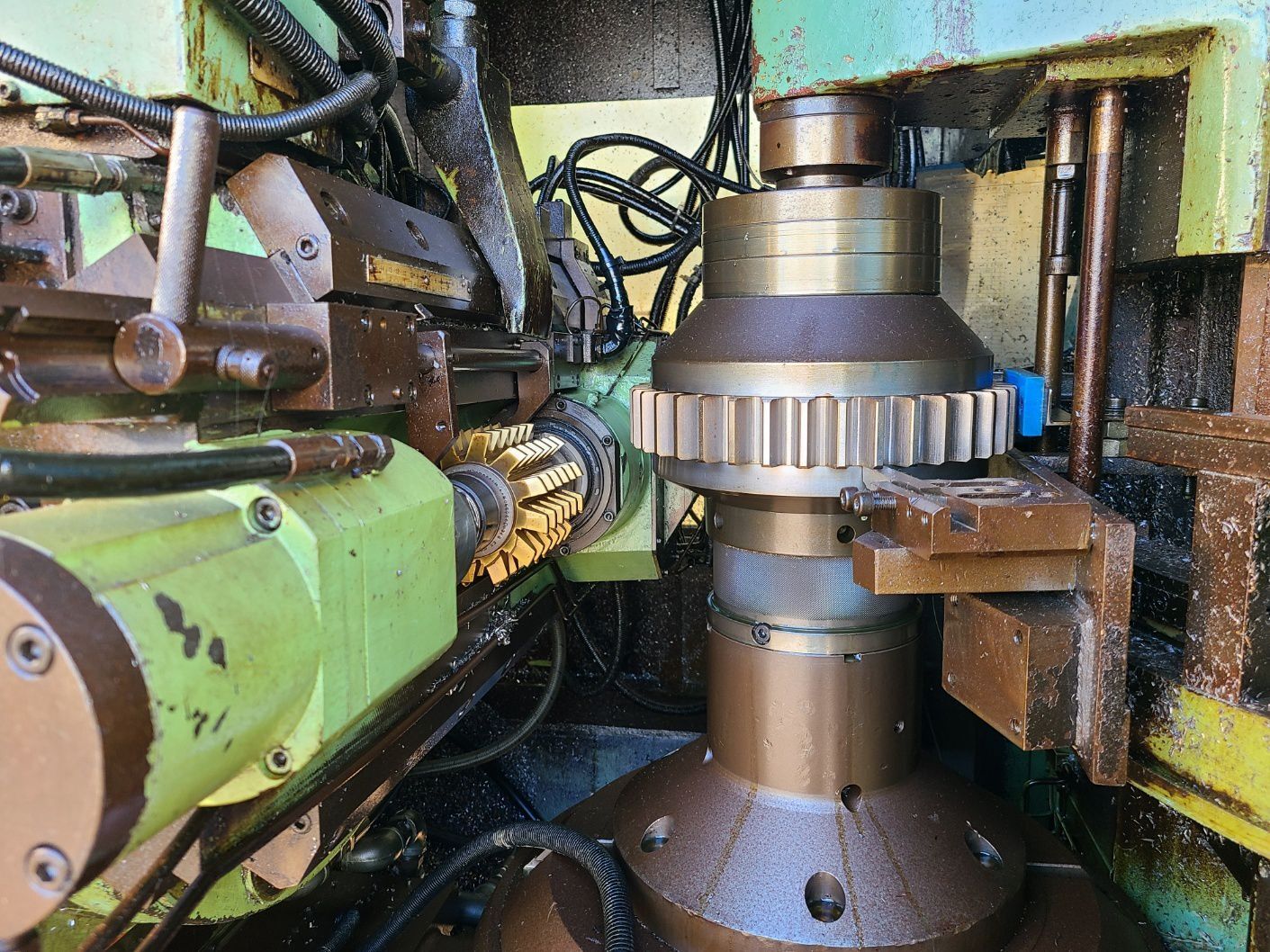

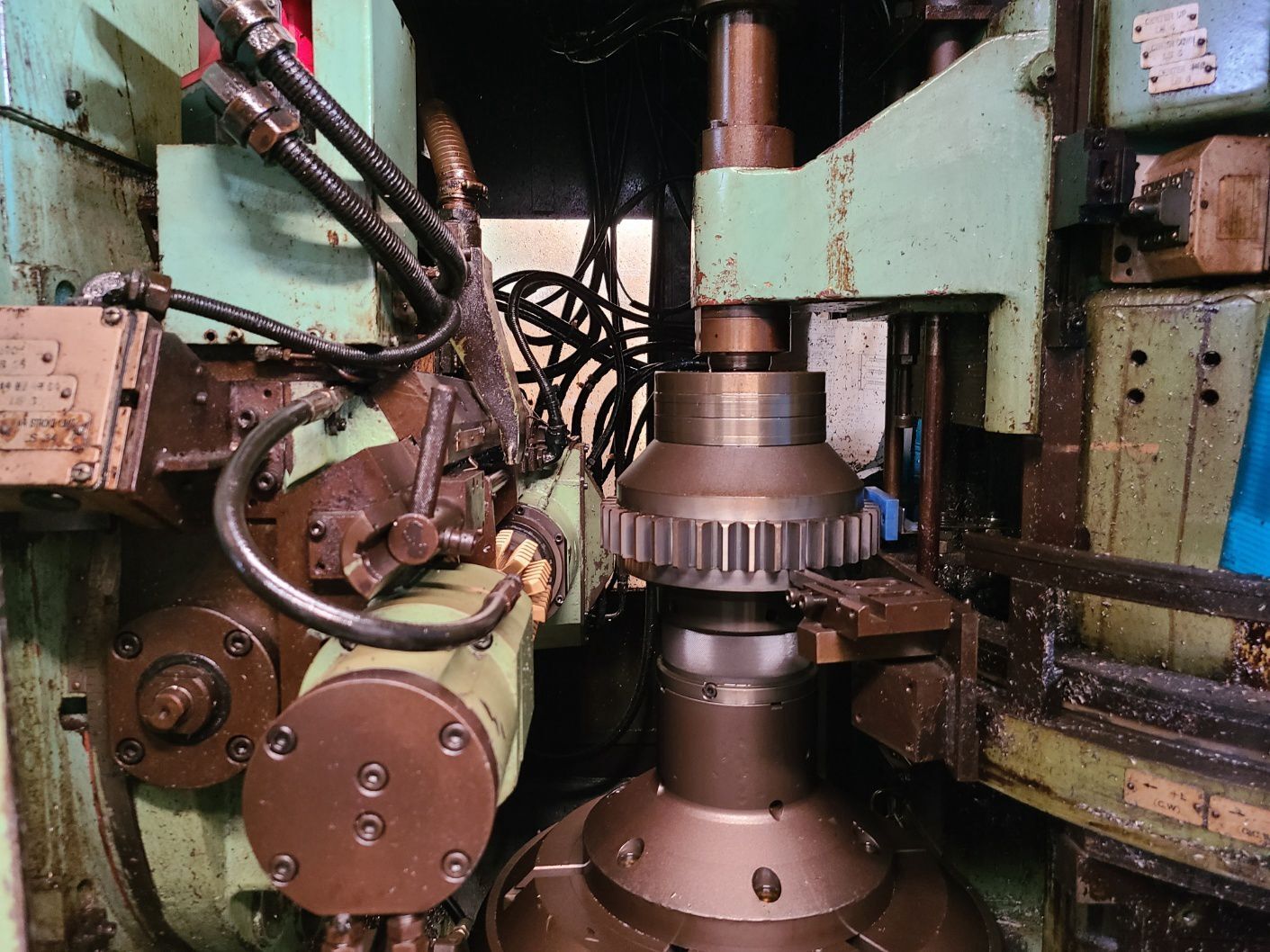

This used Kashifuji KB 400 CNC hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A hobbing machine cuts gear teeth into a workpiece using a rotating hob.

It takes workpieces up to 400 mm in diameter and cuts gears up to module 7 mm, with helix angles up to 45°. The machine weighs 9,800 kg.

Technical Specifications

• Model: Kashifuji KB 400

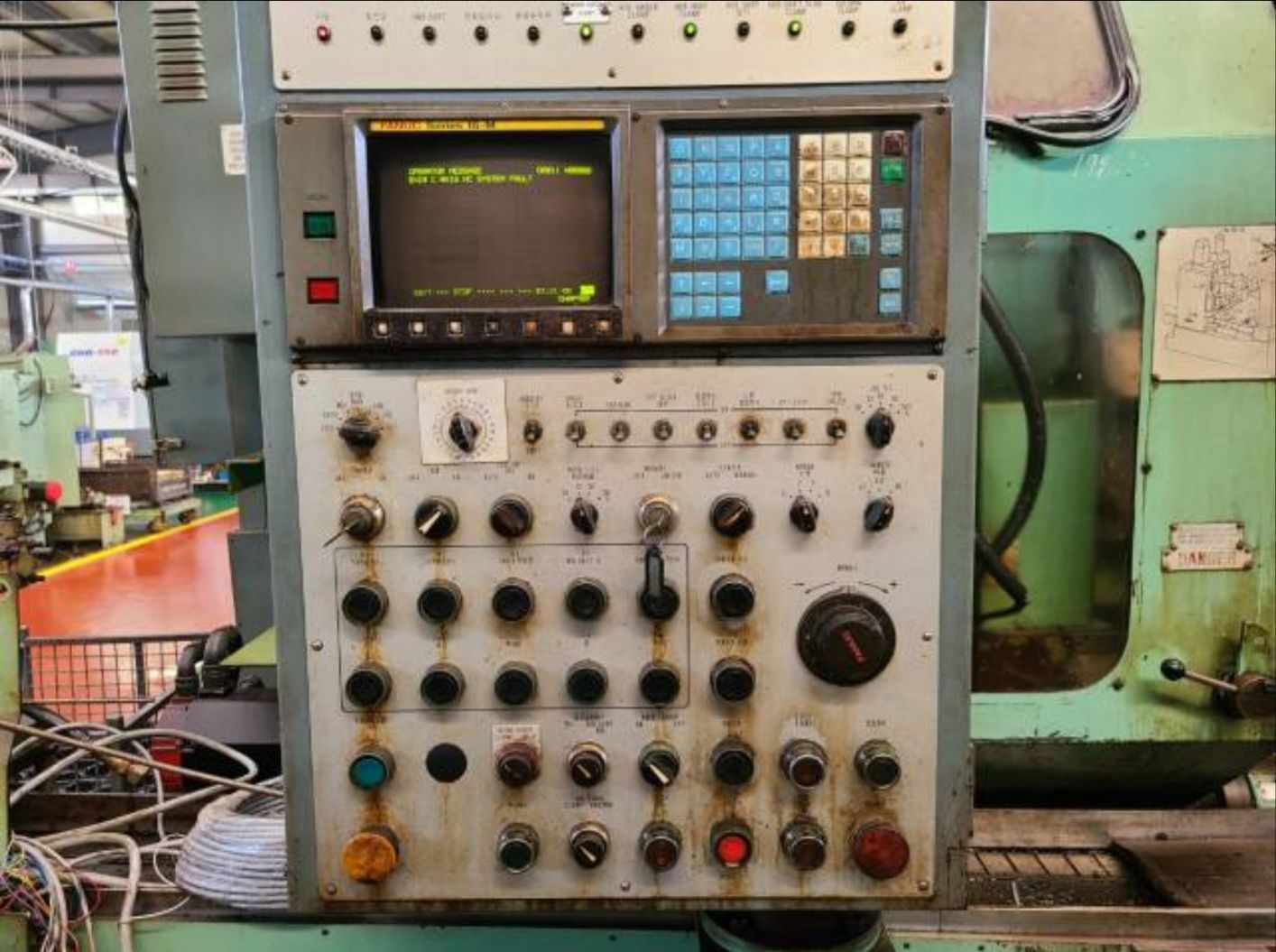

• Control: CNC
• Max workpiece diameter: 400 mm
• Max pitch module: 7 mm
• Axial feed travel: 300 mm
• Max helix angle: 45°
• Max hob shift travel: 150 mm
• Centre distance, hob to table: 35–305 mm
• Table size: Ø460 mm
• Machine weight: 9,800 kg

Applications

• Spur and helical gears for general machinery
• Gear blanks and small to medium gear wheels
• Gearbox and transmission components
• Batch gear production and toolroom work

Commercial Details

• Make: Kashifuji
• Model: KB 400
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest workpiece it can cut? The maximum workpiece diameter is 400 mm, with a maximum module of 7 mm.
• Can it cut helical gears? Yes, the maximum helix angle is 45°.
• How heavy is the machine? The machine weighs 9,800 kg, which is worth planning for when arranging transport and installation.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection can be arranged, which tooling, hobs and accessories are included, the condition of the CNC control and electrics, and loading and shipping arrangements.
