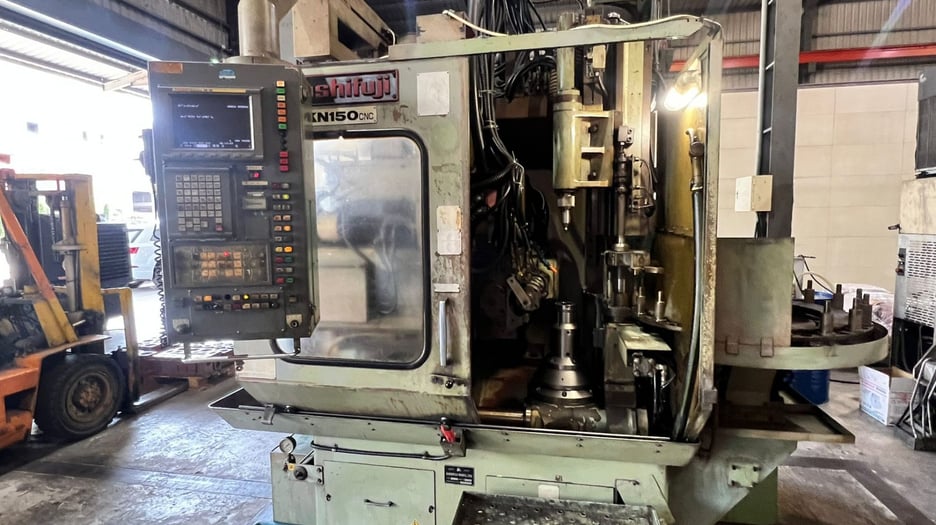

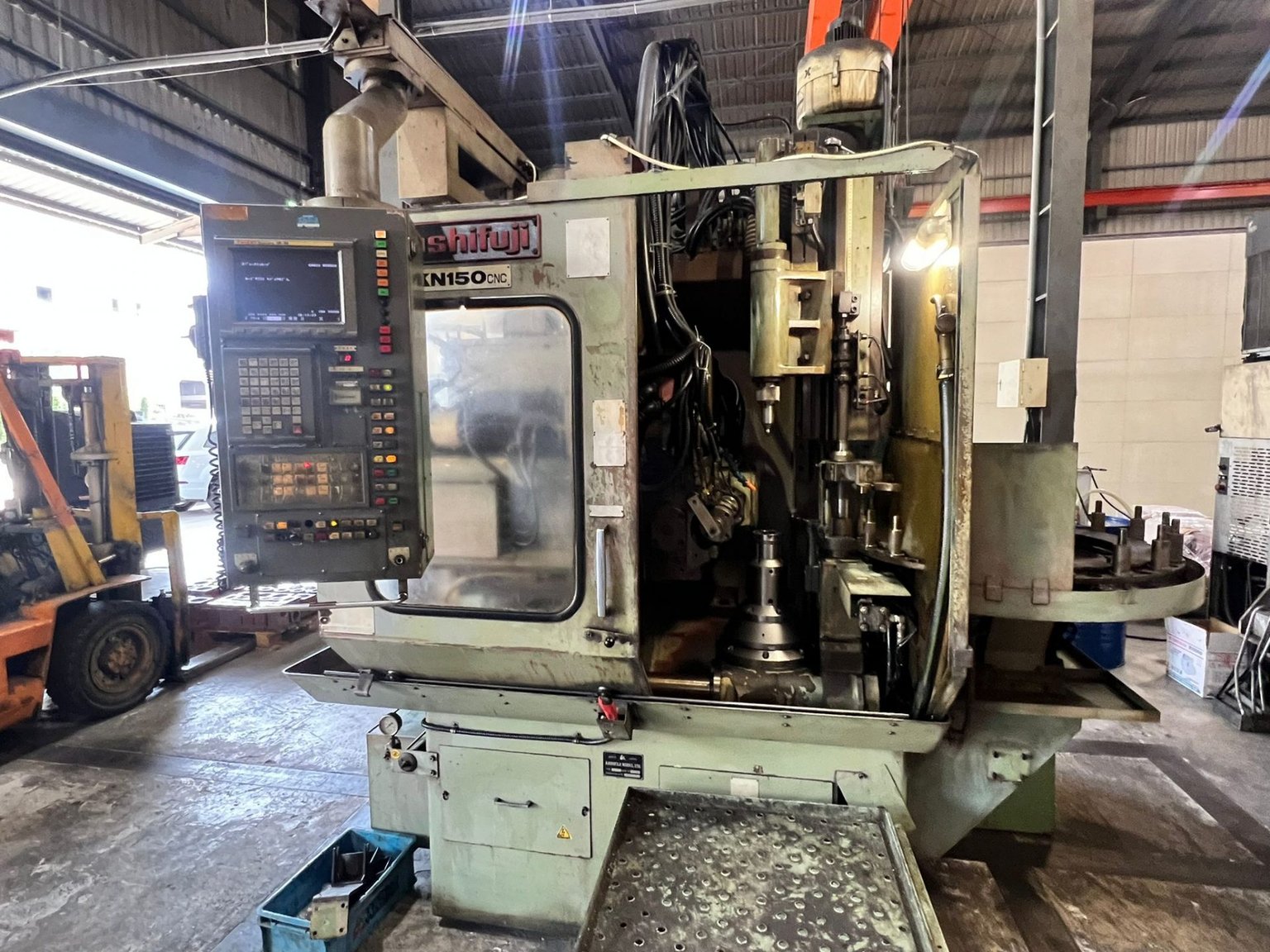

Used Kashifuji KN 151 CNC Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

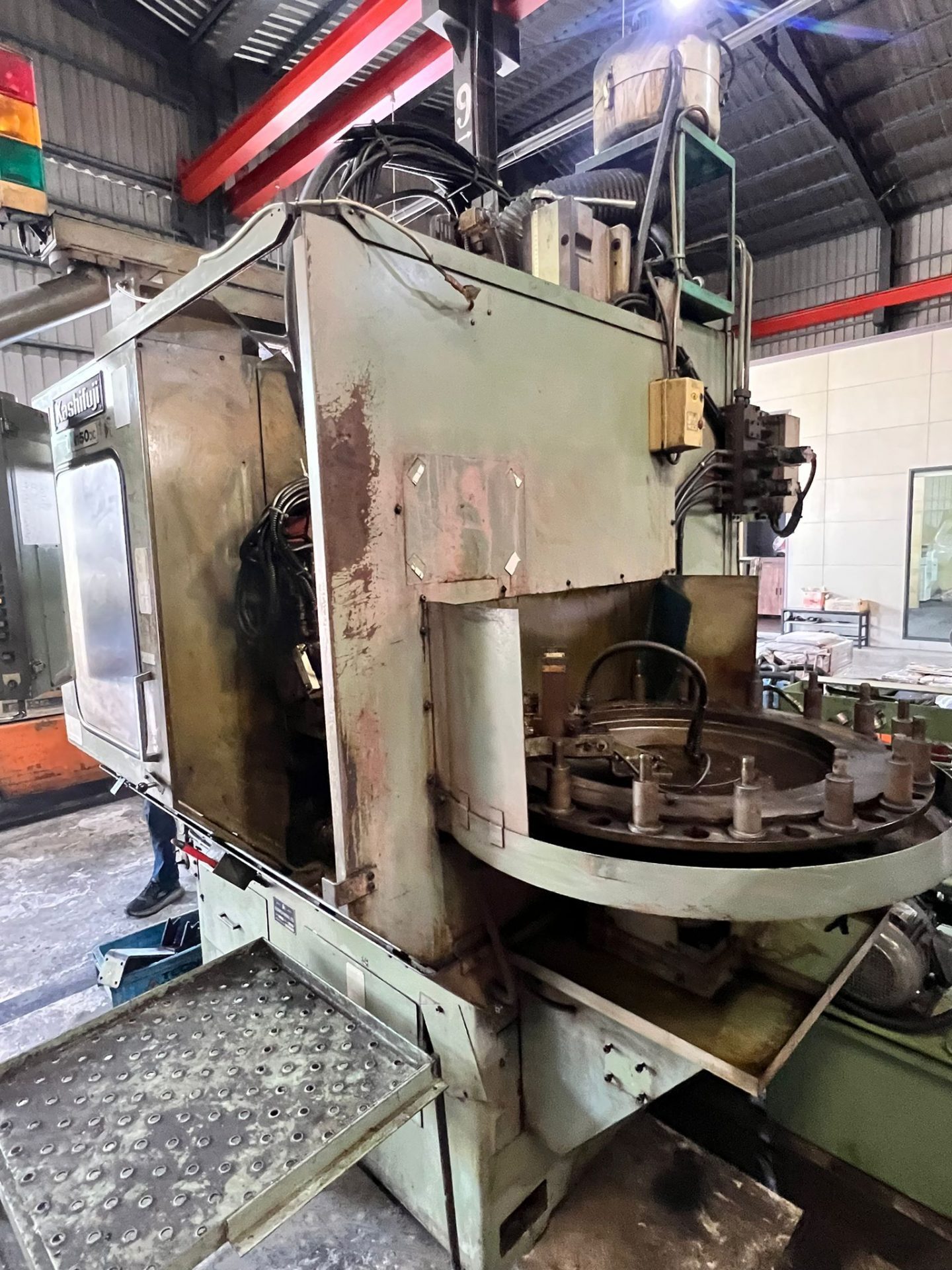

This used Kashifuji KN 151 CNC hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A hobbing machine cuts gear teeth into a workpiece with a rotating hob.

It handles workpieces up to 150 mm in diameter and gears up to module 4. It can cut helical gears with a helix angle of up to ±45°, and the hob spindle runs at 100–850 rpm.

Technical Specifications

• Model: KN 151
• Control: CNC
• Max workpiece diameter: 150 mm
• Max pitch module: 4
• Axial feed travel: 400 mm
• Max helix angle: ±45°
• Max hob shift travel: 150
• Centre distance, hob to table: 15–150 mm
• Table top diameter: 190
• Hob spindle speed: 100–850 rpm

Applications

• Spur gears for small mechanisms and gearboxes
• Helical gears up to ±45° helix angle
• Small gears and toothed components up to 150 mm diameter

Commercial Details

• Make: Kashifuji
• Model: KN 151
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest workpiece it can cut? The maximum workpiece diameter is 150 mm, with a maximum pitch module of 4.
• Can it cut helical gears? Yes, it handles helix angles up to ±45°.
• What is the hob spindle speed range? The hob spindle runs at 100–850 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling, hobs and accessories are included, the condition of the CNC control and electrics, and the loading and shipping arrangements.
