Used Kia Super Kia Turn 28L CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Kia Super Kia Turn 28L CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. A CNC lathe turns round parts under computer control.

It swings 590 mm over the bed, machines up to 410 mm in diameter and takes work up to 1,100 mm between centres. Spindle speeds run from 25 to 3,000 rpm, and the machine is fitted with a Kitagawa 290 mm hydraulic chuck and a Series 21-T CNC control.

Key Features

• Tool turret carousel with base holder type
• Kitagawa 290 mm hydraulic chuck
• Series 21-T CNC control

Technical Specifications

• Model: Super Kia Turn 28L
• Swing over bed: 590 mm
• Max machining diameter: 410 mm
• Length between centres: 1,100 mm
• Max machine length: 1,070 mm
• Spindle speed: 25–3,000 rpm

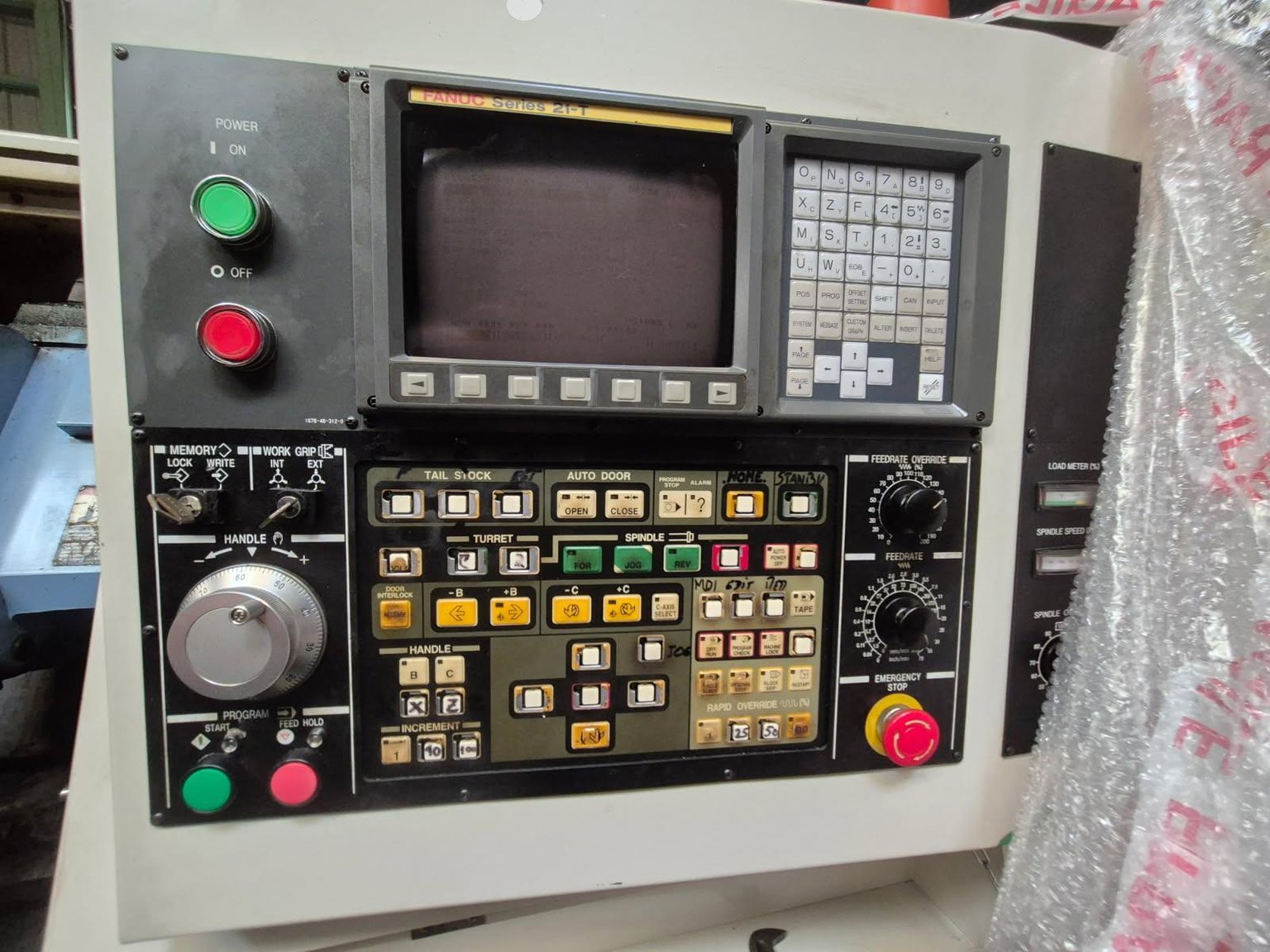

• Control: Series 21-T CNC
• Chuck: Kitagawa 290 mm hydraulic
• Machine weight: 8,000 kg

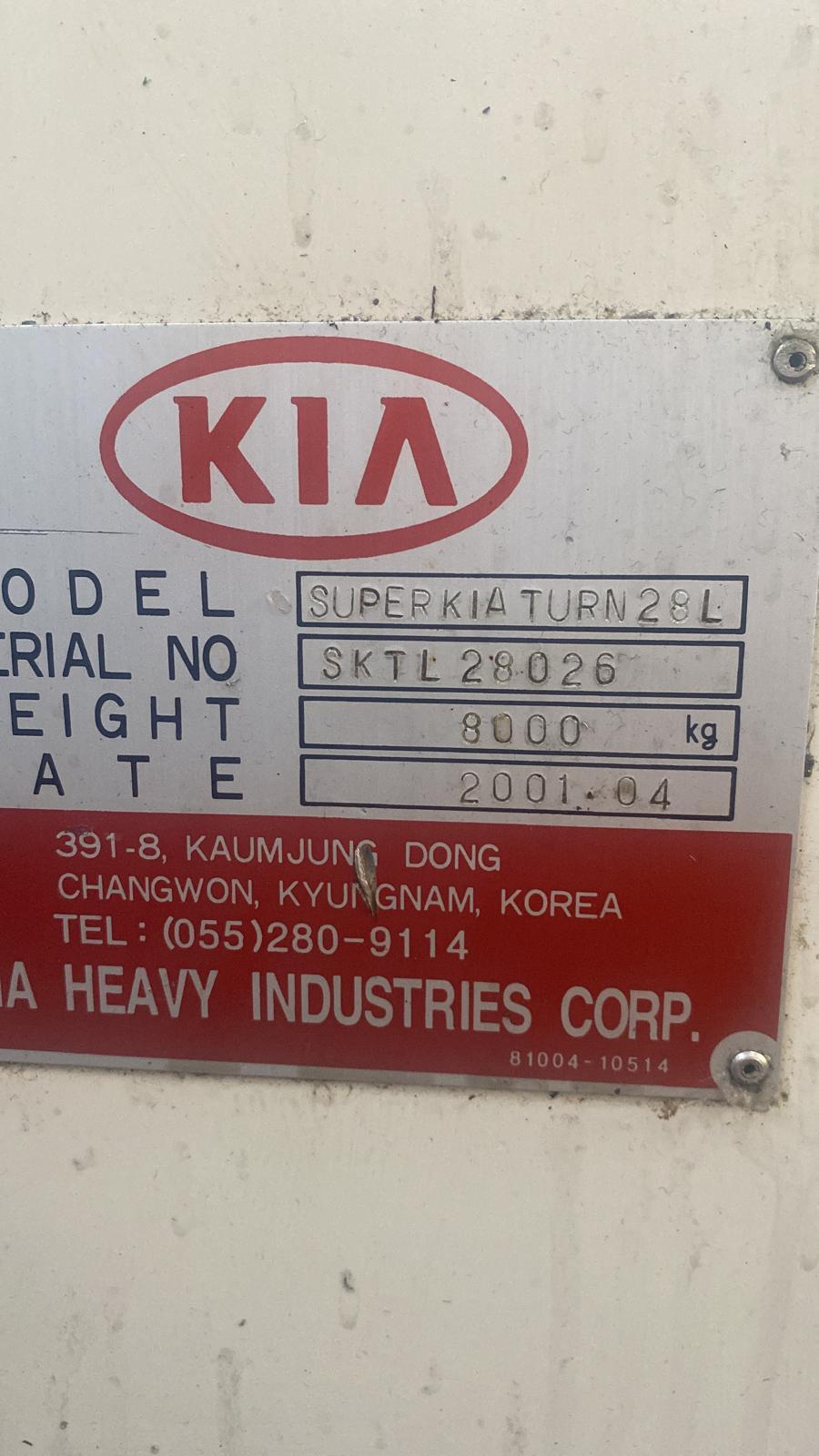

• Serial number: SKTL 28026
• Year: 2001

Applications

• Turned shafts and spindles
• Round components such as bushes, flanges and hubs
• General engineering and toolroom turning work
• Batch production of cylindrical parts

Commercial Details

• Make: Kia
• Model: Super Kia Turn 28L
• Year: 2001
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the year of this lathe? It is listed as a 2001 machine, serial number SKTL 28026.
• What size of work can it turn? It swings 590 mm over the bed, machines up to 410 mm in diameter and takes 1,100 mm between centres.
• What chuck and control does it have? It has a Kitagawa 290 mm hydraulic chuck and a Series 21-T CNC control.
• What should I ask when enquiring? Ask for photos or video of it running under power, an inspection, which chuck, tooling and tool holders are included, the condition of the control and electrics, and loading and shipping arrangements.
