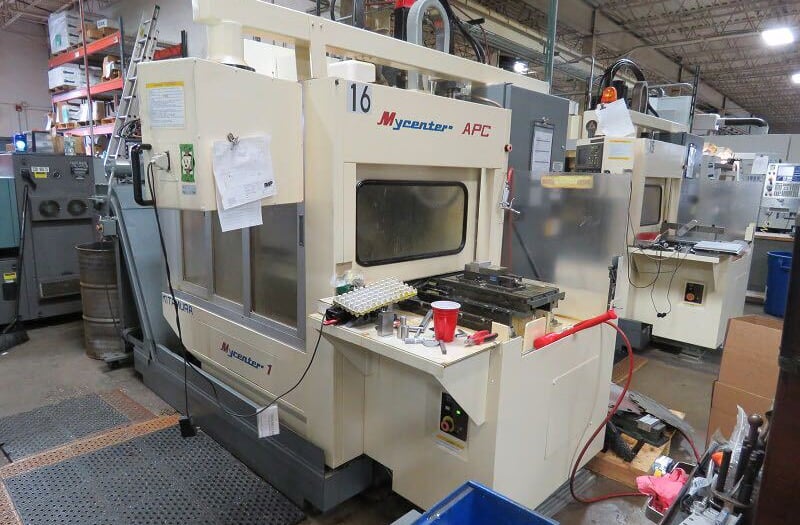

Used Kitamura Mycenter 1 Vertical Machining Centre | A.K. Machine Traders, Navi Mumbai, India

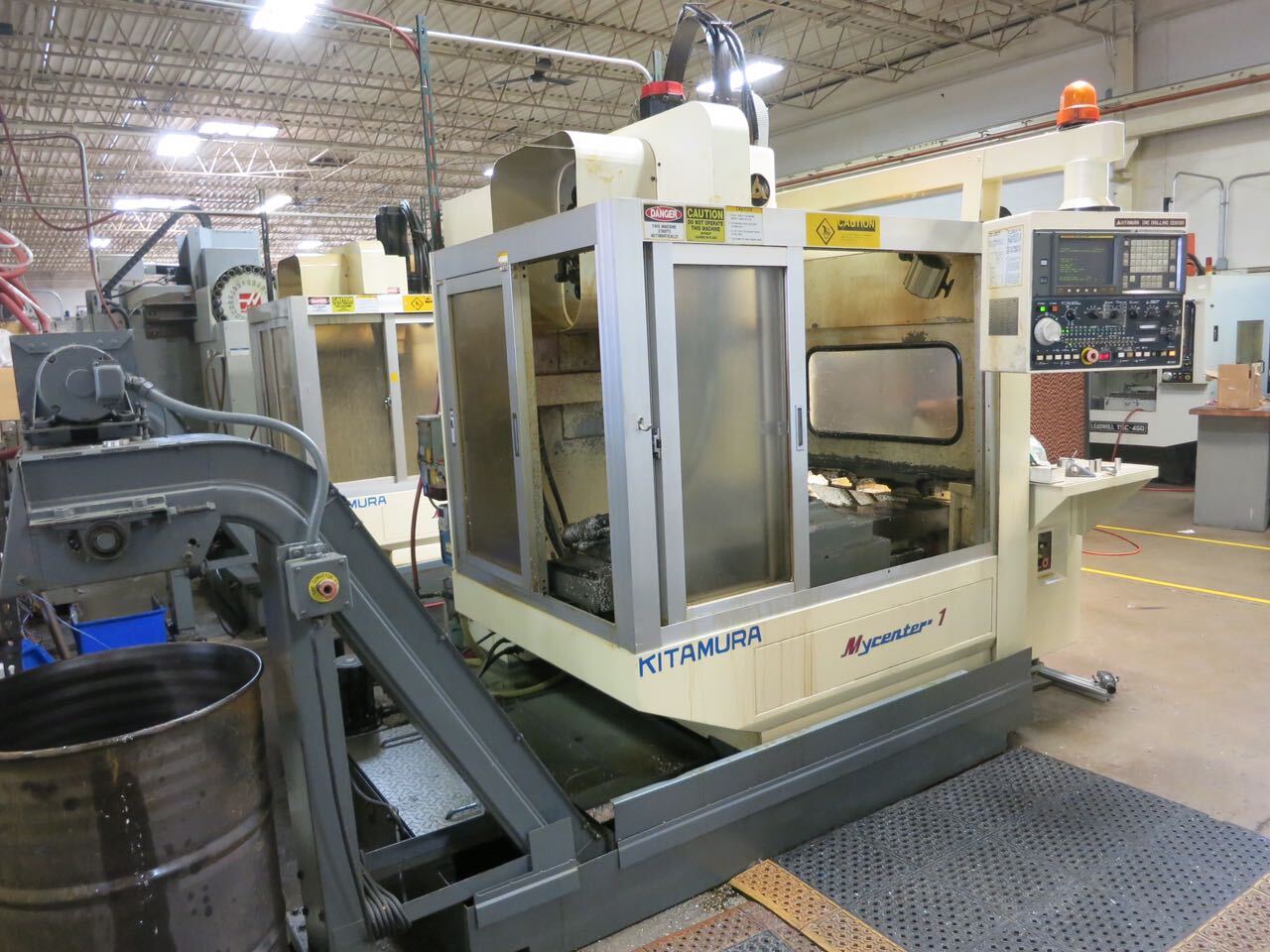

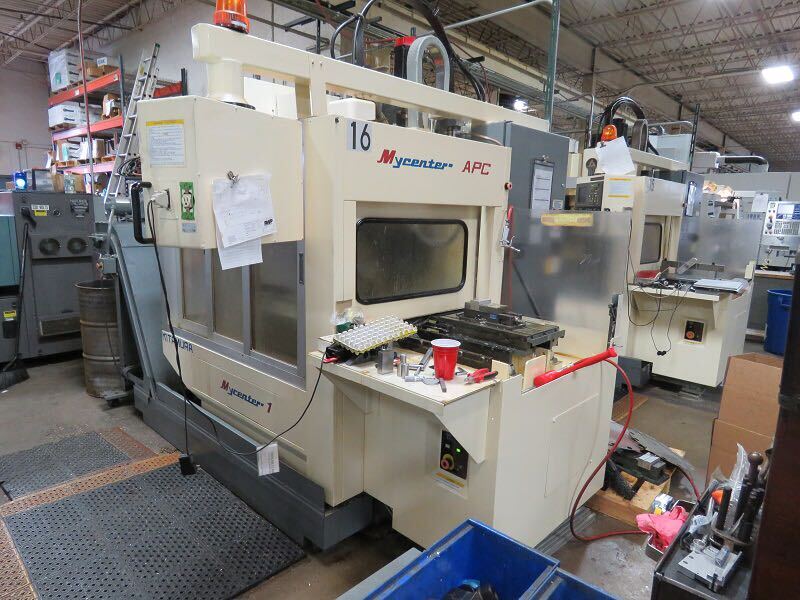

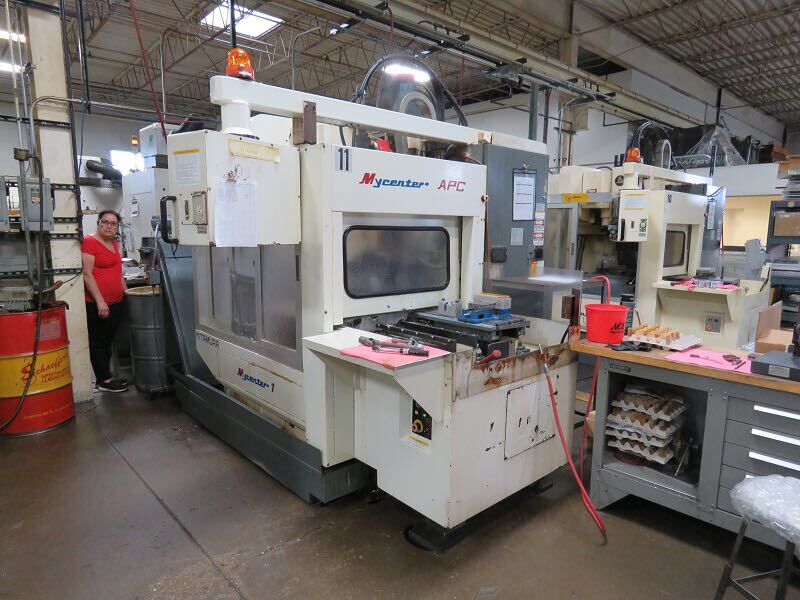

This used Kitamura Mycenter 1 vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. A machining centre cuts metal parts with rotating tools, and this one has an automatic tool changer and a pallet changer.

Its spindle runs at up to 13,000 RPM with a BT-35 taper and a 15 HP drive motor. The 20-position tool changer swaps tool to tool in 1.2 seconds, and the pallet changes in 7.5 seconds.

Key Features

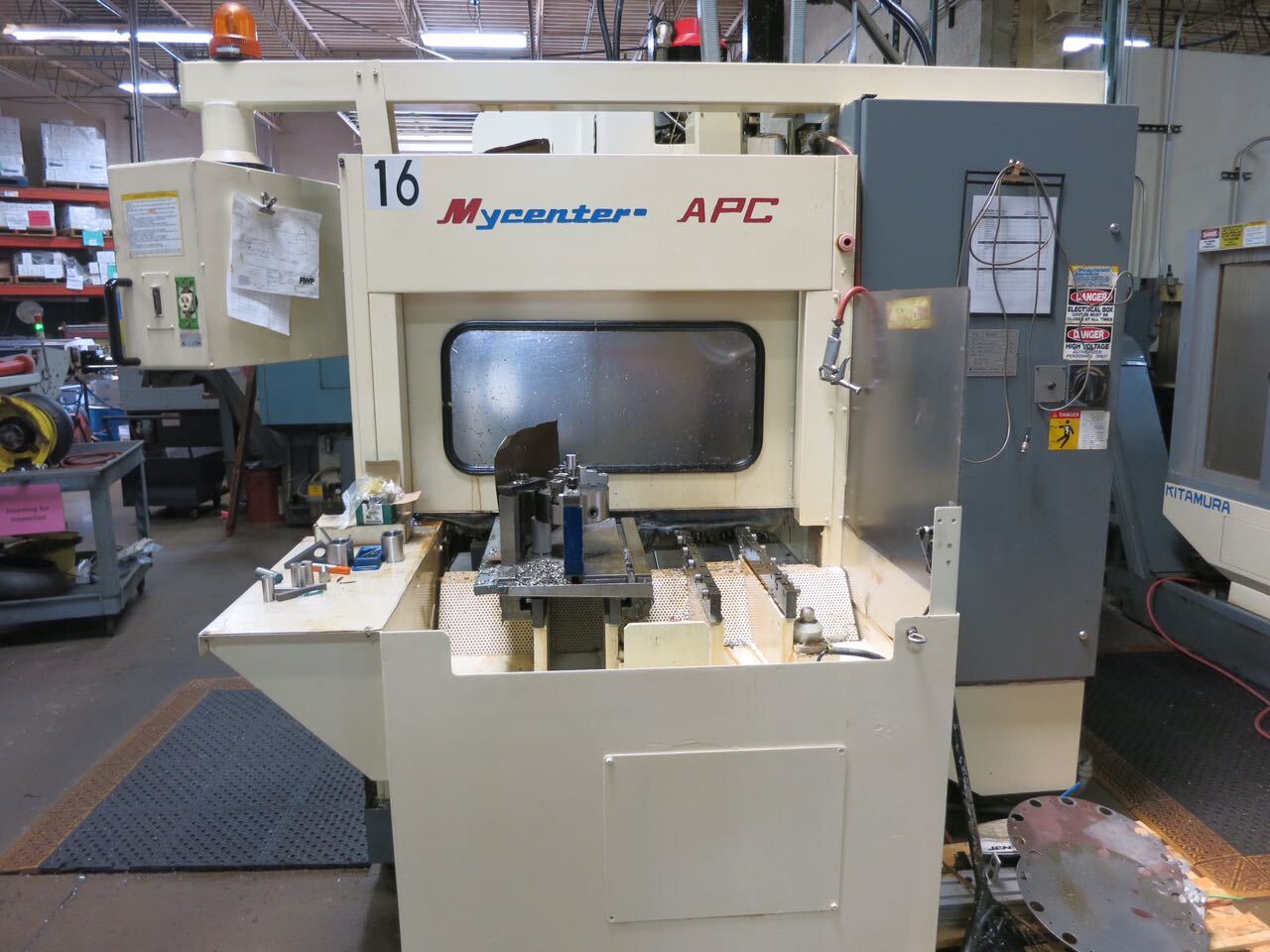

• Automatic pallet changer

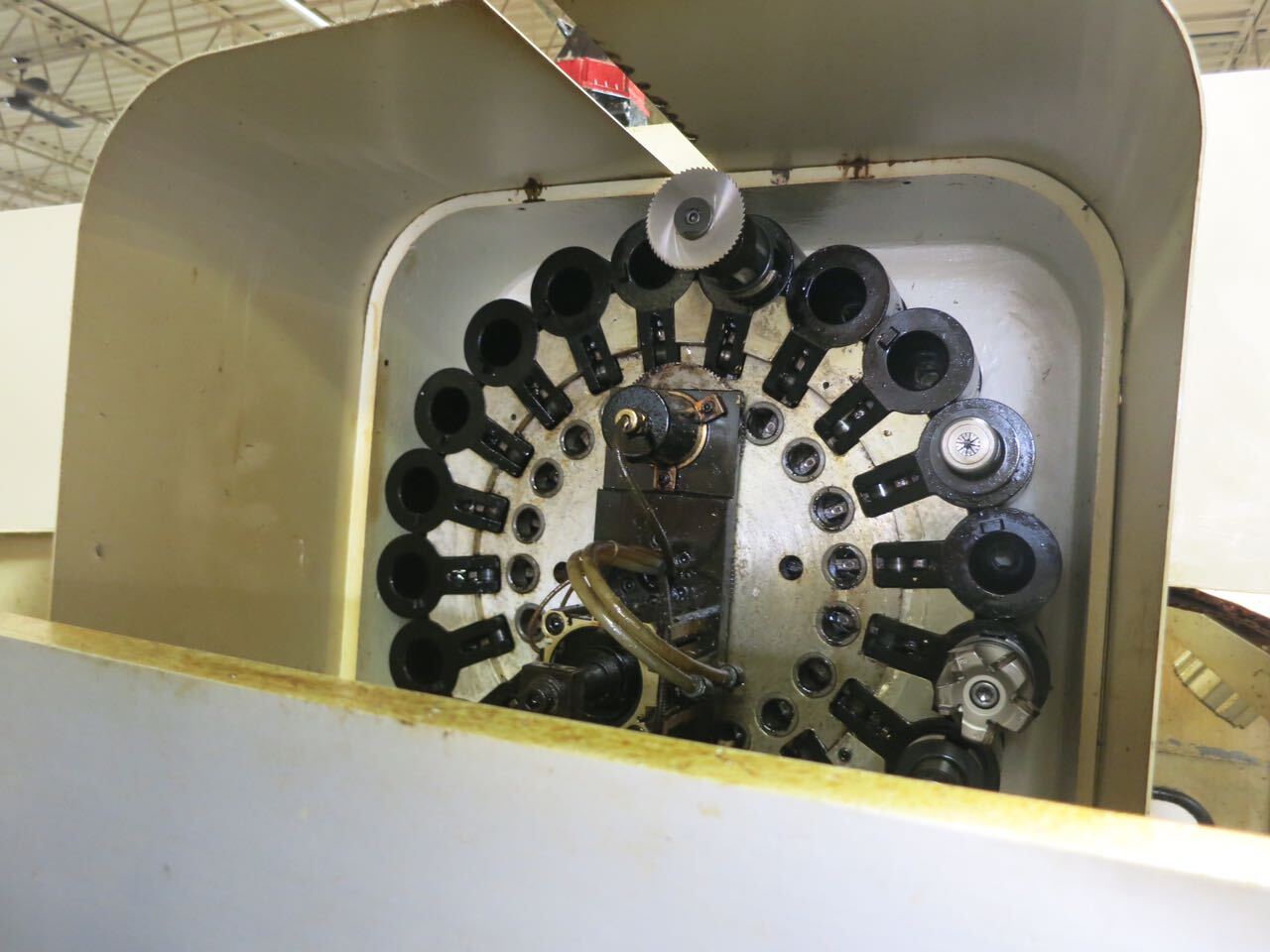

• 20-position automatic tool changer
• BT-35 spindle taper
• High-speed spindle running at up to 13,000 RPM

Technical Specifications

• Model: Kitamura Mycenter 1
• Pallet size: 19.7″ x 11.8″
• Pallet load: 200 lbs
• Pallet change time: 7.5 sec
• X-axis table travel: 19.9″
• Y-axis saddle travel: 14″
• Z-axis spindle head travel: 16″
• Distance, spindle to table: 8.5″ to 21.5″
• Rapid traverse rate: X and Y 944 IPM; Z 787 IPM
• Spindle taper: BT-35
• Spindle speed: 13,000 RPM
• Spindle drive motor: 15 HP
• Automatic tool changer: 20 positions
• Maximum tool diameter: 2.76″
• Maximum tool length: 9.8″
• Maximum tool weight: 8.8 lbs
• Tool change time, tool to tool: 1.2 sec
• Tool change time: 3.2 sec
• Approximate dimensions: 143.6″ x 91″ x 84″
• Machine weight: 10,780 lbs

Applications

• Machining small and medium metal parts in batches
• Milling, drilling and tapping components
• Precision parts for general engineering and tooling work
• Production runs where fast tool and pallet changes cut idle time

Commercial Details

• Make: Kitamura
• Model: Mycenter 1
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the spindle speed and taper? The spindle has a BT-35 taper and runs at up to 13,000 RPM with a 15 HP drive motor.
• What are the axis travels? Travels are 19.9″ in X, 14″ in Y and 16″ in Z, with 8.5″ to 21.5″ from spindle to table.
• How many tools does it hold and how fast does it change them? The tool changer holds 20 tools and changes tool to tool in 1.2 seconds.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection is possible. Confirm which accessories and tooling are included, the control and electrical details, and the loading and shipping arrangements.
