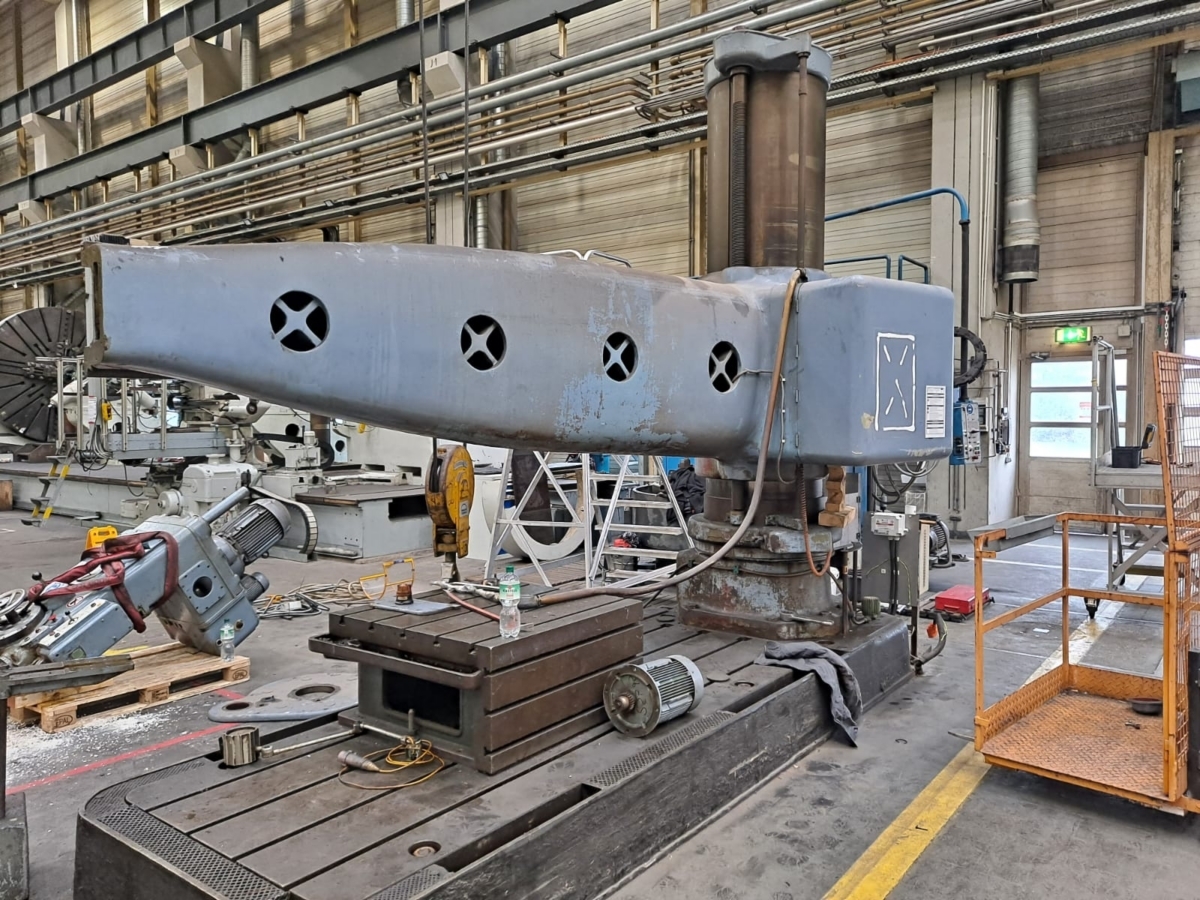

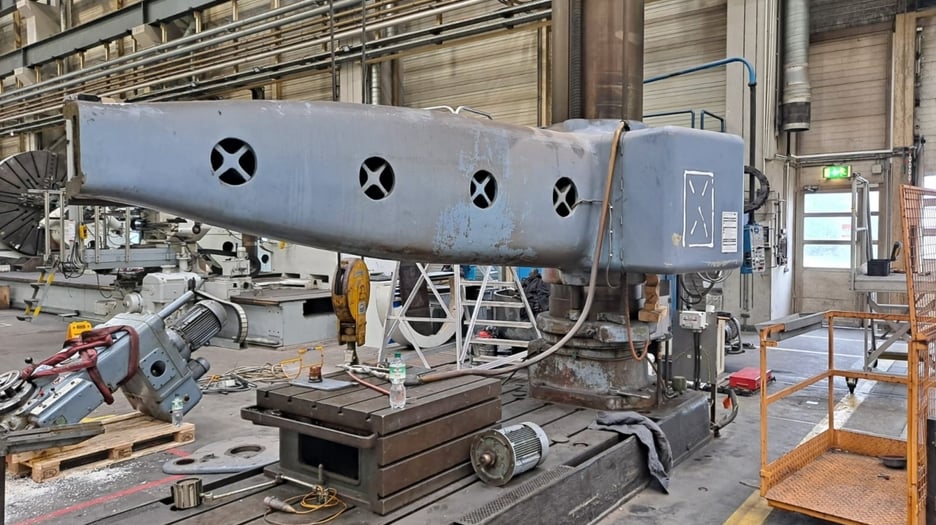

Used Kolb 100/3000 Radial Drilling Machine | A.K. Machine Traders, Navi Mumbai, India

This used Kolb 100/3000 radial drilling machine is available from A.K. Machine Traders in Navi Mumbai, India. A radial drilling machine drills holes in large or heavy workpieces by moving the drilling head along an arm rather than moving the work.

It drills holes up to 100 mm in diameter in steel and has a 3,000 mm arm. It accepts workpieces up to 2,000 mm high, and its spindle speeds run from 14 to 1,360 rpm.

Technical Specifications

• Model: Kolb 100/3000
• Bore capacity in steel: Ø100 mm

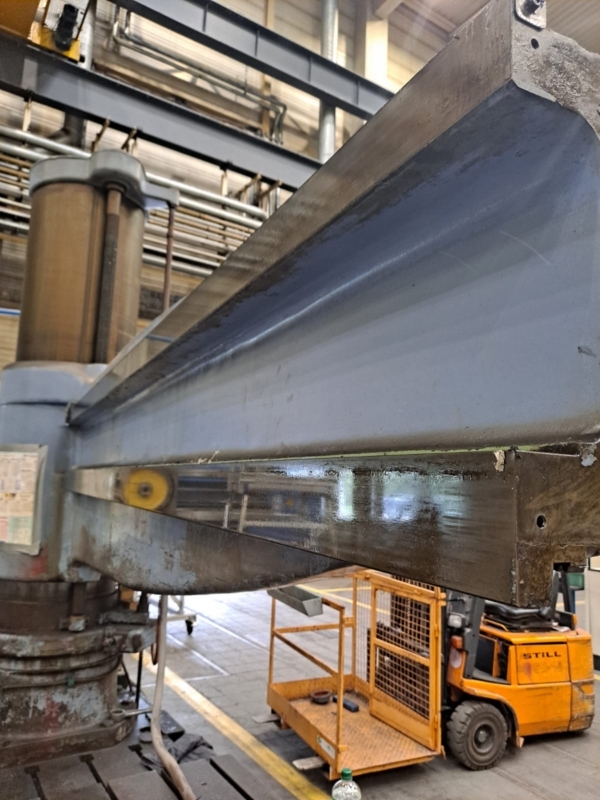

• Arm length: 3,000 mm
• Maximum workpiece height: 2,000 mm
• Spindle diameter: Ø110 mm
• Spindle speeds: 14–1,360 rpm

Applications

• Drilling large holes in heavy steel components
• Drilling on large fabrications and castings
• General heavy engineering and workshop drilling
• Drilling tall workpieces that are too big for a standard column drill

Commercial Details

• Make: Kolb
• Model: 100/3000
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest hole this machine can drill? It has a bore capacity in steel of 100 mm diameter.
• How long is the arm and how tall can the workpiece be? The arm is 3,000 mm long and the maximum workpiece height is 2,000 mm.
• What spindle speeds does it offer? Spindle speeds range from 14 to 1,360 rpm.
• What should I ask when enquiring? Ask for photos or a video of the machine running under power, and whether an inspection can be arranged. Confirm which accessories, tooling and tables are included, the condition of the electrics and controls, and the loading and shipping arrangements.
