Used Kolomna 1532 Vertical Turret Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Kolomna 1532 vertical turret lathe is available from A.K. Machine Traders in Navi Mumbai, India. It turns large, heavy workpieces held flat on a rotating table.

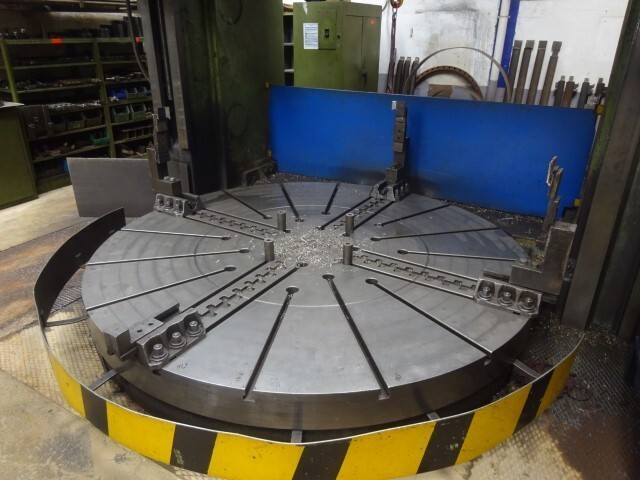

It has a 3,080 mm table and a 3,400 mm swing, and takes workpieces up to 1,600 mm high and 16 t in weight. The main motor is rated at 55 kW and the table speed runs from 0.6 to 31 rpm.

Technical Specifications

• Model: 1532
• Table diameter: 3,080 mm
• Workpiece diameter without support: 3,200 mm
• Swing: 3,400 mm
• Table speed: 0.6–31 rpm
• Max. workpiece height: 1,600 mm
• Max. workpiece weight: 16 t
• Main motor power: 55 kW
• Machine dimensions: 5,490 x 6,540 x 5,100 mm
• Machine weight: 43 t

Applications

• Large turned discs, flanges and rings
• Heavy housings and casings
• Turbine and pump components
• Large gear blanks and wheels

Commercial Details

• Make: Kolomna
• Model: 1532
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of workpiece can it take? It handles workpieces up to 3,200 mm in diameter without support, 1,600 mm high and 16 t in weight.
• What is the table speed range? The table runs from 0.6 to 31 rpm.
• How big and heavy is the machine? It measures 5,490 x 6,540 x 5,100 mm and weighs 43 t, so plan for transport and foundations.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, which tooling, heads and accessories are included, the condition of the control and electrics, and loading and shipping arrangements for a 43 t machine.
