Used Leadwell Lead MV 30i Vertical Machining Center | A.K. Machine Traders, Navi Mumbai, India

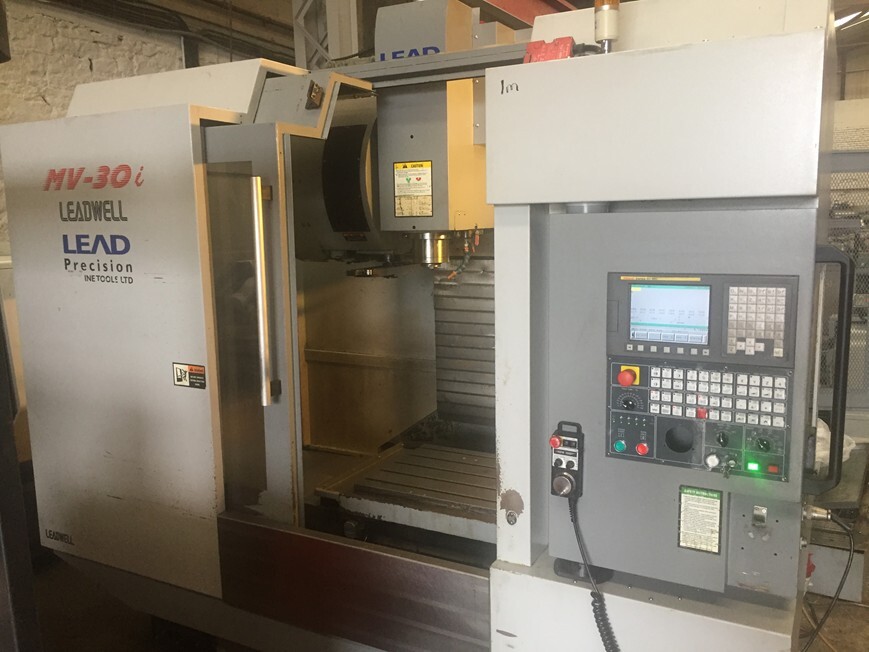

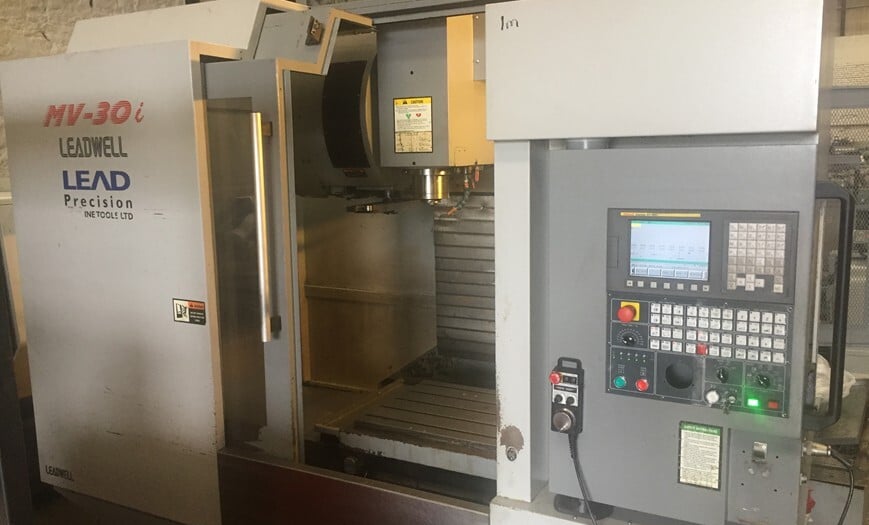

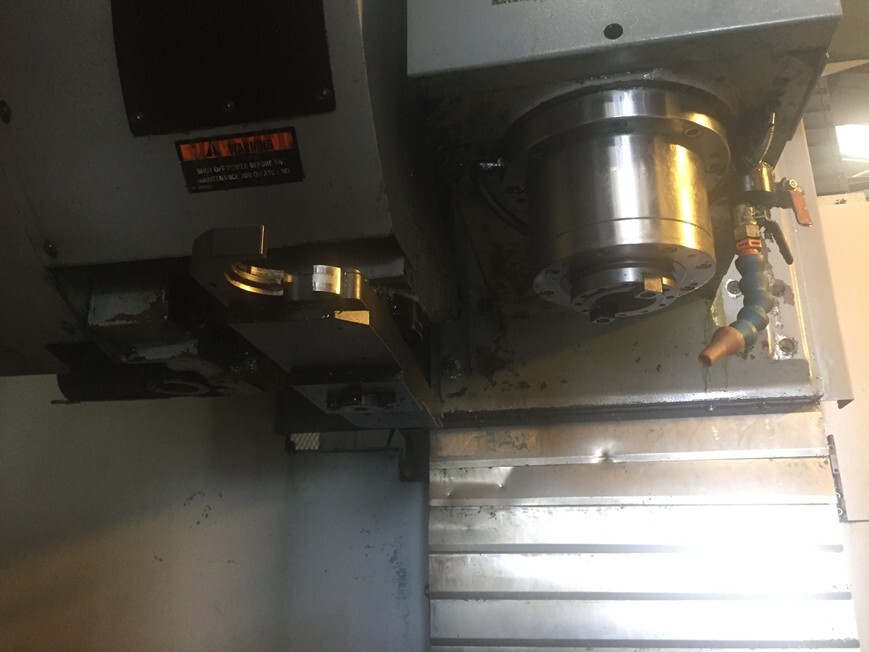

This used Leadwell Lead MV 30i vertical machining center is available from A.K. Machine Traders in Navi Mumbai, India. A vertical machining center cuts metal parts using a rotating tool held in a vertical spindle.

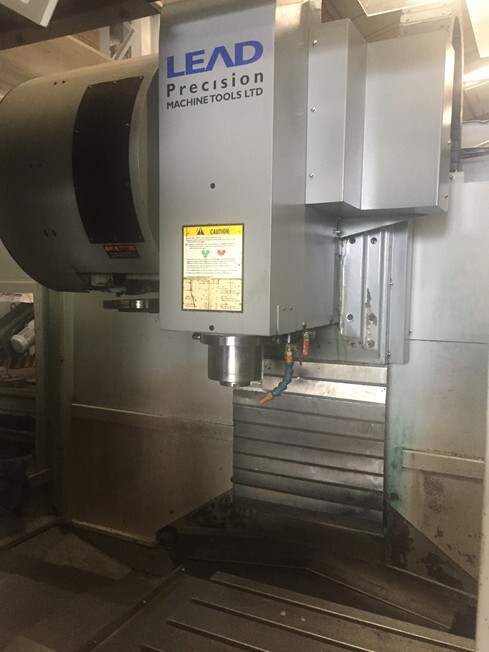

It has a 4th axis fitted and is controlled by a Fanuc 0i-MC CNC. The spindle runs up to 8,000 rpm, and the 24-tool magazine takes BT 40 tooling. The machine was made in Taiwan in March 2008 and comes with all manuals.

Key Features

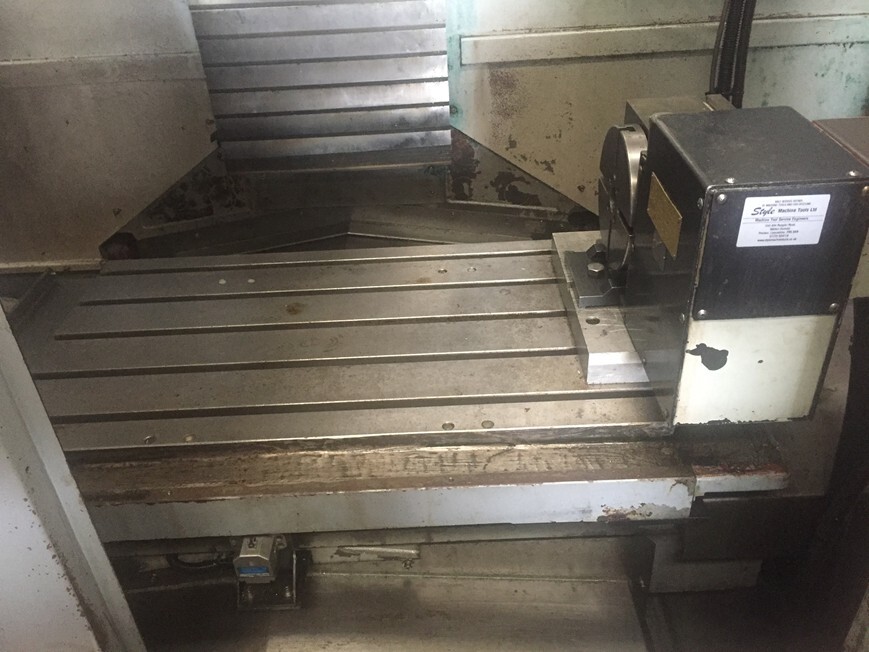

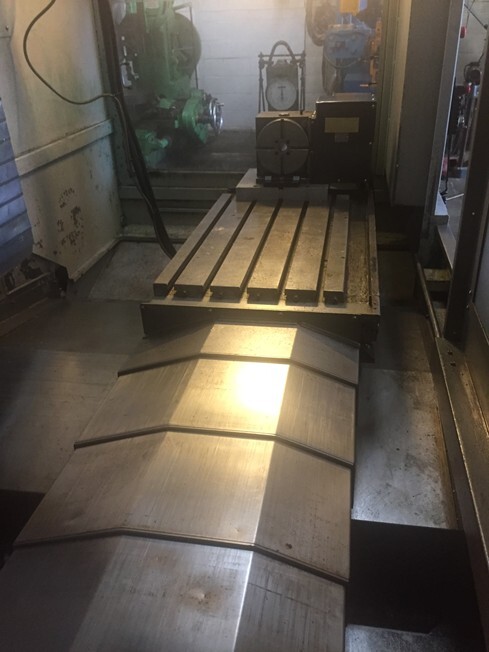

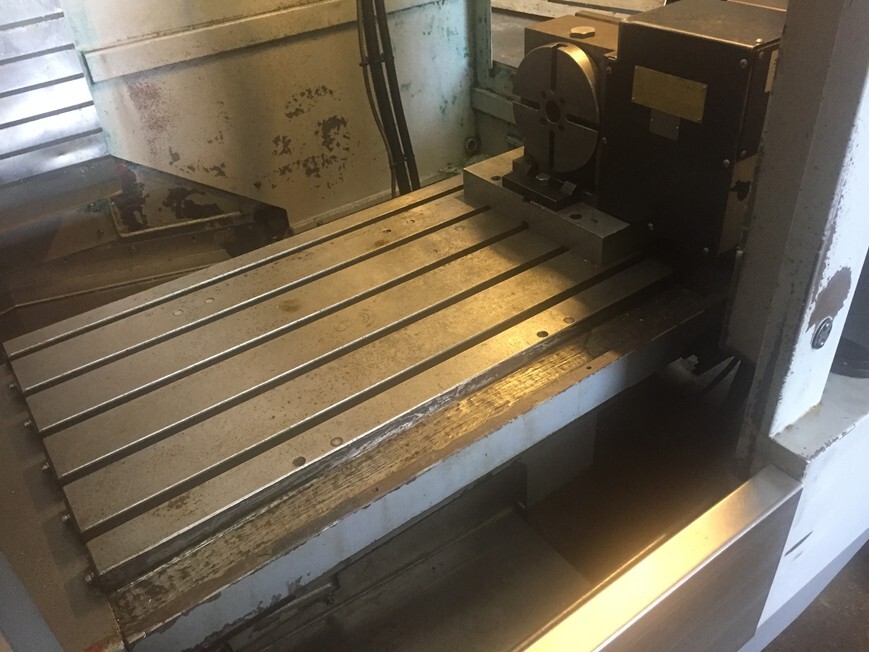

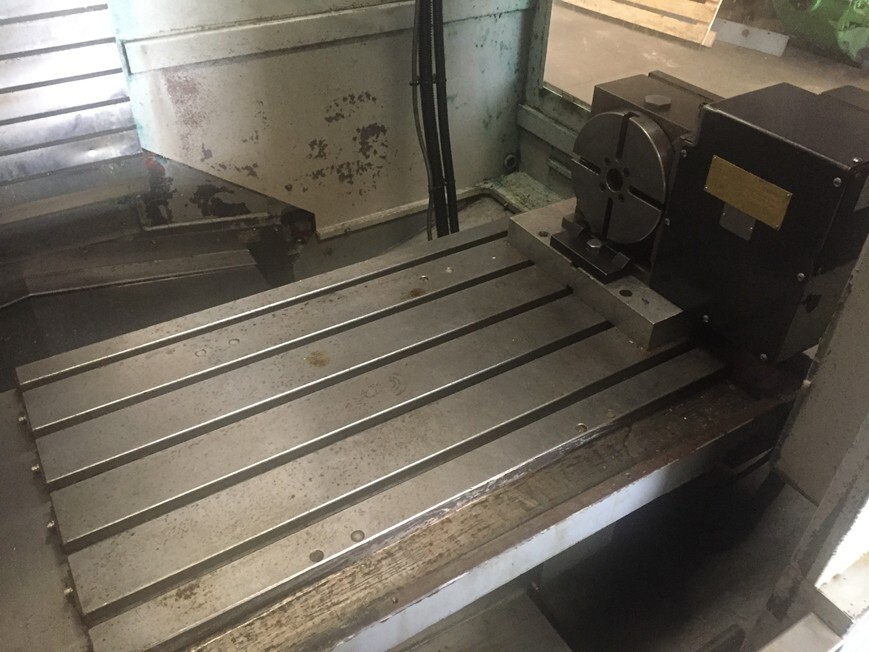

• 4th axis fitted
• Fanuc 0i-MC CNC control

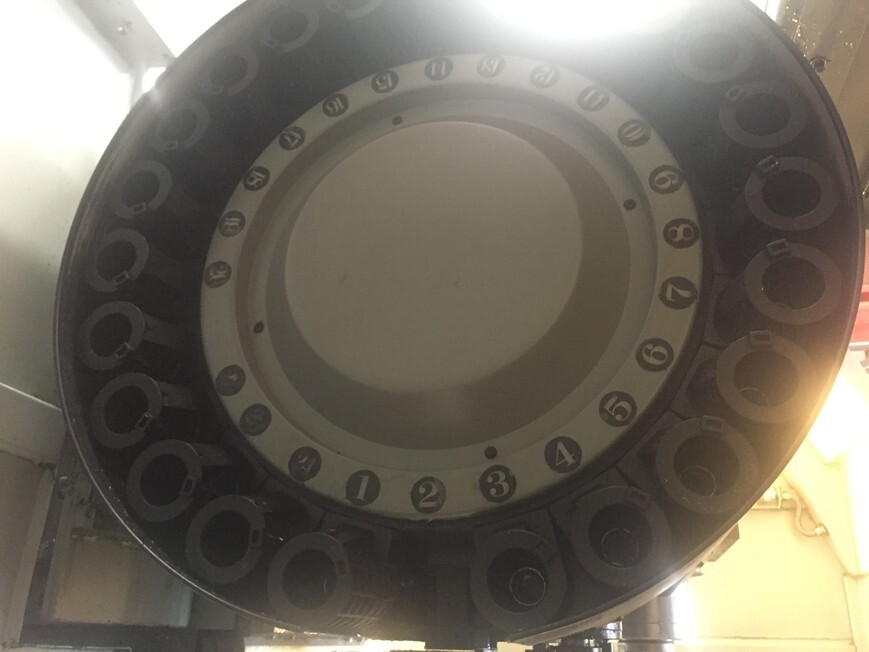

• 24-tool magazine
• BT 40 tool holding
• All manuals included

Technical Specifications

• Model: Leadwell Lead MV 30i
• Table size: 890 x 500 mm
• X-axis travel: 760 mm
• Y-axis travel: 410 mm
• Z-axis travel: 610 mm
• Feed travel speed: 10,000 mm/min
• Spindle speed: 8,000 rpm
• Tool magazine: 24 tools
• Tool holder: BT 40
• 4th axis: Fitted
• Control: Fanuc 0i-MC CNC
• Power demand: 35 kVA
• Weight: 5,500 kg
• Made in: Taiwan
• Year of manufacture: March 2008

Applications

• Machining of metal components in job shops and toolrooms
• Mould, die and fixture work
• Milling, drilling and tapping of prismatic parts
• Rotary machining of parts using the 4th axis

Commercial Details

• Make: Leadwell
• Model: Lead MV 30i
• Year: 2008
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What control does the Lead MV 30i have? It has a Fanuc 0i-MC CNC control.
• What are the axis travels? X is 760 mm, Y is 410 mm and Z is 610 mm, on an 890 x 500 mm table.
• Does it have a 4th axis and how many tools does it hold? A 4th axis is fitted, and the magazine holds 24 BT 40 tools.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, and what accessories, tooling and the 4th axis equipment are included. Also confirm the condition of the control and electrics, the power supply needed (35 kVA), and the loading and shipping arrangements for a 5,500 kg machine.
