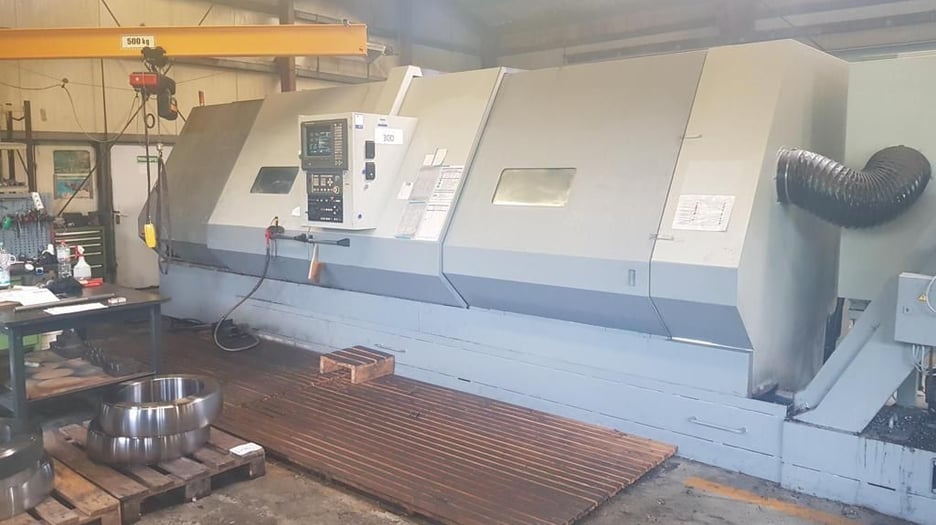

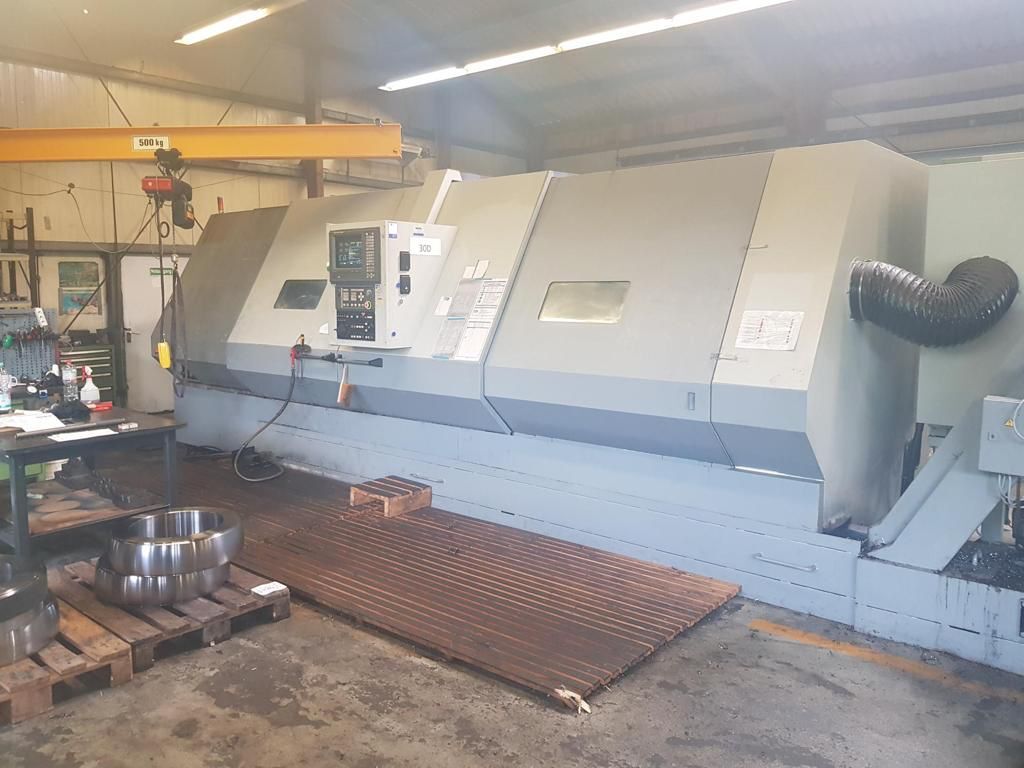

Used Leadwell LTC 50 CXL CNC Turning Center | A.K. Machine Traders, Navi Mumbai, India

This used Leadwell LTC 50 CXL CNC turning center is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC lathe for turning round parts, and this model is built for long, large-diameter work.

It swings 850 mm, turns up to 800 mm in diameter and up to 3,006 mm in length. The spindle has an A2-11 nose and runs at 15–1,500 rpm, with a 12-station tool turret and a bar capacity of 117 mm.

Technical Specifications

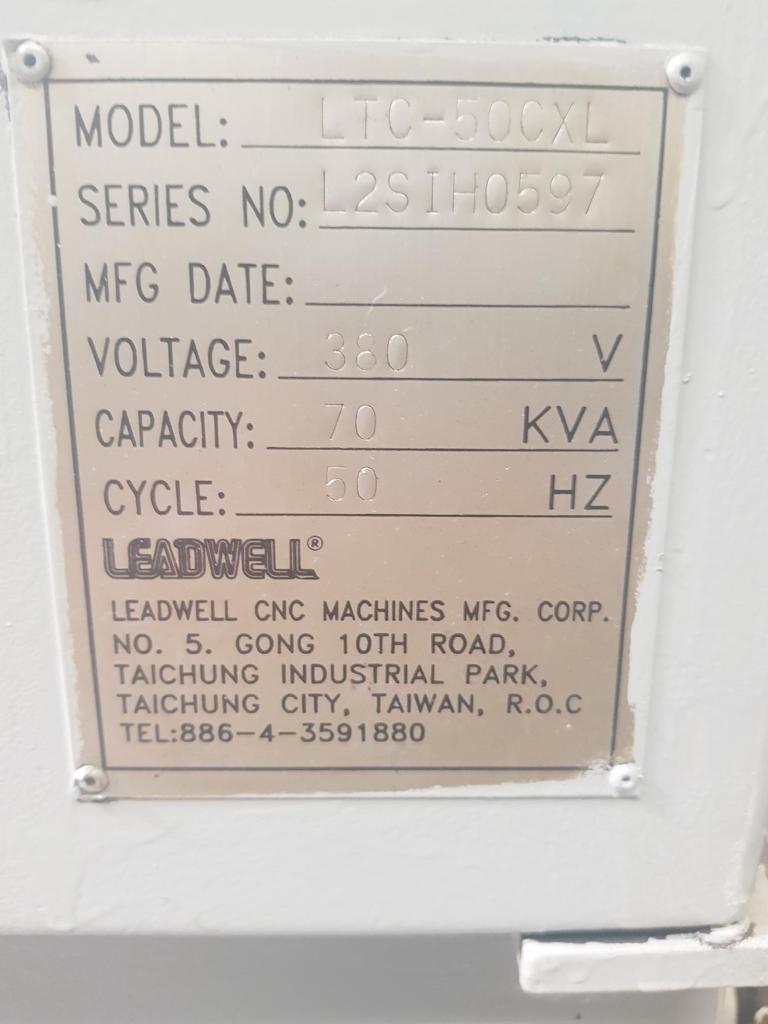

• Model: Leadwell LTC 50 CXL
• Max. swing: 850 mm
• Max. turning diameter: 800 mm
• Max. turning length: 3,006 mm
• Bar capacity: 117 mm
• X axis travel: 400+25 mm
• Z axis travel: 3,100 mm
• Spindle speed: 15–1,500 rpm

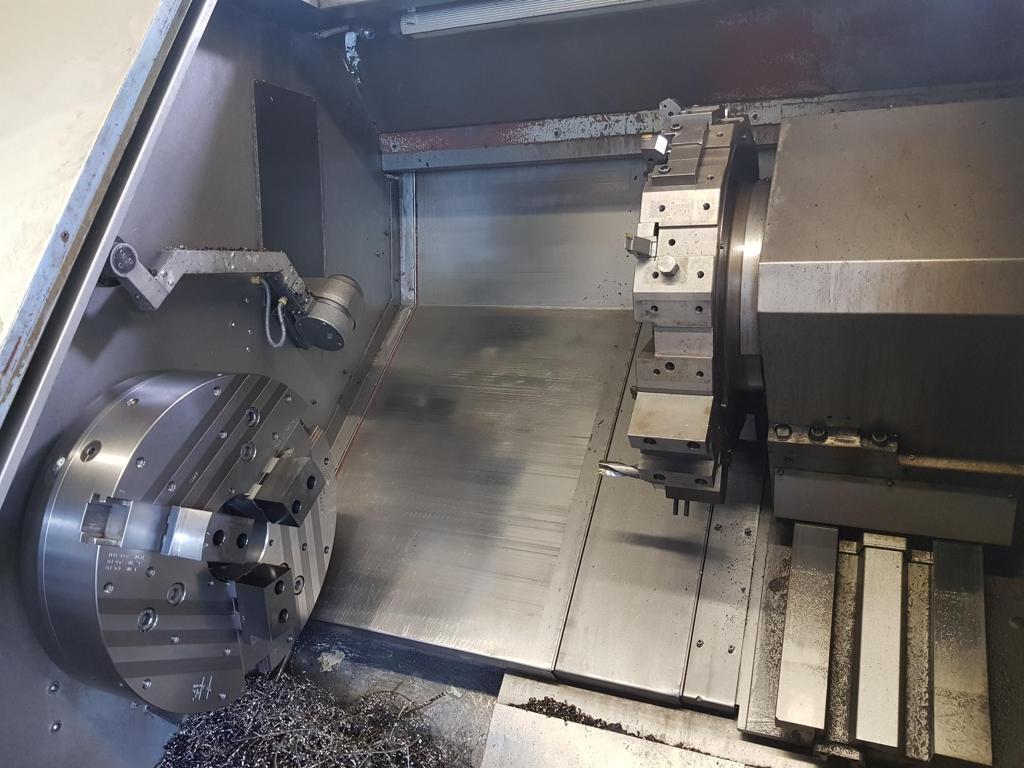

• Chuck size: 381 mm / 457 mm
• Spindle nose: A2-11

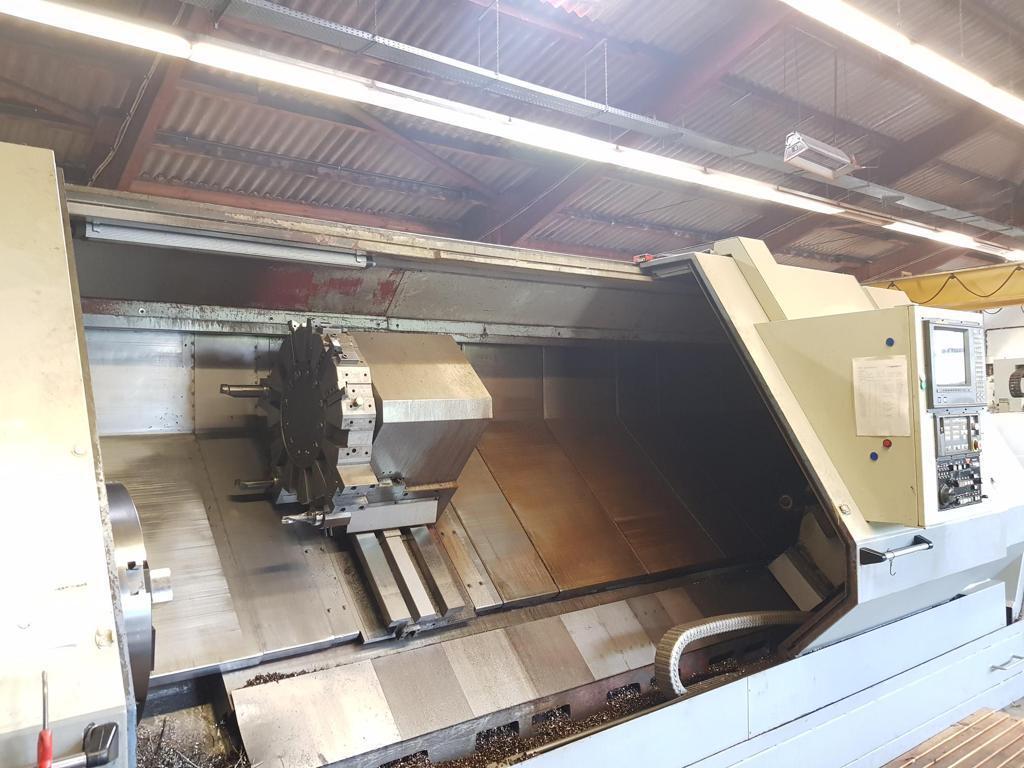

• Tool stations: 12
• Square tool shank height: 32 mm
• Boring bar shank diameter: 50 mm
• X axis rapid traverse: 10 m/min
• Z axis rapid traverse: 12 m/min
• X/Z axis motors: 4/7 kW
• Machine size (L x W x H): 6,596 x 2,575 x 2,426 mm
• Machine weight: 20,000 kg

Applications

• Long shafts and rollers
• Large-diameter turned components
• Bar-fed turned parts up to 117 mm
• General heavy turning and boring work

Commercial Details

• Make: Leadwell
• Model: LTC 50 CXL
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of workpiece can it turn? It turns up to 800 mm in diameter and 3,006 mm in length, with a maximum swing of 850 mm.
• How many tools does the turret hold? The turret has 12 tool stations, taking 32 mm square shank tools and boring bars up to 50 mm in shank diameter.
• What spindle speed and chuck sizes does it have? The spindle runs at 15–1,500 rpm and the chuck is offered in 381 mm and 457 mm sizes, on an A2-11 spindle nose.

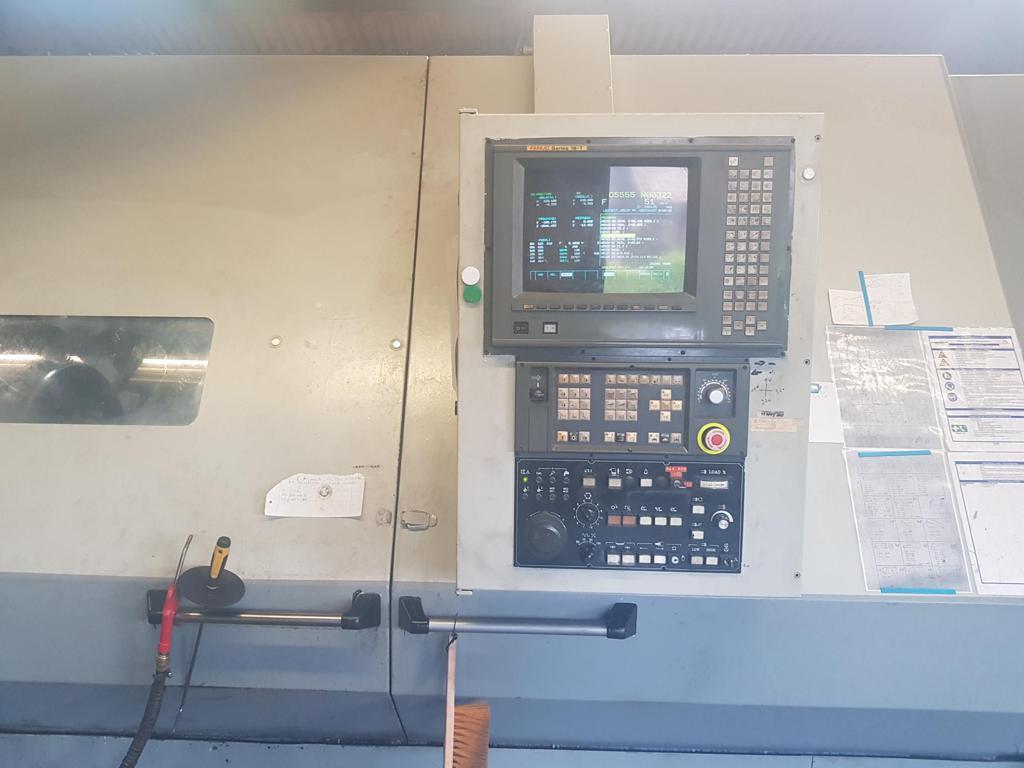

• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection is possible. Confirm which chuck, tooling and accessories are included, the control and electrical details, and arrangements for loading and shipping a machine of about 20,000 kg.
