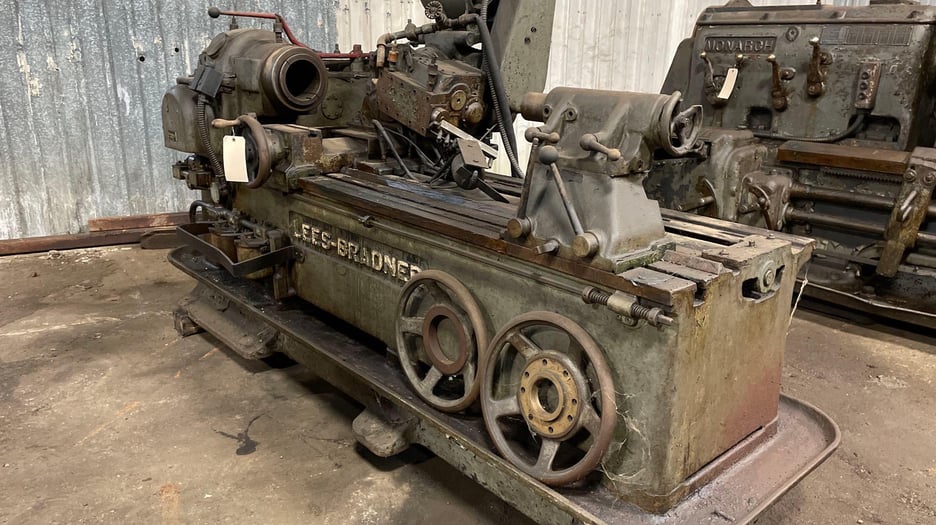

Used Lees-Bradner HT 12X102 Thread And Worm Milling Machine | A.K. Machine Traders, Navi Mumbai, India

This used Lees-Bradner HT 12X102 thread and worm milling machine is available from A.K. Machine Traders in Navi Mumbai, India. It cuts threads and worms on long workpieces.

It is rated for 12″ diameter and 102″ length, with 106″ capacity between centres. Swing is 32″ over the bed ways and 20″ over the cutter carriage.

Technical Specifications

• Model: HT 12X102
• Diameter: 12″
• Length: 102″
• Capacity between centres: 106″
• Swing over bed ways: 32″
• Swing over cutter carriage (max diameter capacity): 20″
• Min. longitudinal distance, work spindle nose to cutter swivel head centre: 7″
• Max. longitudinal distance, work spindle nose to cutter swivel head centre: 60″
• Min. axial distance, work spindle centreline to cutter spindle centreline: 0″
• Max. axial distance, work spindle centreline to cutter spindle centreline: 9-1/12″ max.

Applications

• Screw threads on long shafts
• Worms for worm gear drives
• Lead screws and power transmission screws

Commercial Details

• Make: Lees-Bradner
• Model: HT 12X102
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of work can it take? It is listed at 12″ diameter and 102″ length, with 106″ between centres.
• What is the swing? The swing is 32″ over the bed ways and 20″ over the cutter carriage.
• What should I ask when enquiring? Ask for photos or video of the machine running, details of the control and electrics, which tooling and accessories are included, whether an inspection can be arranged, and how loading and shipping would be handled.
