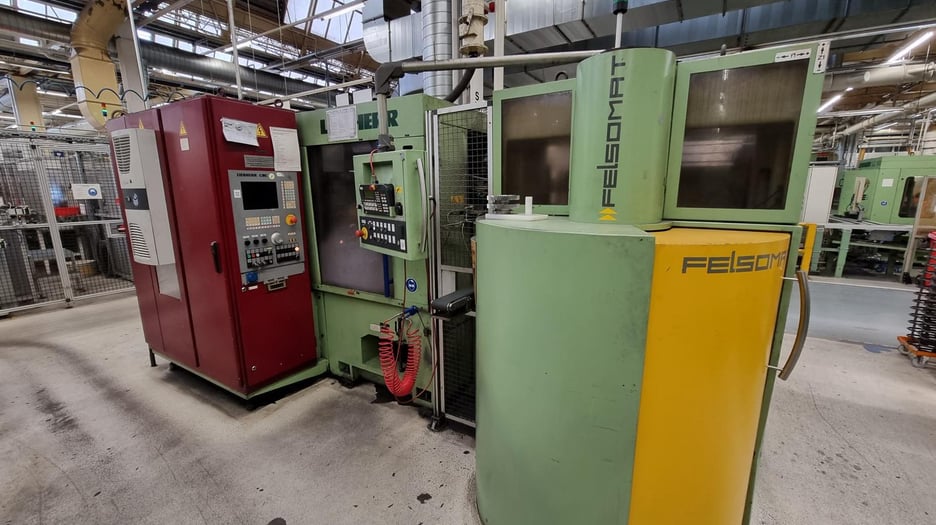

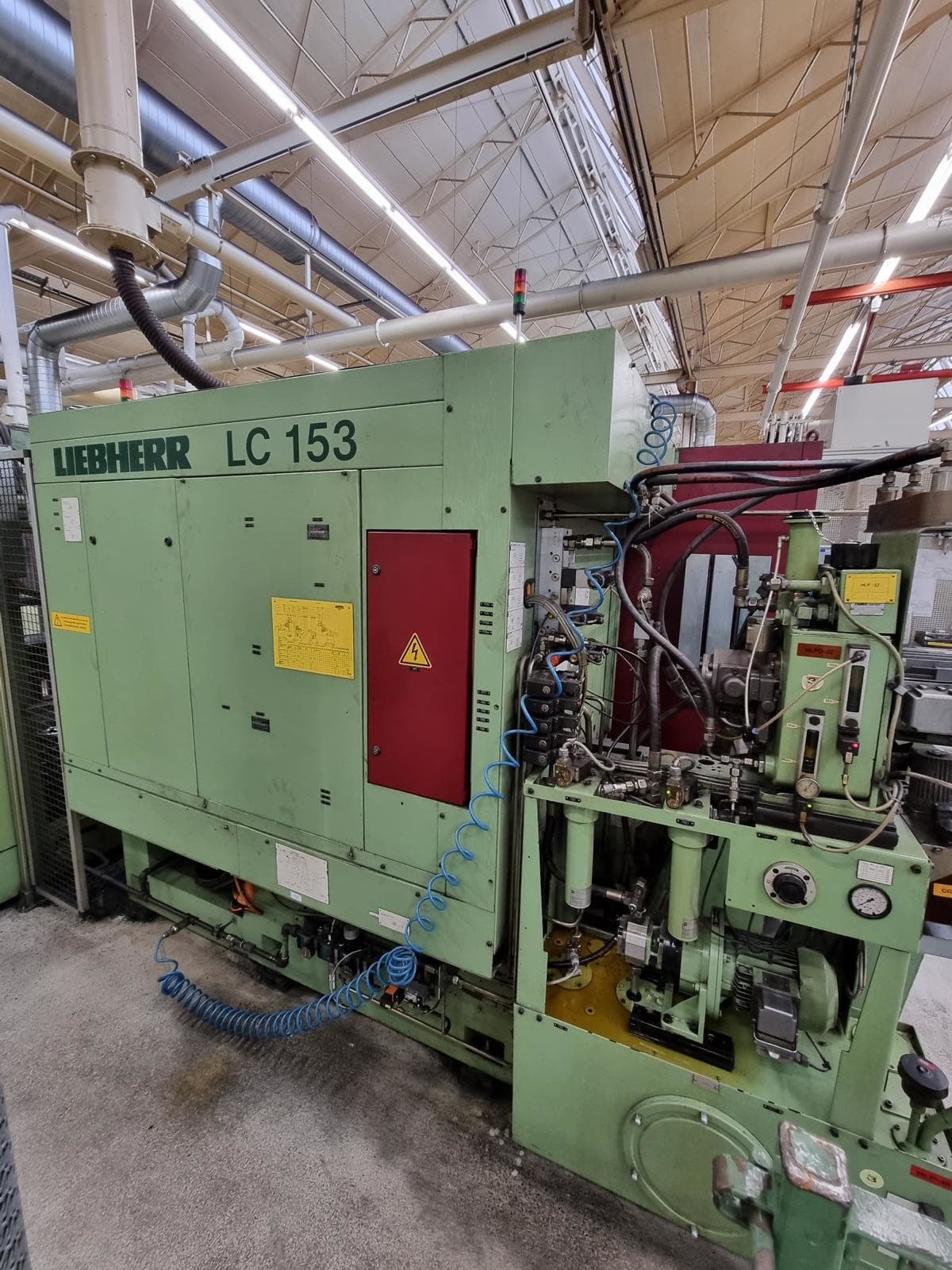

Used Liebherr LC 153 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used Liebherr LC 153 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth into round workpieces using a rotating hob.

It handles workpieces up to 150 mm in diameter and module 5, and is controlled by a Liebherr 90 CNC. It is equipped for dry cutting and comes with an automatic loading system with a carousel and a 180-degree loader.

Key Features

• Dry-cutting operation
• Automatic load system with carousel and 180-degree loader
• Hydraulic table clamping
• Chip conveyor

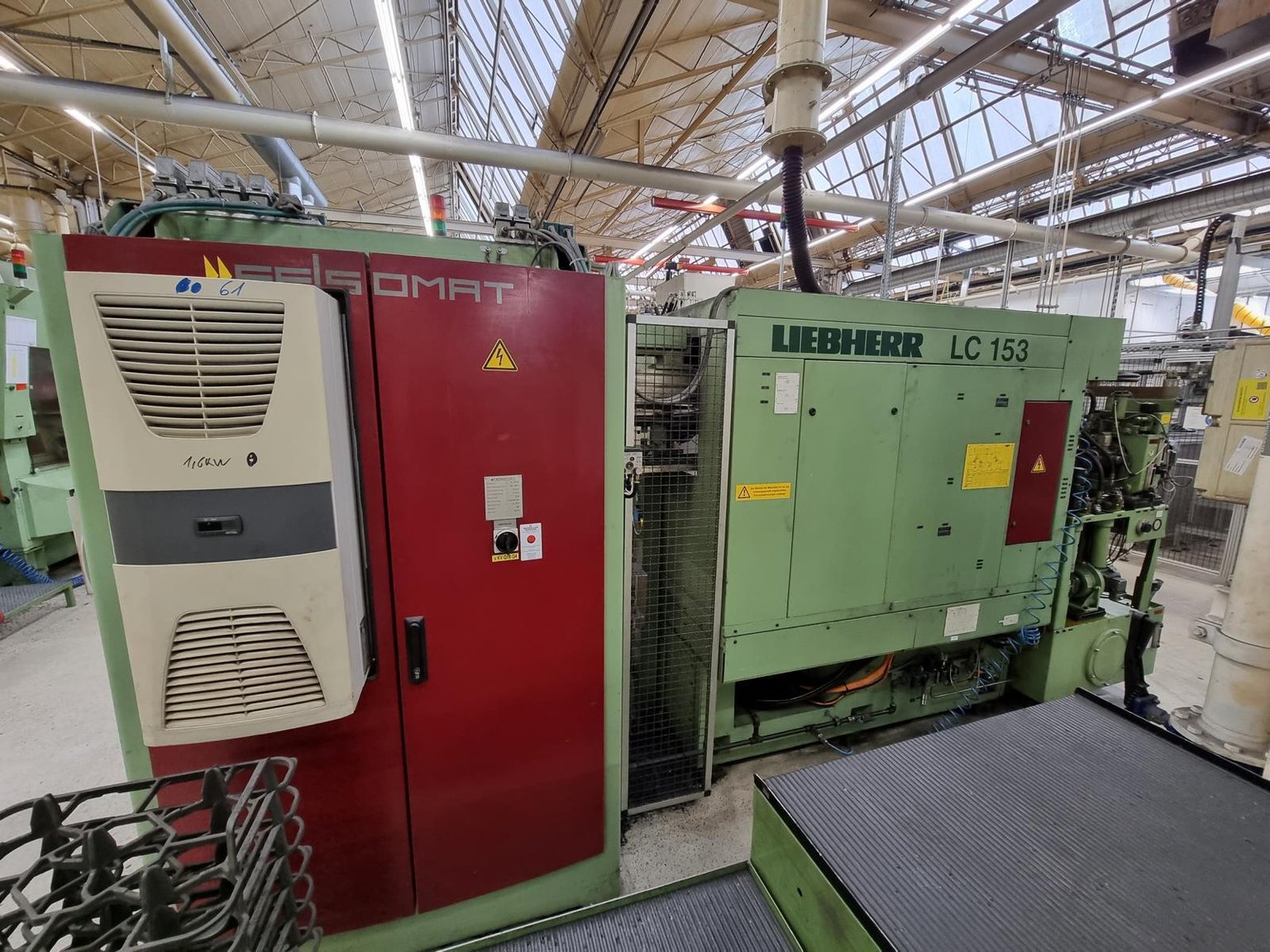

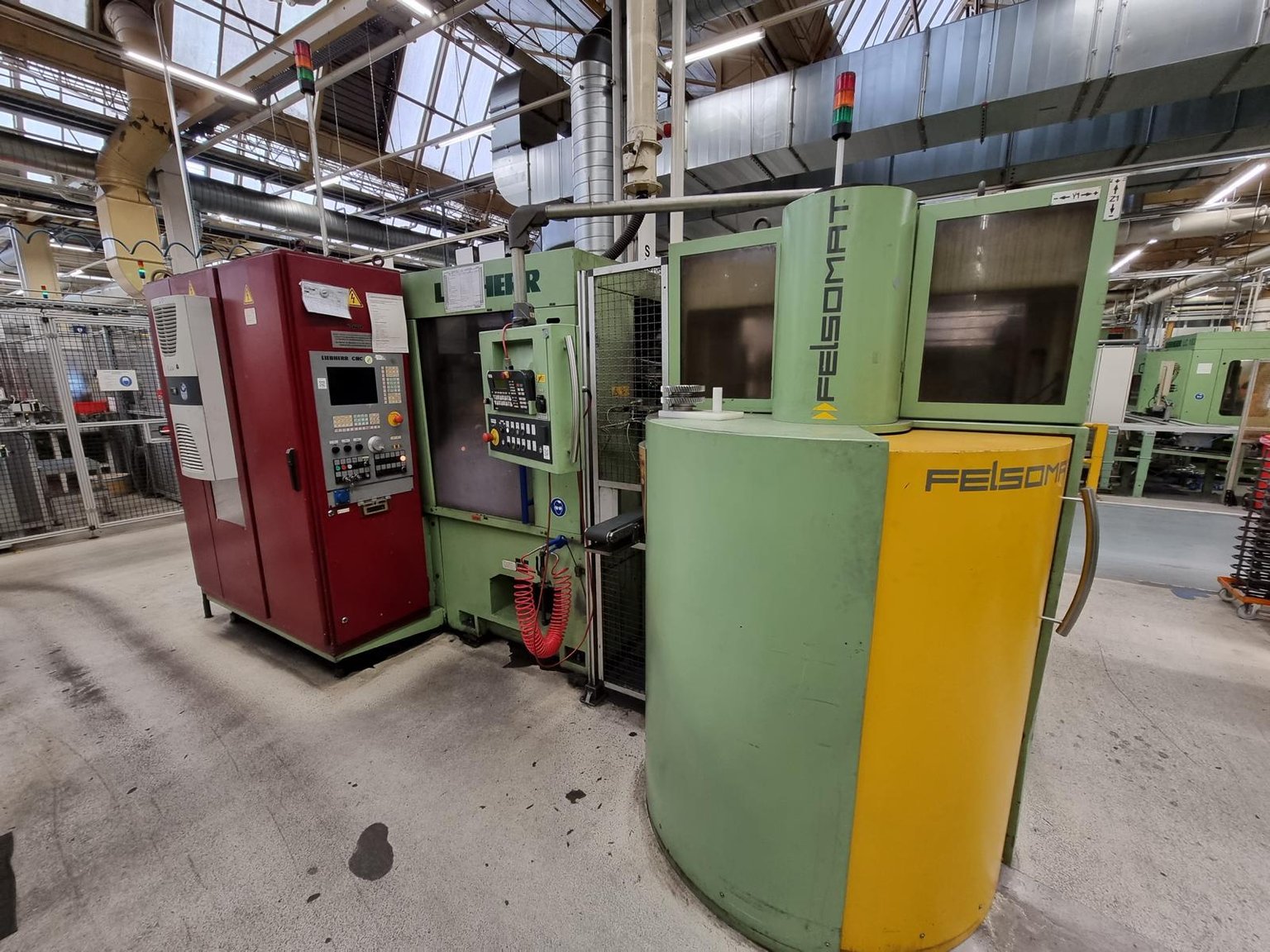

• FELSOMAT part handling and storage system
• Hob head swivels ±45°

Technical Specifications

• Model: Liebherr LC 153
• Maximum diameter: 150 mm
• Maximum module: 5
• Minimum number of teeth: 3
• Maximum hob slide travel: 250 mm
• Maximum shift travel: 180 mm
• Maximum hob size: 132 x 180 mm
• Hob head swivel: ±45°
• Hob spindle speed: 120–1,200 rpm
• Table diameter: 120 mm
• Table speed: 150 rpm
• Distance, hob to table centre: 15–175 mm
• Distance, hob to table surface: 50–630 mm

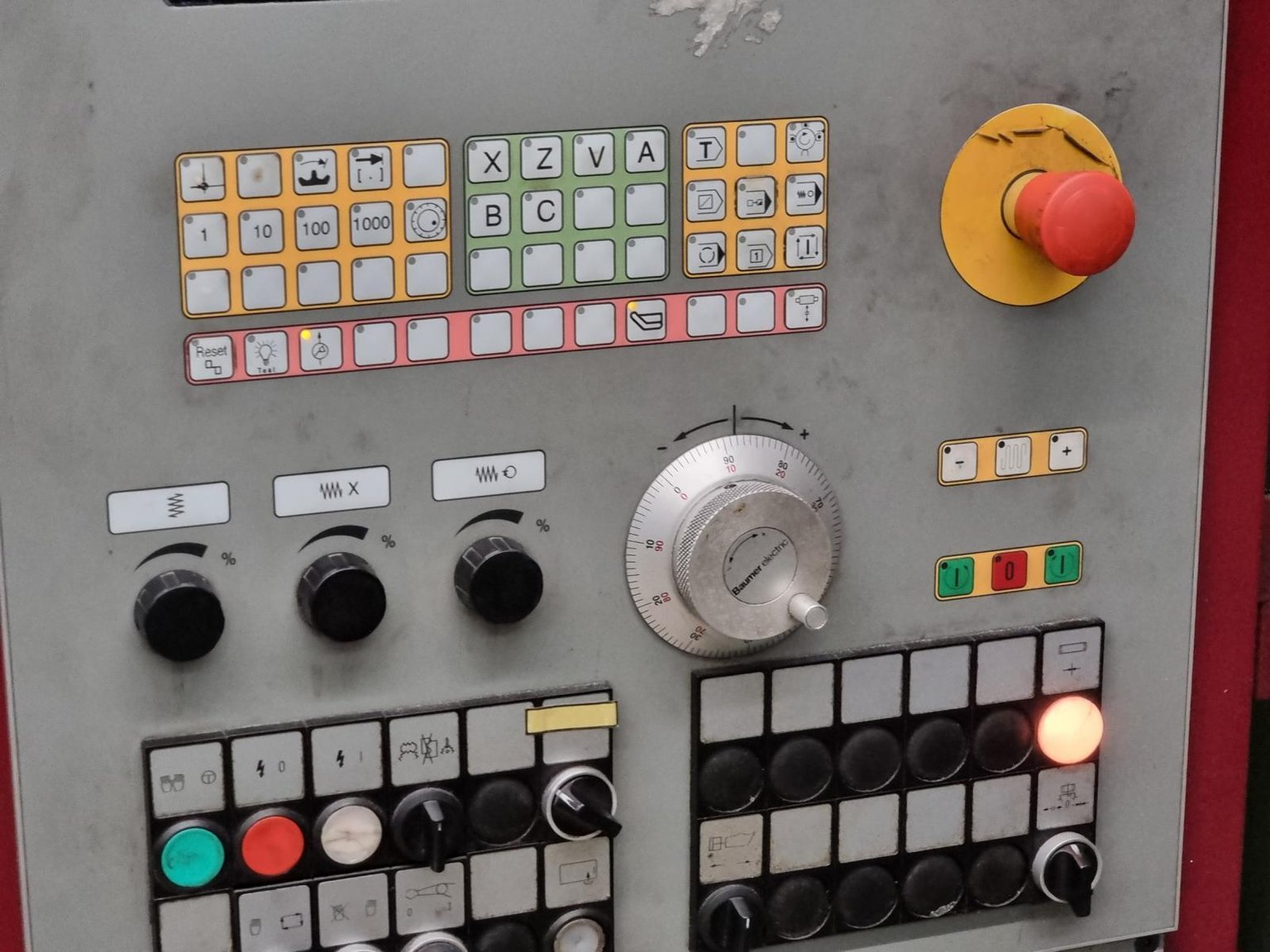

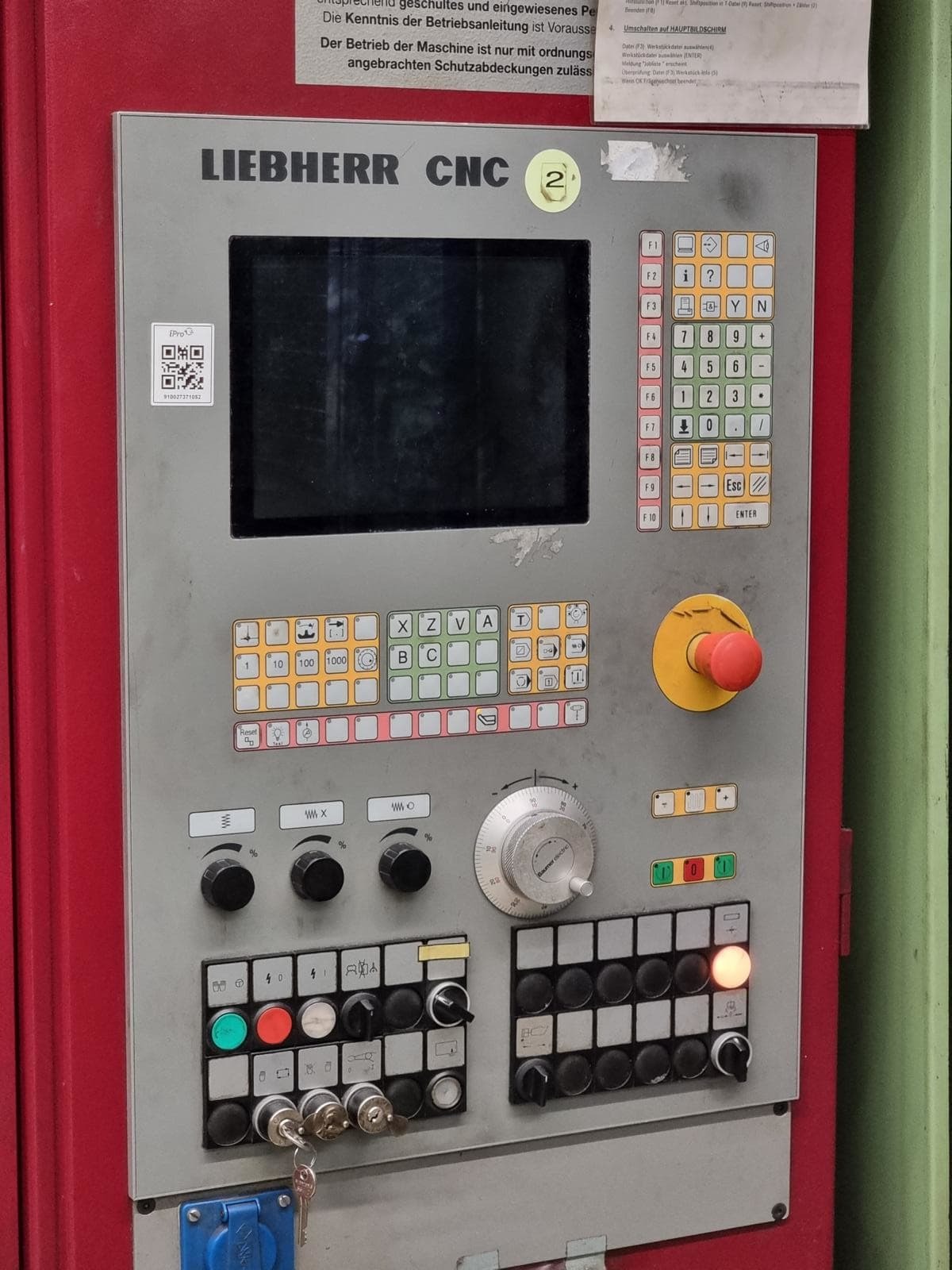

• CNC: Liebherr 90
• Weight: Approx. 7 t

Applications

• Small spur and helical gears
• Gear components for gearboxes
• Pinions and toothed shafts
• Series production of small gears with automatic loading

Commercial Details

• Make: Liebherr
• Model: LC 153
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It cuts workpieces up to 150 mm in diameter and up to module 5, with a minimum of 3 teeth.
• What control does it use? It uses a Liebherr 90 CNC.
• Does it include automatic loading? Yes, it has an automatic load system with a carousel and 180-degree loader, plus a FELSOMAT part handling and storage system.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, which loader, FELSOMAT system, hobs and fixtures are included, the condition of the CNC and electrics, and loading and shipping arrangements.
