Used Liebherr LC 182 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

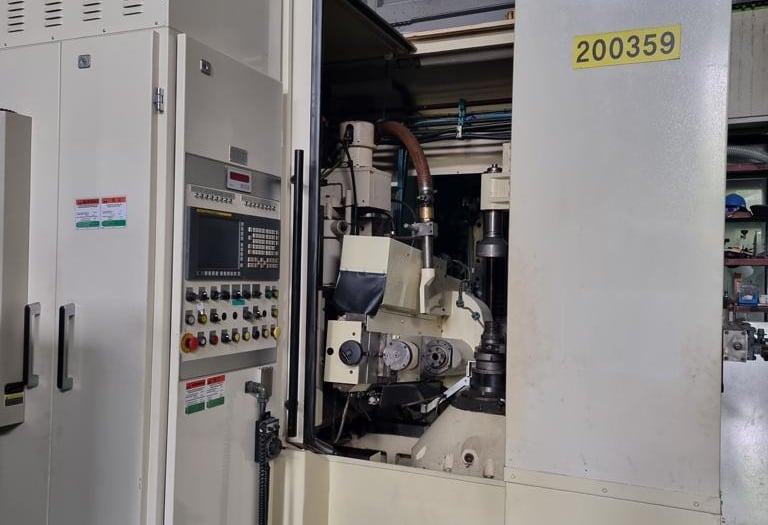

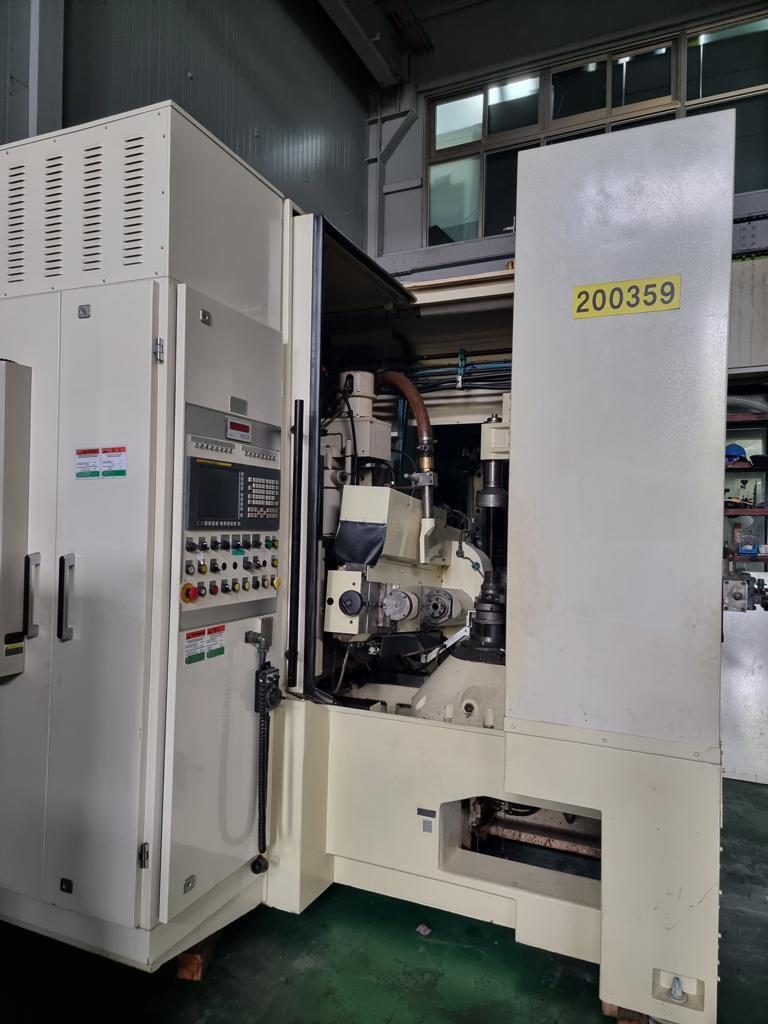

This used Liebherr LC 182 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts teeth into gear wheels using a rotating hob.

It handles gear wheels up to 180 mm in diameter and modules from 1 to 5. It is listed as retrofitted with a Fanuc 31i CNC control and accepts a hob up to 210 mm long.

Key Features

• Retrofitted with a Fanuc 31i CNC control
• Permissible angle of +/- 45º

Technical Specifications

• Model: Liebherr LC 182
• Control: Fanuc 31i (retrofitted)
• Max. wheel diameter: 180 mm
• Module range: 1–5
• Min. number of teeth: 7
• Max. tool length: 210 mm
• Distance between centres: 15–265 mm
• Permissible angle: +/- 45º

Applications

• Cutting spur and helical gears
• Gear wheels for gearboxes and transmissions
• Small and medium-module gear production

Commercial Details

• Make: Liebherr
• Model: LC 182
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It cuts wheels up to 180 mm in diameter, with modules from 1 to 5 and a minimum of 7 teeth.

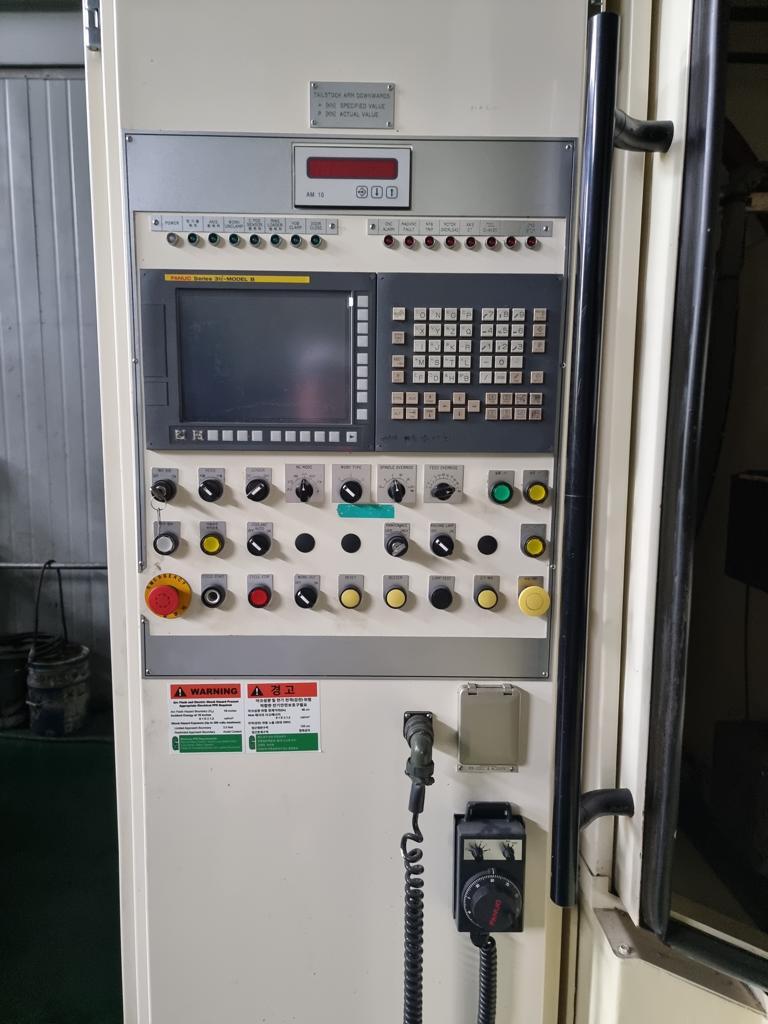

• What control does it have? It is listed as retrofitted with a Fanuc 31i CNC control.
• What is the distance between centres? The distance between centres ranges from 15 mm to 265 mm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which hobs, fixtures and accessories are included, the condition of the Fanuc control and electrics, and loading and shipping arrangements.
