Used Liebherr LC 382 CNC Gear Hobber | A.K. Machine Traders, Navi Mumbai, India

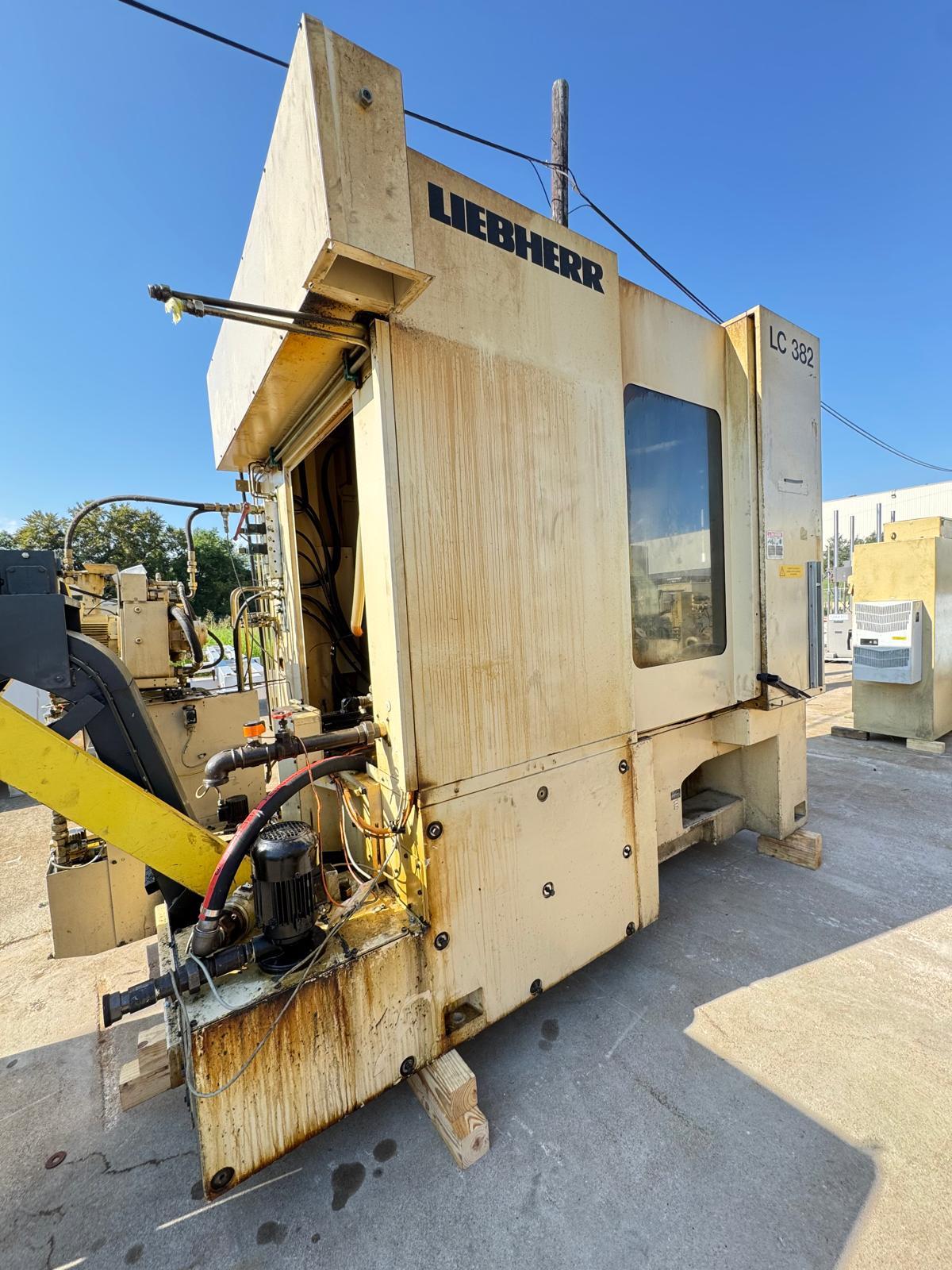

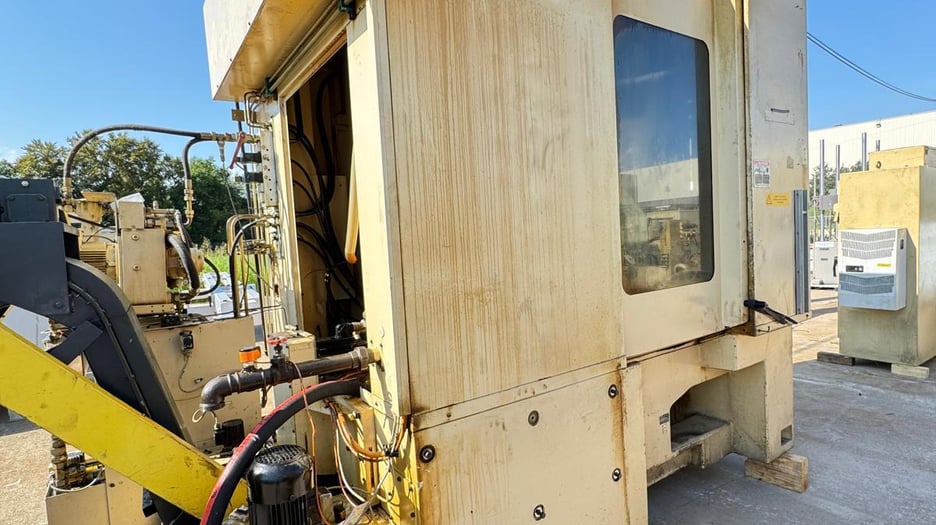

This used Liebherr LC 382 CNC gear hobber is available from A.K. Machine Traders in Navi Mumbai, India. It cuts external gears by hobbing, with a maximum gear diameter of 380 mm and a maximum module of 7 mm.

It takes workpieces up to 600 mm face width and hobs up to 160 mm in diameter. The motor hob head swivels and runs at 50–500 1/min.

Key Features

• CNC-controlled gear hobbing
• Motor hob head
• Swivelling hob head

Technical Specifications

• Model: Liebherr LC 382
• Max external gear diameter: 380 mm
• Max module: 7 mm
• Min number of teeth: 4
• Max face width: 600 mm
• Max hob diameter: 160 mm
• Hob head swivel range: 45 +/-
• Hob head type: Motor hob head
• Hob speed: 50–500 1/min
• Max centre distance: 270 mm
• Max clearance height under tailstock: 1,000 mm approx.
• Table diameter: 320 mm
• Workpiece table load: 18 kN
• Power requirements: 460 V / 60 Hz
• Total power: 63 A

Applications

• Spur and helical gears for gearboxes
• Automotive transmission components
• Small to medium industrial gear production
• Toothed shafts and pinions

Commercial Details

• Make: Liebherr
• Model: LC 382
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest gear this machine can hob? It handles external gears up to 380 mm in diameter, with a maximum module of 7 mm and face width up to 600 mm.
• What electrical supply does it need? It is listed for 460 V, 60 Hz, with a total power of 63 A.
• What hob speeds are available? The motor hob head runs at 50–500 1/min and takes hobs up to 160 mm in diameter.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which accessories, hobs and workholding are included, the condition of the CNC control and electrics given the 460 V / 60 Hz supply, and loading and shipping arrangements.
