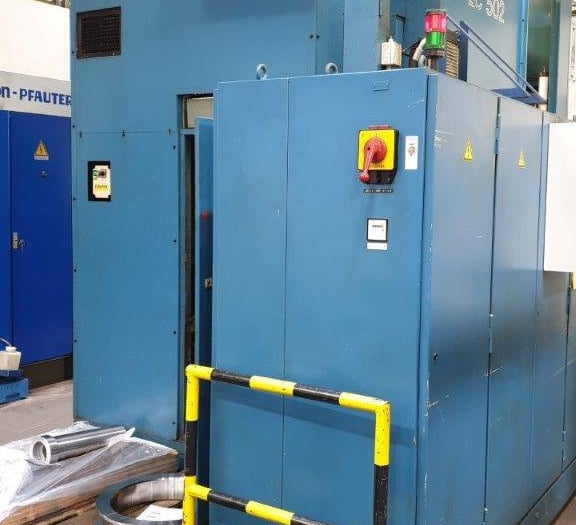

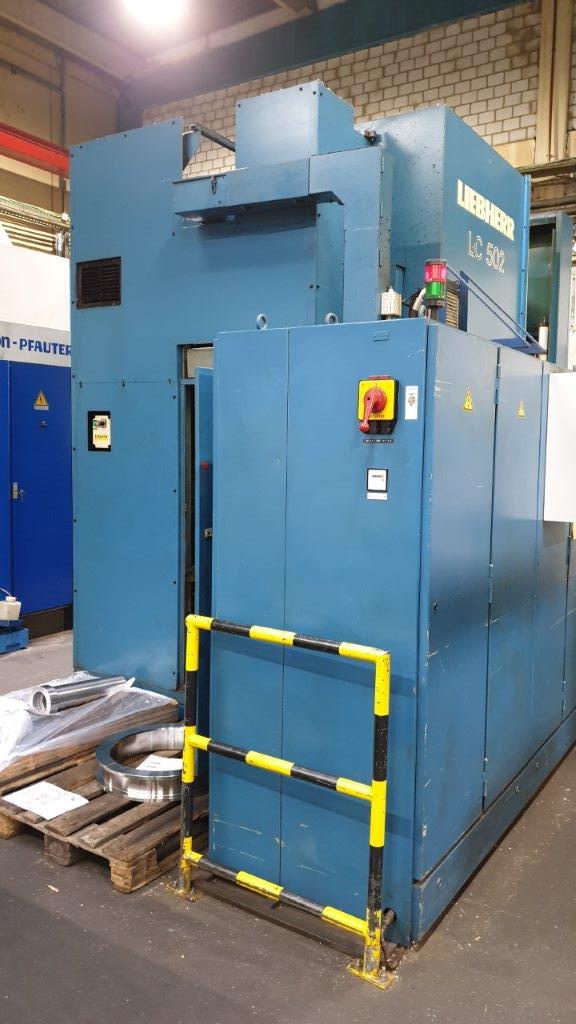

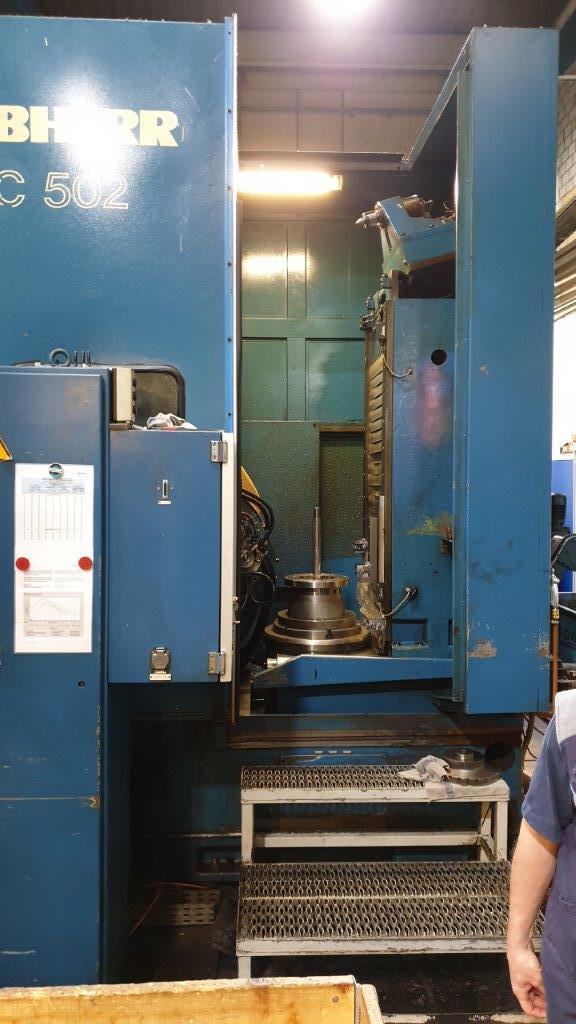

Used Liebherr LC 502 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used Liebherr LC 502 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth into a workpiece with a rotating hob.

It handles wheels up to 500 mm in diameter and 400 mm in gear width, with a maximum module of 10. It comes equipped with a 180° swing arm auto loader, hydraulic work clamping and a chip conveyor.

Key Features

• Hob arbor fitted

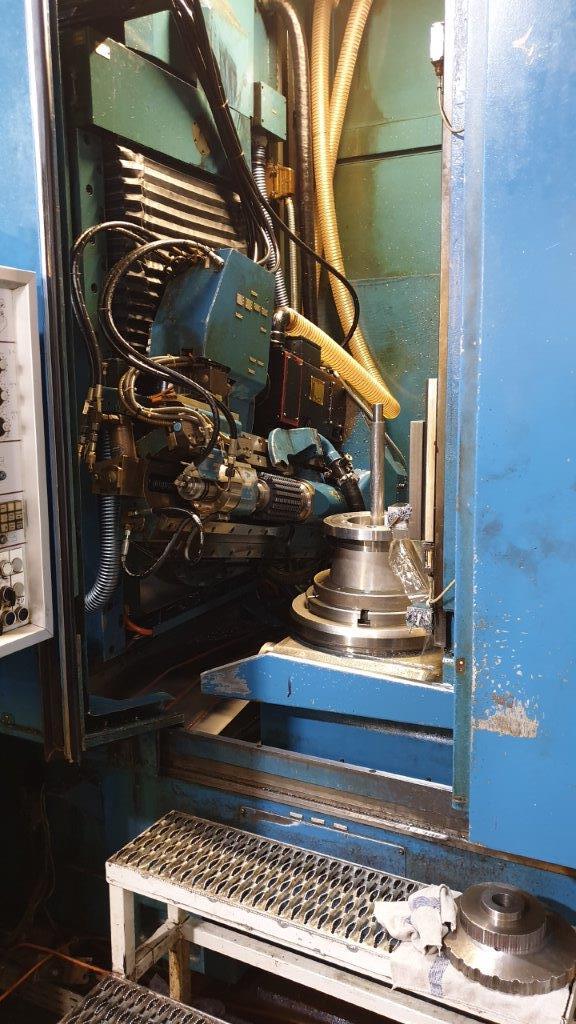

• Hydraulic work clamping
• 180° swing arm auto loader
• Chip conveyor
• Hydraulic chiller
• Full splash guard
• Torit mist collector
• Panel air conditioner

Technical Specifications

• Model: Liebherr LC 502

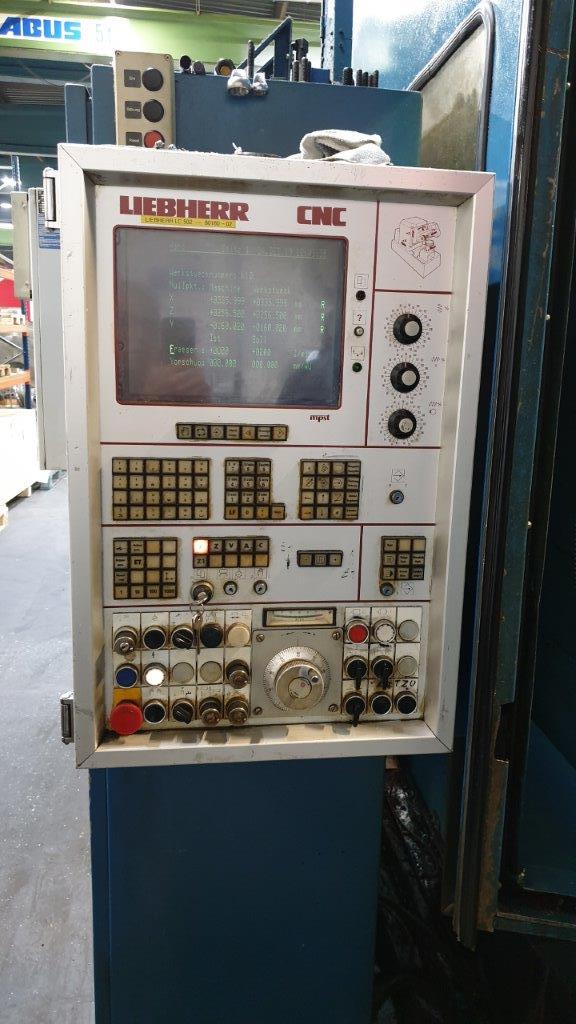

• Control: CNC
• Max. wheel diameter: 500 mm
• Gear width: 400 mm
• Max. module: 10
• Table diameter: 420 mm
• Table hole: 150 mm
• Distance hob to workpiece axis: 40–340 mm
• Max. distance table to mid of hob spindle: 575 mm
• Max. distance table to outer steady: 825 mm
• Tangential movement of hob: 200 mm
• Hob diameter: 170 mm
• Max. cutter length: 230 mm
• Milling tool taper: SK 40
• Milling head swivel: ±50°
• Axial feed: 0.1–20 mm/WU
• Radial feed: 0.1–4 mm/WU
• Tangential adjustment: 0.01–5 mm/WU
• Rapid travel X/Y/Z: 2,000/3,000/1,000 mm/min
• Hob speeds: 36–460 / 48–480 / 72–720 rpm
• Total power requirement: 55 kVA
• Approx. weight: 9.8 t

Applications

• Cylindrical spur gears
• Helical gears
• Gearbox and transmission components
• Automotive and industrial drive parts

Commercial Details

• Make: Liebherr
• Model: LC 502
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size gears can it cut? It takes wheels up to 500 mm in diameter and 400 mm in gear width, with a maximum module of 10.
• Does it include automatic loading? Yes, it is equipped with a 180° swing arm auto loader and hydraulic work clamping.
• What is the power requirement and weight? The total power requirement is 55 kVA and the machine weighs approximately 9.8 t.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, which accessories and tooling are included, the condition of the CNC control and electrics, and loading and shipping arrangements.
