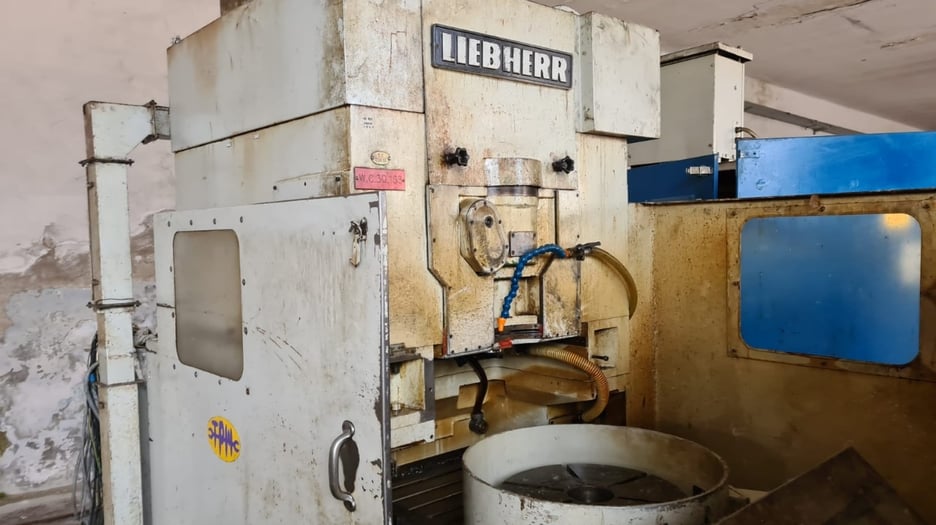

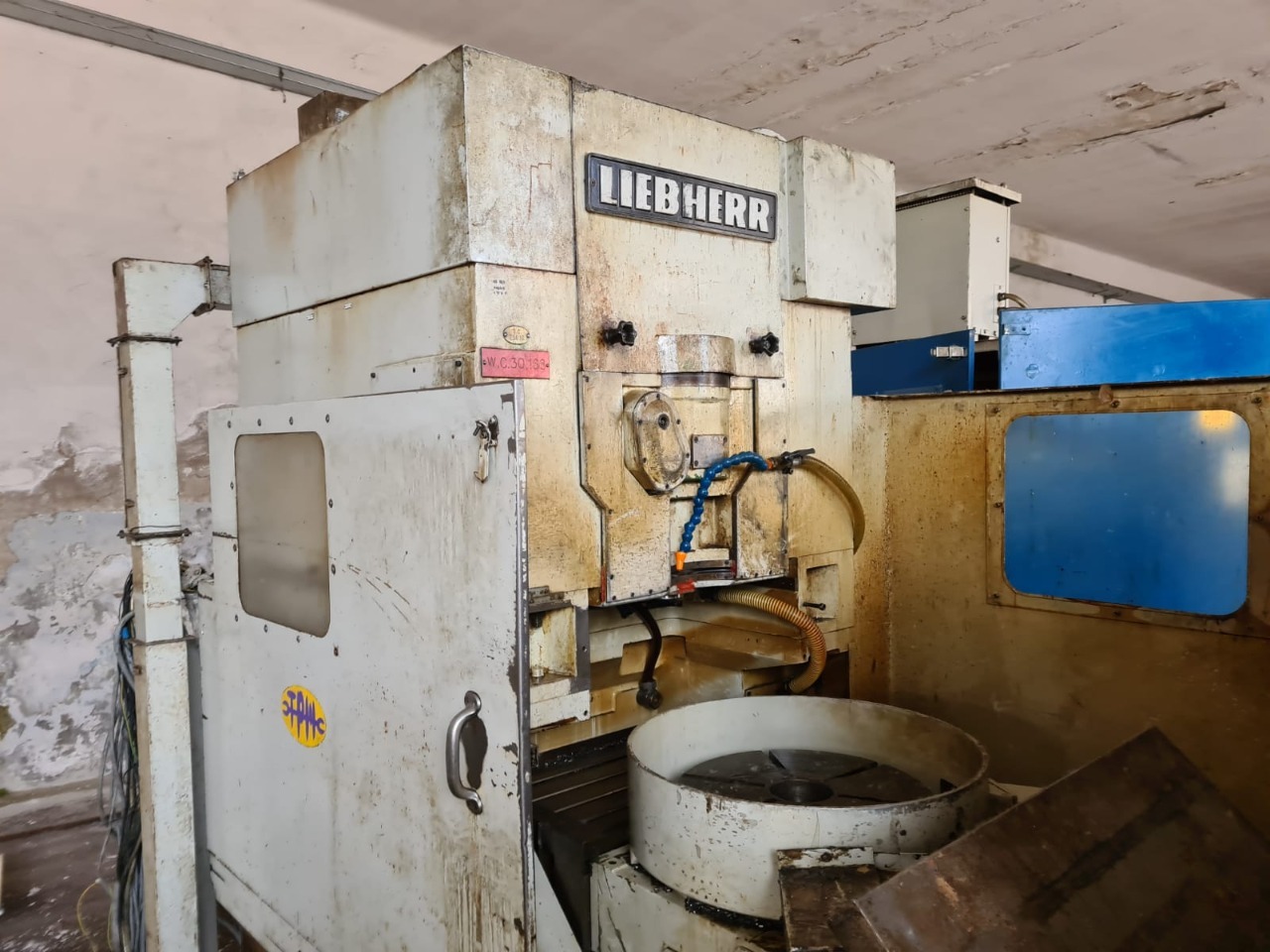

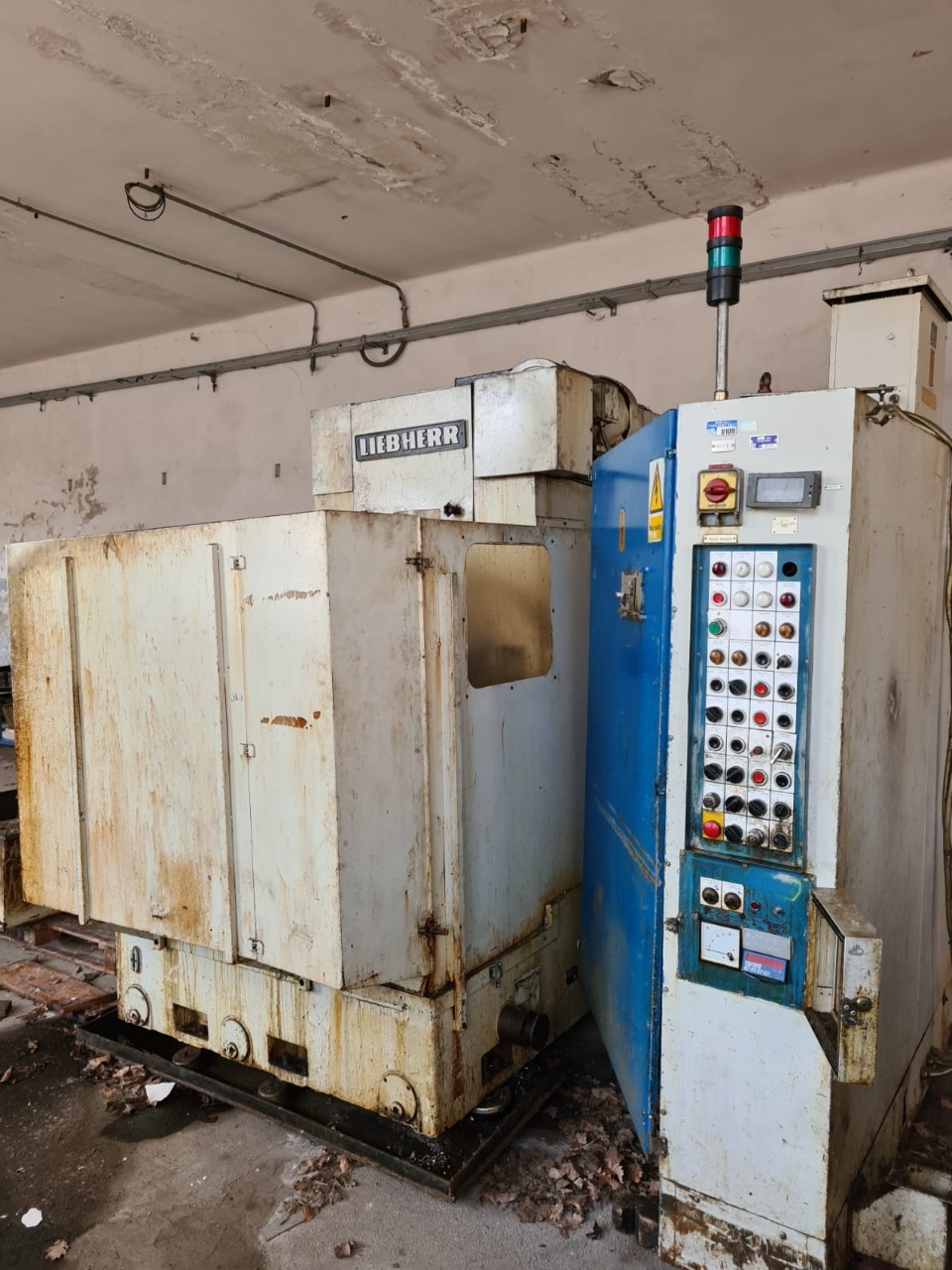

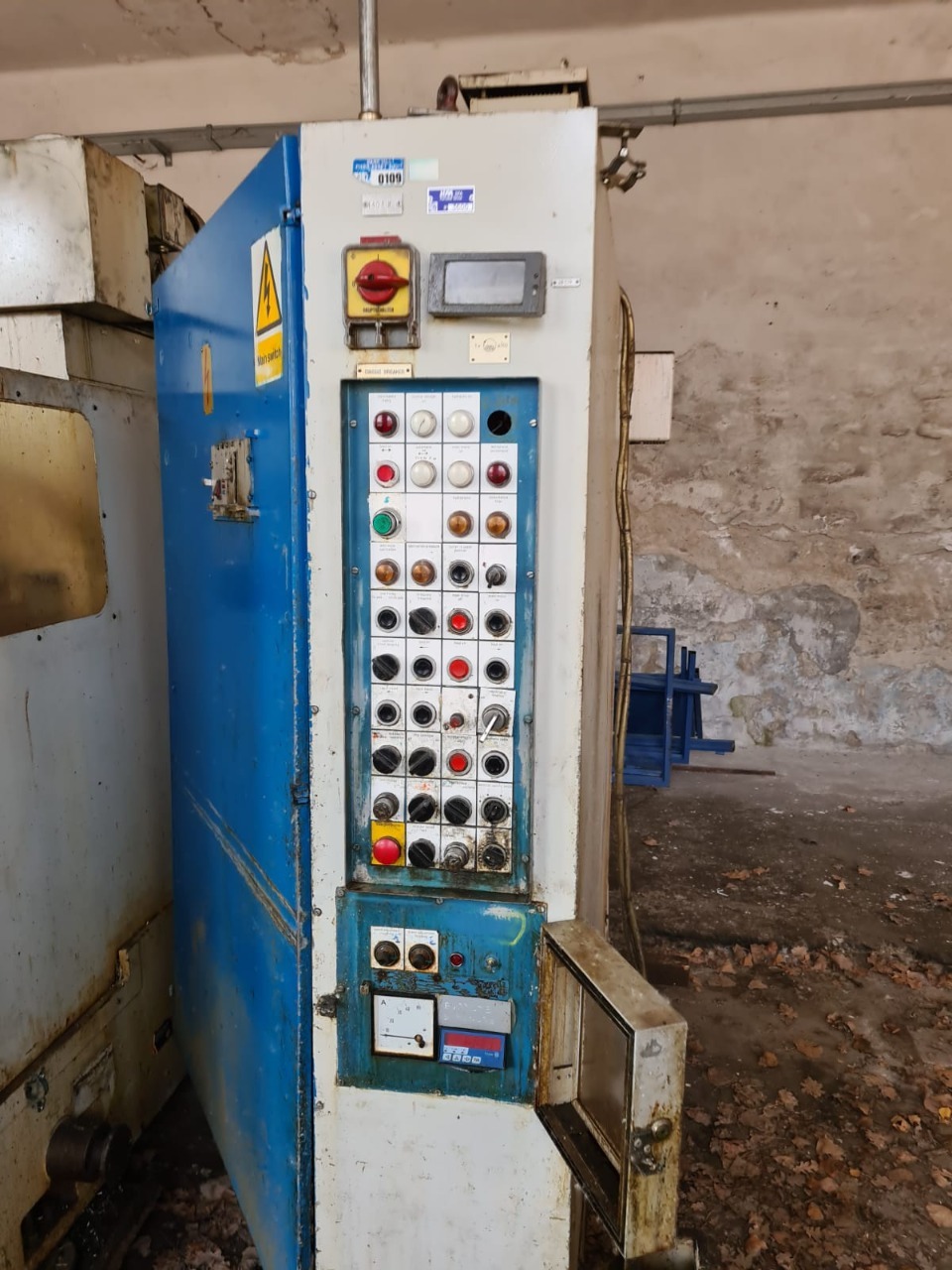

Used Liebherr WS 501 Gear Shaper | A.K. Machine Traders, Navi Mumbai, India

This used Liebherr WS 501 gear shaper is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts gear teeth with a reciprocating cutter, and this machine handles both external and internal gears.

It cuts up to module 8 with a maximum dividing circle of 500 mm for external and internal gears alike. Stroke length is 130 mm, the table takes loads up to 950 kg, and the machine weighs 8,000 kg.

Key Features

• Stroke rate smoothly adjustable
• Radial feed smoothly adjustable from 0–20 mm/min
• Hydraulic clamping device at the work-piece table

Technical Specifications

• Model: Liebherr WS 501
• Maximum module: 8
• Max. dividing circle, external gears: 500 mm
• Max. dividing circle, internal gears: 500 mm
• Stroke length: 130 mm
• External work-piece diameter: 600 mm

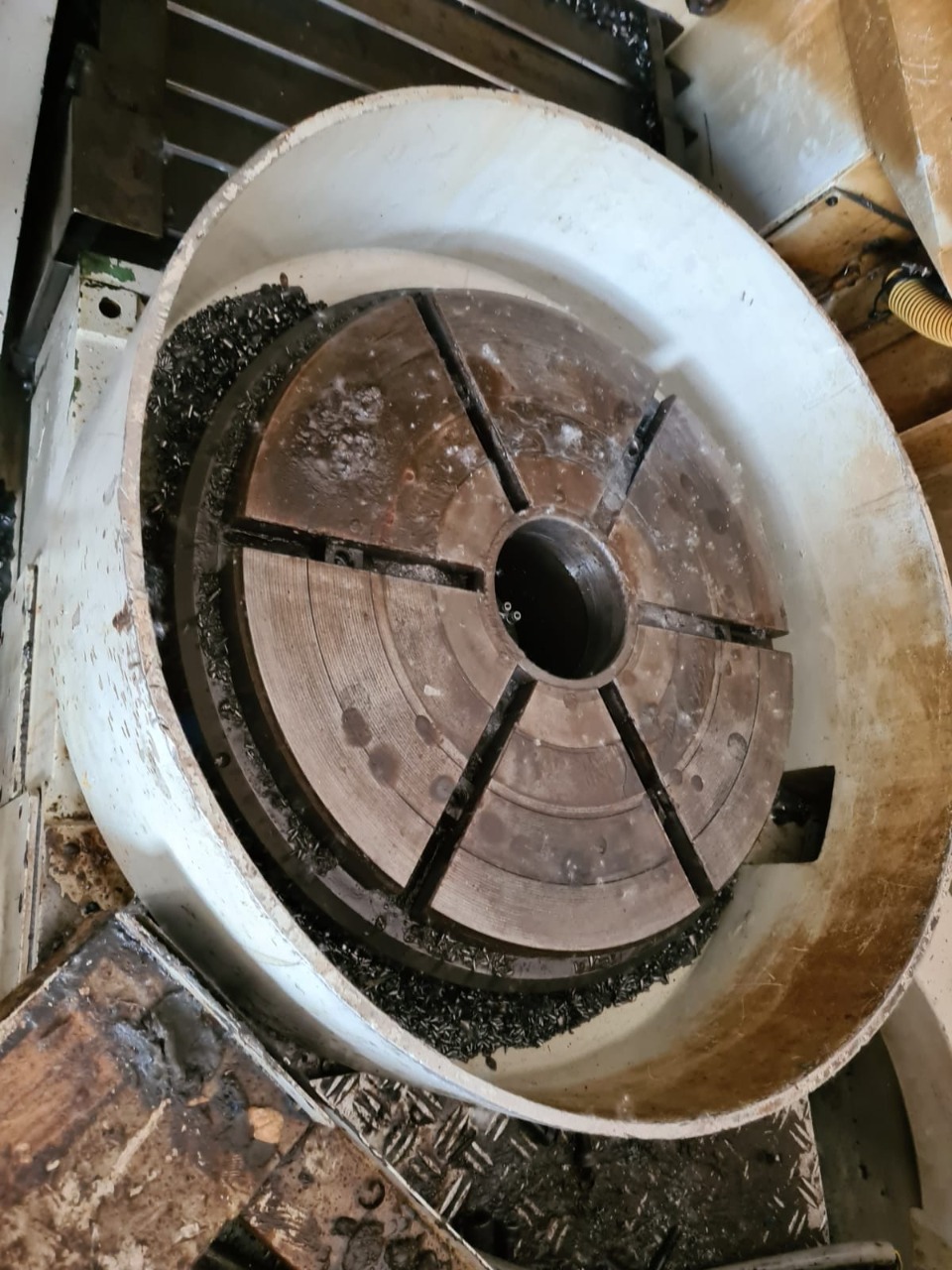

• Work-piece table diameter: 400 mm
• Work-piece table opening: 100 mm (+0.030, +0.020)
• Work-piece table opening (through): 94 mm
• Table opening depth at hydraulic clamping device: 332–352 mm
• Gear cutter opening: 50 + 0.005 mm
• Gear cutter slide diameter: 90 mm
• Table carriage stroke: 375 mm
• Distance, gear cutter to work-piece table: 375 mm
• Table load: 950 kg
• Strokes per minute (smoothly adjustable): 28–140, 85–425
• Feed of running: 0.15–3 mm
• Radial feed (smoothly adjustable): 0–20 mm/min
• Machine weight: 8,000 kg

Applications

• Spur and helical gears
• Internal gears
• Gearbox and transmission components
• General engineering gear production

Commercial Details

• Make: Liebherr
• Model: WS 501
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest gear this machine can cut? It cuts up to module 8, with a maximum dividing circle of 500 mm for both external and internal gears.
• What stroke rates does it run at? Strokes per minute are smoothly adjustable across 28–140 and 85–425.
• How heavy is the machine and what load can the table take? The machine weighs 8,000 kg and the table load is 950 kg.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which cutters, arbors and fixtures are included, the condition of the control and electrics, and loading and shipping arrangements.
