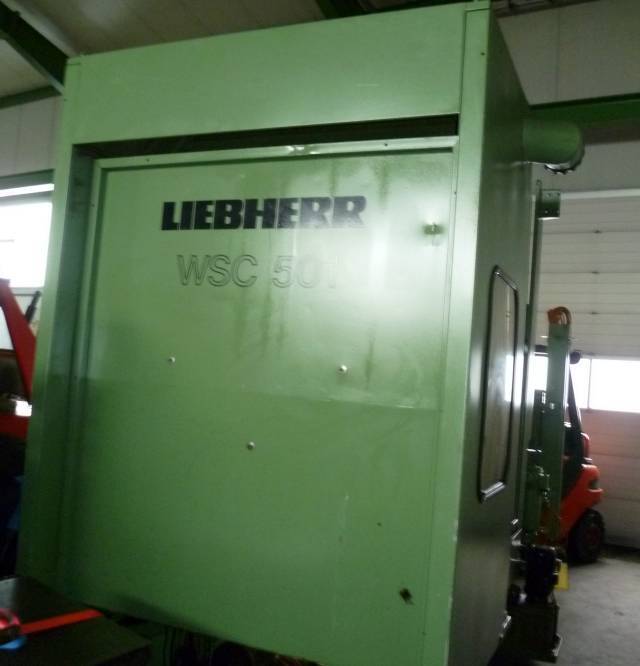

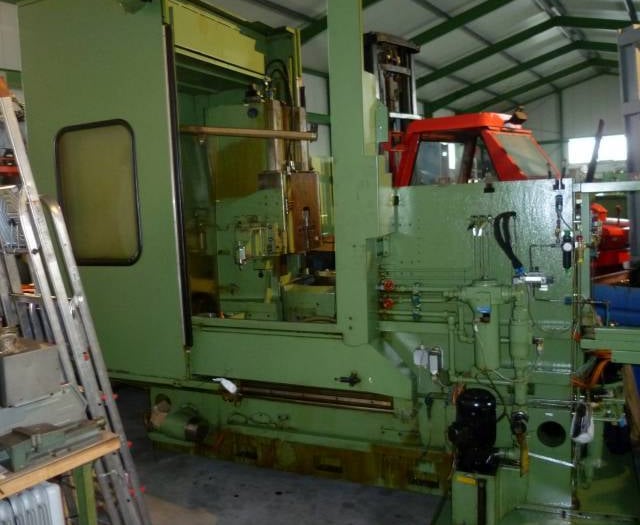

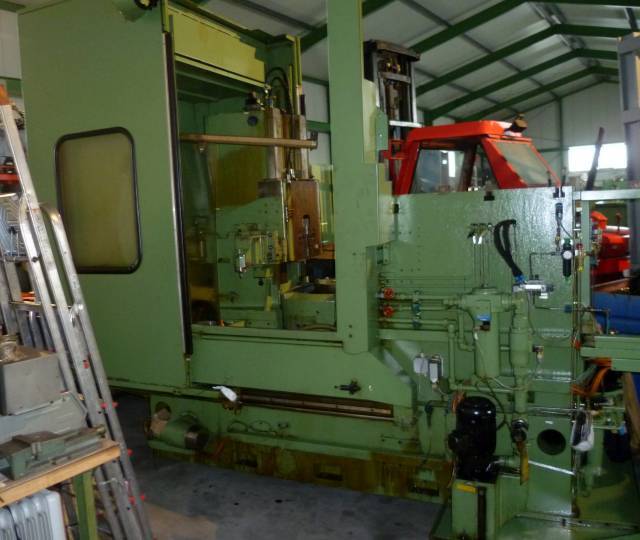

Used Liebherr WSC 501 CNC Gear Shaper | A.K. Machine Traders, Navi Mumbai, India

This used Liebherr WSC 501 CNC gear shaper is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts gear teeth using a reciprocating cutter.

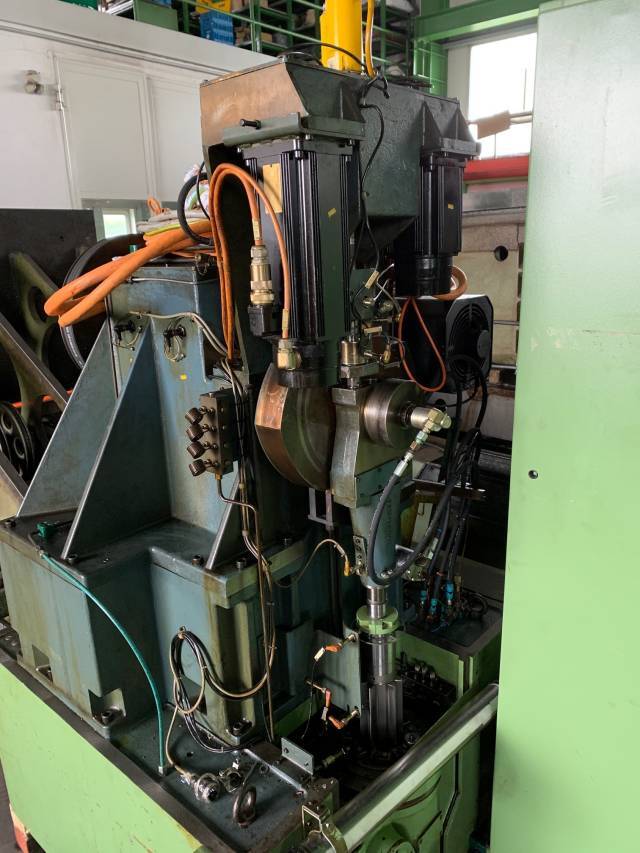

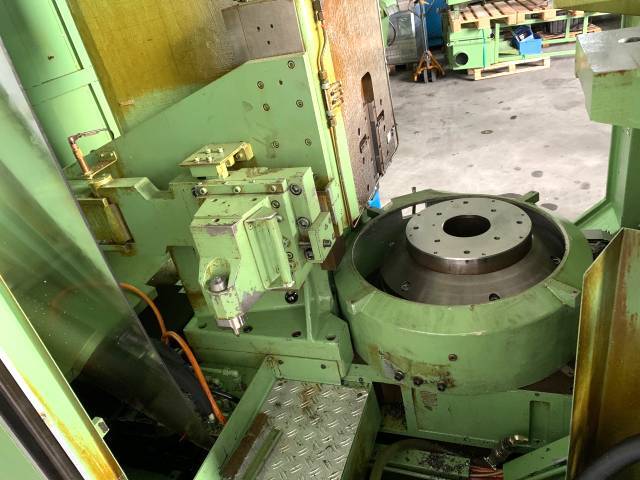

It handles workpieces up to 500 mm in diameter on a 400 mm table that carries up to 950 kg. The shaping head cuts up to module 8 mm with a slide stroke of up to 130 mm, at 28–140 strokes per minute.

Technical Specifications

• Model: Liebherr WSC 501
• Control: CNC
• Table diameter: 400 mm
• Max. diameter: 500 mm
• Max. table load: 950 kg
• Max. module: 8 mm
• Max. slide stroke: 130 mm
• Number of strokes: 28–140 per min
• Total connected load: 22 kVA

Applications

• Cutting external spur and helical gears
• Machining internal gears
• Producing gear components for gearboxes and transmissions
• Small-batch and workshop gear production

Commercial Details

• Make: Liebherr
• Model: WSC 501
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It takes workpieces up to 500 mm in diameter and cuts up to module 8 mm.
• How heavy a workpiece can the table carry? The maximum table load is 950 kg on a 400 mm diameter table.
• What is the stroke rate? The shaping head runs at 28–140 strokes per minute with a maximum slide stroke of 130 mm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, the CNC control type and electrics, which cutters, fixtures and accessories are included, and arrangements for inspection, loading and shipping.
