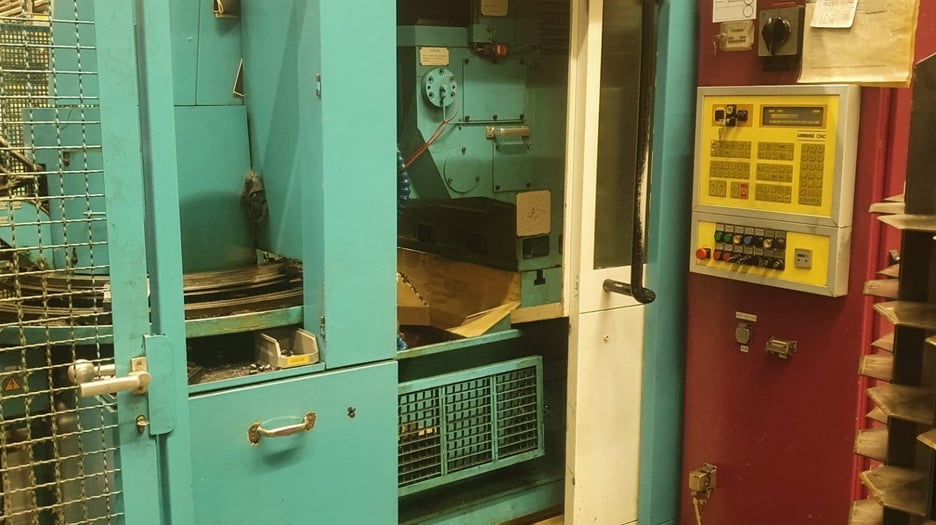

Used Lorenz LS 154 CNC Gear Shaper | A.K. Machine Traders, Navi Mumbai, India

This used Lorenz LS 154 CNC gear shaper is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts gear teeth with a reciprocating cutter, and this machine is CNC controlled.

It handles modules from 0.5 to 5 and face widths up to 42 mm. Workpieces can be up to 150 mm in diameter for external cutting and up to 280 mm for internal cutting, on a 250 mm table.

Key Features

• CNC controlled gear shaping
• Cuts both external and internal gears
• Tail stock fitted
• Ring loader fitted

Technical Specifications

• Model: Lorenz LS 154 CNC
• Module range: 0.5–5
• Maximum face width: 42 mm
• Maximum workpiece diameter, external cutting: 150 mm
• Maximum workpiece diameter, internal cutting: 280 mm
• Table diameter: 250 mm
• Stroke length: 0–50 mm

Applications

• External spur and helical-type gears within the size range
• Internal gears and ring gears up to 280 mm diameter
• Gearbox and transmission components
• Small-batch and workshop gear production

Commercial Details

• Make: Lorenz
• Model: LS 154 CNC
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It cuts external gears up to 150 mm diameter and internal gears up to 280 mm diameter, with face widths up to 42 mm.
• What module range does it cover? It covers modules from 0.5 to 5.
• Does it include a loader? Yes, it is listed with a ring loader and a tail stock.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling, cutters and fixtures are included, the control system and electrical details, and how loading and shipping will be arranged.
