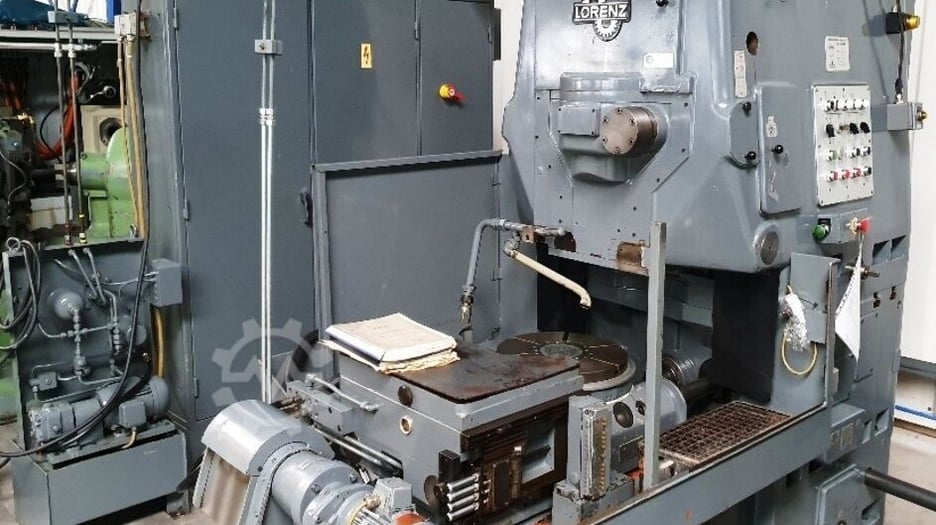

Used Lorenz LS 400 Gear Shaping Machine | A.K. Machine Traders, Navi Mumbai, India

This used Lorenz LS 400 gear shaping machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts gear teeth into a workpiece using a reciprocating cutter.

It handles wheels up to 400 mm in diameter and gear widths up to 76 mm, across modules from 0.5 to 6. The stroke rate is adjustable from 60 to 600 strokes per minute.

Technical Specifications

• Model: Lorenz LS 400
• Max. wheel diameter: 400 mm
• Gear width: 76 mm
• Module range: 0.5–6
• Strokes per minute: 60–600
• Table diameter: 400 mm
• Table hole: 125 mm
• Weight: approx. 6.3 t
• Dimensions: approx. 2.8 x 1.4 x 2.2 m

Applications

• Cylindrical spur gears
• Gears for gearboxes and transmissions
• Small and medium-sized gear production and toolroom work

Commercial Details

• Make: Lorenz
• Model: LS 400
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size gears can it cut? It takes wheels up to 400 mm in diameter with gear widths up to 76 mm and modules from 0.5 to 6.
• What is the stroke rate? The stroke rate ranges from 60 to 600 strokes per minute.
• How big and heavy is the machine? It weighs approximately 6.3 t and measures approximately 2.8 x 1.4 x 2.2 m.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling, cutters and accessories are included, the condition of the control and electrics, and loading and shipping arrangements.
