Used Lorenz SJ7/1000 Gear Shaper | A.K. Machine Traders, Navi Mumbai, India

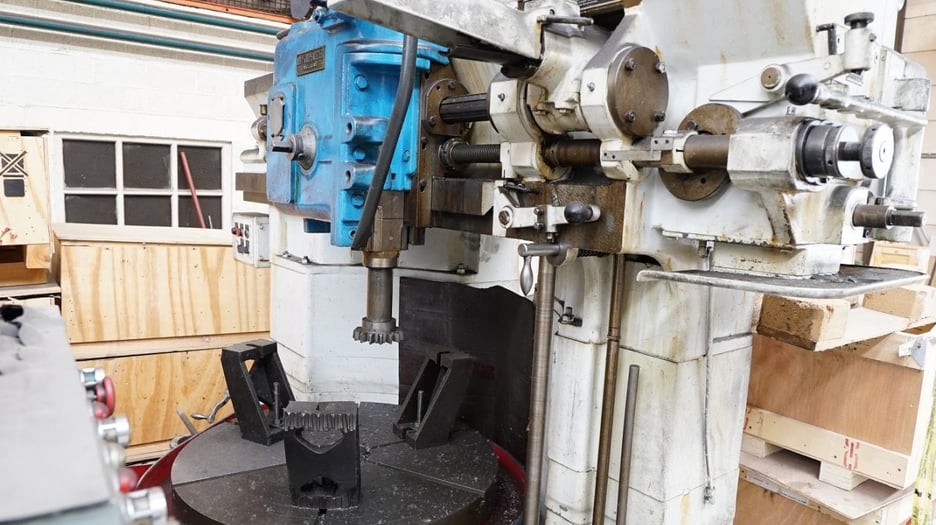

This used Lorenz SJ7/1000 gear shaper is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts gear teeth using a reciprocating cutter.

It has a 1,000 mm table, a maximum gear width of 160 mm and a module of 7. The table bore is 160 mm and the machine is listed for gears of up to 300 teeth.

Technical Specifications

• Model: Lorenz SJ7/1000
• Table: 1,000 mm
• Gear width: 160 mm
• Number of teeth: 300
• Speed: 31–175 pcs/min
• Module: 7
• Table bore: 160 mm
• Length: 2,400 mm
• Width: 1,500 mm
• Height: 2,900 mm
• Weight: 5,000 kg

Applications

• Cutting external spur gears
• Gear production for machinery and gearboxes
• Toolroom and general engineering gear work

Commercial Details

• Make: Lorenz
• Model: SJ7/1000
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size gears can it cut? It has a 1,000 mm table, a gear width of 160 mm, module 7 and up to 300 teeth.
• What is its speed range? It is listed at 31–175 pcs/min.
• How big and heavy is the machine? It measures 2,400 mm long, 1,500 mm wide and 2,900 mm high, and weighs 5,000 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which cutters, arbors and fixtures are included, the condition of the control and electrics, and the loading and shipping arrangements.
