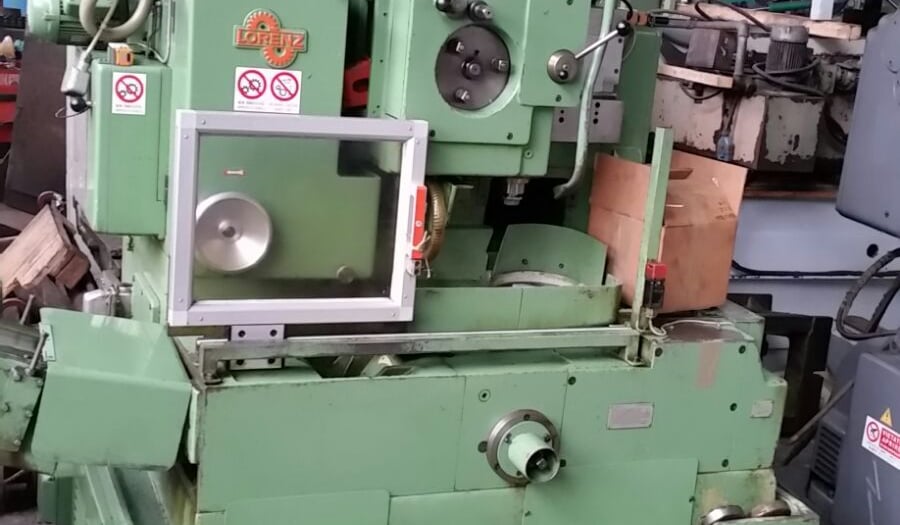

Used Lorenz SN4 Gear Shaper | A.K. Machine Traders, Navi Mumbai, India

This used Lorenz SN4 gear shaper is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts gear teeth into a blank.

The SN4 handles wheels up to 180 mm in diameter, with modules from 0.5 to 4 and work-pieces up to 50 mm wide. It can cut up to 150 teeth and helix angles up to 45 degrees, and the machine weighs 4,000 kg.

Technical Specifications

• Model: Lorenz SN4
• Max. wheel diameter: 180 mm
• Module range: 0.5–4
• Max. work-piece width: 50 mm
• Max. number of teeth: 150
• Helix angle: 45°
• Table diameter: 156 mm
• Machine weight: 4,000 kg

Applications

• Small spur gears
• Helical gears up to 45° helix angle
• Gear wheels for gearboxes and transmissions
• Toothed parts for general engineering

Commercial Details

• Make: Lorenz
• Model: SN4
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can the Lorenz SN4 cut? It takes wheels up to 180 mm in diameter and work-pieces up to 50 mm wide, with up to 150 teeth.
• What module range does it cover? It cuts modules from 0.5 to 4.
• Can it cut helical gears? Yes, it works with helix angles up to 45 degrees.
• What should I ask when enquiring? Ask for photos or video of the machine running, whether an inspection is possible, which cutters, change gears and accessories are included, the condition of the electrics and controls, and how loading and shipping of the 4,000 kg machine will be arranged.
