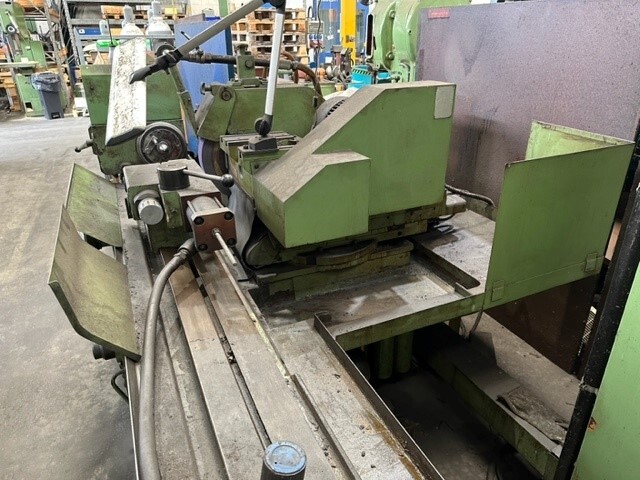

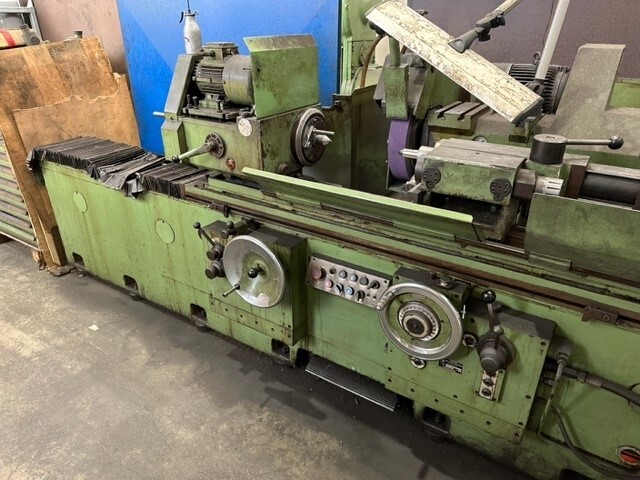

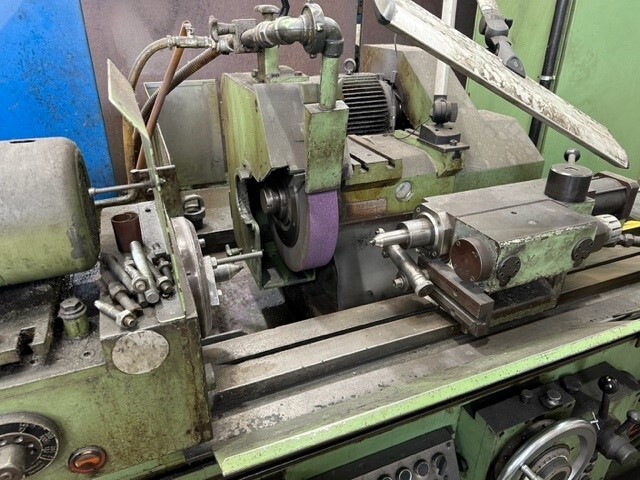

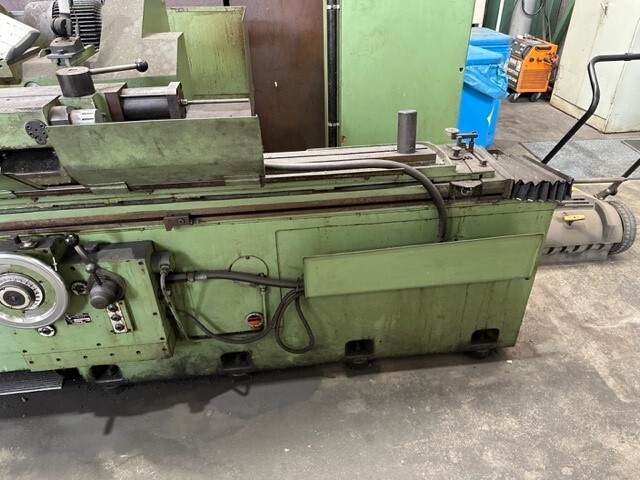

Used LZTK C12 1500A CNC Cylindrical Grinder | A.K. Machine Traders, Navi Mumbai, India

This used LZTK C12 1500A CNC cylindrical grinder is available from A.K. Machine Traders in Navi Mumbai, India. A cylindrical grinder finishes the outside diameter of round workpieces with a rotating grinding wheel.

It has a 180 mm centre height and a grinding length of 1,500 mm, and takes workpieces up to 350 mm in diameter. The grinding wheel is 508 mm in diameter and 80 mm wide.

Technical Specifications

• Model: C12 1500A
• Control: CNC
• Centre height: 180 mm
• Grinding length: 1,500 mm
• Workpiece diameter: 350 mm
• Grinding wheel diameter: 508 mm
• Grinding wheel width: 80 mm
• Control voltage: 220/24 V
• Dimensions (approx.): 3.0 x 2.0 x 1.8 m
• Weight (approx.): 5,000 kg

Applications

• Grinding shafts and spindles to final diameter
• Finishing long round components up to 1,500 mm
• Precision grinding of cylindrical parts in tool rooms and general engineering
• Producing round workpieces up to 350 mm diameter

Commercial Details

• Make: LZTK
• Model: C12 1500A
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum workpiece size? It takes workpieces up to 350 mm in diameter with a grinding length of 1,500 mm.
• What size is the grinding wheel? The wheel is 508 mm in diameter and 80 mm wide.
• How big and heavy is the machine? It measures approximately 3.0 x 2.0 x 1.8 m and weighs approximately 5,000 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories and tooling are included, the condition of the CNC control and electrics, and loading and shipping arrangements.
