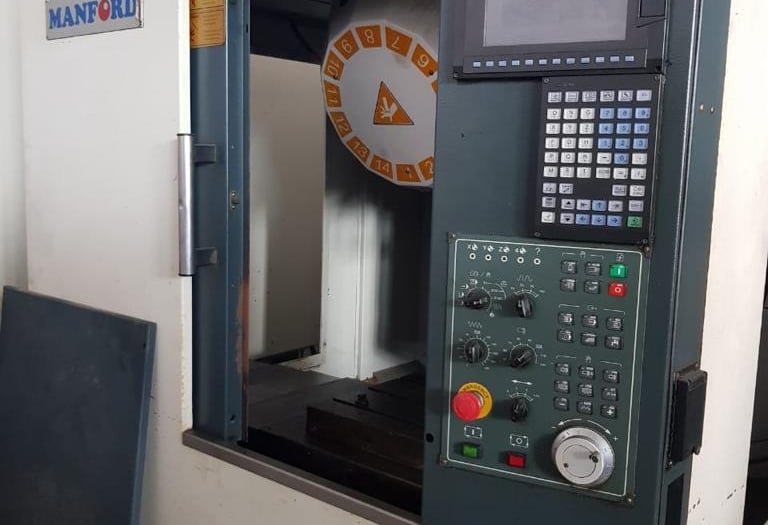

Used Manford VD510S CNC High Speed Tapping Center | A.K. Machine Traders, Navi Mumbai, India

This used Manford VD510S CNC high speed tapping center is available from A.K. Machine Traders in Navi Mumbai, India. It is a compact CNC machining centre with a BT30 spindle, suited to drilling, tapping and milling smaller parts.

Travels are 510 mm in X, 406 mm in Y and 330 mm in Z on linear guideways, with a 650 × 400 mm table carrying up to 250 kg. The spindle runs at 10,000 or 12,000 rpm, with 15,000 and 20,000 rpm available as options, and a 14-tool disc magazine and Mitsubishi M70 control complete the package.

Key Features

• Direct-drive spindle transmission
• Linear guideways on all three axes
• Disc-type automatic tool changer holding 14 tools, in inverter or servo versions
• Mitsubishi M70 CNC control
• Spindle speeds of 15,000 and 20,000 rpm available as options
• Z-axis motor fitted with a brake

Technical Specifications

• Model: Manford VD510S
• Table size: 650 × 400 mm
• T-slots: 3 × 14 mm wide, 125 mm pitch
• Table load: 250 kg
• X / Y / Z travel: 510 / 406 / 330 mm
• Spindle nose to table: 170–500 mm
• Spindle centre to column: 460 mm
• Spindle taper: BT30
• Spindle speed: 10,000 or 12,000 rpm (15,000 / 20,000 rpm optional)
• Spindle transmission: Direct
• Rapid feed X / Y / Z: 48 / 48 / 60 m/min
• Cutting feed rate: 1–12 m/min
• Tool magazine: 14 tools, disc type
• Tool type: MAS403 P30T-1 (45°)
• Max tool diameter (full magazine): Ø80 mm
• Max tool length: 200 mm
• Max tool weight: 3 kg single; 25 kg total for 14 tools
• Tool change time (tool to tool): 1.8 s (inverter) / 1.6 s (servo)
• Tool change time (chip to chip): 2.8 s (inverter) / 2.5 s (servo)
• Tool change time (opposite tools): 3.5 s (inverter) / 2.8 s (servo)
• CNC control: Mitsubishi M70
• Spindle motor: 2.2 / 3.7 kW
• X and Y axis motors: 1.5 kW each
• Z axis motor: 3.5 kW with brake
• Machine dimensions (L × W × H): 1,600 × 2,150 × 2,320 mm
• Packing dimensions (L × W × H): 1,790 × 2,640 × 2,300 mm

Applications

• Drilling and tapping small components
• Light milling of small parts
• Machining of electronic and consumer product housings
• General precision component work in job shops

Commercial Details

• Make: Manford
• Model: VD510S
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What spindle speed does the Manford VD510S offer? It runs at 10,000 or 12,000 rpm, with 15,000 and 20,000 rpm available as options.
• What are the axis travels? Travels are 510 mm in X, 406 mm in Y and 330 mm in Z.
• Which control and tool changer does it have? It has a Mitsubishi M70 CNC control and a 14-tool disc-type automatic tool changer.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which spindle speed and tool changer version it is, whether tooling and accessories are included, the state of the control and electrics, and loading and shipping arrangements.
