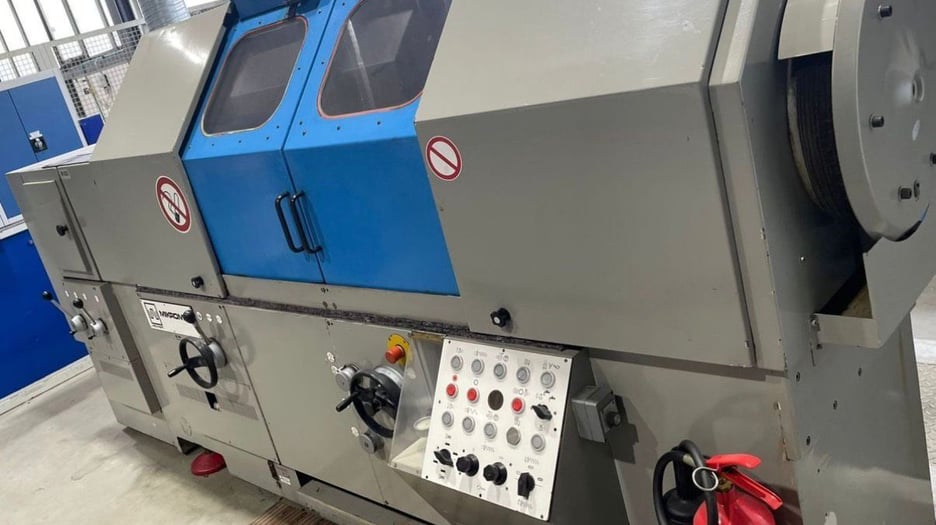

Used Mikromat GSU 315/1 x 500 Thread Grinding Machine | A.K. Machine Traders, Navi Mumbai, India

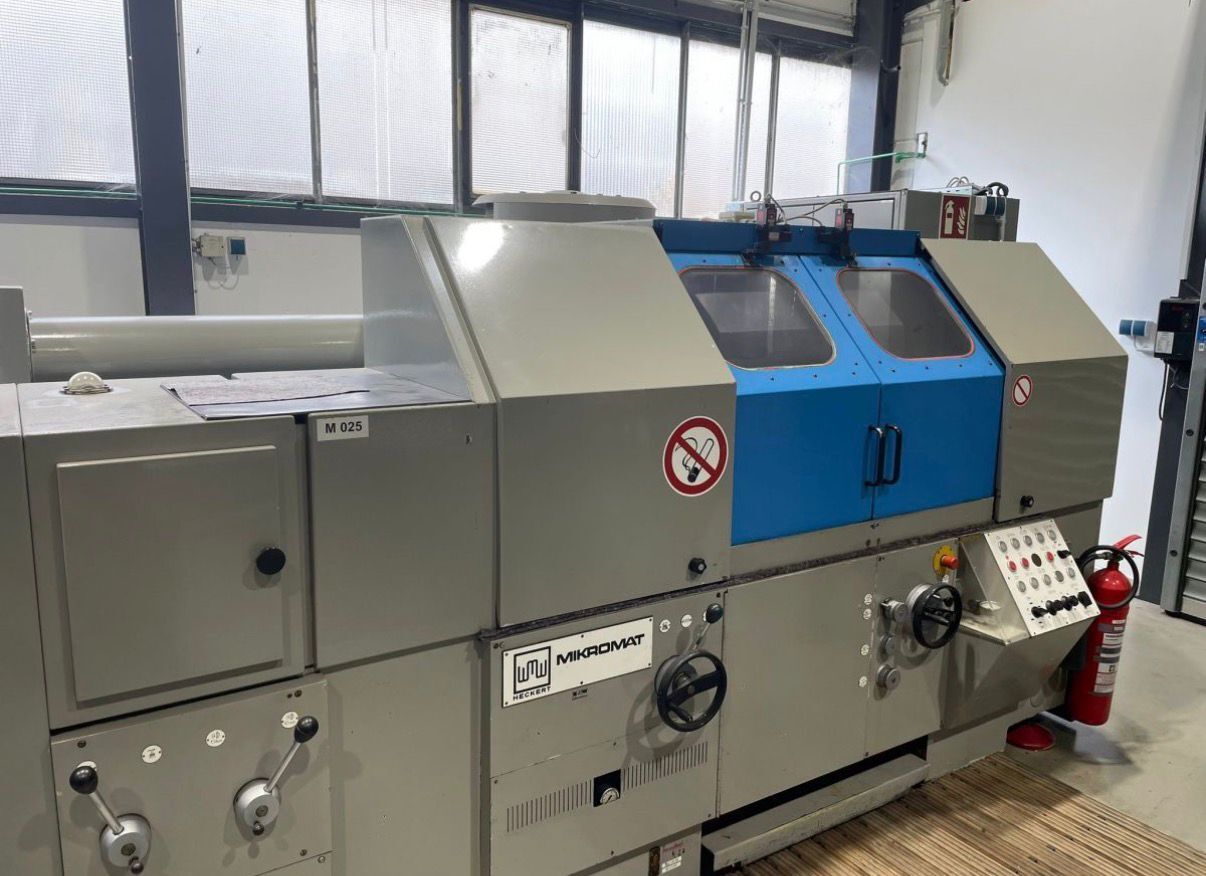

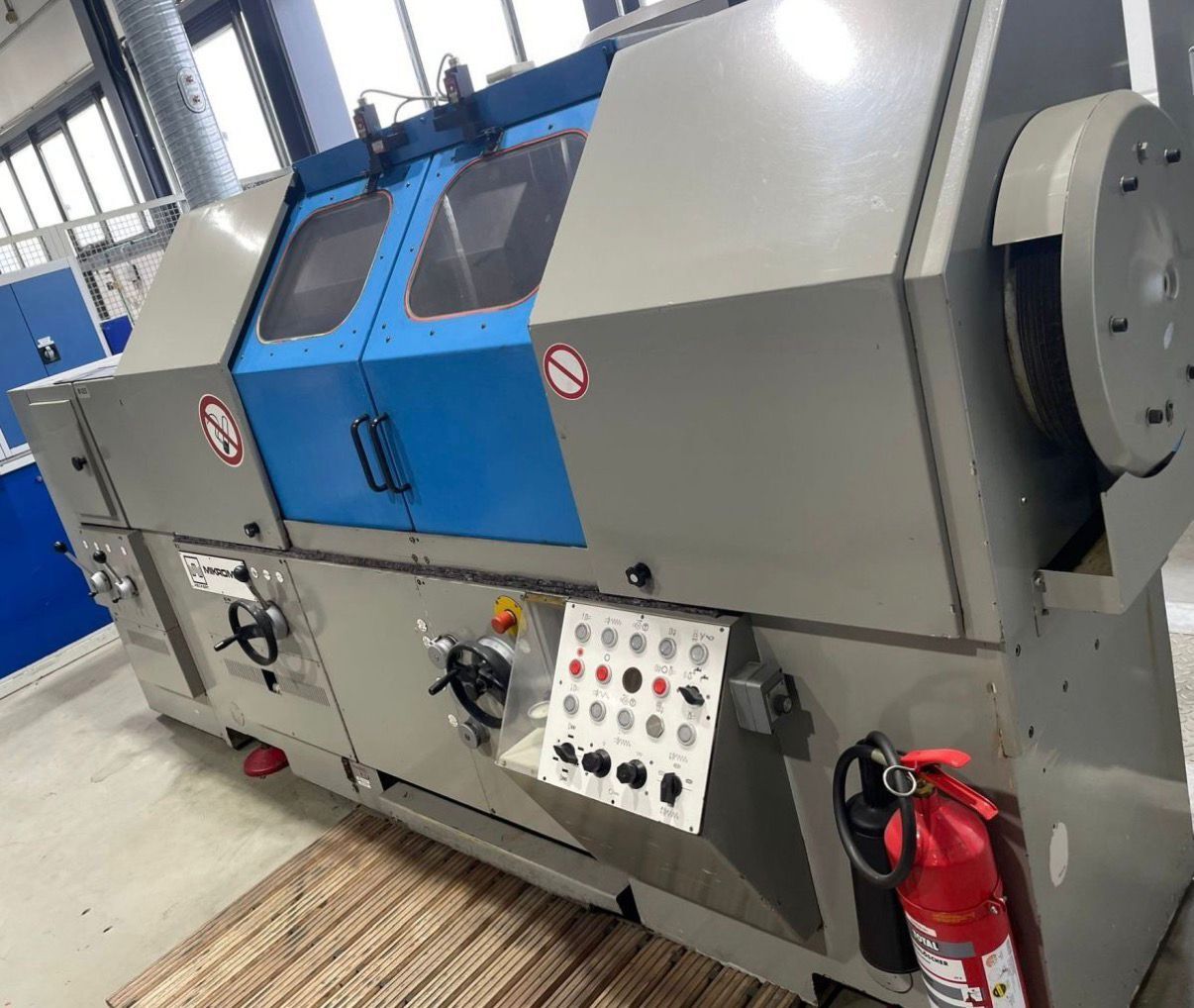

This used Mikromat GSU 315/1 x 500 thread grinding machine is available from A.K. Machine Traders in Navi Mumbai, India. A thread grinding machine finishes threads on round workpieces with a grinding wheel.

It grinds workpieces from 2–315 mm in diameter, up to 500 mm long with a 50 mm wide wheel or 550 mm with an 8 mm wide wheel. It takes workpieces up to 160 kg with a maximum centre distance of 950 mm. The machine weighs 7,000 kg.

Technical Specifications

• Model: GSU 315/1 x 500
• Grinding diameter: 2–315 mm
• Max grinding length (50 mm wheel): 500 mm
• Max grinding length (8 mm wheel): 550 mm
• Max workpiece weight: 160 kg
• Max centre distance: 950 mm
• Spindle bore: 40 mm
• Spindle taper (metric): 80 mm
• Max pitch: M20
• Max lifting angle: ±40 degrees
• Max helix angle: ±140 degrees
• Grinding wheel central hole: 203 mm
• Thread inclination, single-profile wheel: 0.25–60 mm
• Thread inclination, multi-profile wheel: 1–2 mm
• Grinding wheel diameter: 360–500 mm
• Grinding wheel width: 8–50 mm
• Grinding wheel feed: 0.004–0.4 mm
• Weight: 7,000 kg

Applications

• Threaded shafts and spindles
• Lead screws and worm shafts
• Thread gauges and precision threaded parts
• Taps and threaded tooling

Commercial Details

• Make: Mikromat
• Model: GSU 315/1 x 500
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of workpiece can it grind? It grinds diameters of 2–315 mm, up to 160 kg and a maximum centre distance of 950 mm.
• What grinding length does it offer? Maximum grinding length is 500 mm with a 50 mm wide wheel and 550 mm with an 8 mm wide wheel.

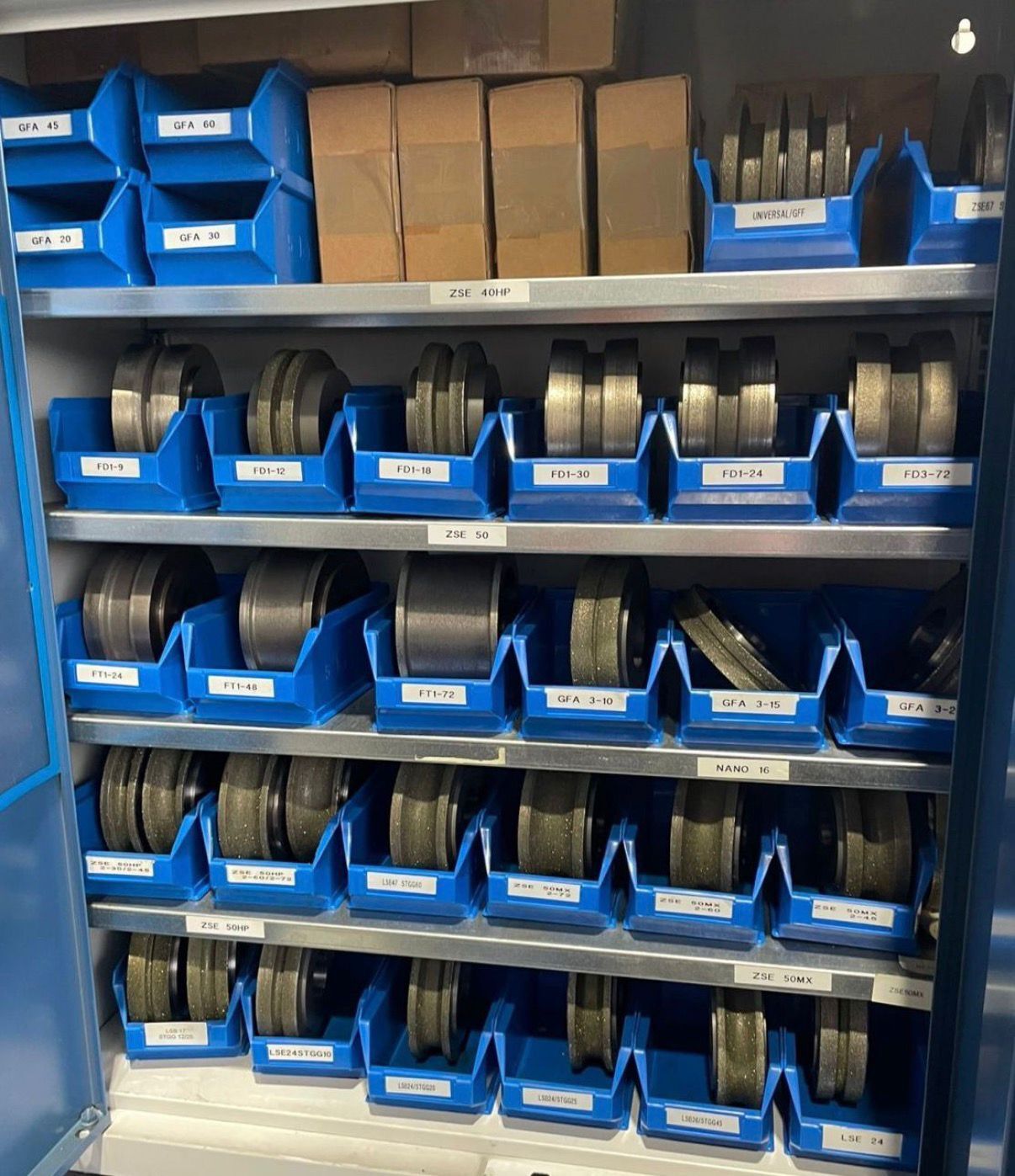

• What wheels does it use? It takes wheels of 360–500 mm diameter and 8–50 mm width, with single-profile or multi-profile wheels.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which workholding, wheels and accessories are included, the condition of the control and electrics, and loading and shipping arrangements for its 7,000 kg weight.
