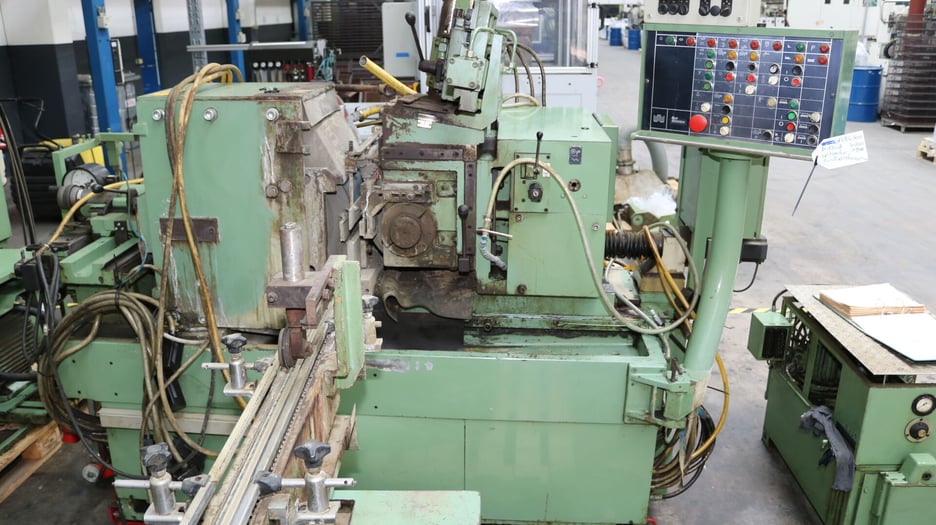

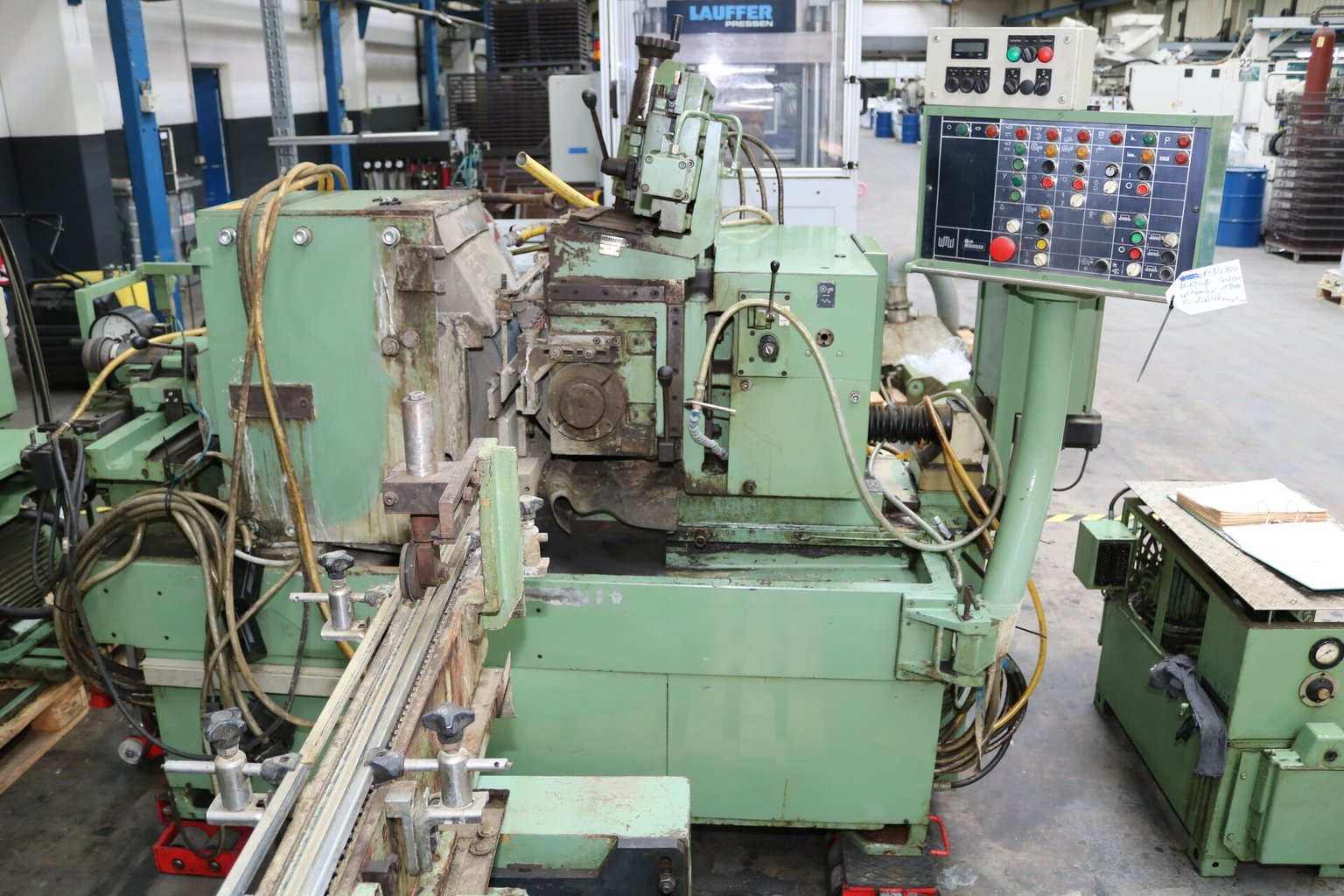

Used Mikrosa SASL 125/1A Centreless Grinding Machine | A.K. Machine Traders, Navi Mumbai, India

This used Mikrosa SASL 125/1A centreless grinding machine is available from A.K. Machine Traders in Navi Mumbai, India. A centreless grinder grinds round workpieces without holding them between centres.

It handles workpiece diameters from 1.5 mm to 125 mm with a grinding length of 245 mm. The spindle is rated at 22/30 kW and total installed power is 34 kW. The machine weighs 8 t.

Technical Specifications

• Model: SASL 125/1A
• Grinding diameter: 1.5–125 mm
• Grinding length: 245 mm
• Grinding wheel diameter: 630 mm
• Grinding wheel width: 250 mm
• Regulating wheel diameter: 315 mm
• Wheel speed: 45 m/s
• Regulating wheel speed: 11–140 rpm
• Voltage: 380 V
• Spindle power: 22/30 kW
• Total power: 34 kW
• Dimensions: 3,180 x 1,620 x 2,300 mm
• Weight: 8 t

Applications

• Grinding round shafts, pins and spindles
• Precision grinding of bushes and sleeves
• Finishing turned parts to size
• Small-diameter wire and rod type components

Commercial Details

• Make: Mikrosa
• Model: SASL 125/1A
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What diameter range can it grind? It grinds workpieces from 1.5 mm up to 125 mm in diameter.
• How much power does it need? The spindle is rated at 22/30 kW, total power is 34 kW and the supply voltage is 380 V.
• How large and heavy is the machine? It measures 3,180 x 1,620 x 2,300 mm and weighs 8 t.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, inspection options, which wheels, work rests and accessories are included, the condition of the control and electrics, and loading and shipping arrangements for an 8 t machine.
