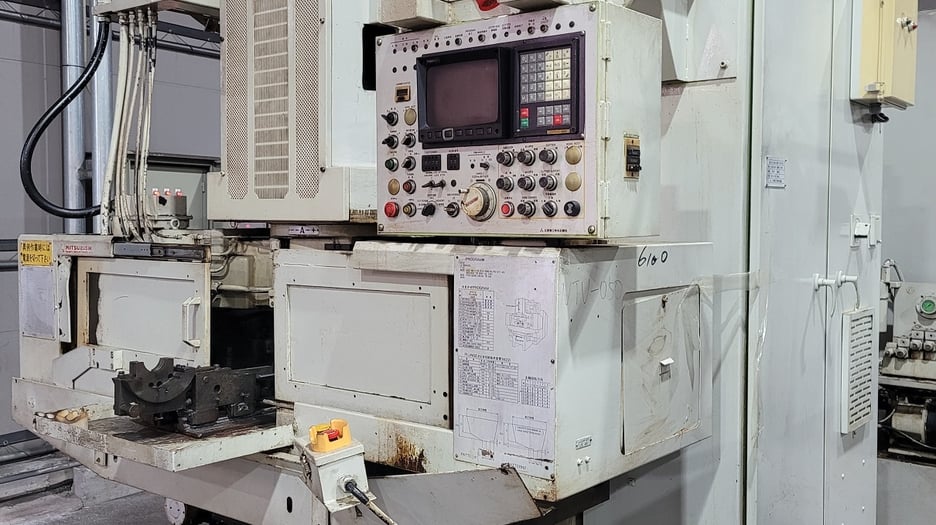

Used Mitsubishi FA 30 CNC Gear Shaving Machine | A.K. Machine Traders, Navi Mumbai, India

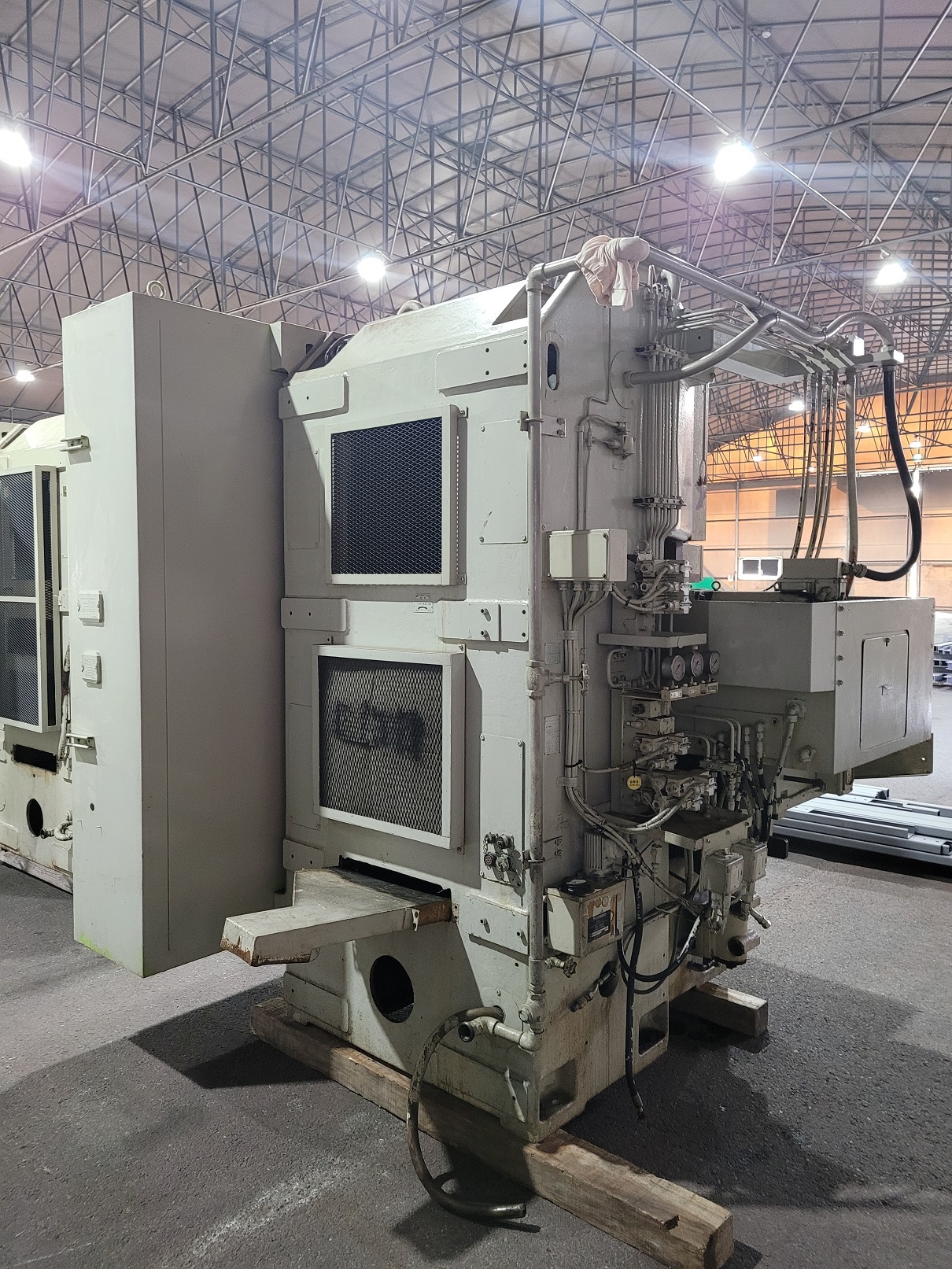

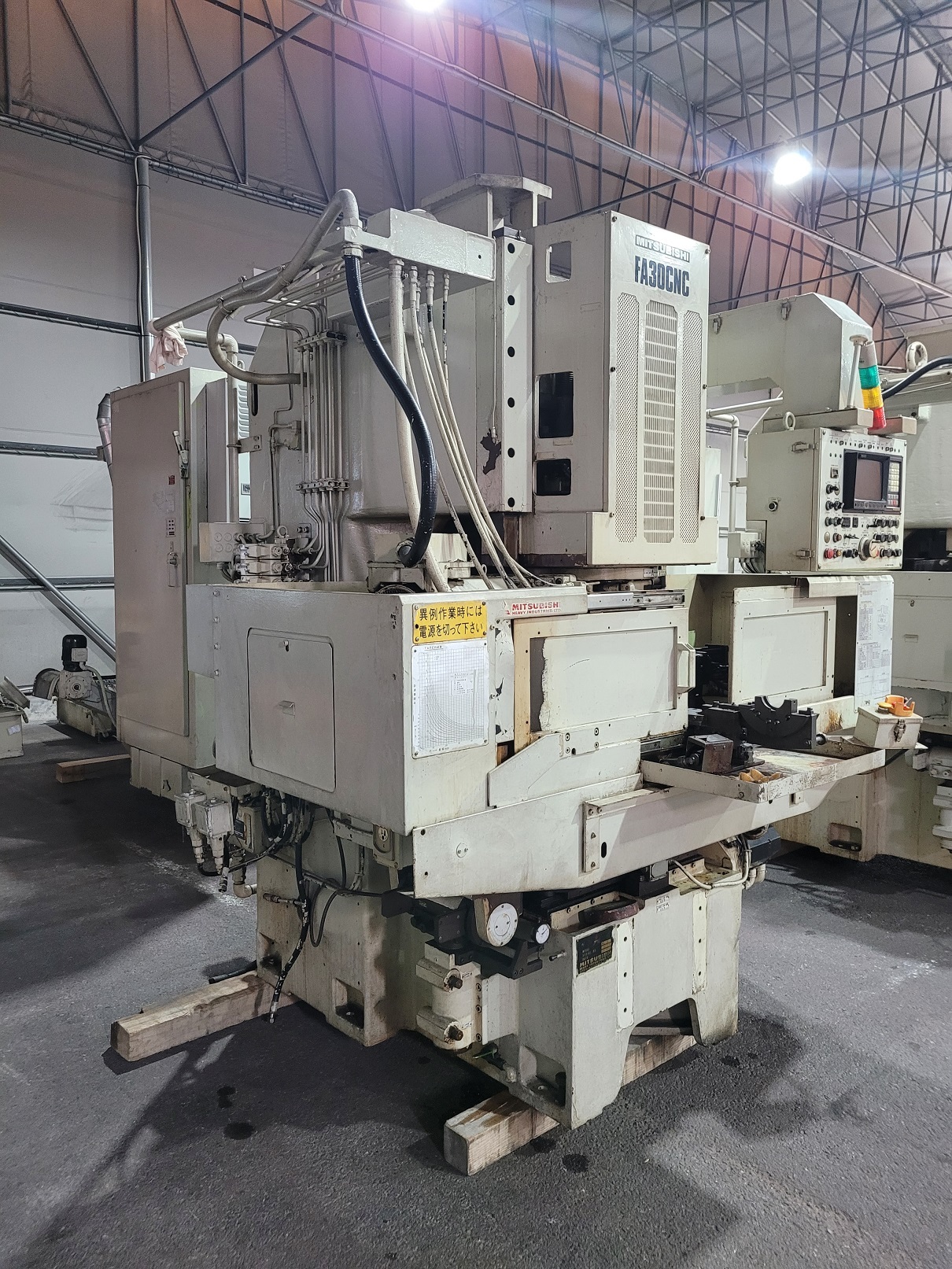

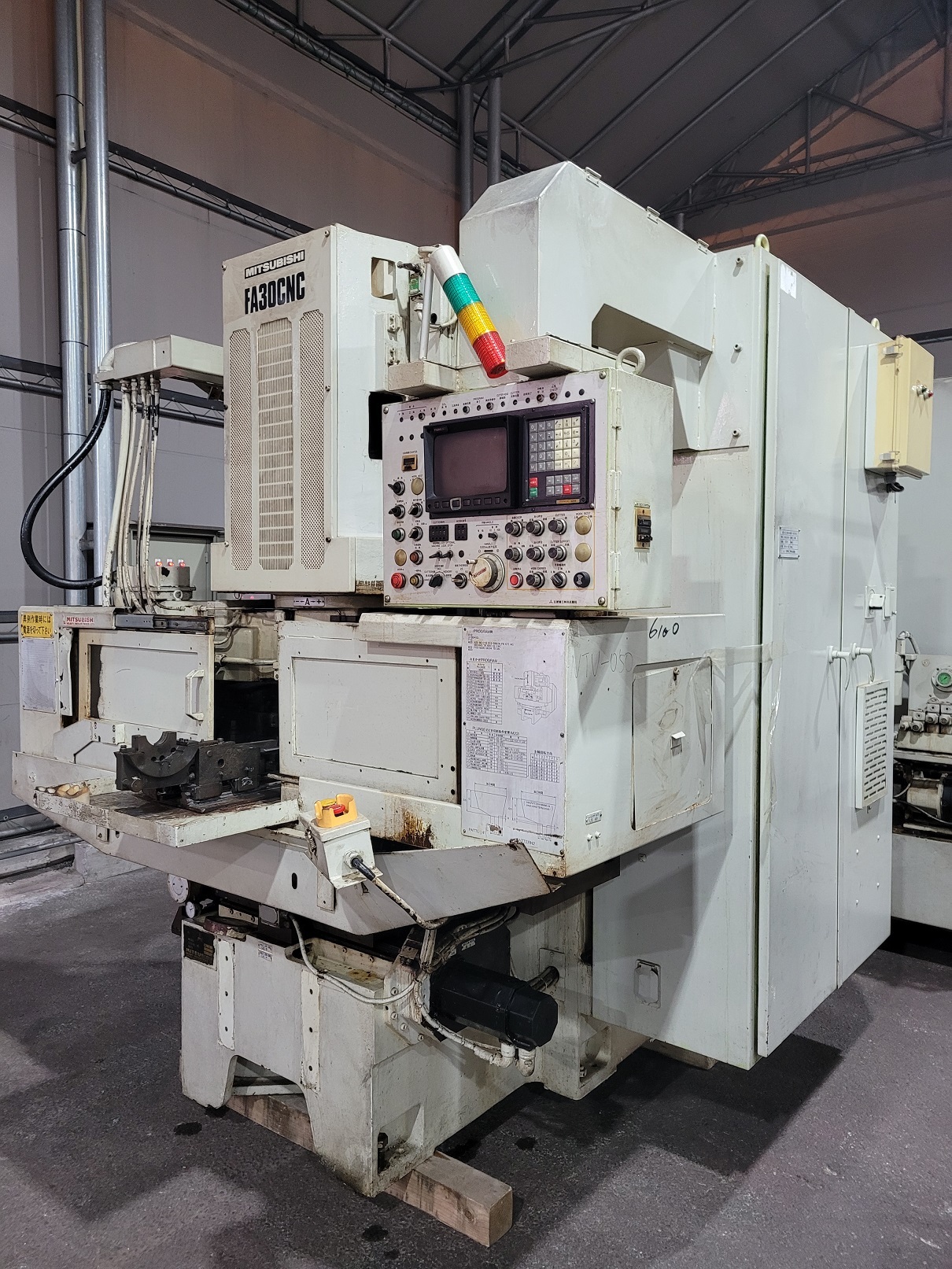

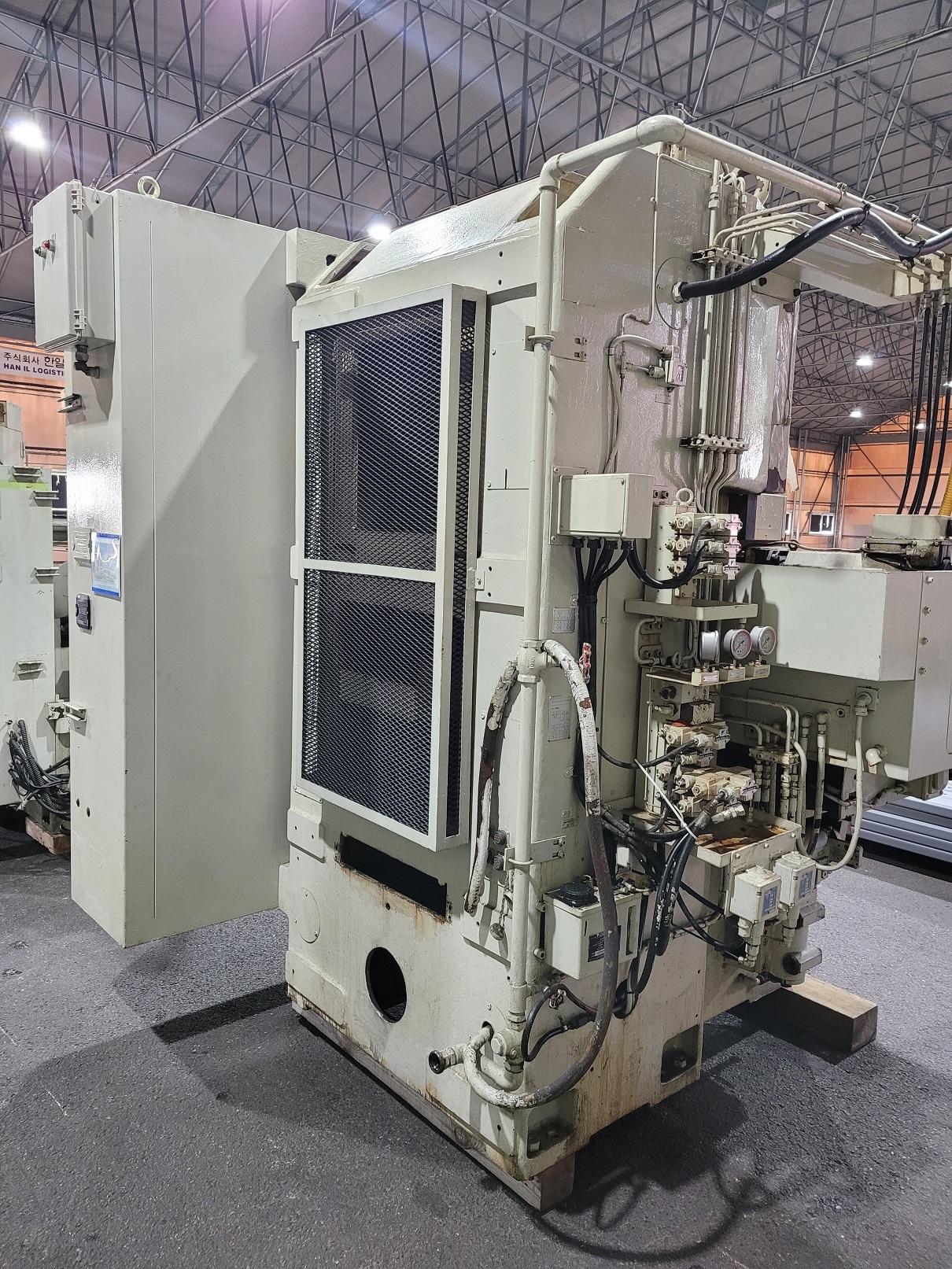

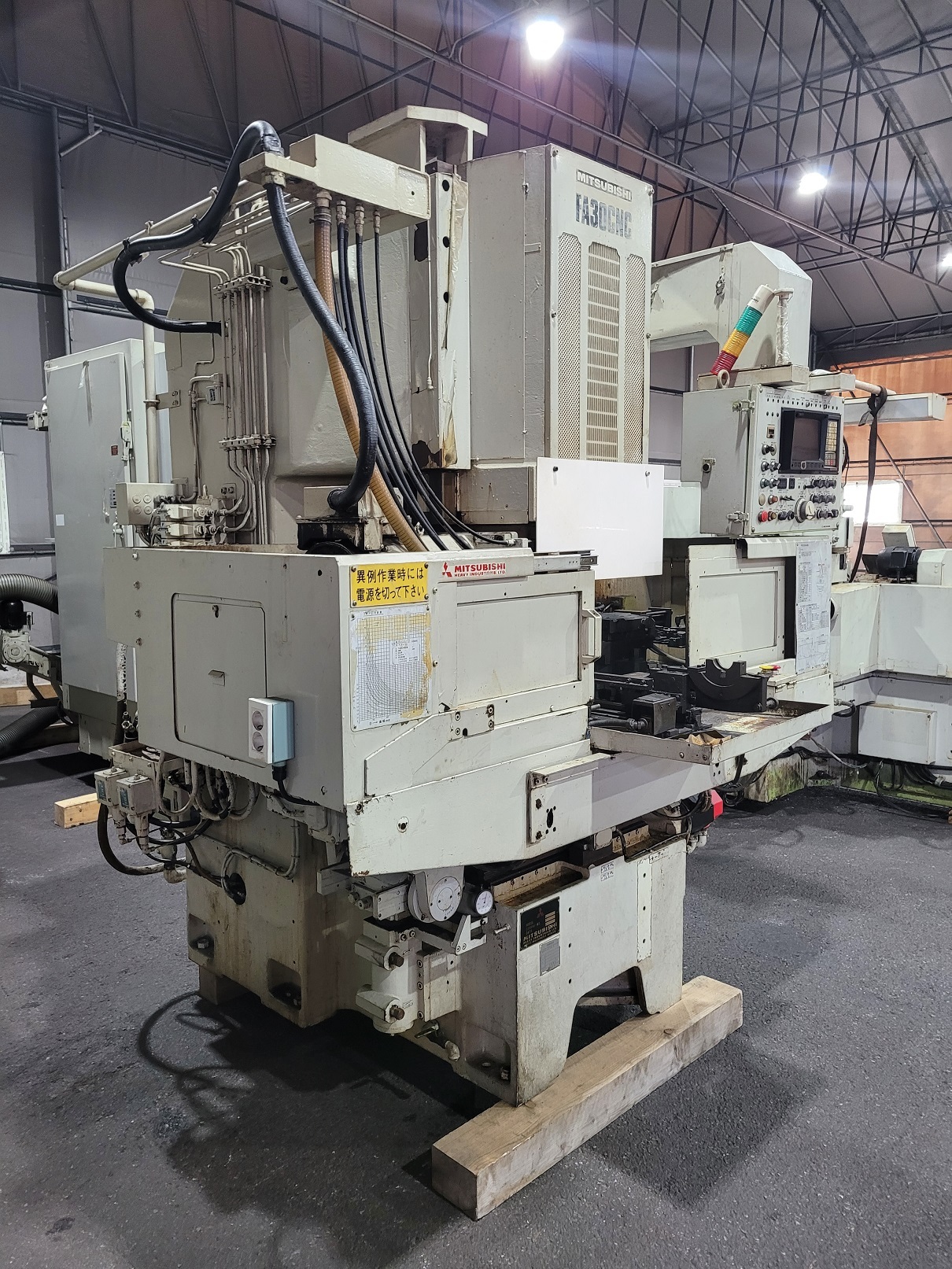

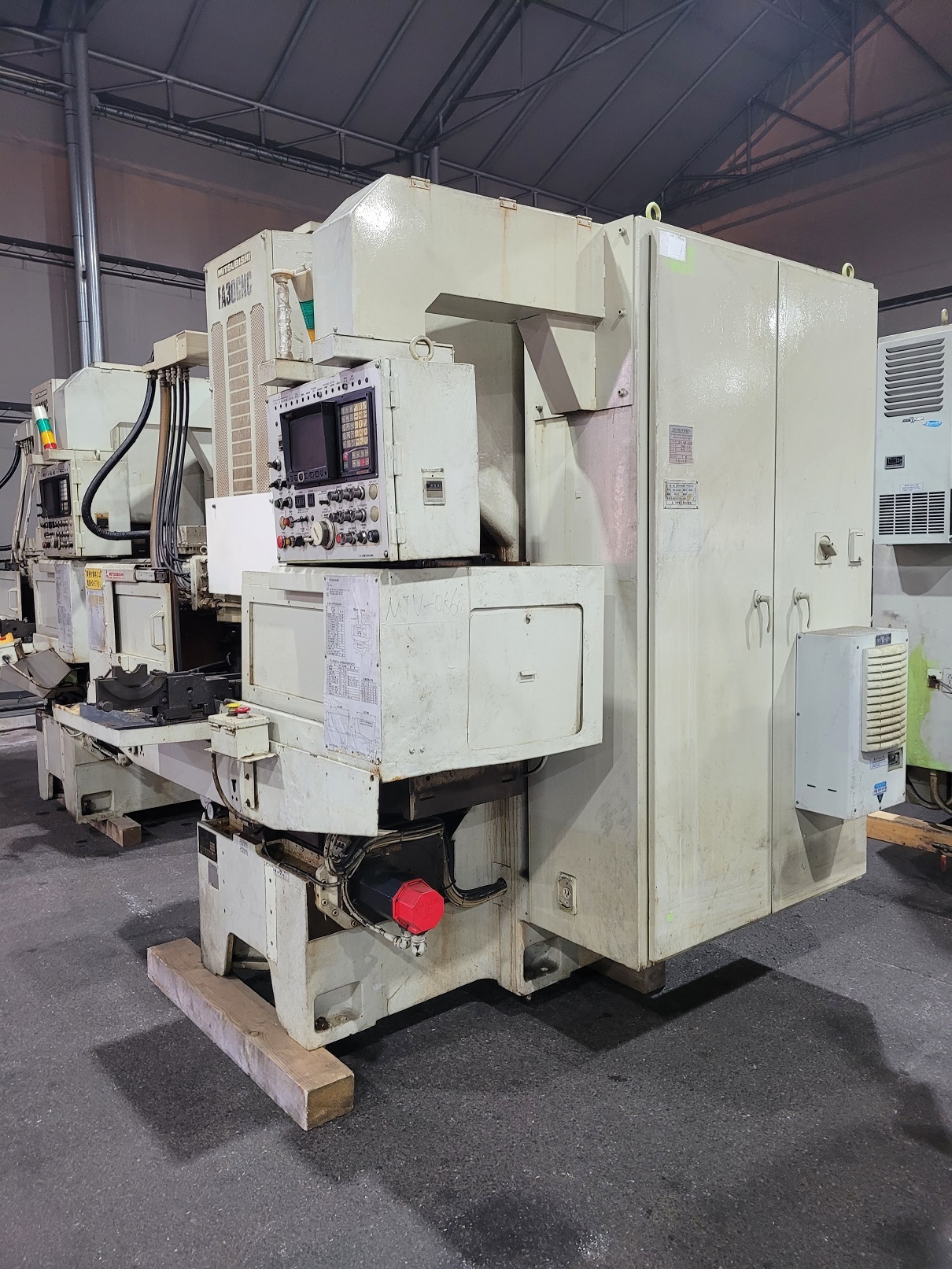

This used Mitsubishi FA 30 CNC gear shaving machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaving machine finishes gear teeth after cutting.

It is controlled by Fanuc and handles gears up to 12.20″ in diameter with a tooth width of up to 5.90″. The main motor is rated at 8 HP, and the cutter turns at 40–400 RPM.

Key Features

• Fanuc CNC control
• Swivel angle of ±23°
• Diagonal angle of ±90°

Technical Specifications

• Model: FA 30
• Control: Fanuc
• Max gear diameter: 12.20″
• Max module: 3.175 DP
• Max tooth width: 5.90″
• Max distance between centres: 25.59″
• Main motor: 8 HP
• Max cutting diameter: 9.44″
• Max cutter width: 2″
• Cutter inside diameter: 2.5″
• Cutter rotary speed: 40–400 RPM
• Swivel angle: ±23°
• Cutting feed speed: 0.0039–0.0984 IPM
• Table feed speed: 1.18–11.81 IPM
• Table stroke: 5.90″
• Diagonal angle: ±90°

Applications

• Finishing gear teeth after cutting
• Automotive transmission gears
• Industrial gearbox gears
• Precision gear production

Commercial Details

• Make: Mitsubishi
• Model: FA 30
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What control does this machine use? It has a Fanuc CNC control.
• What is the largest gear it can shave? It takes gears up to 12.20″ in diameter and up to 5.90″ tooth width.
• What is the maximum distance between centres? The maximum distance between centres is 25.59″.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, and whether cutters, tooling and workholding are included. Confirm the condition of the Fanuc control and electrics, and ask about loading and shipping.
