Used Mitsubishi RD23-B35A CNC Angular Grinder | A.K. Machine Traders, Navi Mumbai, India

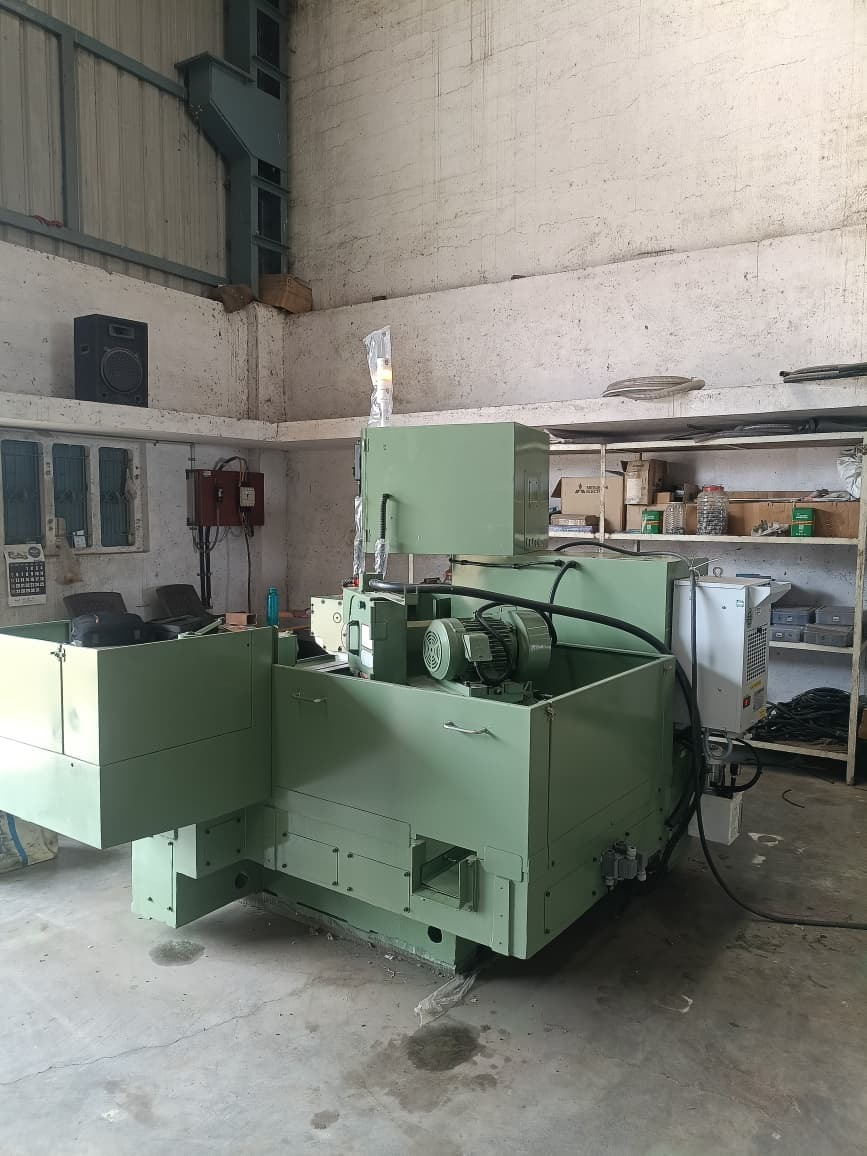

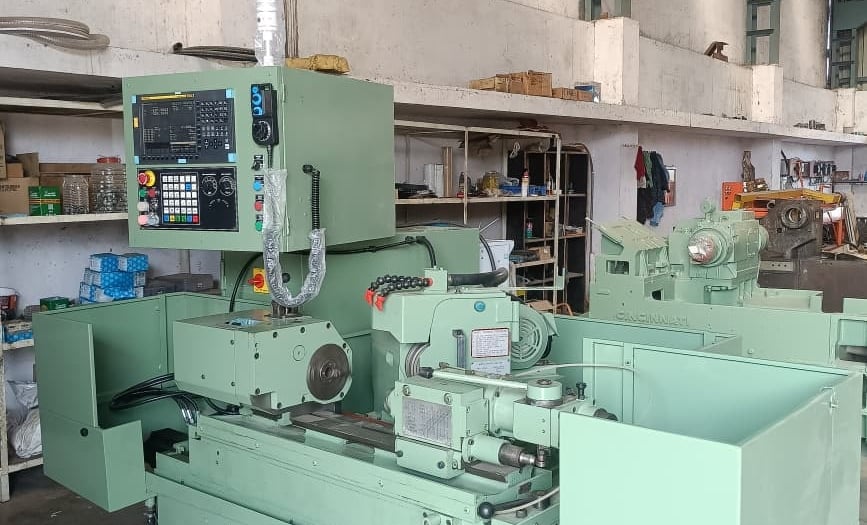

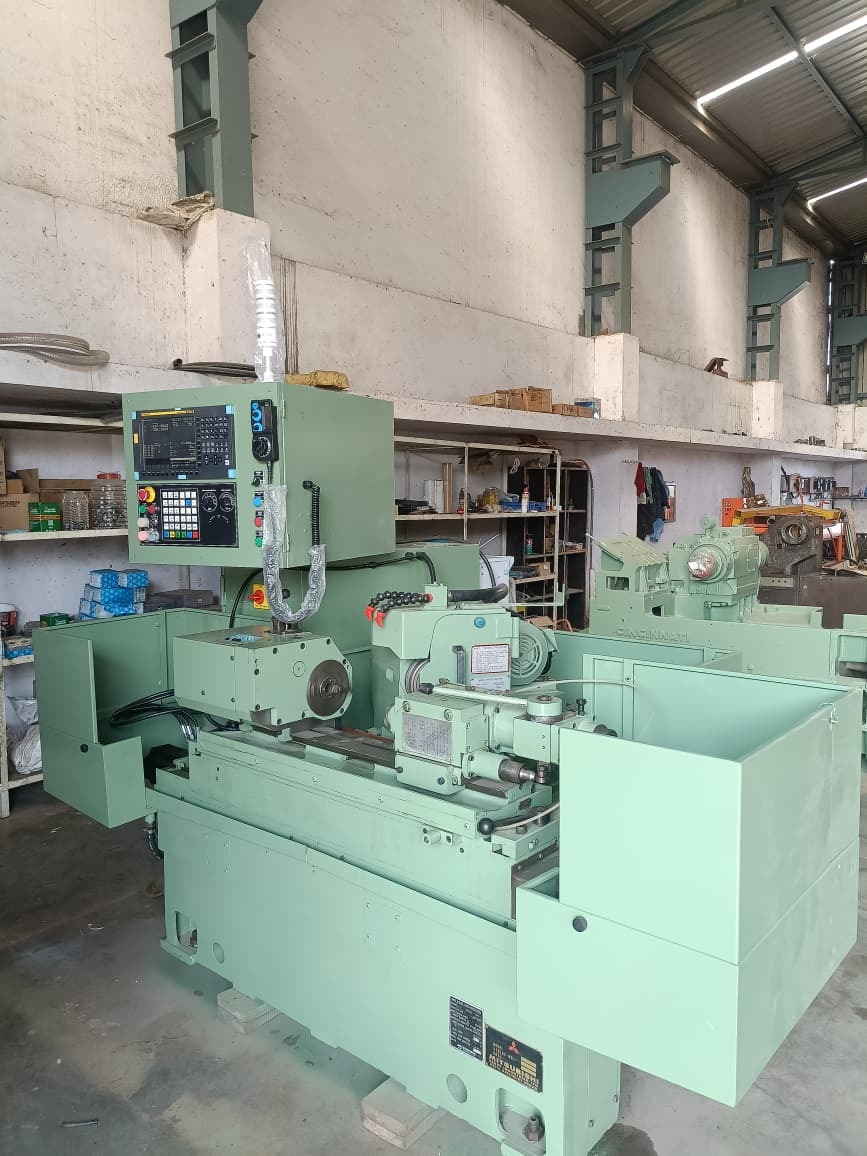

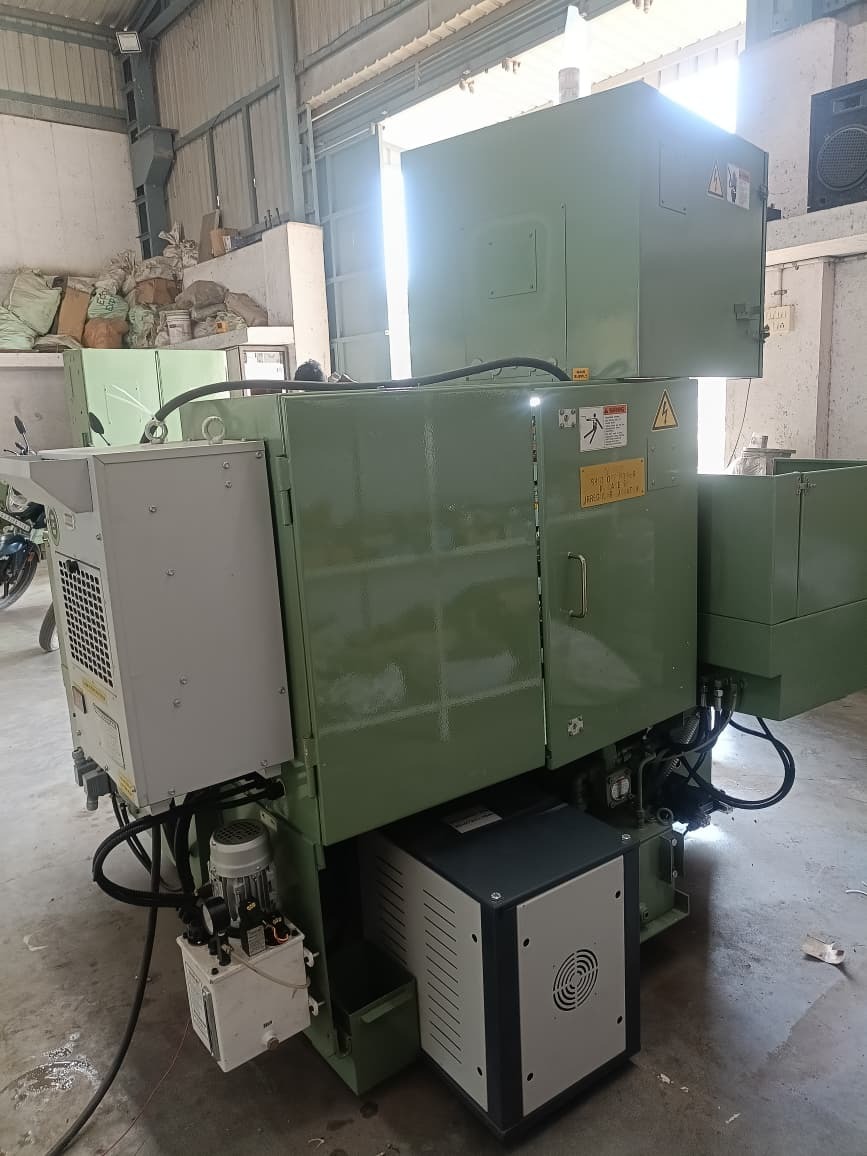

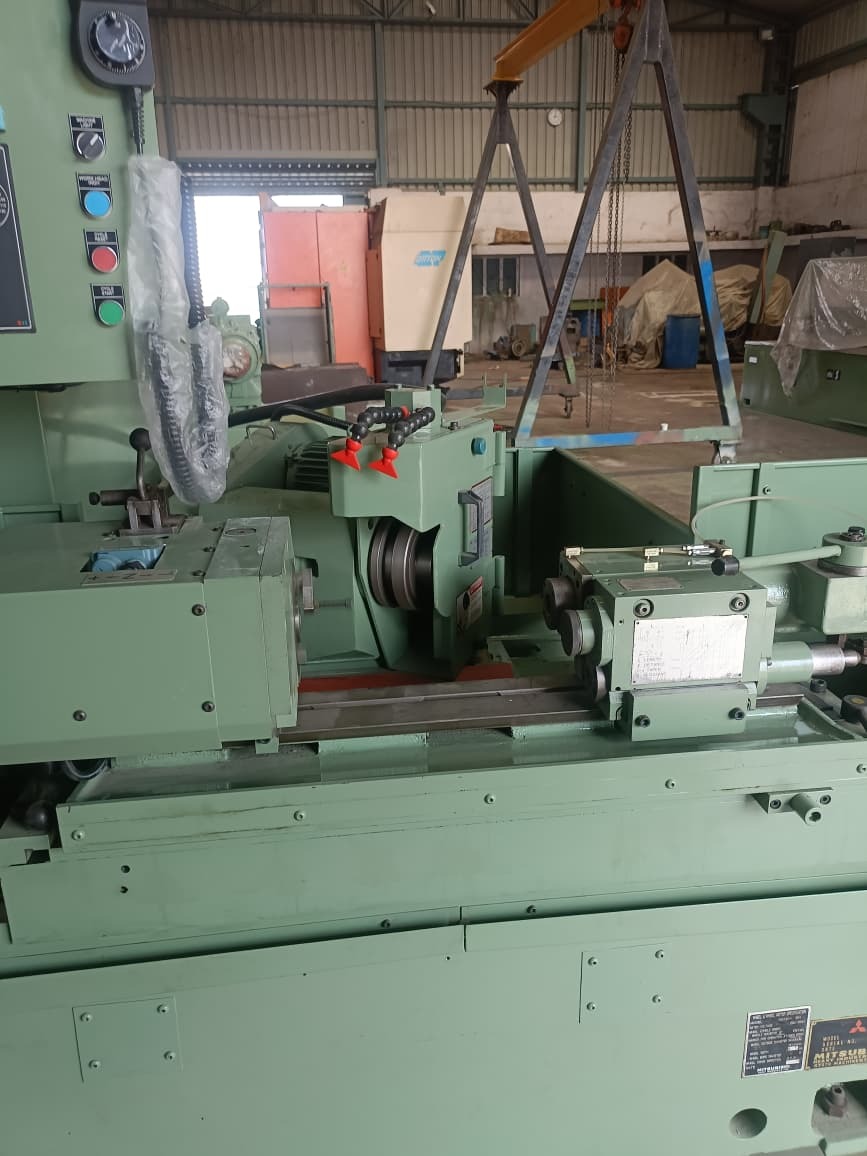

This used Mitsubishi RD23-B35A CNC angular grinder is available from A.K. Machine Traders in Navi Mumbai, India. It is a cylindrical grinder for finishing round workpieces to a precise size and surface.

It grinds outside diameters up to 150 mm over a grinding length of 350 mm and takes workpieces up to 80 kg. The wheel head is driven by a 4.9 kW motor.

Key Features

• CNC operation

Technical Specifications

• Model: RD23-B35A
• Operation type: CNC
• Maximum O.D. grinding: 150 mm
• Overall grinding length: 350 mm
• Maximum workpiece weight: 80 kg

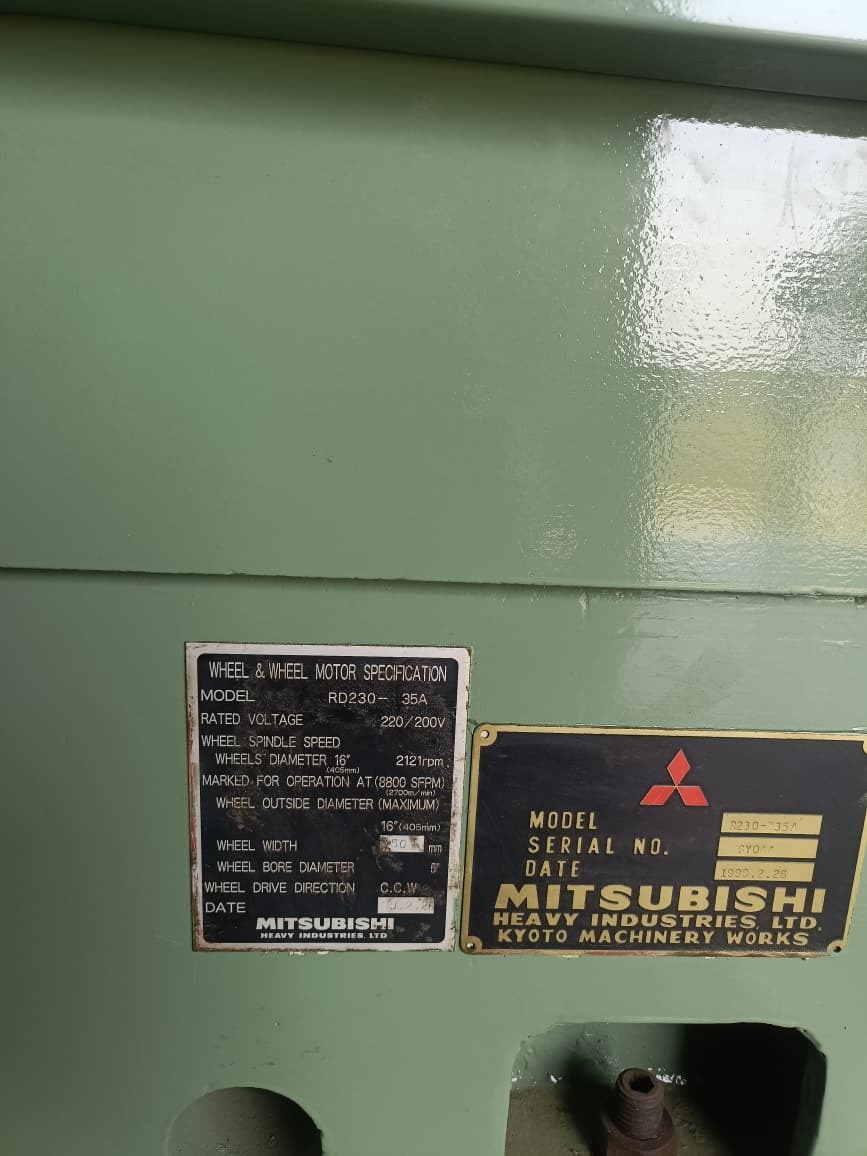

• Wheel head motor: 4.9 kW
• Longitudinal travel: 350 mm
• Cross travel: 231 mm

Applications

• Grinding shafts and round components to final size
• Finishing outside diameters of turned parts
• Precision machining of parts in tool rooms and general engineering workshops

Commercial Details

• Make: Mitsubishi
• Model: RD23-B35A
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum workpiece size? It grinds outside diameters up to 150 mm over a length of 350 mm, with workpieces up to 80 kg.

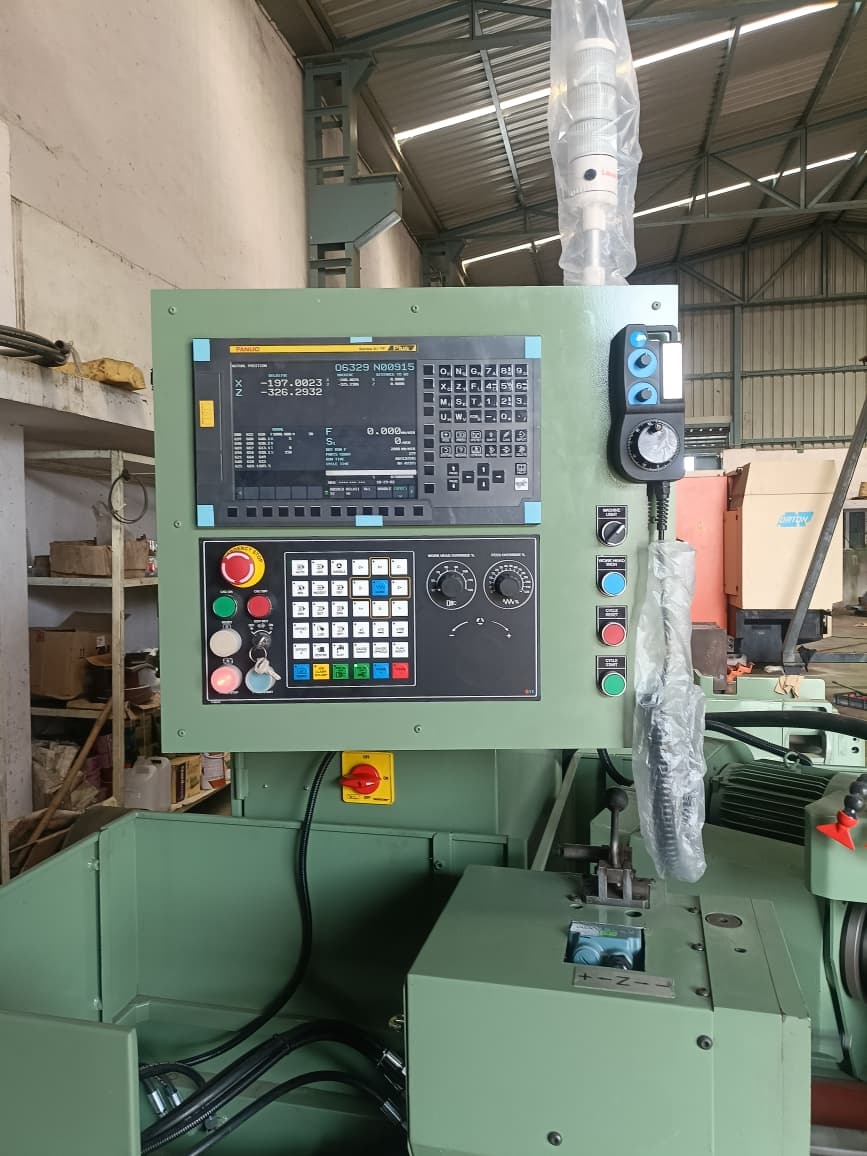

• How is it controlled? It is a CNC machine.
• What are the axis travels? Longitudinal travel is 350 mm and cross travel is 231 mm.

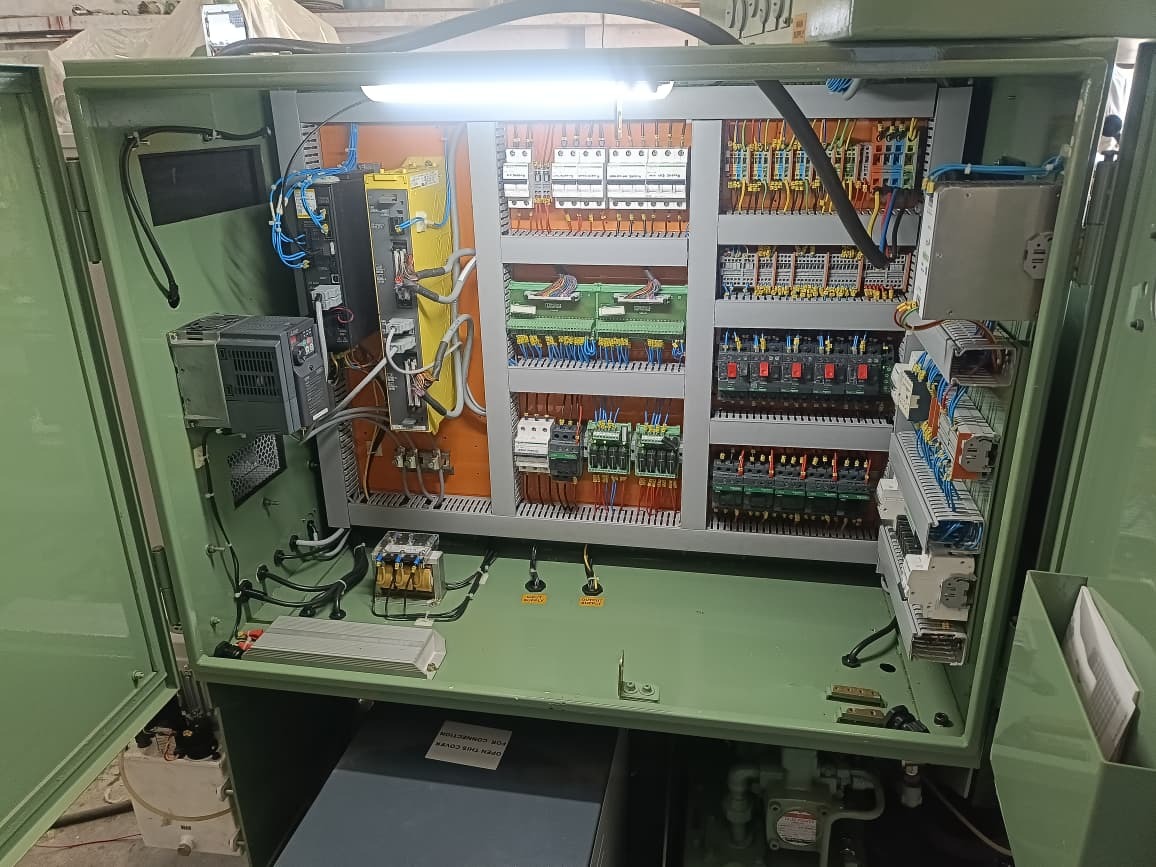

• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection is possible. Confirm which accessories, wheels and workholding are included, the condition of the CNC control and electrics, and the loading and shipping arrangements.
