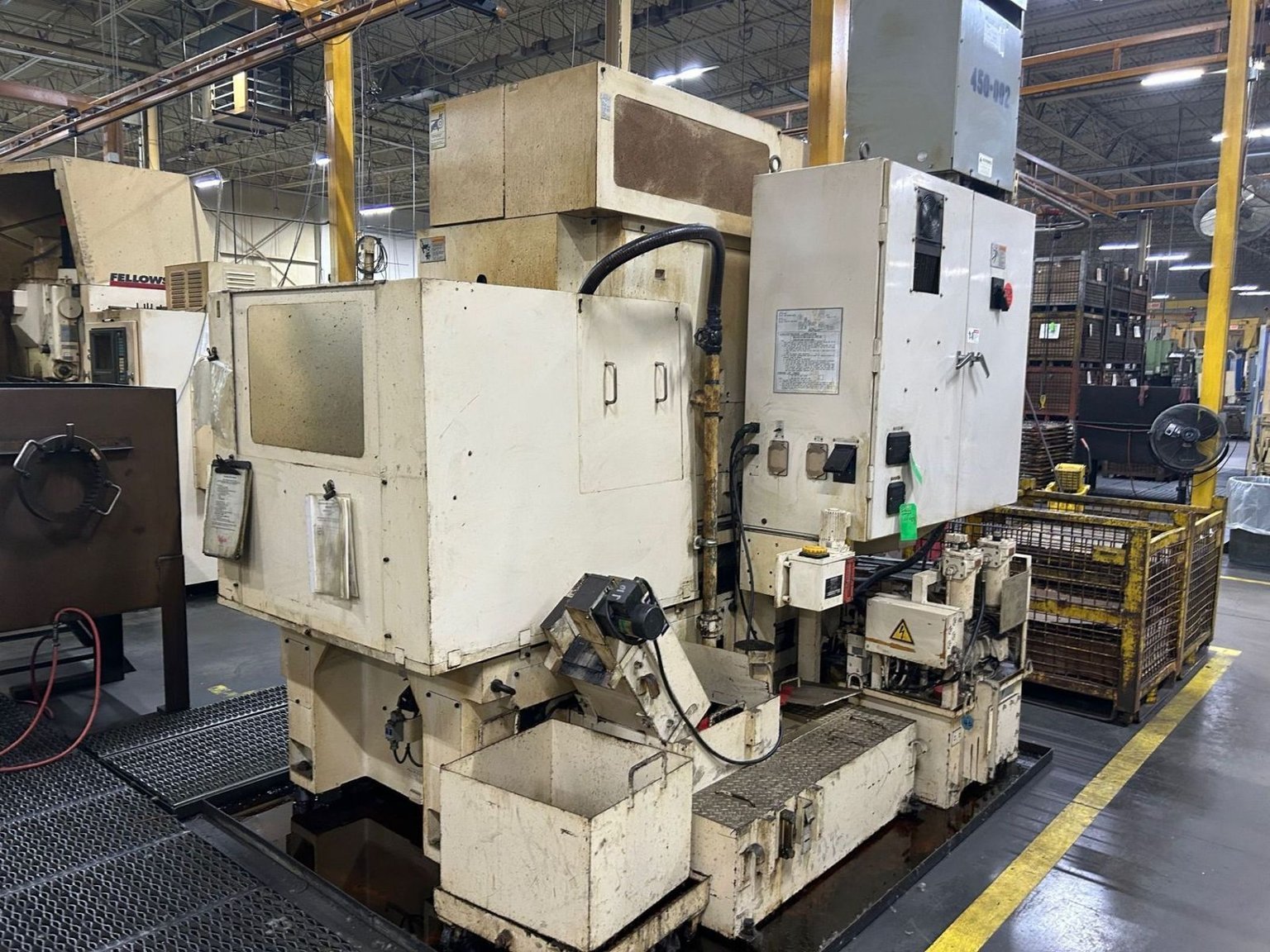

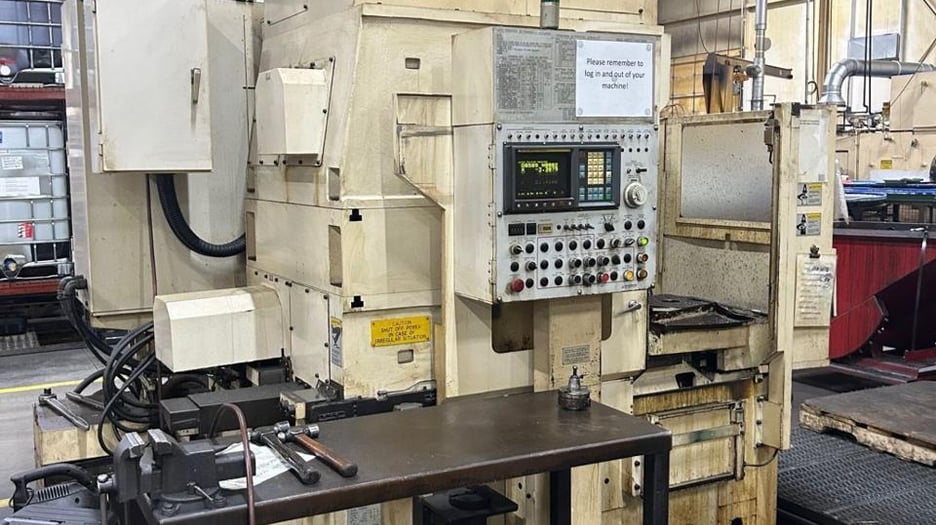

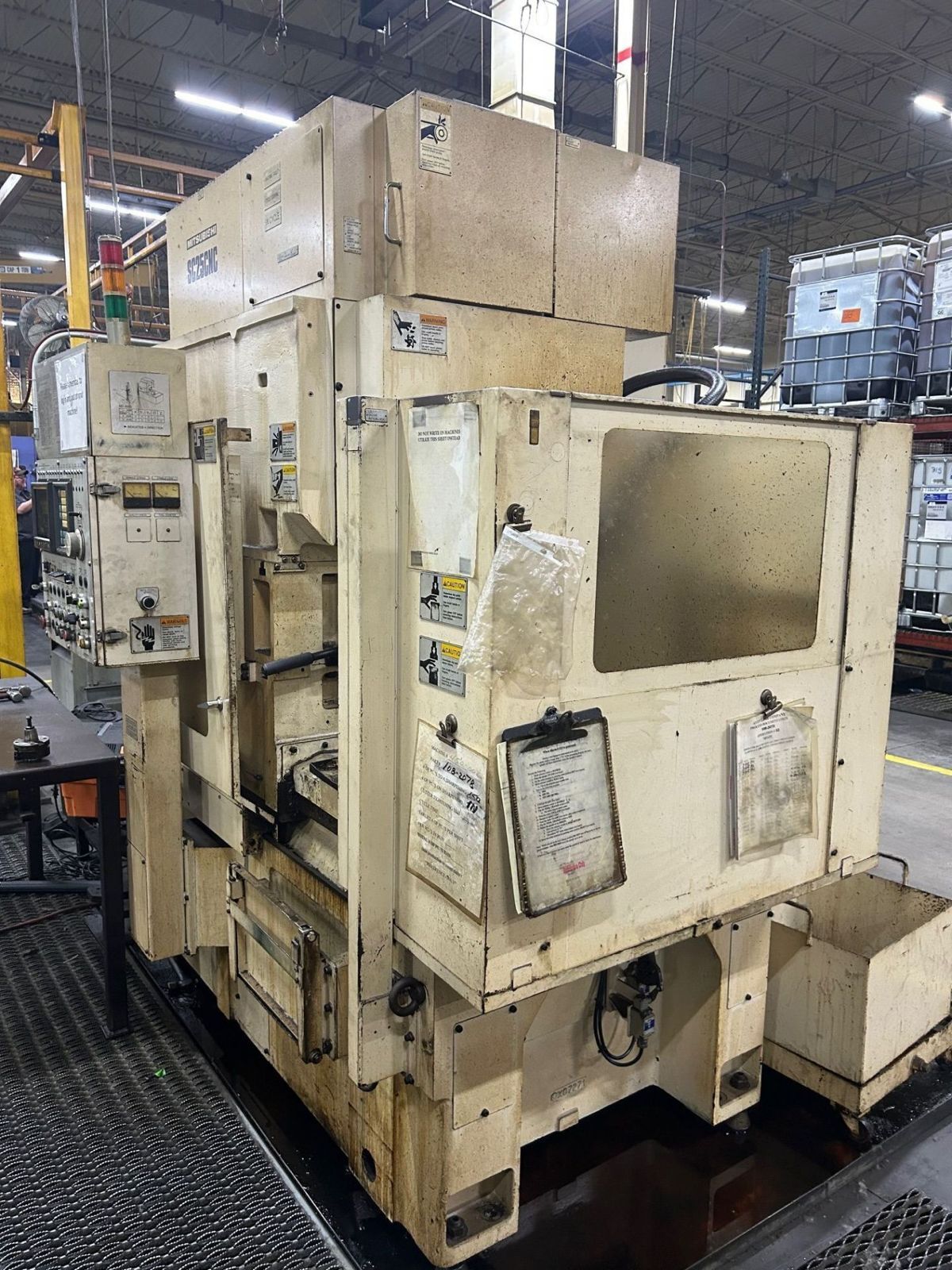

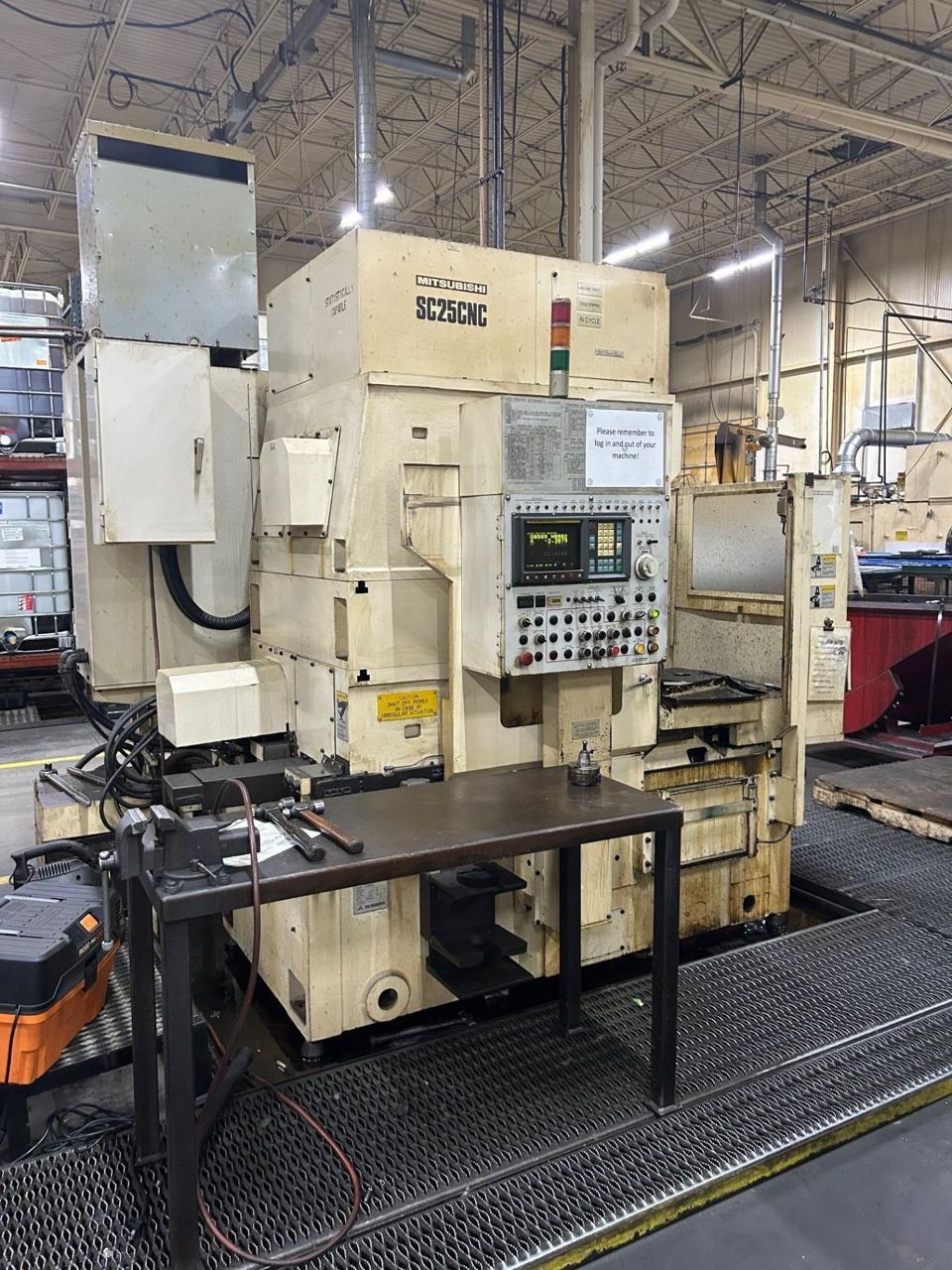

Used Mitsubishi SC 25 CNC Gear Shaper | A.K. Machine Traders, Navi Mumbai, India

This used Mitsubishi SC 25 CNC gear shaper is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts gear teeth, including internal gears, using a reciprocating cutter.

It takes workpieces up to 10″ in diameter and cuts parts up to module 6. The cutter spindle stroke speed reaches 1,800/min and the main motor is rated at 10 HP.

Technical Specifications

• Model: Mitsubishi SC 25 CNC
• Maximum workpiece diameter: 10″
• Maximum workpiece size: 9.85″
• Maximum internal gear diameter: 4.7″
• Maximum stroke width: 2.75″
• Maximum part module: 6
• Maximum diametral pitch: 4.23″
• Maximum spindle stroke speed: 1,800/min
• Cutter spindle diameter: 3.54″
• Table diameter: 10.24″
• Main motor: 10 HP
• Machine dimensions: 107″ x 100″ x 108″
• Machine weight (approximate): 17,000 lbs

Applications

• External spur and helical gears
• Internal gears
• Gear blanks for transmissions and gearboxes
• Small-batch and production gear cutting

Commercial Details

• Make: Mitsubishi
• Model: SC 25 CNC
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest workpiece this gear shaper takes? It takes workpieces up to 10″ in diameter, with a maximum internal gear diameter of 4.7″.
• What gear size can it cut? It cuts up to module 6, or a maximum diametral pitch of 4.23″.
• How fast does the cutter spindle stroke? The maximum spindle stroke speed is 1,800/min.

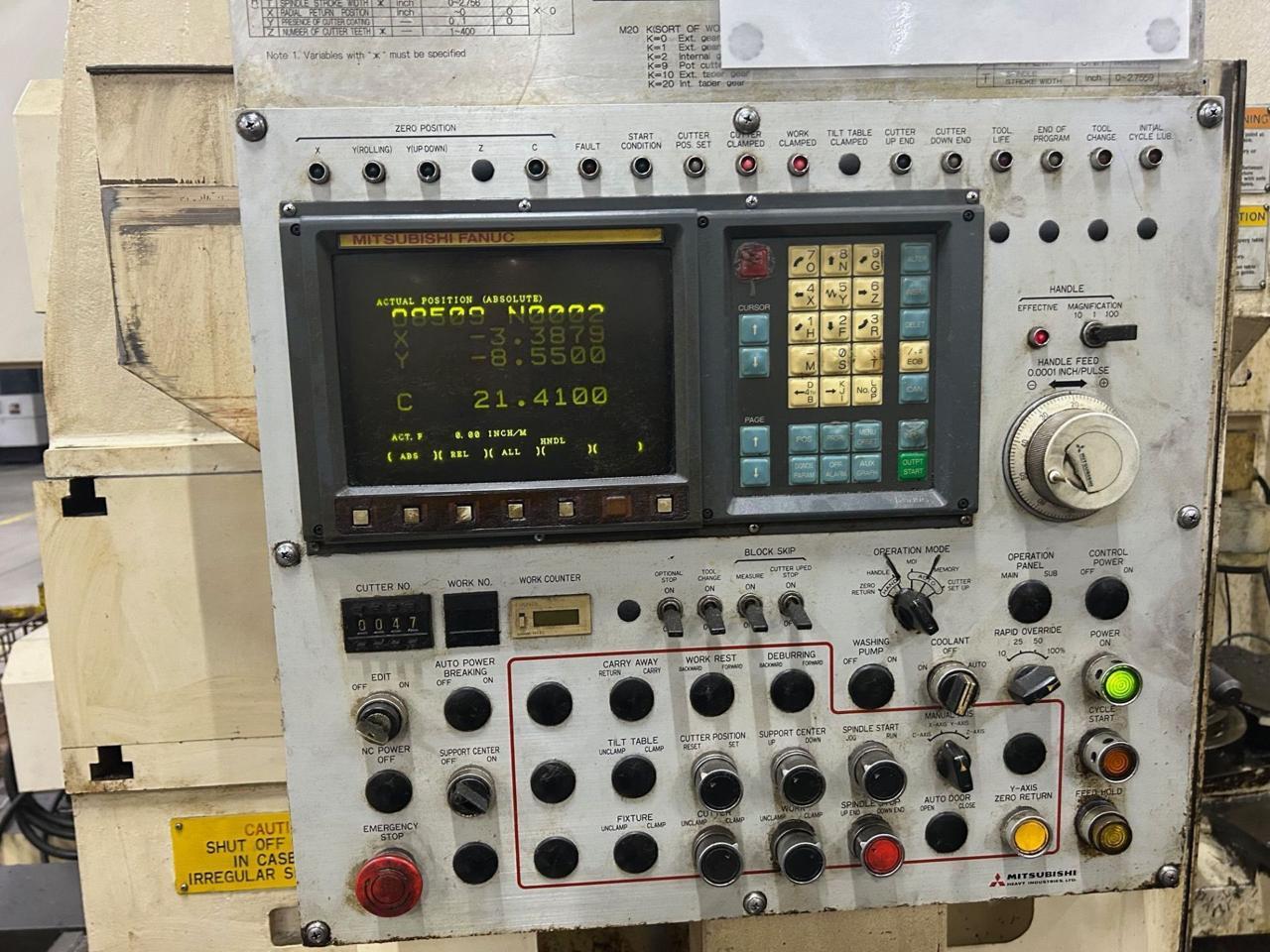

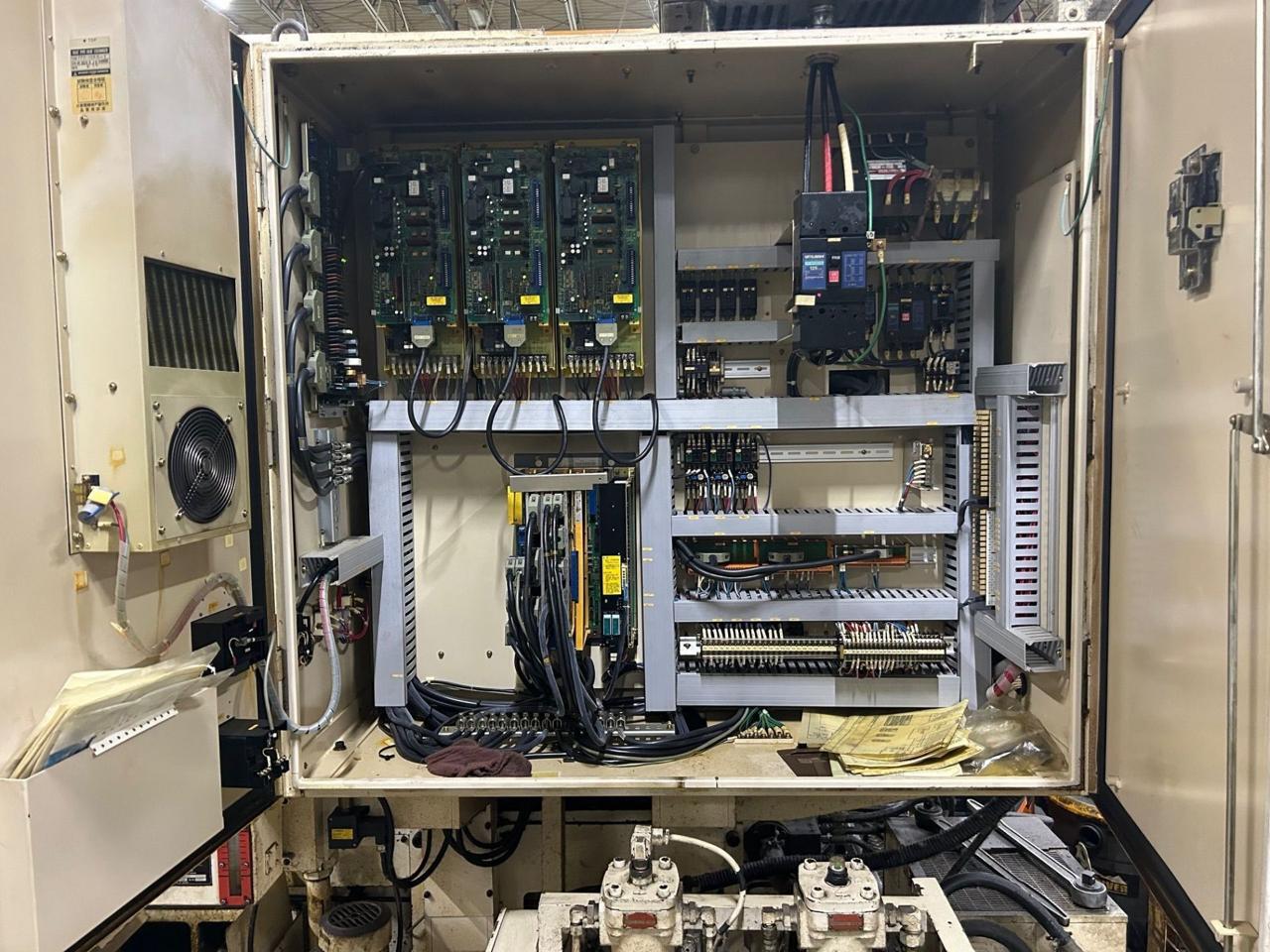

• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection is possible. Confirm which cutters, tooling and accessories are included, the condition of the CNC control and electrics, and the loading and shipping arrangements for a machine of about 17,000 lbs.
