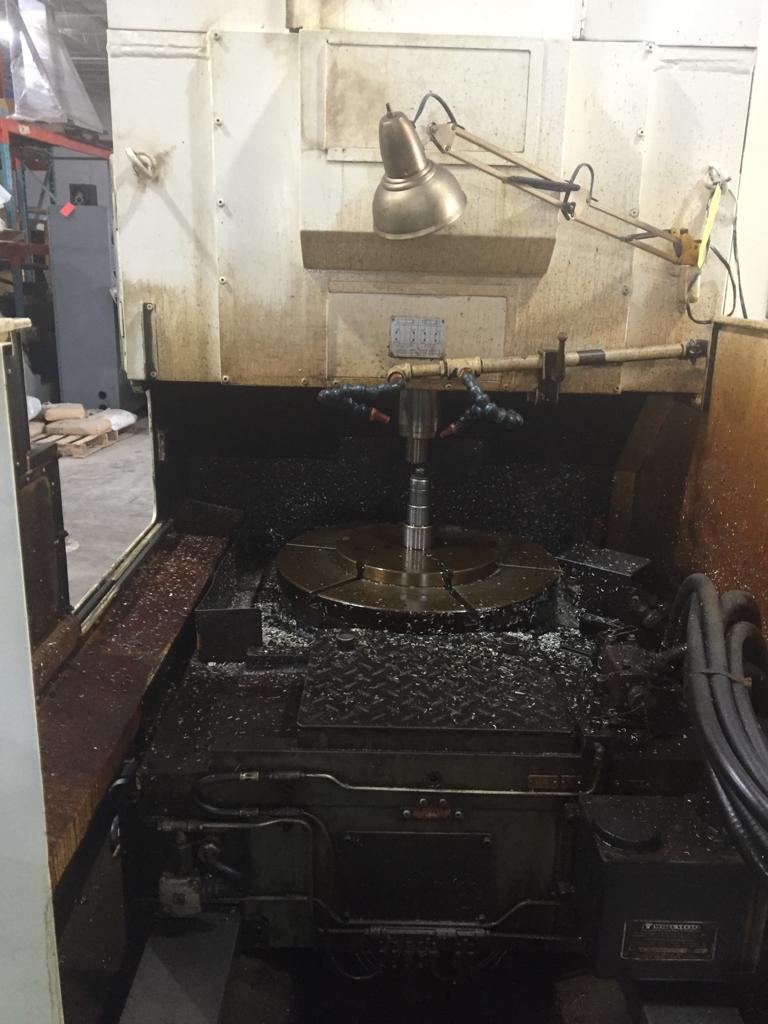

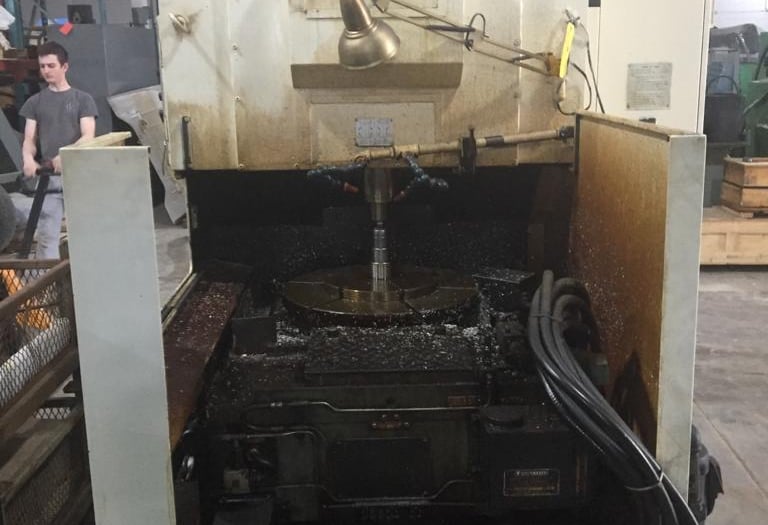

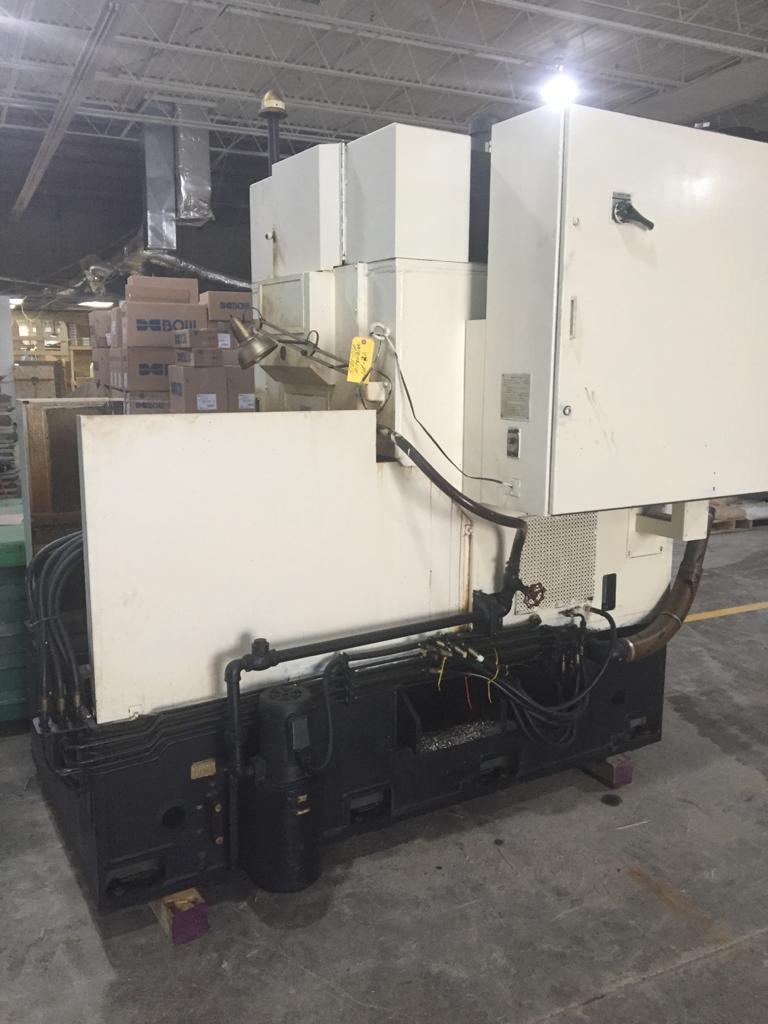

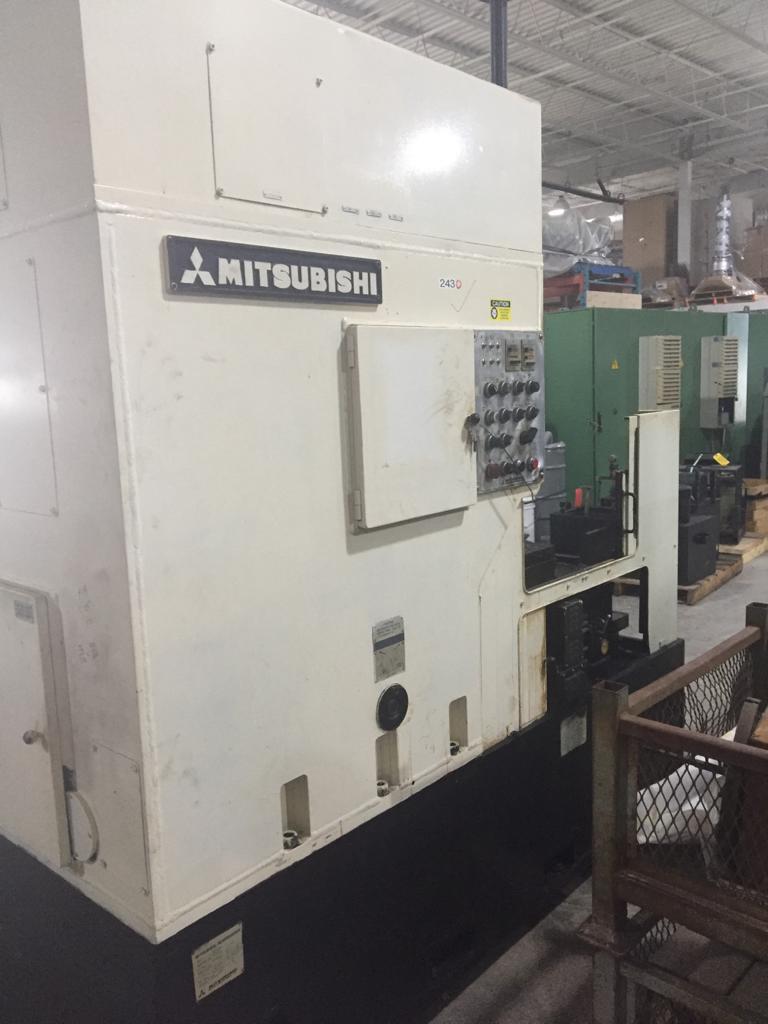

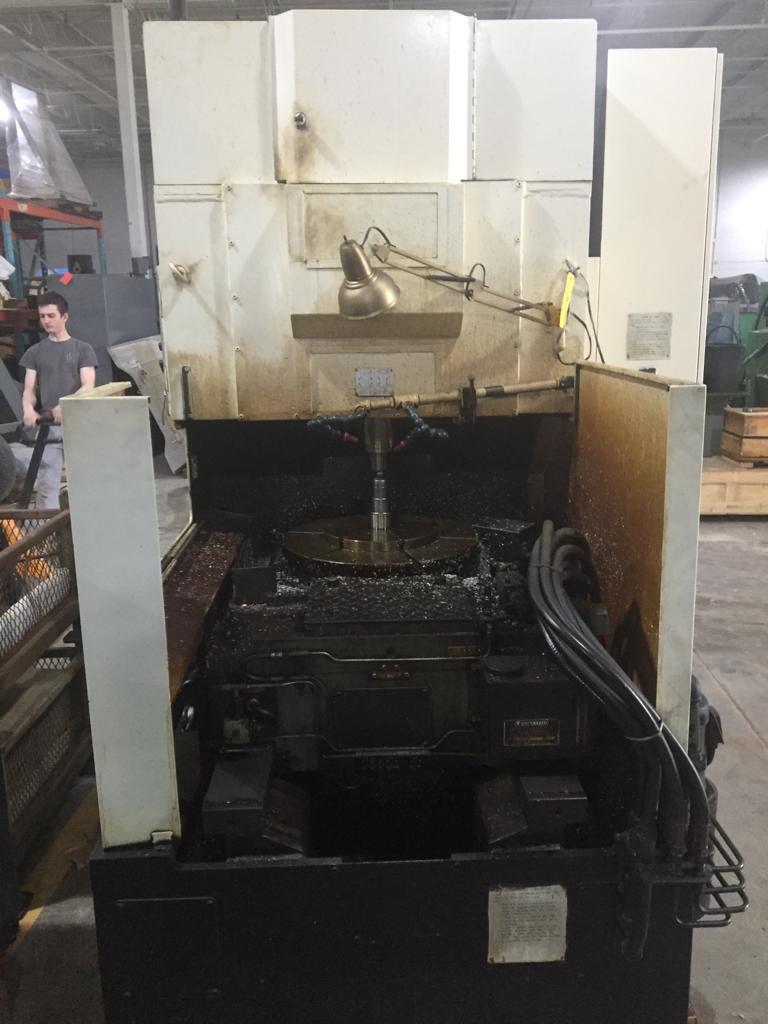

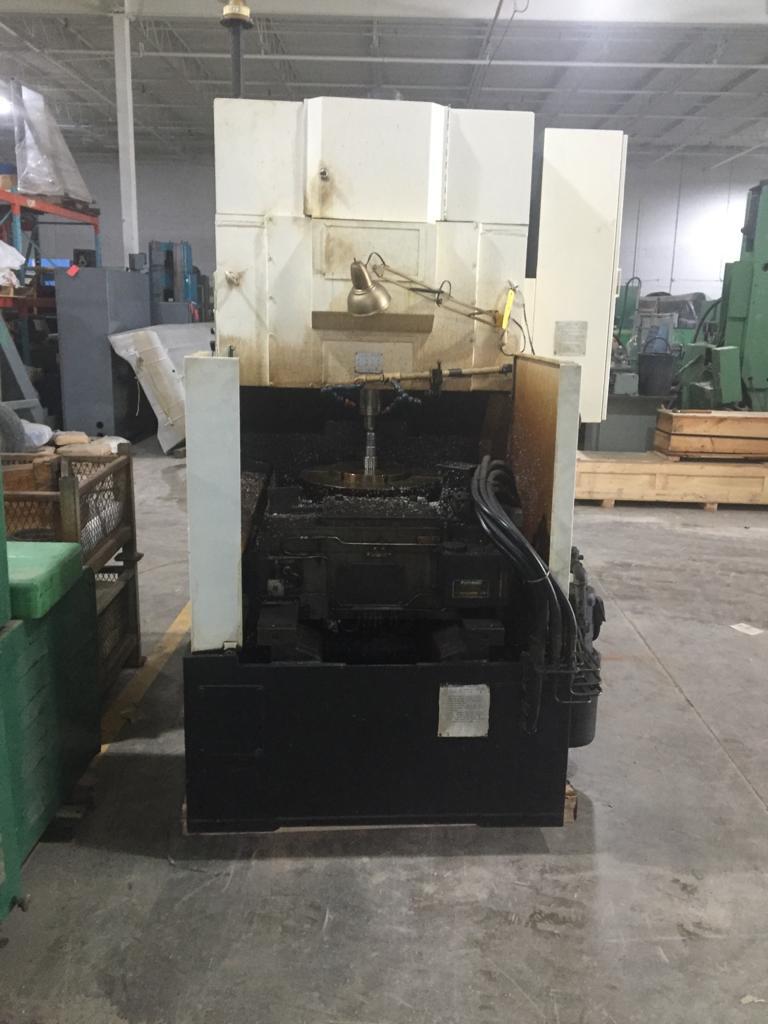

Used Mitsubishi SH 400 Gear Shaping Machine | A.K. Machine Traders, Navi Mumbai, India

This used Mitsubishi SH 400 gear shaping machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts external and internal gear teeth using a reciprocating cutter.

The SH 400 handles workpieces up to 400 mm in diameter for both external and internal gears, at a maximum module of 6 (D.P. 4). It offers 6 stroke changes across two cutter stroke ranges, 75–430 and 180–1,000 strokes/min.

Key Features

• Six stroke changes across two cutter stroke ranges
• Separate rolling feed ranges for roughing and finishing
• 1–4 cuts per cycle

Technical Specifications

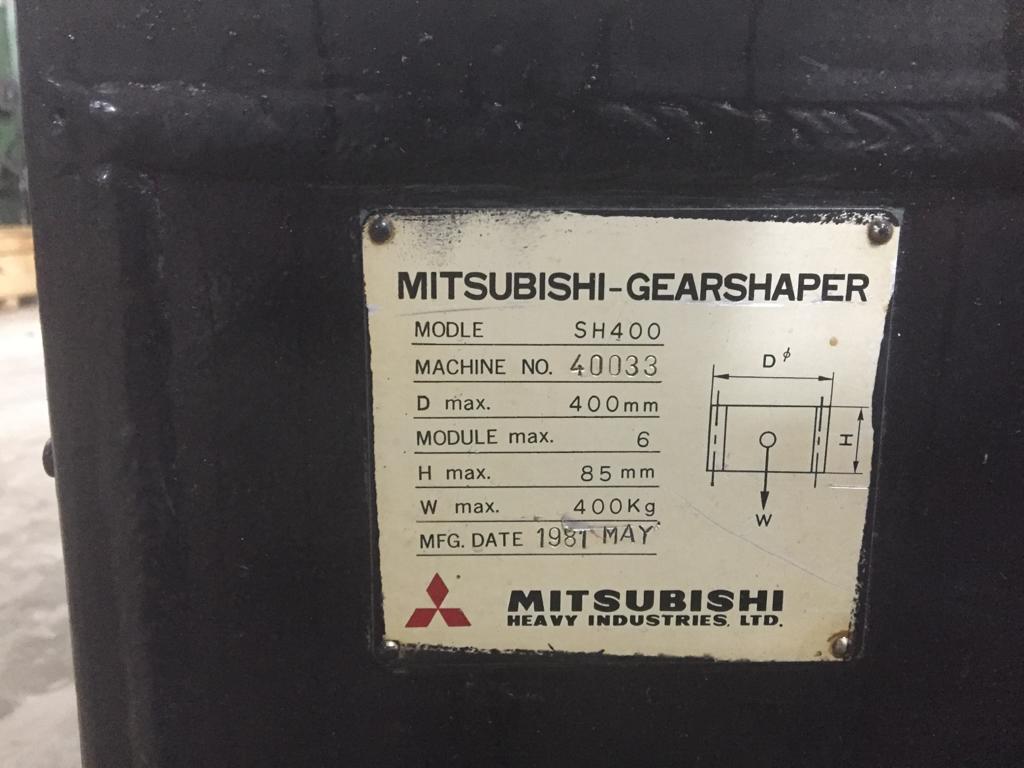

• Model: Mitsubishi SH 400
• Maximum gear diameter: 15.75 in (400 mm)
• Maximum external gear diameter: 400 mm
• Maximum internal gear diameter: 400 mm
• Maximum module: 6 (D.P. 4)
• Maximum workpiece width: 3 3/8 in
• Cutter strokes: 75–430 strokes/min and 180–1,000 strokes/min
• Stroke changes: 6
• Rolling feed, roughing: 0.0042–0.053 in/stroke
• Rolling feed, finishing: 0.0009–0.053 in/stroke
• Number of cuts: 1–4
• Cutter spindle diameter: 3.94 in
• Work table diameter: 18.11 in
• Main motor: 7 1/3 HP

Applications

• Cutting external spur and helical-type gear teeth on gear blanks
• Cutting internal gears
• Gear production for gearboxes and machinery
• Toolroom and general gear manufacturing

Commercial Details

• Make: Mitsubishi
• Model: SH 400
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size gears can it cut? It cuts external and internal gears up to 400 mm in diameter, up to module 6 (D.P. 4), with a maximum workpiece width of 3 3/8 in.
• What cutter stroke speeds are available? Cutter strokes run at 75–430 or 180–1,000 strokes/min, with 6 stroke changes.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which cutters, tooling and accessories are included, the condition of the control and electrics, and loading and shipping arrangements.
