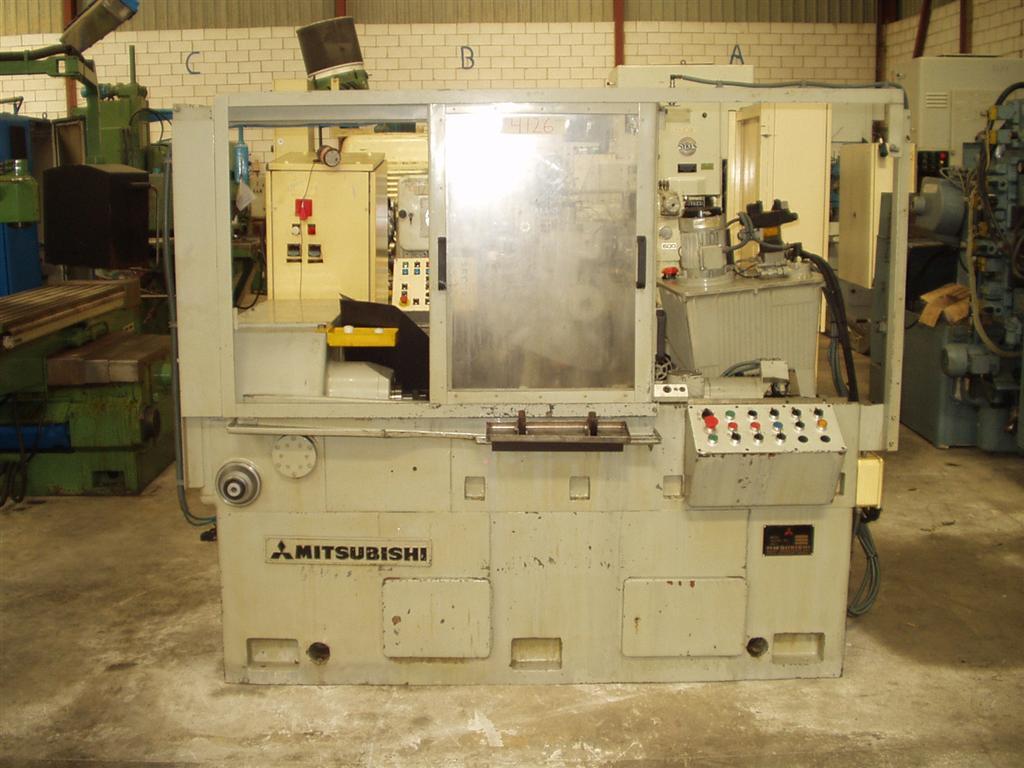

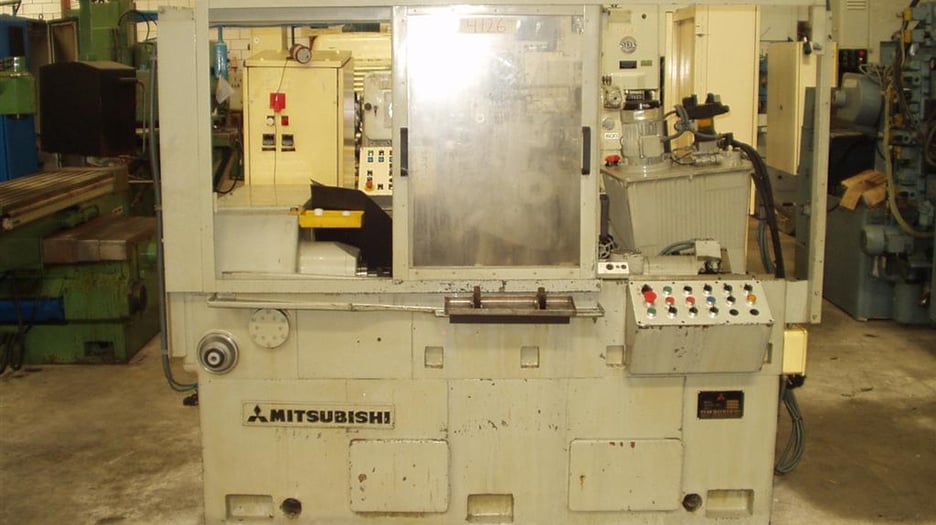

Used Mitsubishi SP 181 Spline Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used Mitsubishi SP 181 spline hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. It cuts splines on shafts by hobbing.

It handles module 6 work with a hobbing length of 900 mm and a maximum workpiece length of 1,000 mm. The table is Ø240 mm, and the machine weighs 6 t.

Technical Specifications

• Model: SP 181
• Module: 6
• Hobbing length: 900 mm
• Maximum workpiece length: 1,000 mm
• Table diameter: Ø240 mm
• Voltage: 220/380 V
• Length: 2,260 mm
• Width: 1,500 mm
• Height: 1,800 mm
• Weight: 6 t

Applications

• Splined shafts for transmissions and gearboxes
• Drive shafts and power transmission components
• General engineering and machine building parts

Commercial Details

• Make: Mitsubishi
• Model: SP 181
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum workpiece length? The machine takes workpieces up to 1,000 mm long, with a hobbing length of 900 mm.
• What module can it cut? It is specified for module 6.
• What are the machine's size and weight? It measures 2,260 mm long, 1,500 mm wide and 1,800 mm high, and weighs 6 t.
• What should I ask when enquiring? Ask for photos or video of the machine running, whether an inspection is possible, which hobs, arbors and accessories are included, the condition of the control and electrics (220/380 V), and loading and shipping arrangements for a 6 t machine.
