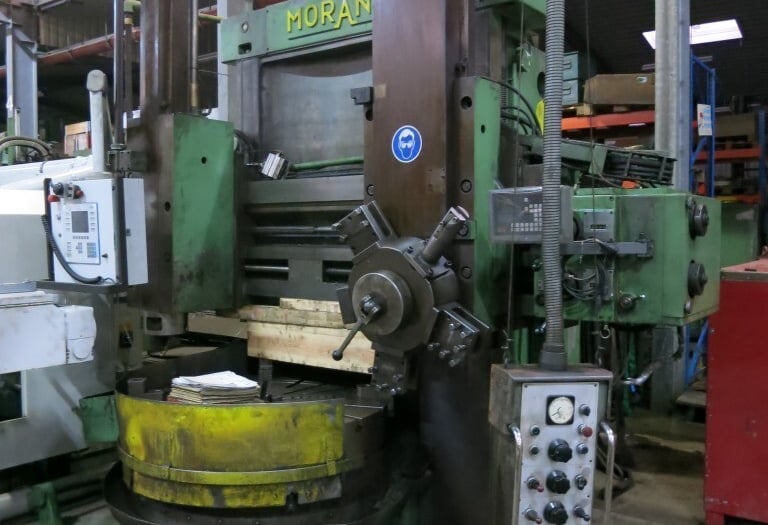

Used Morando KL 12 Single Column Vertical Turret Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Morando KL 12 single column vertical turret lathe is available from A.K. Machine Traders in Navi Mumbai, India. It turns large, heavy workpieces held on a horizontal faceplate.

It has a 1,200 mm faceplate, a 1,400 mm swing diameter and a turning height of 1,080 mm, and takes workpieces up to 6,000 kg. Turning speeds run from 5–250 U/min, driven by a 40 kW main gearbox motor.

Key Features

• Ram swivels through 35°
• Two slide adjustment lengths: 760 mm and 1,000 mm
• Cross travel of 800 mm

Technical Specifications

• Model: Morando KL 12
• Type: Single column vertical turret lathe
• Faceplate diameter: 1,200 mm
• Swing diameter: 1,400 mm
• Turning height: 1,080 mm
• Maximum workpiece weight: 6,000 kg
• Turning speeds: 5–250 U/min
• Ram swivel: 35°
• Slide adjustment: 760 mm and 1,000 mm
• Cross travel: 800 mm
• Main gearbox motor: 40 kW
• Total power requirement: 50 kW
• Machine weight: approx. 18 t
• Machine dimensions: approx. 3.2 × 2.8 × 3.1 m

Applications

• Large discs, flanges and rings
• Heavy housings and casings
• Wheels, hubs and pulleys
• Pump and valve bodies
• General heavy engineering components

Commercial Details

• Make: Morando
• Model: KL 12
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size workpiece can it take? It has a 1,200 mm faceplate, a 1,400 mm swing diameter and 1,080 mm turning height, with a workpiece weight of up to 6,000 kg.
• What power does it need? The main gearbox motor is 40 kW and the total power requirement is 50 kW.
• How big and heavy is the machine? It weighs approximately 18 t and measures approximately 3.2 × 2.8 × 3.1 m.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection arrangements, which tooling and accessories are included, the control and electrical details, and loading and shipping options.
