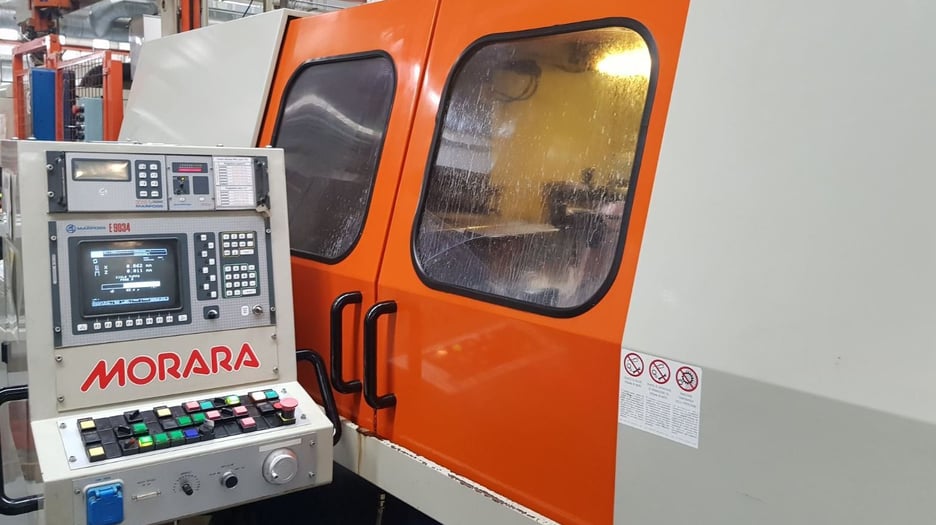

Used Morara ED 700 Cylindrical Grinder | A.K. Machine Traders, Navi Mumbai, India

This used Morara ED 700 cylindrical grinder is available from A.K. Machine Traders in Navi Mumbai, India. It grinds round workpieces to finish size and form, and is listed as the 2nd Edition 700.

It takes work up to 740 mm long and up to Ø 300 mm in diameter, and uses a Ø 760 mm grinding wheel driven by a 33 HP motor. The machine weighs 7,500 kg and has a table that adjusts from 0° to 9°.

Key Features

• Marposs measuring equipment noted on the machine
• Table adjustable from 0° to 9° for grinding tapers

Technical Specifications

• Make: Morara
• Model: 2nd Edition 700 (ED 700)
• Maximum grinding length: 740 mm
• Height: 170 mm
• Maximum grinding diameter: Ø 300 mm
• Wheel size: Ø 760 mm
• Power: 33 HP
• Table adjustment: 0°–9°
• Weight: 7,500 kg

Applications

• Grinding shafts and spindles
• Finishing rollers and cylindrical components
• Tapered work using the swivelling table
• Toolroom and general engineering production

Commercial Details

• Make: Morara
• Model: 2nd Edition 700 (ED 700)
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum grinding length? The machine grinds work up to 740 mm long.
• What is the largest diameter it can grind? It grinds up to Ø 300 mm maximum.
• How much does it weigh? The machine weighs 7,500 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and confirm the condition of the wheel head, table and slideways. Check the Marposs equipment, control and electrics, what accessories and wheel flanges are included, and the loading and shipping arrangements from Navi Mumbai.
