Used Nachi PFM 915 FSAL Rack Rolling Machine | A.K. Machine Traders, Navi Mumbai, India

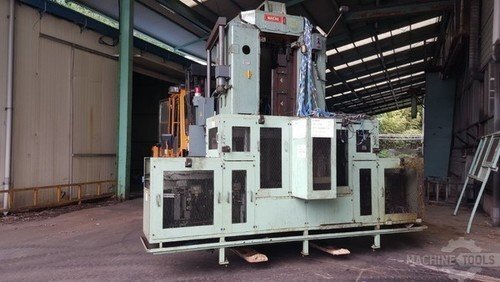

This used Nachi PFM 915 FSAL is available from A.K. Machine Traders in Navi Mumbai, India. The listing describes a CNC machine with a Fanuc control, rated for rolling diameters up to 40 mm and rack lengths up to 928 mm.

It offers a rack stroke of 1,150 mm and accepts a rack holder up to 200 mm wide. The machine weighs 12,000 kg.

Key Features

• CNC control by Fanuc

Technical Specifications

• Model: PFM 915 FSAL
• Max rolling diameter: 40 mm
• Max rack length: 928 mm
• Max rack holder width: 200 mm
• Max rack stroke: 1,150 mm
• Max rolling module: 1.30 m
• Opening section distance: 139.7 mm
• Control: CNC (Fanuc)
• Dimensions: 1,900 × 2,700 mm
• Weight: 12,000 kg

Applications

• Rolling of racks and similar toothed or profiled round components
• Production of parts up to 40 mm in diameter
• Component manufacture requiring CNC-controlled rolling

Commercial Details

• Make: Nachi
• Model: PFM 915 FSAL
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum rolling diameter? The machine handles a maximum rolling diameter of 40 mm.
• What control does it use? It has a Fanuc CNC control.
• What is the maximum rack length? The maximum rack length is 928 mm, with a rack stroke of 1,150 mm.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, which tooling and accessories are included, the condition of the Fanuc control and electrics, and loading and shipping arrangements for a 12,000 kg machine.
