Used Nagel PV-150 Honing Machine | A.K. Machine Traders, Navi Mumbai, India

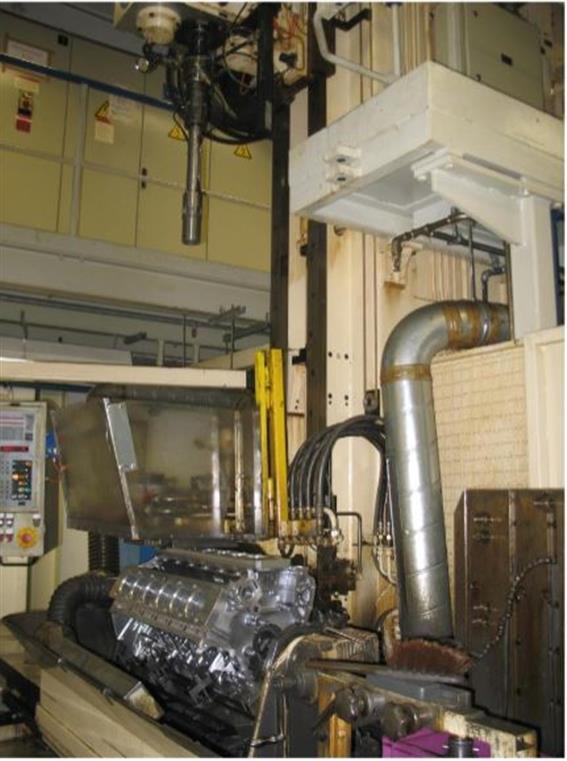

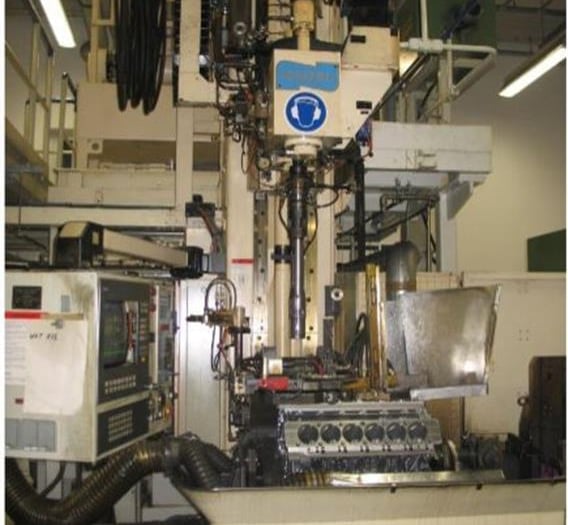

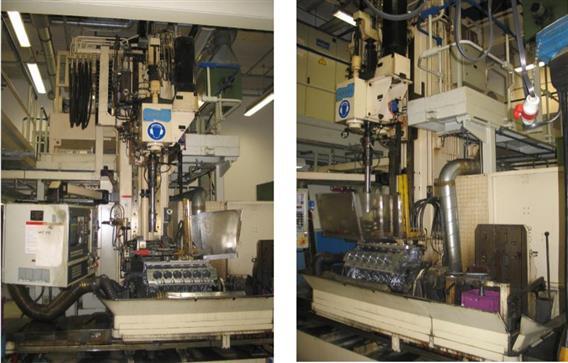

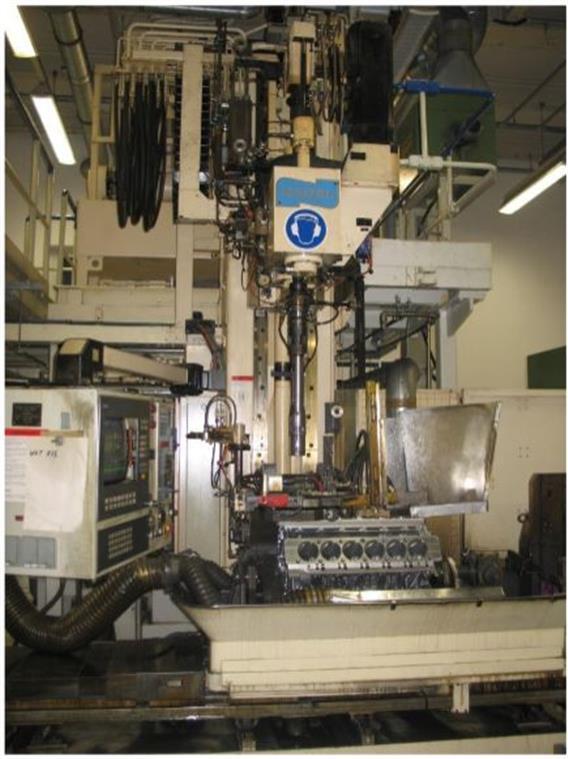

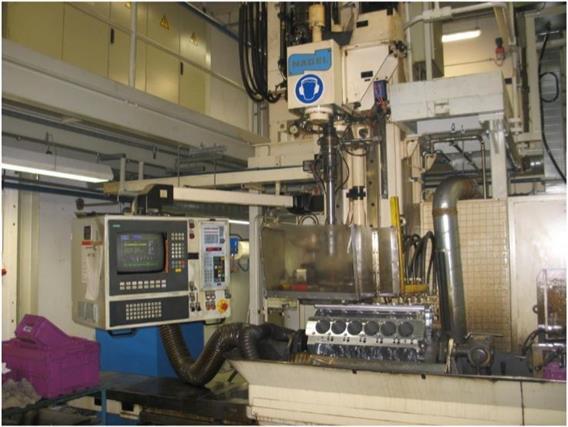

This used Nagel PV-150 honing machine is available from A.K. Machine Traders in Navi Mumbai, India. Honing machines finish the inside of bores to a precise size and surface.

It hones bores from 10–120 mm in diameter, with a maximum honing length of 700 mm and a spindle stroke of 350 mm. Spindle speed is stepless from 80–1,500 rpm, and the machine is fitted with an MS-U2 control holding 99 programmes.

Key Features

• MS-U2 control with 99 programmes
• Tool control by hydraulic, EMZ or Makroform systems
• Dimensional control by air measurement
• Swivel table fixed at 0, 30 or 45 degrees
• Variable flushing ring, 60–105 mm

Technical Specifications

• Model: Nagel PV-150
• Honing diameter: 10–120 mm
• Maximum honing length: 700 mm
• Stroke: 350 mm
• Z-spindle stroke: 350 mm
• Z-slide stroke: 1,500 mm
• Cross slide travel: ±60 mm
• Longitudinal travel: 1,800 mm
• Spindle speed: 80–1,500 rpm, stepless
• Swivel table positions: 0 / 30 / 45
• Flushing ring: Variable, 60–105 mm
• Control: MS-U2, 99 programmes
• Tool control: Hydraulic / EMZ / Makroform
• Dimensional control: Air measurement

Applications

• Honing of cylinder bores
• Finishing hydraulic and pneumatic cylinder bores
• Bore finishing of engine and gearbox components
• Precision bore sizing in general machining and toolroom work

Commercial Details

• Make: Nagel
• Model: PV-150
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What bore sizes can it hone? It hones bores from 10–120 mm in diameter, up to a maximum honing length of 700 mm.
• What control does it have? It has an MS-U2 control with 99 programmes and air measurement for dimensional control.
• What spindle speed range does it offer? Spindle speed is stepless from 80–1,500 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which tooling, honing heads and measuring equipment are included, the condition of the MS-U2 control and electrics, and loading and shipping arrangements.
