Used Nakamura BMT 1624L CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

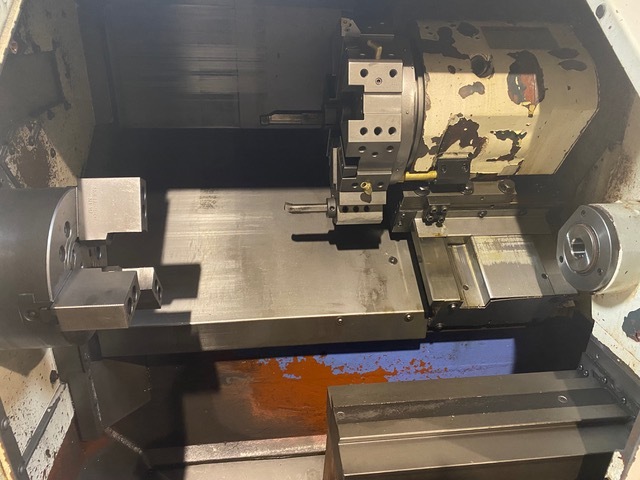

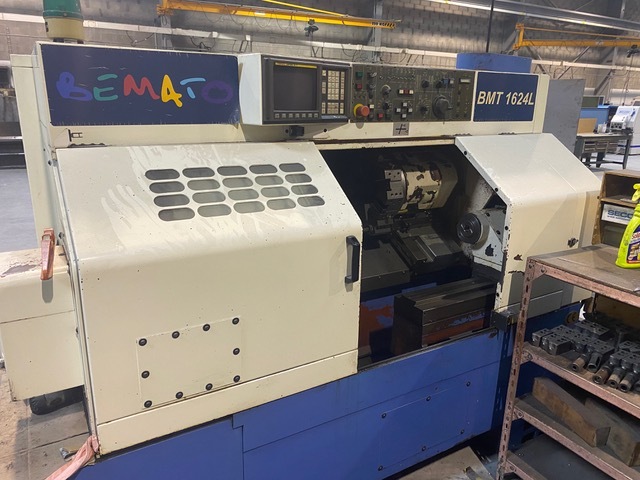

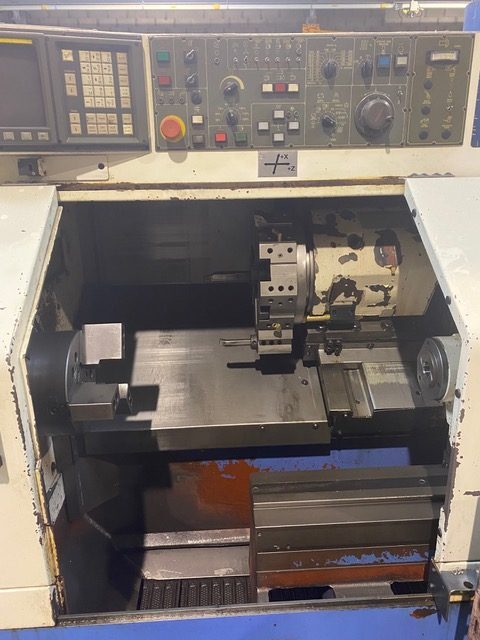

This used Nakamura BMT 1624L CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC turning machine for producing round parts from bar or workpieces held in the chuck.

It turns up to 330 mm diameter with 540 mm between centres. The spindle has an A2-6 nose, a 52 mm bore and a 15 HP motor running up to 3,500 rpm.

Technical Specifications

• Model: BMT 1624L
• Maximum turning diameter: 330 mm
• Distance between centres: 540 mm
• Spindle nose: A2-6
• Spindle bore: 52 mm

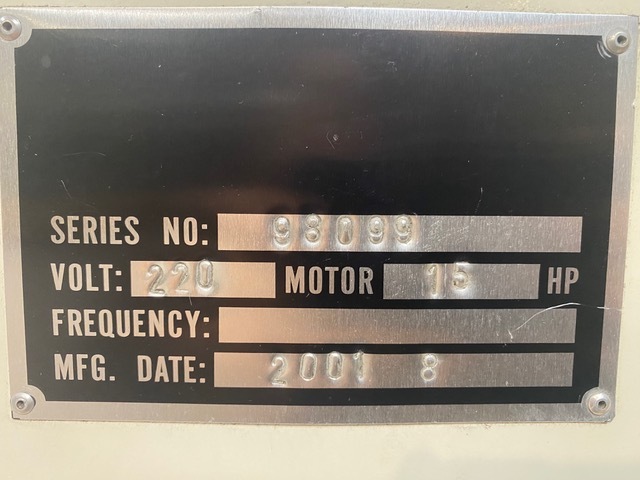

• Spindle motor: 15 HP
• Spindle speed: 3,500 rpm

Applications

• Shafts and pins turned to diameter
• Bushings and sleeves
• Flanges and round machined components
• General engineering and job-shop turning

Commercial Details

• Make: Nakamura
• Model: BMT 1624L
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of part can this lathe turn? It turns up to 330 mm in diameter, with 540 mm between centres.
• What is the spindle specification? The spindle has an A2-6 nose, a 52 mm bore, a 15 HP motor and a top speed of 3,500 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection can be arranged. Confirm which chuck, tooling and accessories are included, the control model and electrical supply, and the arrangements for loading and shipping.
