Used Niles ZSTZ 630 C3P Gear Grinding Machine | A.K. Machine Traders, Navi Mumbai, India

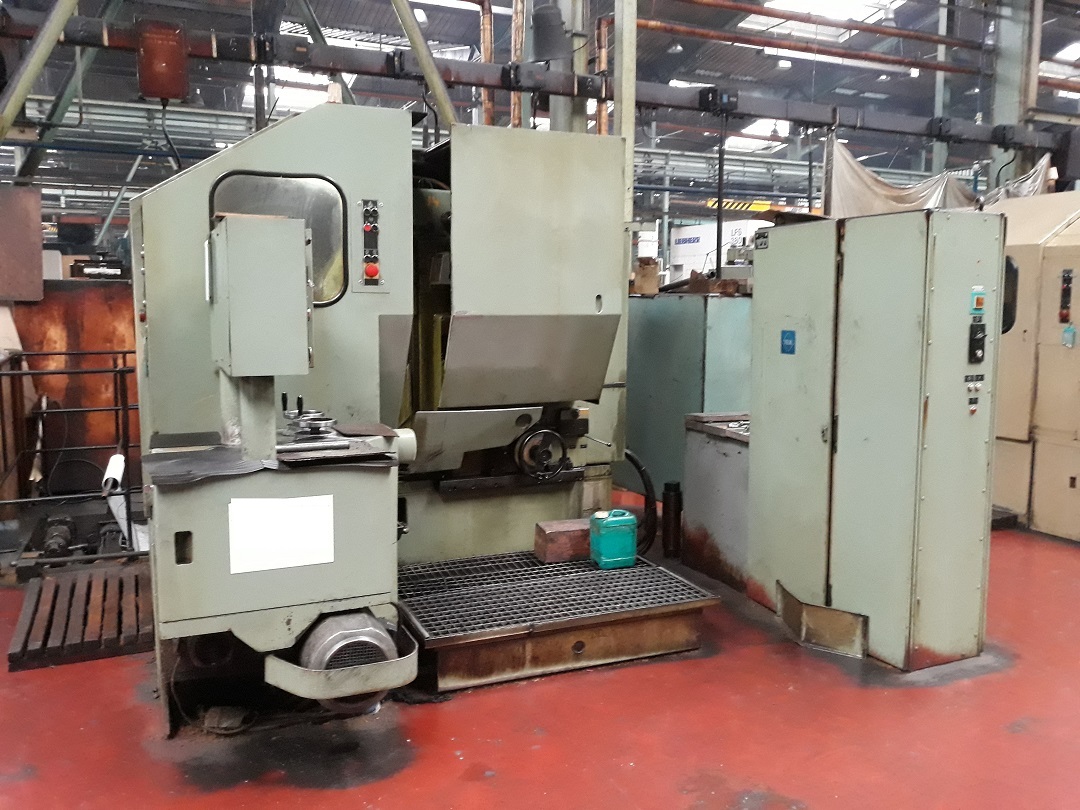

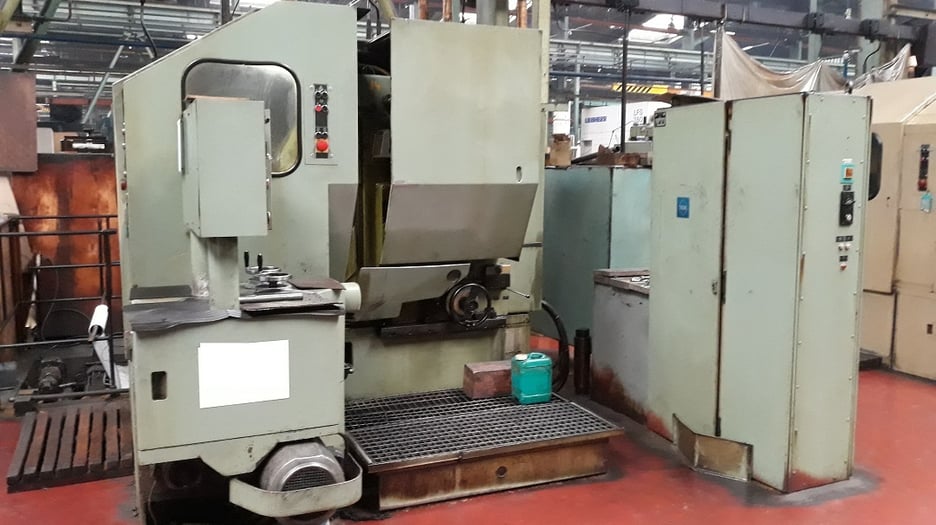

This used Niles ZSTZ 630 C3P gear grinding machine is available from A.K. Machine Traders in Navi Mumbai, India. It is a gear grinder for finishing the teeth of cylindrical gears.

It takes gears up to 630 mm in diameter and 215 mm in face width, with modules from 1 to 12 and 5–140 teeth. The maximum helical angle is 45°, and the table carries up to 400 kp.

Technical Specifications

• Model: Niles ZSTZ 630 C3P
• Max. wheel diameter: 630 mm
• Gear width: 215 mm
• Module: 1–12
• Number of teeth: 5–140
• Max. stroke length: 225 mm
• Table diameter: 500 mm
• Table load: 400 kp
• Grinding wheel diameter: 270–350 mm
• Max. helical angle: 45°
• Number of strokes: 75–315 per minute
• Total power requirement: 8.0 kW
• Machine weight: approx. 6.3 t
• Machine dimensions: approx. 3.2 x 3.6 x 3.7 m

Applications

• Finish grinding of spur and helical gears
• Precision gears for gearboxes and transmissions
• Gear production and toolroom work in the module 1–12 range

Commercial Details

• Make: Niles
• Model: ZSTZ 630 C3P
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What gear sizes can it grind? It handles gears up to 630 mm in diameter and 215 mm face width, with modules 1–12 and 5–140 teeth.
• Can it grind helical gears? Yes, up to a maximum helical angle of 45°.
• What space and power does it need? The machine measures approx. 3.2 x 3.6 x 3.7 m, weighs approx. 6.3 t and has a total power requirement of 8.0 kW.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, which accessories, wheels and fixtures are included, the condition of the control and electrics, and loading and shipping arrangements.
