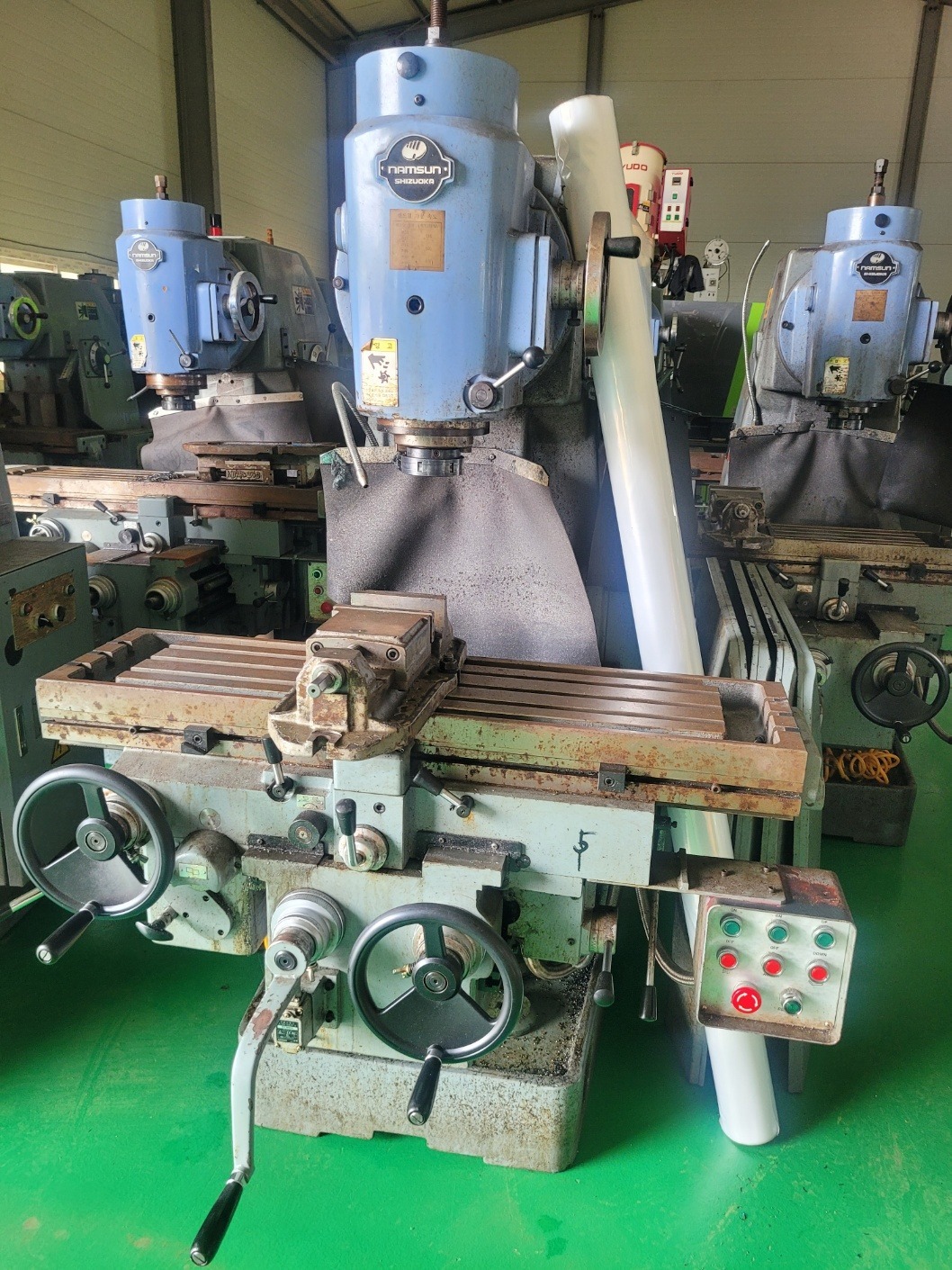

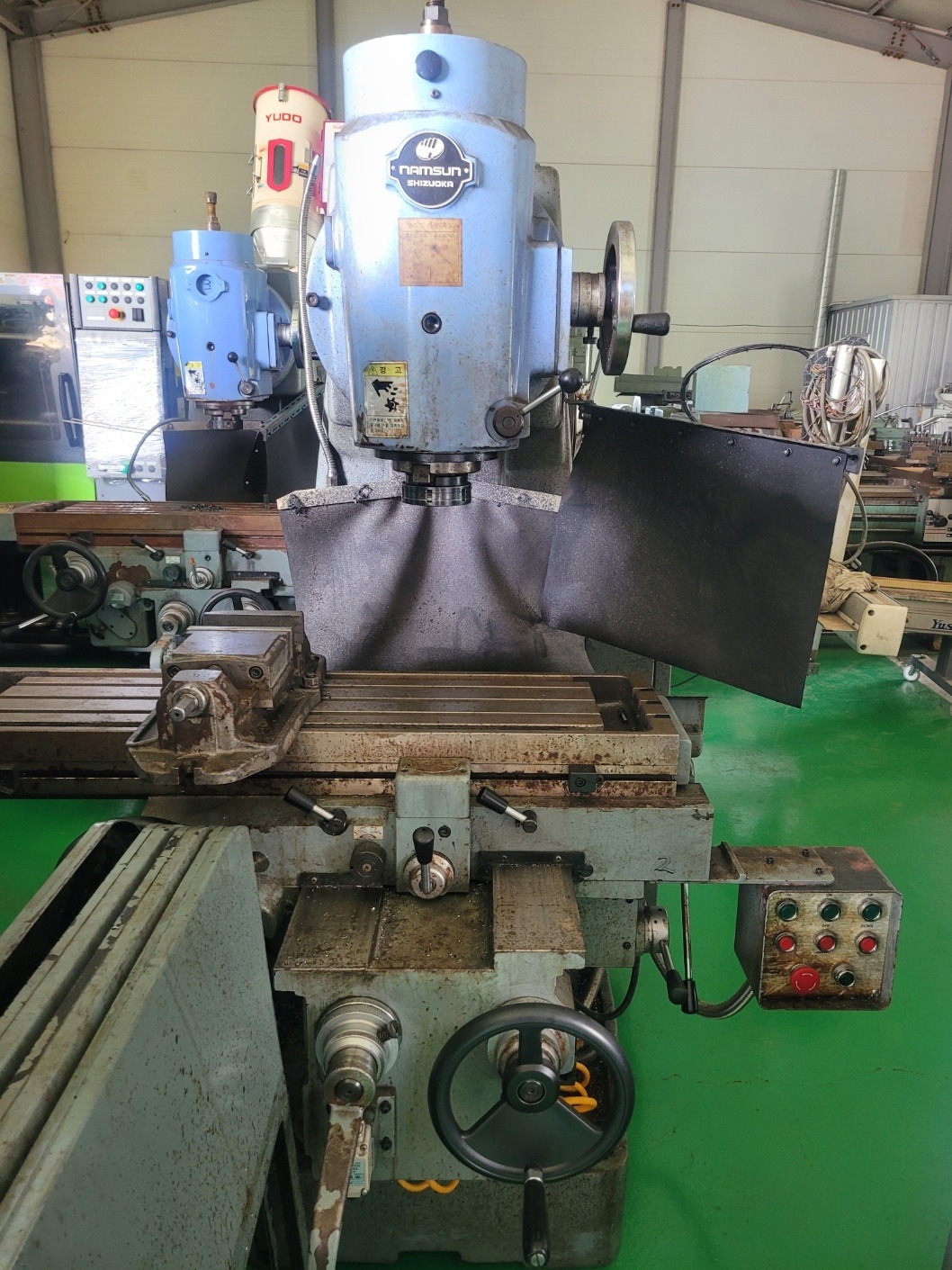

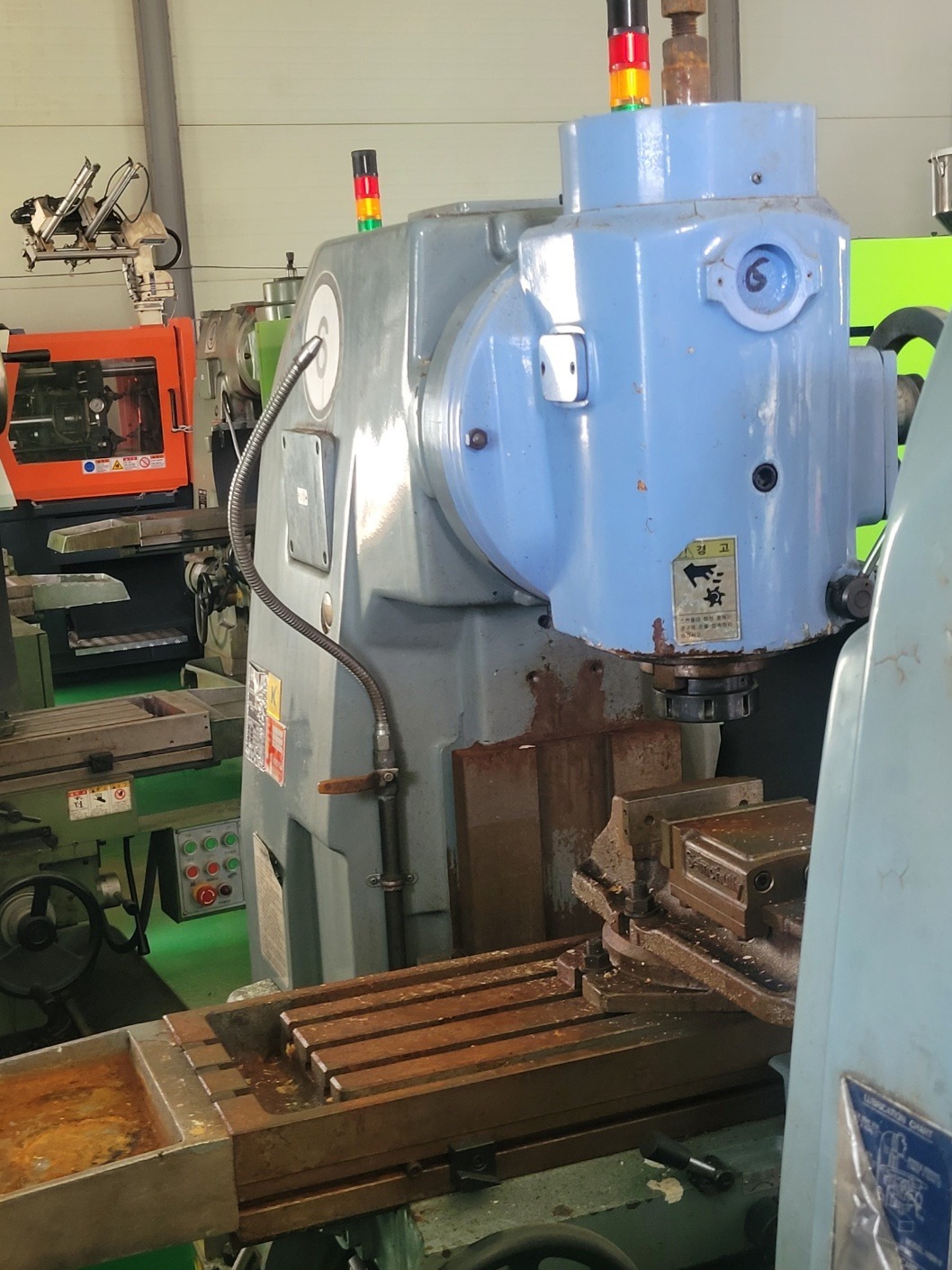

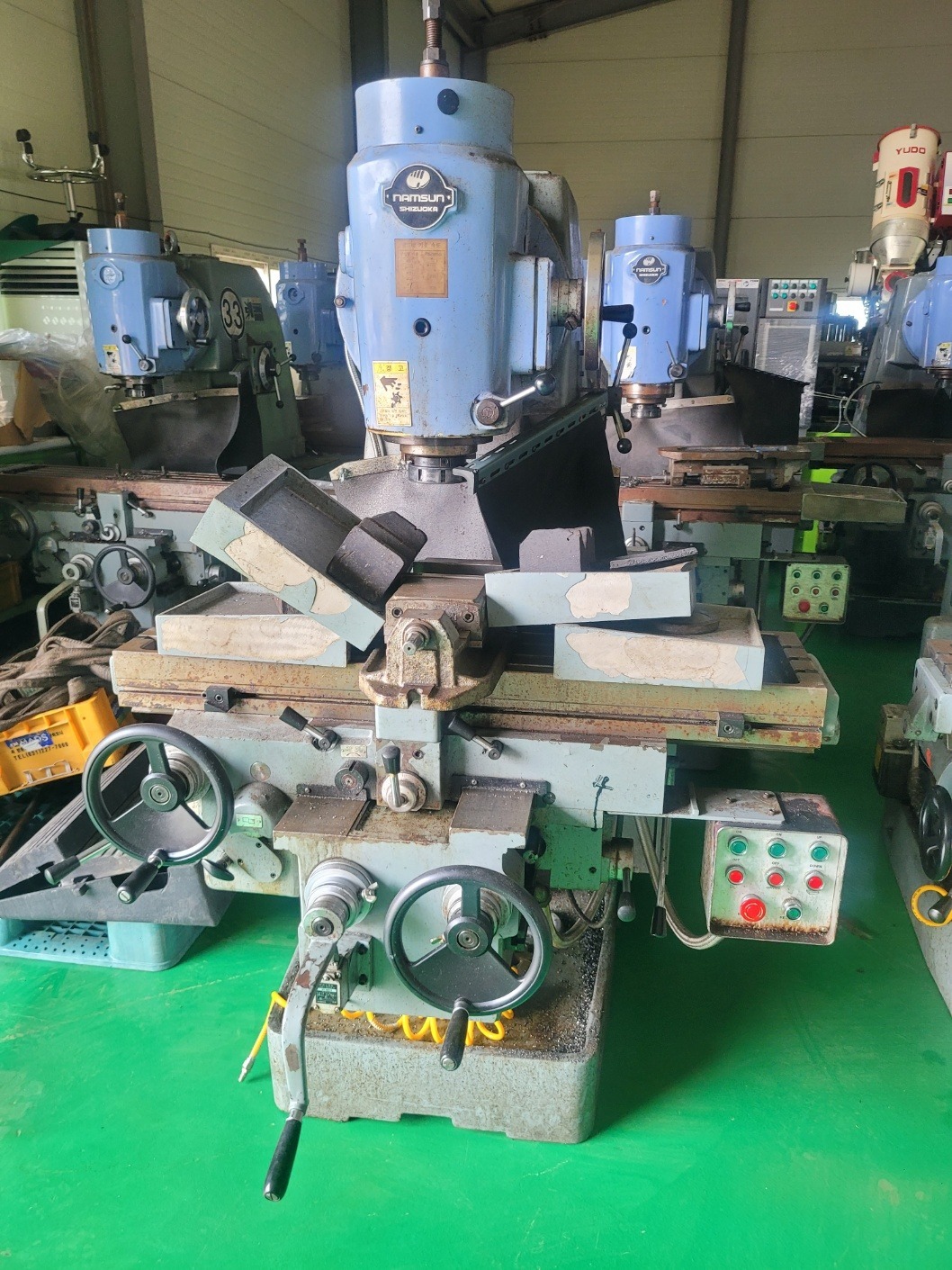

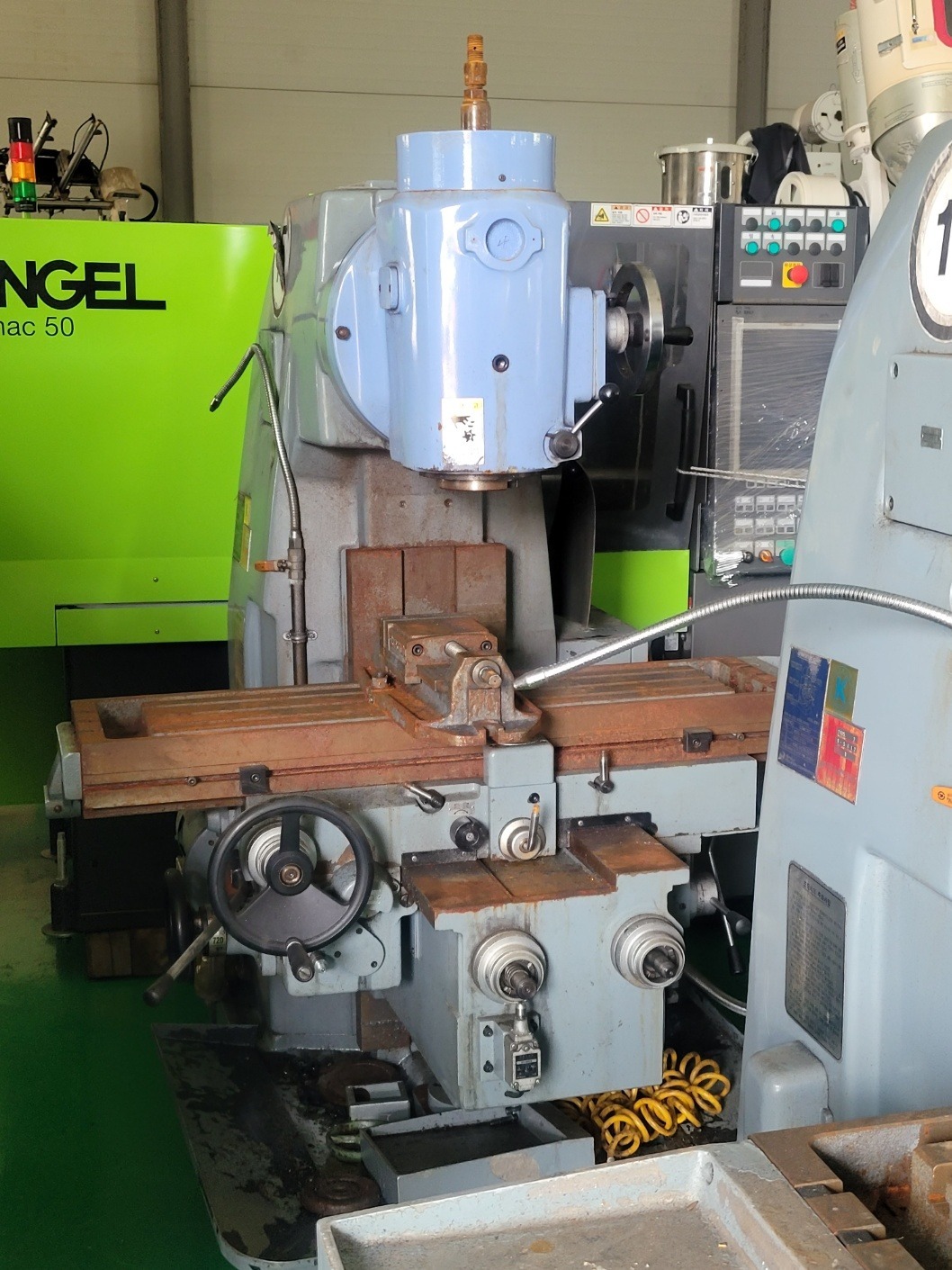

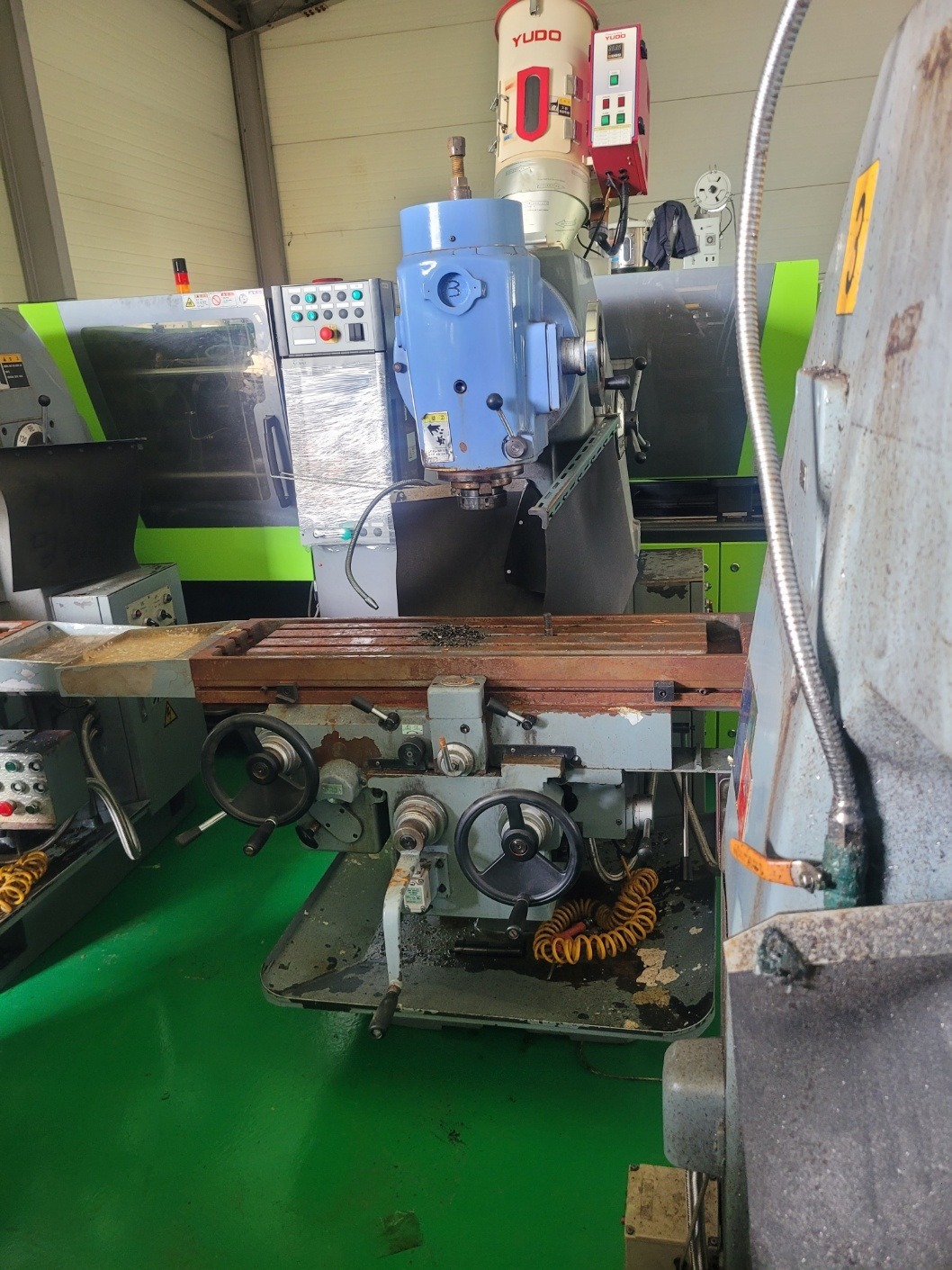

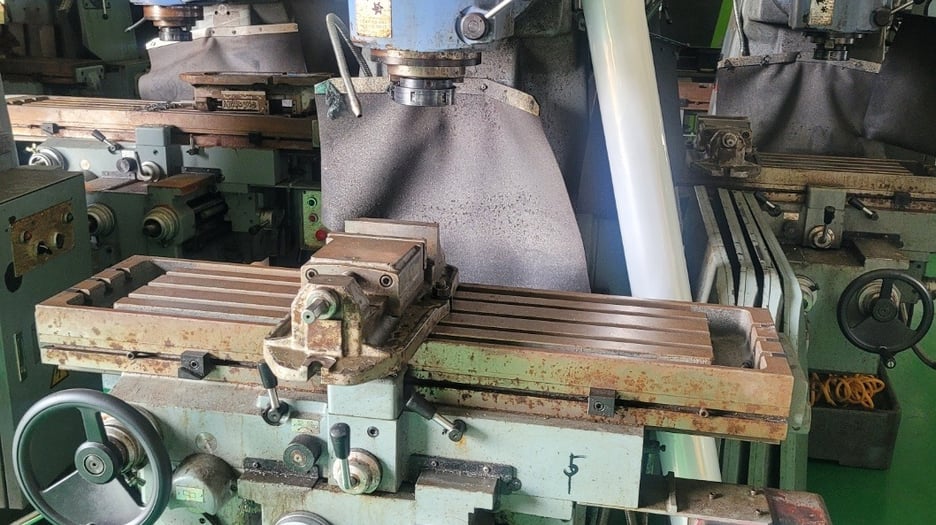

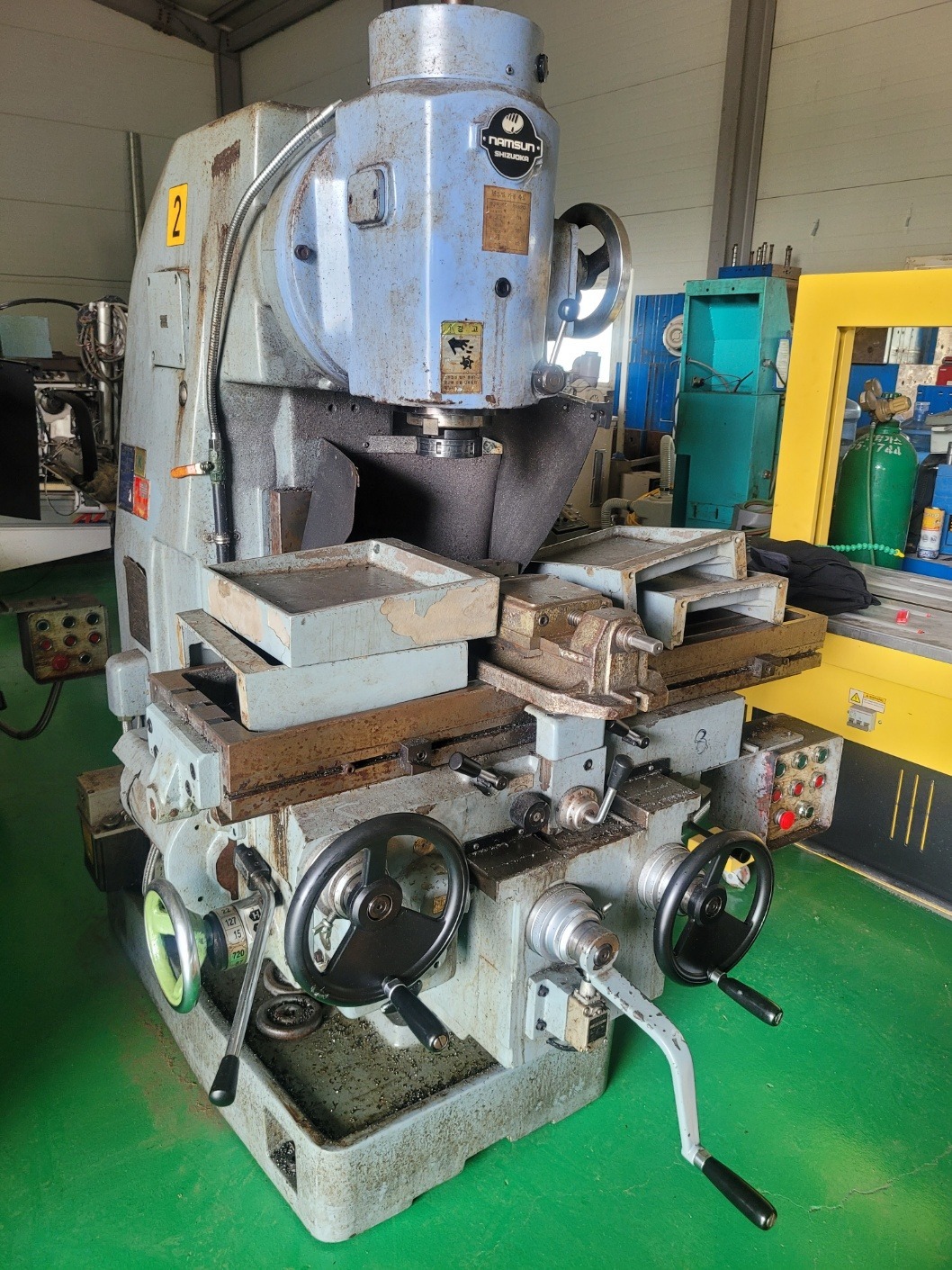

Used NSM-V Vertical Milling Machine | A.K. Machine Traders, Navi Mumbai, India

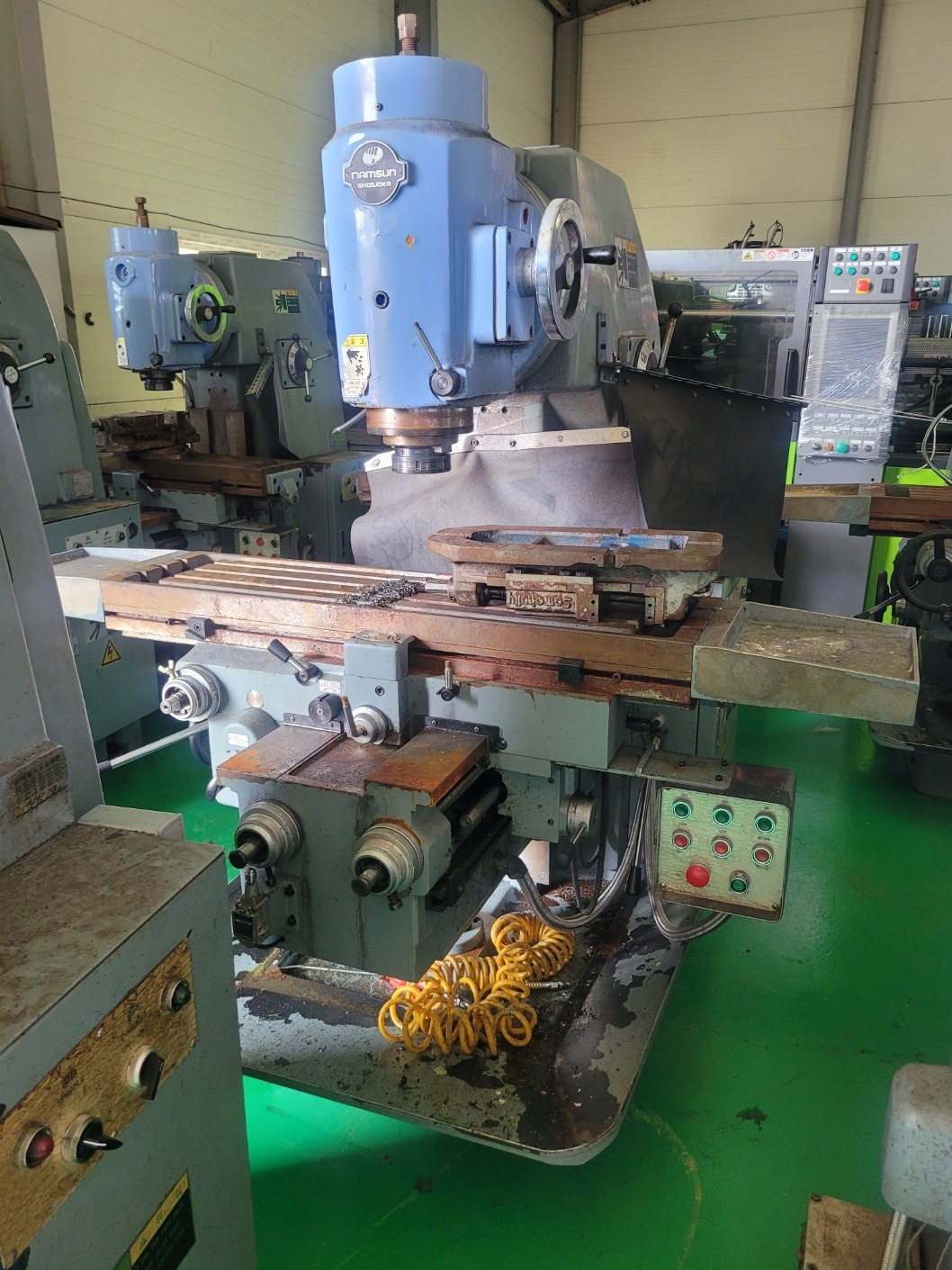

This used NSM-V vertical milling machine is available from A.K. Machine Traders in Navi Mumbai, India. A vertical mill cuts metal parts with a rotating tool held in an upright spindle.

The NSM-V has a 1,100 x 280 mm table that carries up to 250 kg. It travels 820 mm in X, 300 mm in Y and 450 mm in Z, and the head tilts ±45°. The NT50 spindle runs at 90–1,400 rpm.

Key Features

• Head tilts ±45° for angled milling
• Quill vertical traverse of 90 mm
• NT50 spindle taper

Technical Specifications

• Model: NSM-V
• Table size: 1,100 x 280 mm
• Travel X/Y/Z: 820/300/450 mm
• Table loading capacity: 250 kg
• Spindle: NT50, 90–1,400 rpm
• Quill vertical traverse: 90 mm
• Rapid traverse X/Y/Z: 3,000/800 mm/min
• Head tilting angle: ±45°
• Weight: 2,100 kg

Applications

• Milling flat surfaces and slots in metal parts
• Machining angled faces using the tilting head
• Toolroom and general workshop machining
• Small to medium component production

Commercial Details

• Make: NSM
• Model: NSM-V
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size of the NSM-V? The table measures 1,100 x 280 mm and takes loads up to 250 kg.
• What is the spindle speed range? The NT50 spindle runs at 90–1,400 rpm.
• How far does the machine travel? Travel is 820 mm in X, 300 mm in Y and 450 mm in Z.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories and tooling are included, the condition of the electrics and controls, and loading and shipping arrangements for its 2,100 kg weight.
