Used O-M VTL-7 Vertical Turret Lathe | A.K. Machine Traders, Navi Mumbai, India

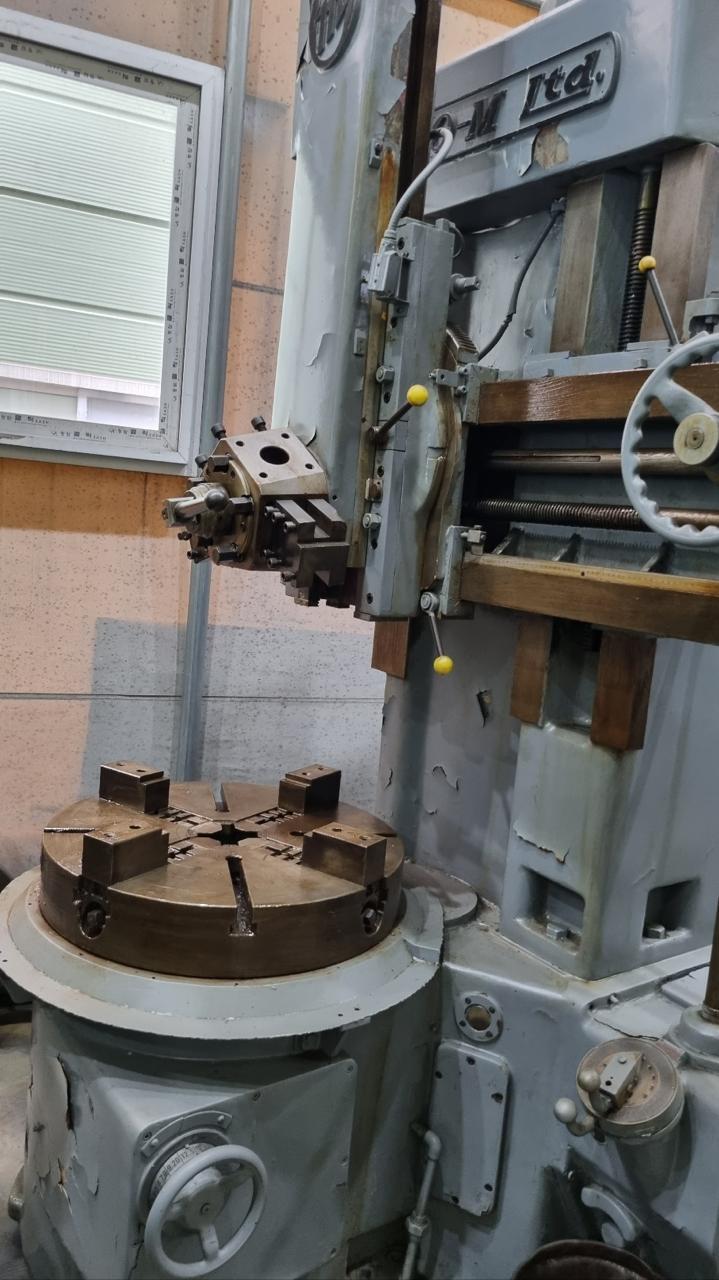

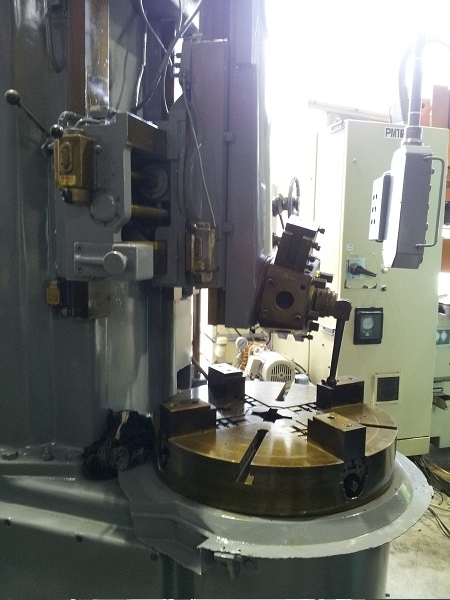

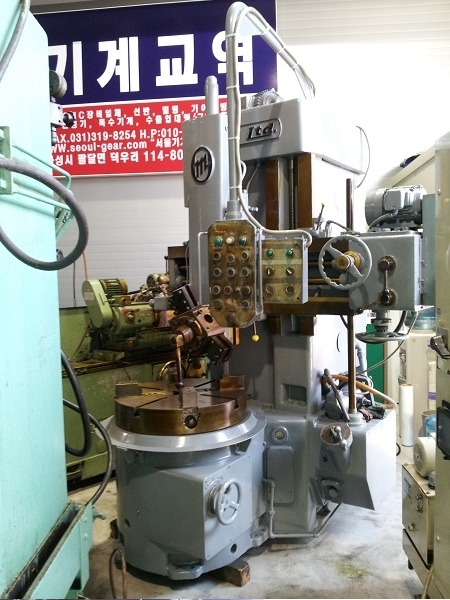

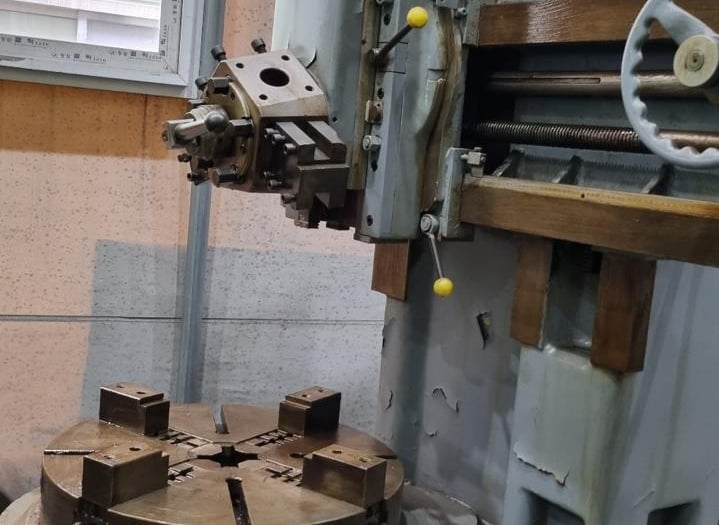

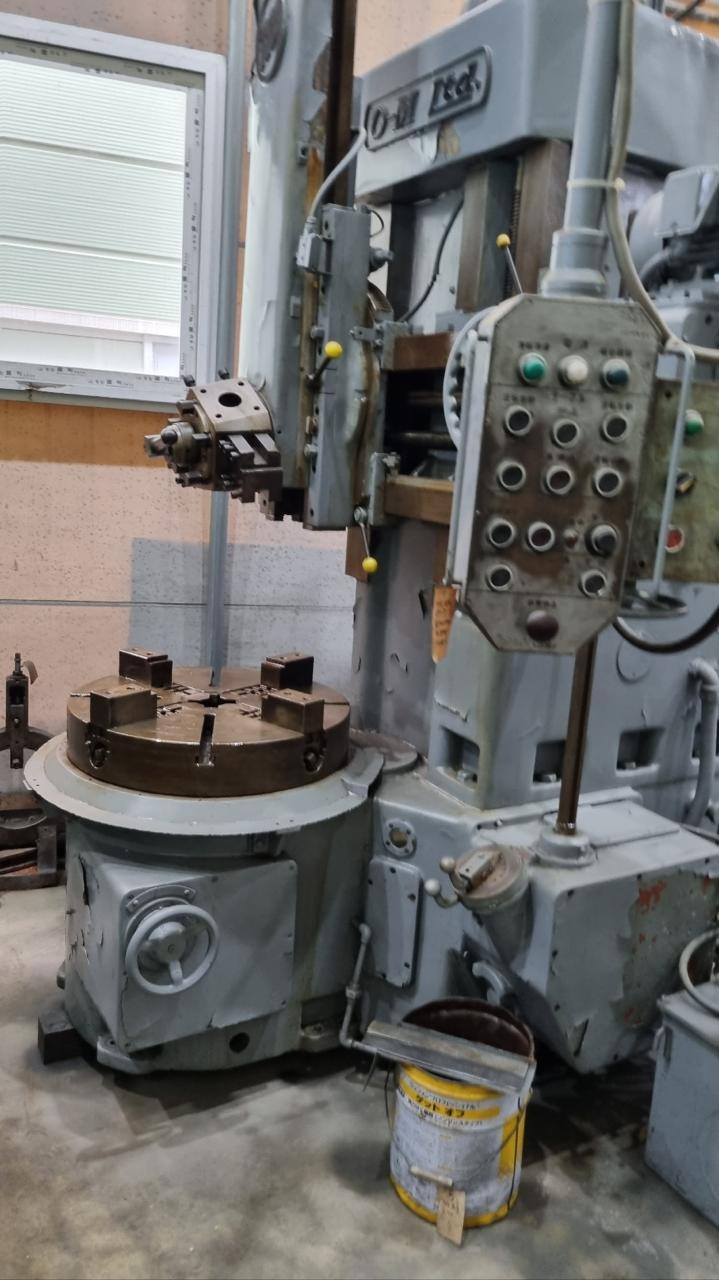

This used O-M VTL-7 vertical turret lathe is available from A.K. Machine Traders in Navi Mumbai, India. It turns round workpieces held on a horizontal rotating table, with a turret head carrying the tools.

The VTL-7 has a 700 mm table and turns up to 900 mm in diameter and 650 mm high. It takes workpieces up to 1,000 kg, with a table speed range of 5–500 RPM in 16 steps.

Key Features

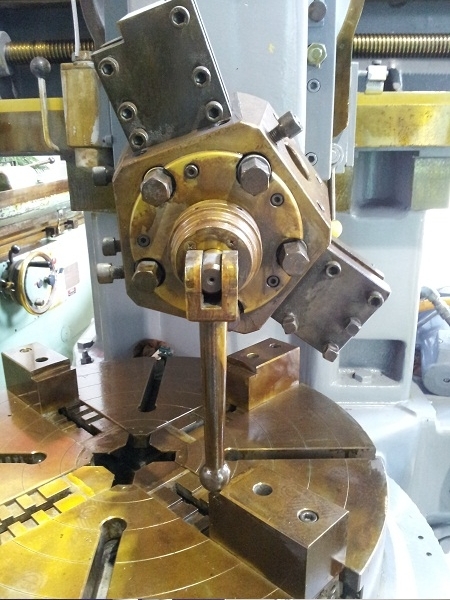

• Five-position turret head with 50 mm tool mounting holes
• Turret head swivels 30° to the left and to the right
• Turret head feed in 12 steps, covering up/down, left/right and inclined movement
• Motorised cross rail up/down movement
• Motorised fast-run for the turret head

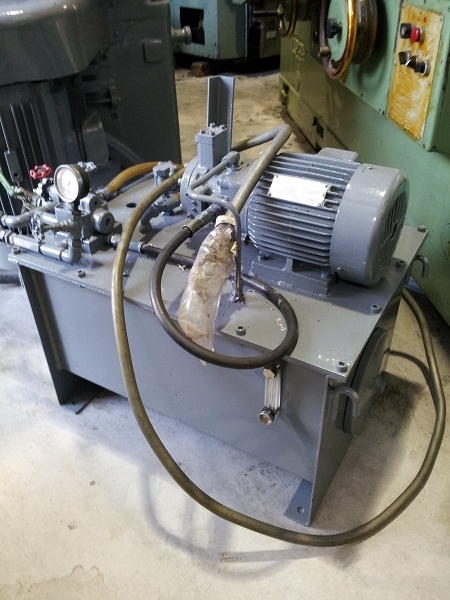

• Separate lubricating oil pump motor

Technical Specifications

• Model: O-M VTL-7

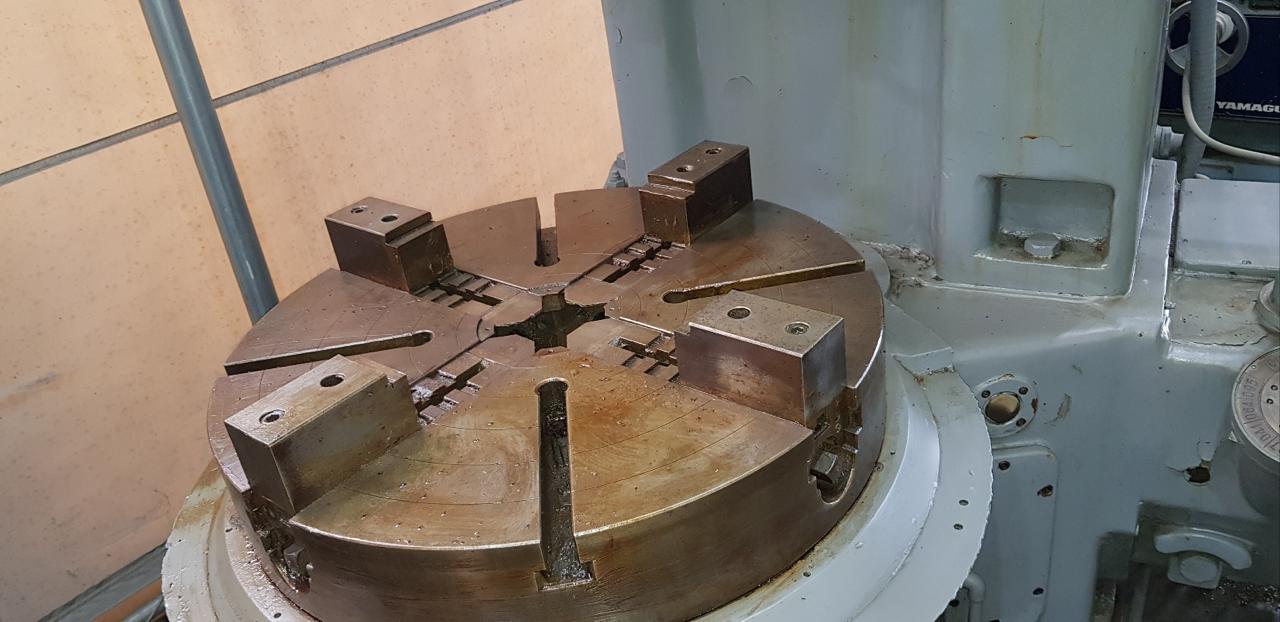

• Table diameter: 700 mm
• Maximum turning diameter: 900 mm
• Maximum turning height above table: 650 mm
• Maximum workpiece weight: 1,000 kg
• Maximum rotational force: 700 kg-m
• Table speed: 5–500 RPM, 16 steps
• Turret head travel (up/down): 650 mm
• Turret head swivel: 30° left and 30° right
• Turret head tool holes: 5, each 50 mm diameter
• Tool bit size: 25 × 25 mm
• Turret head feed rate: 0.05–5 mm/rev, 12 steps
• Turret head fast run: 1,250–1,500 mm/min
• Maximum height, cross rail bottom to table: 760 mm
• Cross rail up/down travel: 450 mm
• Cross rail up/down speed: 580–700 mm/min
• Main motor: 15 kW
• Cross rail motor: 1.5 kW
• Turret head fast-run motor: 1.5 kW
• Lubricating oil pump motor: 0.4 kW
• Maximum height: 5.110 m
• Front to back: 2.580 m
• Machine net weight: 5.5 t

Applications

• Large round and disc-shaped components
• Flanges, rings and hubs
• Wheels, pulleys and flywheels
• Heavy, short workpieces that are easier to mount flat on a table

Commercial Details

• Make: O-M
• Model: VTL-7
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest workpiece the O-M VTL-7 can turn? It turns up to 900 mm in diameter and 650 mm high above the table, with a maximum workpiece weight of 1,000 kg.
• What table speeds does it offer? The table runs at 5–500 RPM in 16 steps.
• How large is the main motor? The main motor is 15 kW.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection can be arranged. Confirm which tooling and accessories are included, the condition of the electrics and controls, and the loading and shipping arrangements.
