Used O-M VTO-12 CNC Vertical Turret Lathe | A.K. Machine Traders, Navi Mumbai, India

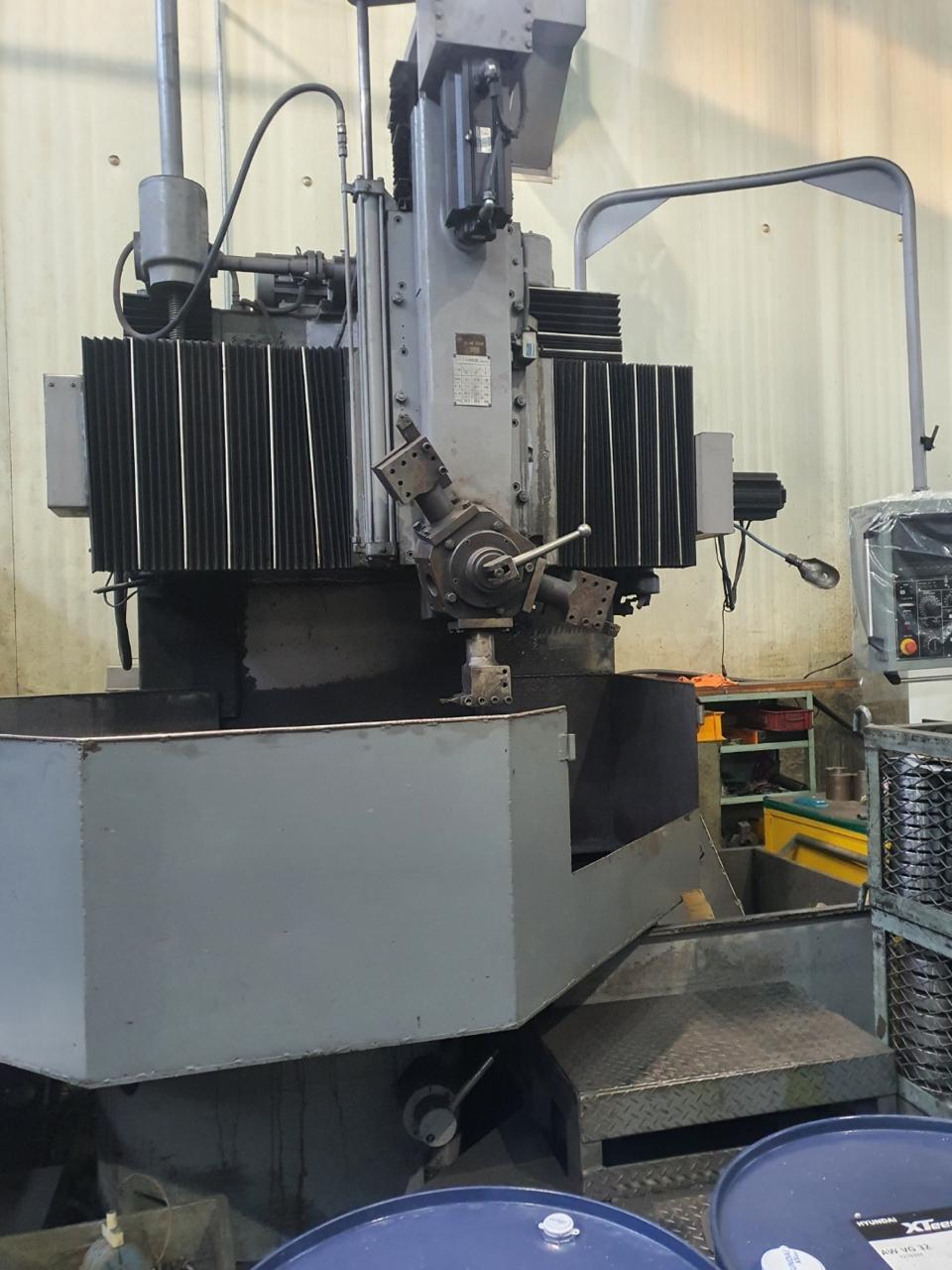

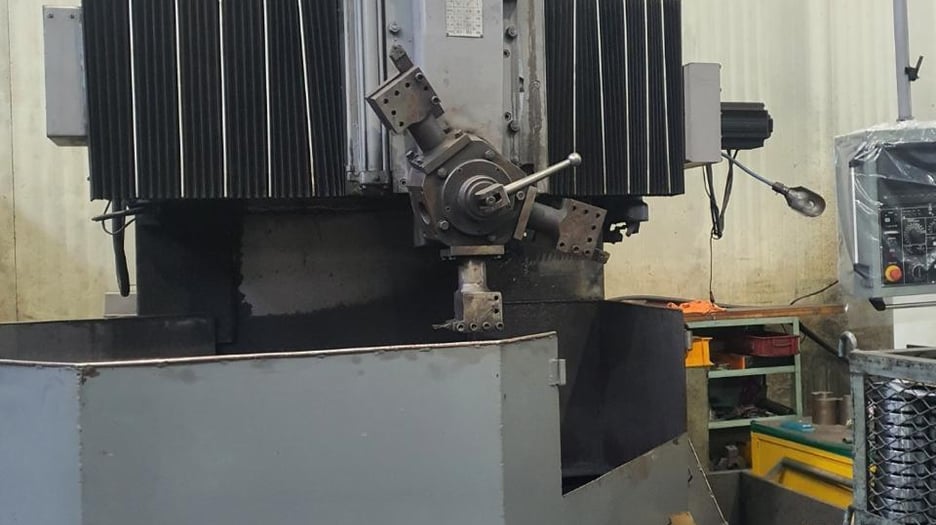

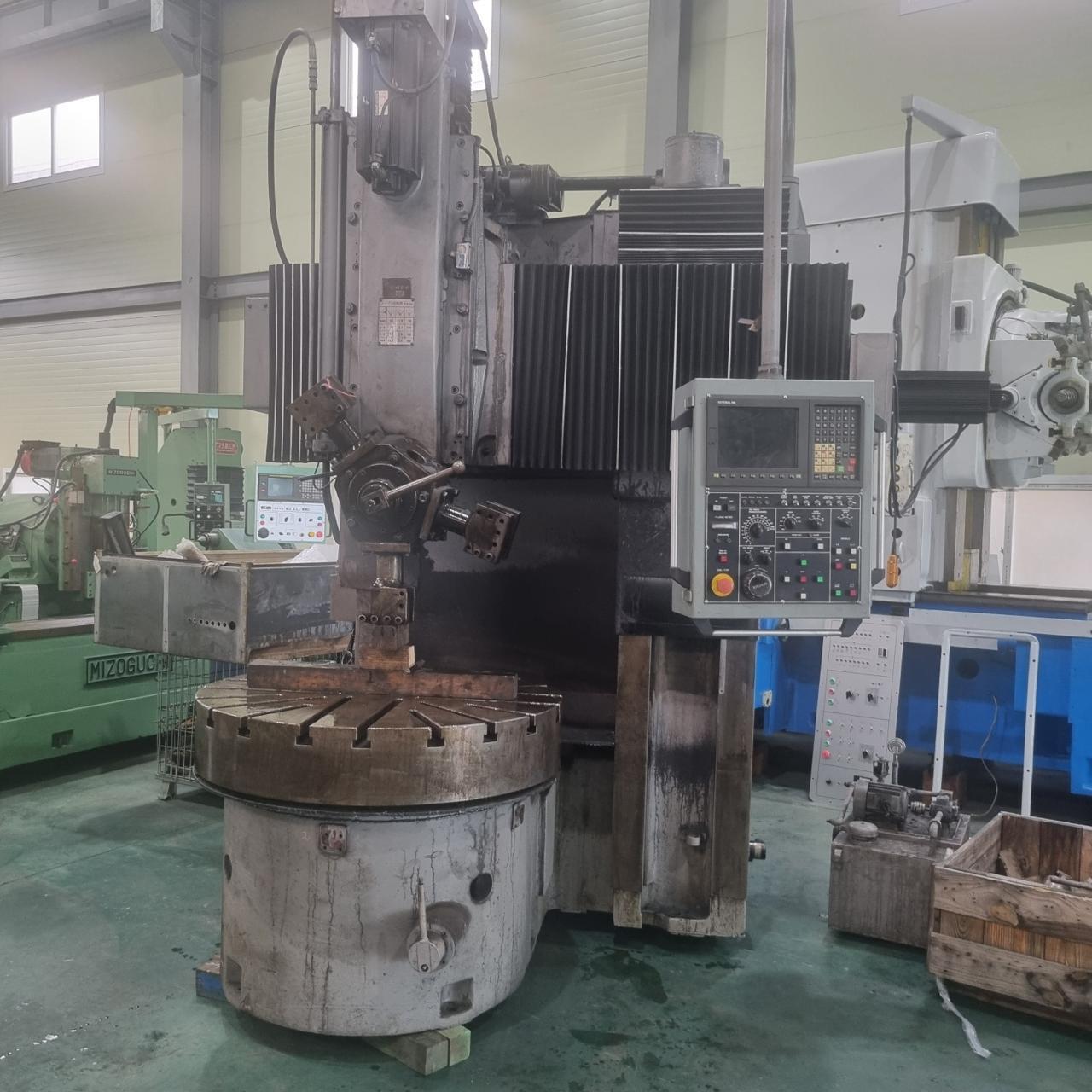

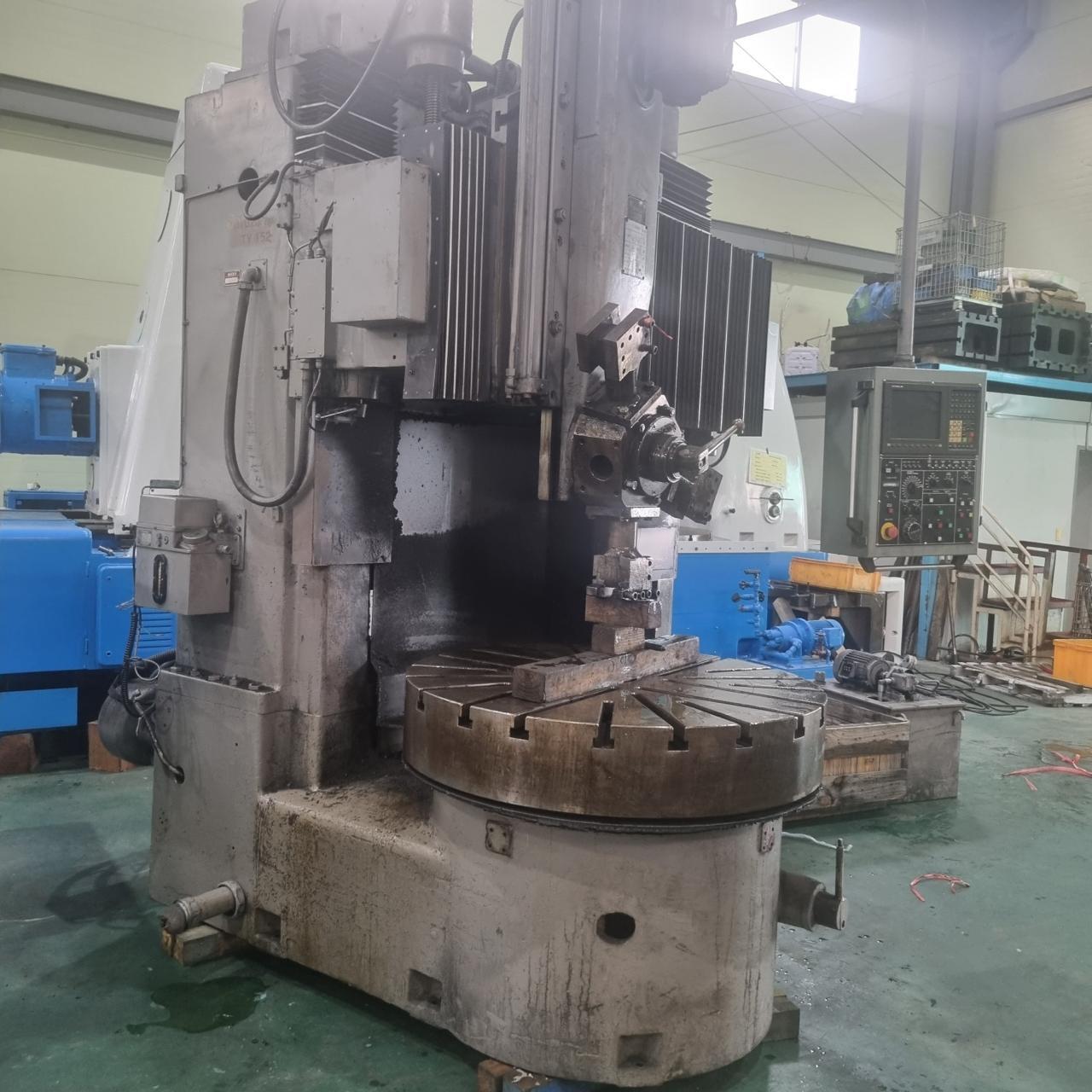

This used O-M VTO-12 CNC vertical turret lathe is available from A.K. Machine Traders in Navi Mumbai, India. It turns large, heavy workpieces held on a horizontal rotating table.

It has a 1,200 mm table, turns up to 1,600 mm in diameter and carries workpieces up to 4,000 kg. Table speed runs from 3.6 to 180 rpm in 12 steps, driven by a pole-change main motor.

Key Features

• Pole-change main motor for table speed changes
• 12-step table speed selection
• 12-step tool post feed selection
• Tool post tilts 30 each side to left and right
• Vertically moving cross rail

Technical Specifications

• Model: O-M VTO-12 CNC VTL

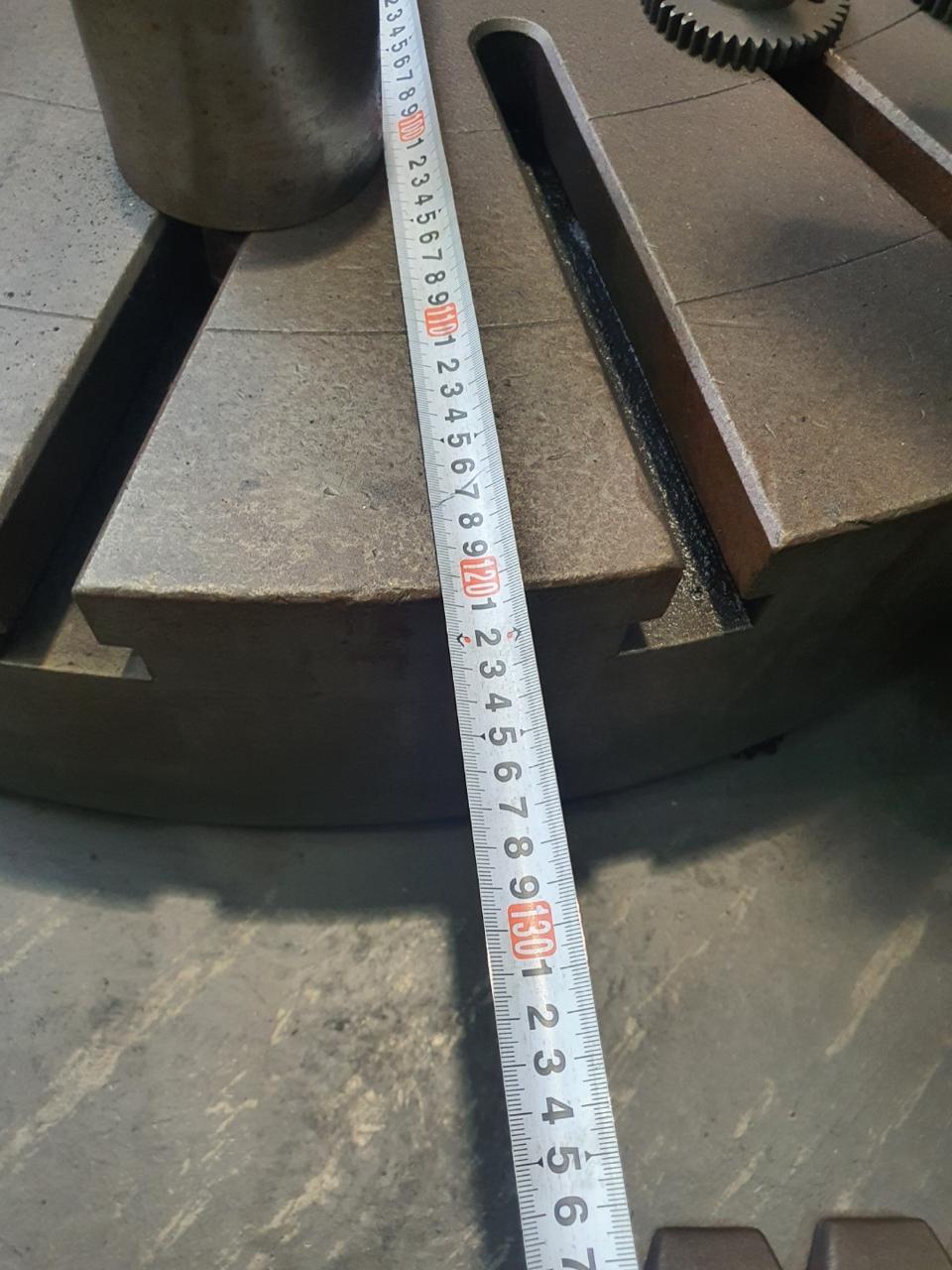

• Table diameter: 1,200 mm
• Max turning diameter: 1,600 mm
• Max turning height above table: 1,030 mm (920 mm)
• Max workpiece weight: 4,000 kg
• Table speed: 3.6–180 rpm, 12 steps
• Tool post feed: 0.07–3 mm/rev, 12 steps
• Tool post rapid traverse: 50/60 Hz: 1,670/2,000 mm/min
• Turret head vertical traverse: 700 mm
• Tool post vertical travel: 700 mm
• Tool rest horizontal travel: 940 mm
• Tool post tilt: 30 each, left and right
• Tool holder mounting hole diameter: 70 mm each, left and right
• Max tool bit size: 35 × 35 mm
• Max rotational force: 1,000 kg-m
• Max height, cross rail bottom to table: 1,180 mm
• Cross rail vertical movement: 600 mm
• Cross rail speed: 50/60 Hz: 290/350 mm/min
• Main motor (pole change): 20/15/11/11 kW
• Tool post rapid traverse motor: 2.2 kW
• Cross rail motor: 1.5 kW
• Lubricating hydraulic pump motor: 0.4 kW
• Max height: 3,861 mm (3,625 mm)
• Front to back: 3,335 mm
• Width: 2,452 mm
• Weight: 8,800 kg

Applications

• Large discs, flanges and rings
• Heavy castings and forgings
• Wheels, hubs and pulleys
• Large-diameter housings and bearing parts

Commercial Details

• Make: O-M
• Model: VTO-12
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest workpiece it can take? It turns up to 1,600 mm in diameter and handles workpieces up to 4,000 kg on a 1,200 mm table.
• What table speeds are available? Table speed is 3.6–180 rpm in 12 steps.
• How heavy is the machine? The machine weighs 8,800 kg and stands 3,861 mm (3,625 mm) high at its maximum.

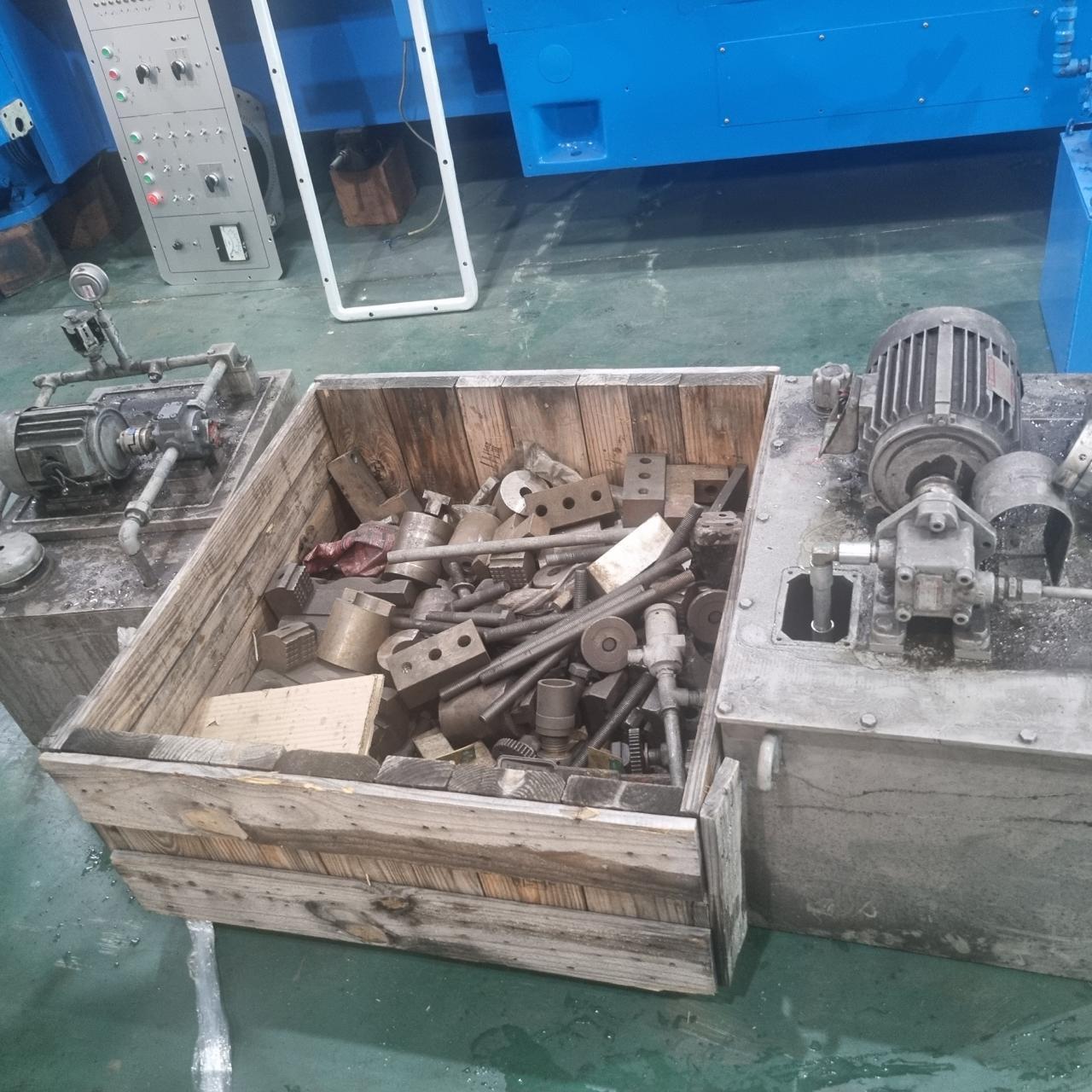

• What should I ask when enquiring? Ask for photos or video of the machine running under power, inspection arrangements, the CNC control type and electrics, which tooling and accessories are included, and loading and shipping details.
